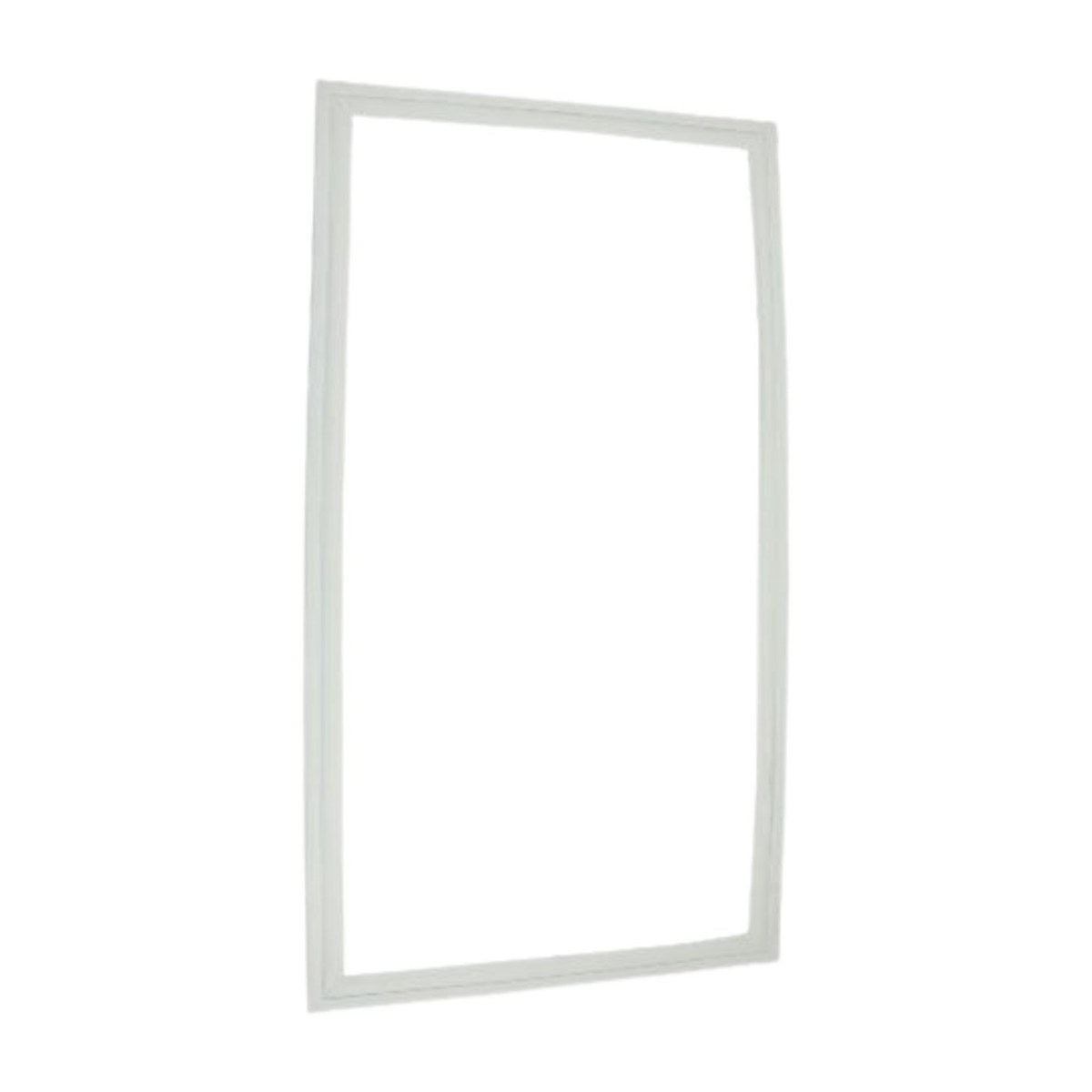

819823P Genuine Freezer Door Seal for Fisher & Paykel Top Mount Fridges E521T E521TRX E521TLX E521TRT E521TLT E521TRE E521TLE C520T N510T

This genuine Fisher & Paykel gasket, part 819823P, seals the freezer door on E521T top mount fridge freezers. It's listed for the E521T and its many variants, such as the E521TRX, the E521TLX, the E521TRT and the E521TLE, as well as the older C520T and N510T. Left and right hinged versions of the E521T share this seal.

Frost building up in your Fisher & Paykel freezer?

A freezer door seal is a magnetic gasket that grips the cabinet and keeps warm, moist kitchen air out. Once it splits, hardens or loses its shape, that air sneaks in and turns to frost. Look for heavy frost or ice near the door, ice cream going soft, a door that doesn't pull shut by itself, condensation on the cabinet edge, and a compressor that hardly ever stops. A simple test is to close the door on a sheet of paper. If it slides out easily anywhere around the frame, the seal isn't doing its job.

Part details

• Genuine Fisher & Paykel freezer seal 819823P
• Fits the freezer door of E521T top mount models
• Listed for E521T variants plus the C520T and N510T
• Magnetic door gasket

Fitting the freezer seal

Unplug the fridge and empty the freezer, keeping food cold in an esky. Lay the new seal flat in a warm room for a few hours to relax any folds. Ease the old seal off, noting whether it pushes into a channel or sits under screws, and fit the new one the same way, working along each side in turn. Close the door, check for gaps, then plug back in.

Questions about this part

Is this the freezer seal or the fridge seal?

819823P is listed as the freezer compartment seal for the E521T range. The fresh food door takes a different seal, so check the number on the old gasket or measure it if you're unsure which one you have.
