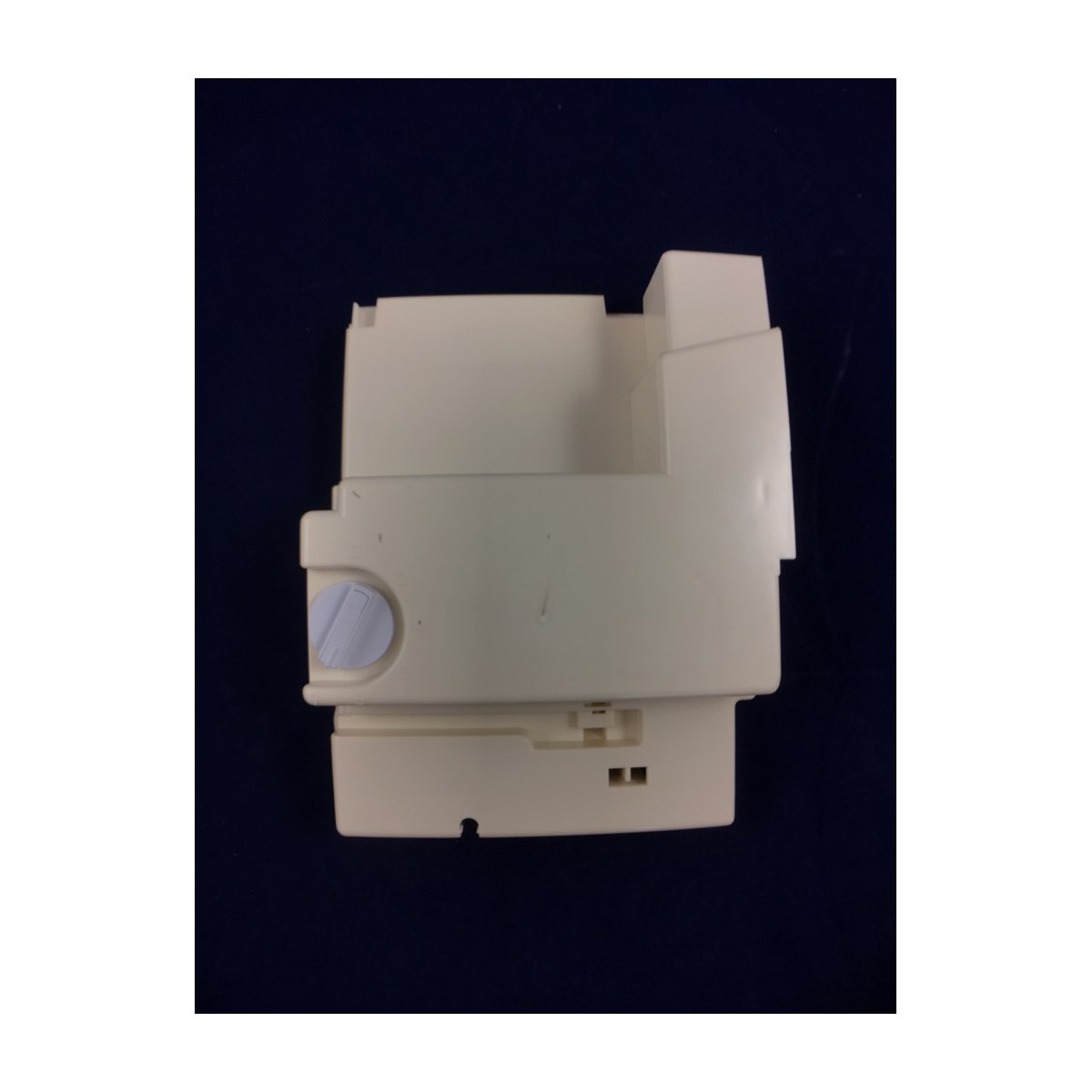

814796P Genuine Control Module VF 110-230V for Fisher & Paykel Fridges E388LW1 E388L E388LXFD E308L E308 E150L

Fisher & Paykel fridge freezers in the E388, E308 and E150 families use this genuine control module, part 814796P. It is the service version, marked VF and rated 110 to 230V. Models on file are the E388L and E388LW1, the E388LXFD, the E308 and E308L, and the E150L. Match the 814796P number on your old module to be sure.

Fisher & Paykel fridge not cooling or compressor not starting?

This module is part of the fridge's electronic control system and helps decide when the compressor runs. A fault can leave the fridge warm, the freezer thawing or the compressor never starting, even though the lights and display still work. Other signs are a fridge that runs non-stop and over-freezes, clicking without starting, or a burnt smell from the back of the cabinet. Faulty sensors, a failed compressor or loose wiring can give the same symptoms, so it pays to have the fault confirmed before swapping the module.

Part details

• Genuine Fisher & Paykel part 814796P
• VF control module, service version
• Rated 110 to 230V
• Listed for E388L, E388LW1, E388LXFD, E308, E308L and E150L fridges

Changing the control module

Switch the fridge off at the wall and pull the plug before removing any covers, then wait a few minutes before handling the board. Photograph each plug and wire, then transfer them to the new module one at a time, holding the board by its edges. Once it's in, power up and give the fridge several hours to reach temperature before judging the result.

Questions about this part

Should I confirm the fault before ordering?

It's a good idea. Control modules often get blamed for faults caused by a sensor, the compressor or a loose plug. A fridge technician can test those first, which saves buying a module you don't need.
