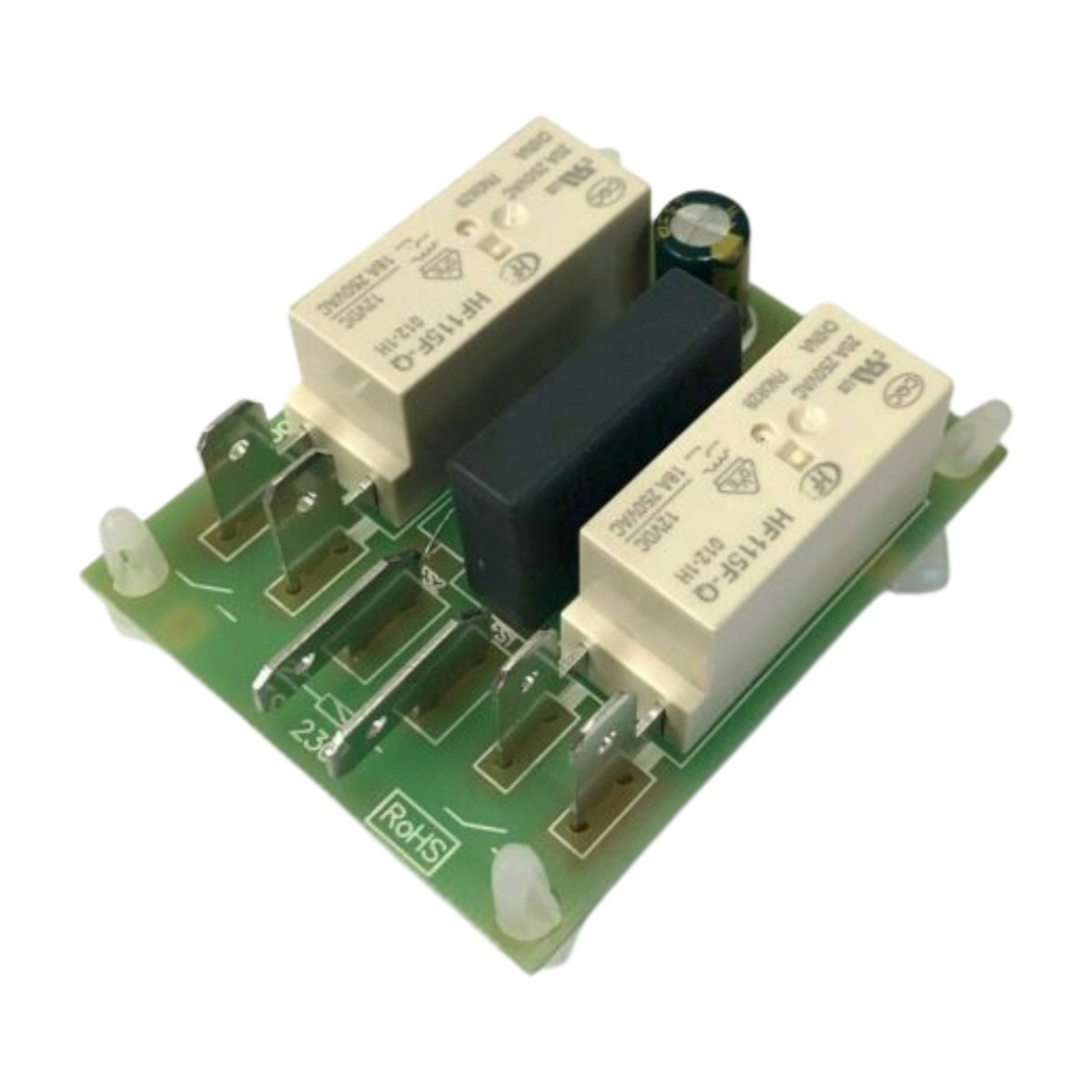

811660001 Generic Relay PCB suits Smeg, Omega Ovens C9GMX SUK91MFX5 SCB91MFX SA9065 CG90IX GM90IX OF901XA
- Original part no.
- 811660001
- Part grade
- Generic
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Quality checked generic part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
This is a generic relay board made to replace part 811660001, also linked to 811650197. It is a compatible aftermarket PCB, not a Smeg-made part, and it suits a long list of Smeg ovens along with some Omega models. Smeg models on file include the C9GMX, C9IMX, CG90IX, GM90IX, SA9065, SCB91MFX and SUK91MFX5, and on the Omega side the list includes the OF901XA and OF902XA. Check your model plate against all 92 listed models.
Smeg oven not heating? The relay board could be the cause
A relay board takes low power signals from the oven's controls and uses relays to switch the heavier loads, such as the elements and fan motor. Each relay clicks as it closes. Over time the contacts can pit and burn, solder joints crack from repeated heating and cooling, and components can scorch. Symptoms include an oven that won't heat, elements that work in some functions but not others, a fan that won't start, intermittent heating, or a burnt smell from behind the control panel. Brown or black marks on the old board are a strong clue.
Part details
- Generic compatible relay PCB
- Replaces part number 811660001
- Cross reference 811650197
- Suits Smeg and Omega ovens, 92 models on file
Fitting the relay board
Ovens are hard-wired, so this job needs a licensed electrician with the circuit isolated at the switchboard. Photograph the old board and label every wire before disconnecting it, as the terminal layout must be copied exactly. Fit the new board on the same mounts, reconnect each wire to its matching terminal and test every oven function before refitting the covers.
Questions about this part
Is this board made by Smeg?
No. This is a generic compatible board made to replace 811660001. It is intended to fit the same position and connections, but it is not made or supplied by Smeg. Match the number on your old board before ordering.
Specifications
| Brand | Universal |
|---|---|
| Original part number | 811660001 |
| Part grade | Generic : Generic compatible replacement, a lower cost alternative to the original part. |
| SKU | 811660001_G |
| Appliance | Oven Parts |
| Shipping weight | 0.4 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
