810930153 Generic Auxiliary Burner Spark Electrode 380mm suits Smeg Cooktops and Cookers PGA96 C9GMXA C9GMNA1 SA9066AS FS9606XSN

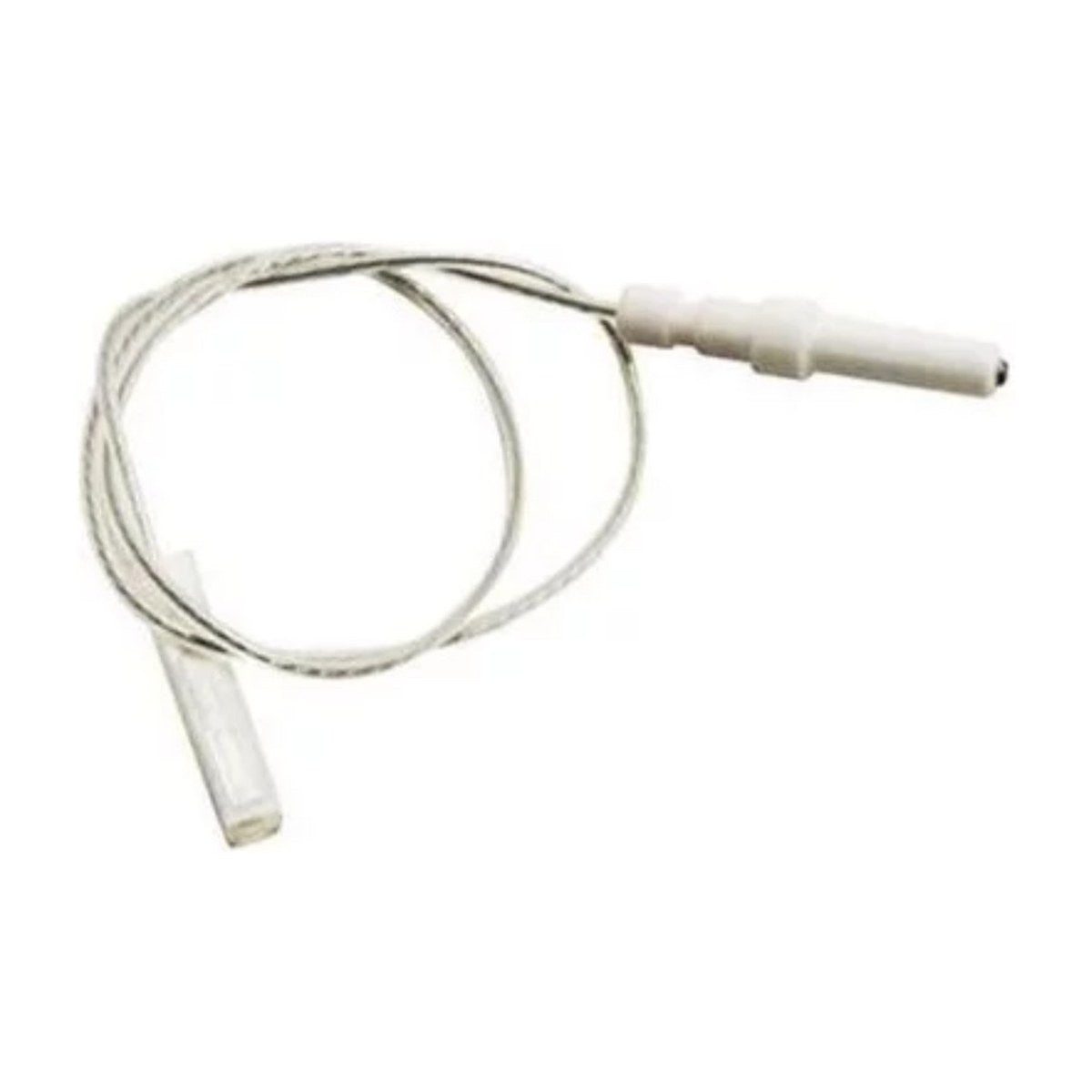

810930153 is a generic ignition electrode, often called a spark plug, for the auxiliary burner on Smeg gas cooktops and cookers. It is listed at 380mm and suits the PGA96 cooktop as well as the C9GMXA, C9GMNA, C9GMNA1, C9GMBA1, C9MNA1, CS9GMXA, CSP9GMXA, SA9010X, SA9065XS, SA9066A, SA9066AS and FS9606XSN on file. It is an aftermarket part made to replace the Smeg electrode.

Smeg auxiliary burner won't light?

The spark electrode sits beside the burner and jumps a spark to the burner cap when you push the knob in, lighting the gas. If the ceramic body cracks, the lead breaks down or the tip is caked with food and grease, the spark either tracks to earth somewhere else or doesn't appear at all. You'll hear clicking but see no spark at the small burner, notice a weak orange spark, or wait several clicks before it lights. Spillovers are the usual cause, as moisture and residue get into the electrode.

Part details

• Part number 810930153
• Spark electrode for the auxiliary burner
• 380mm length
• Suits Smeg PGA96 and the cookers on file
• Generic aftermarket part

Fitting the spark electrode

Isolate the power and turn off the gas supply before starting. A licensed gas fitter should carry out the replacement, as the cooktop top has to be lifted near the gas fittings. Follow the old lead back to the spark generator and route the new one the same way, clear of hot surfaces, then clip the electrode into the burner and test the spark and flame.

Questions about this part

Is this the auxiliary burner electrode?

Yes, it's listed for the auxiliary burner, the smallest burner on the cooktop. Other burners can use different electrode lengths, so check the position and measure your old lead if you are replacing another burner's electrode.
