770441 Genuine Upper Basket Assembly for Bosch Dishwashers SGS55E42AU SGU53E05AU SGS53A52AU SGI4715AU SGS46M78AU SGU43E25AU 00770441

Bosch SGS, SGU, SGI and SHV dishwashers use this genuine upper basket assembly. The part is 770441, often written as 00770441, and several earlier numbers are linked to it, including 00239503. It is listed for 27 model variants, for example the SGS55E42AU and SGU53E05AU, the SGS53A52AU, the SGI4715AU, and the SGS46M78AU and SGU43E25AU.

Replacing a worn Bosch top basket

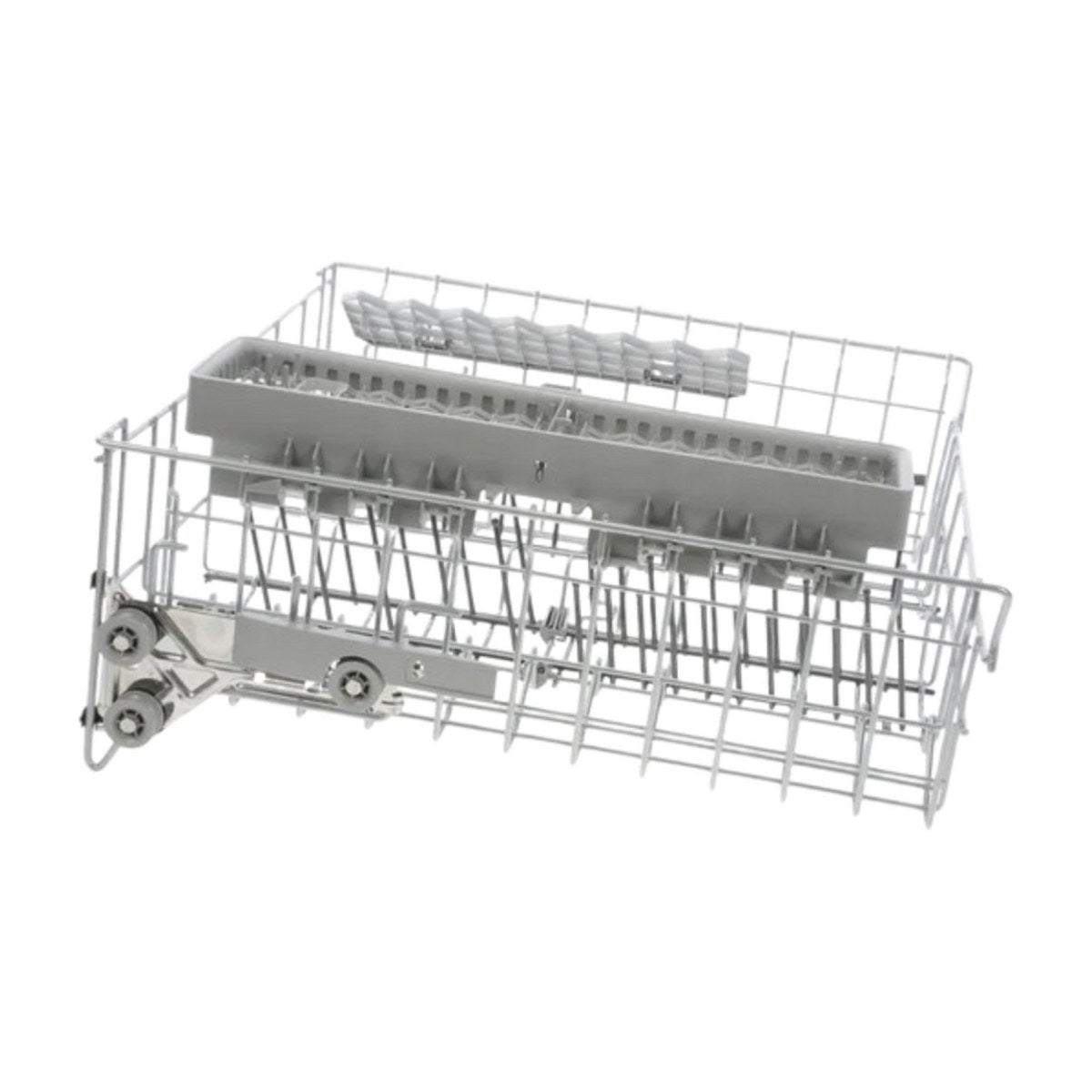

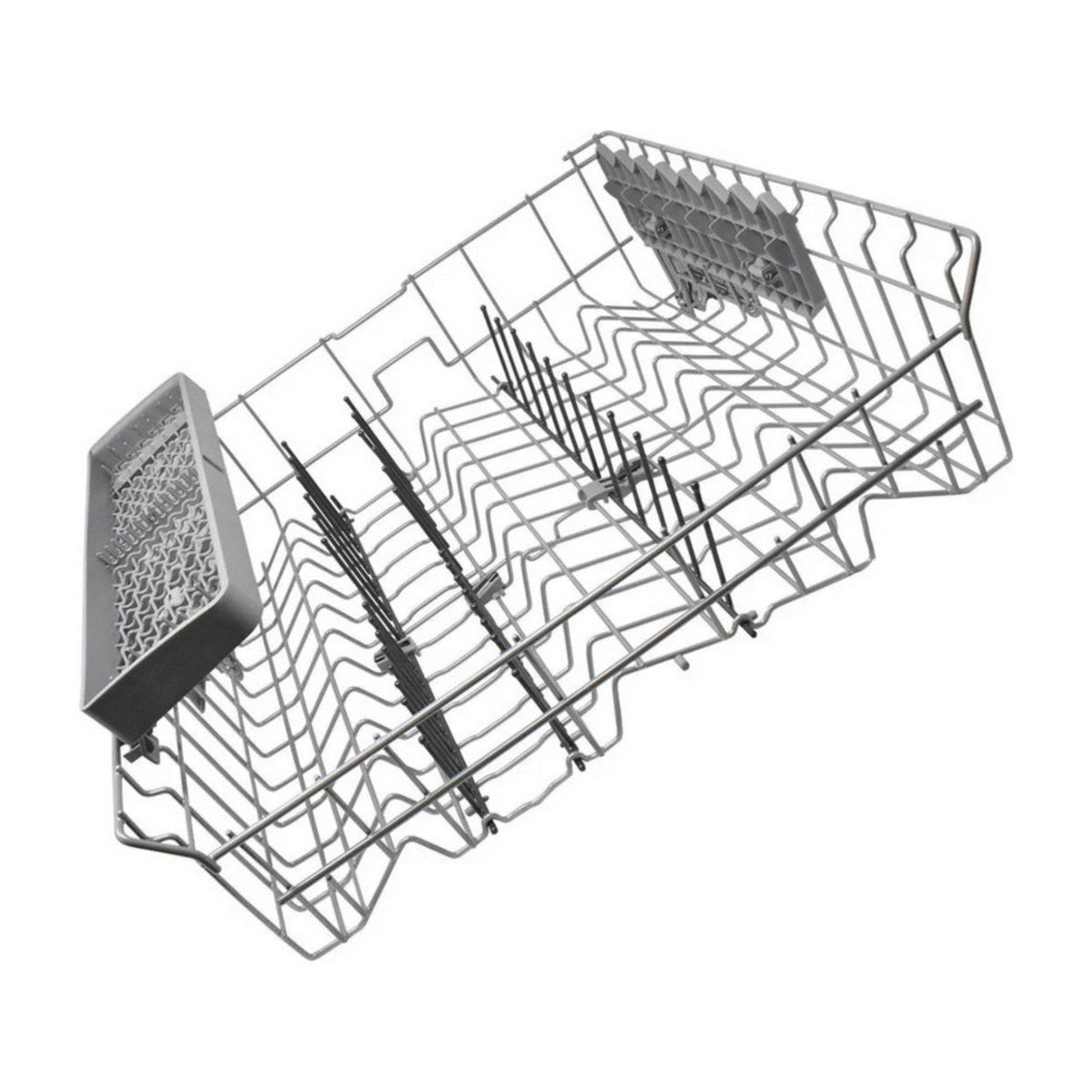

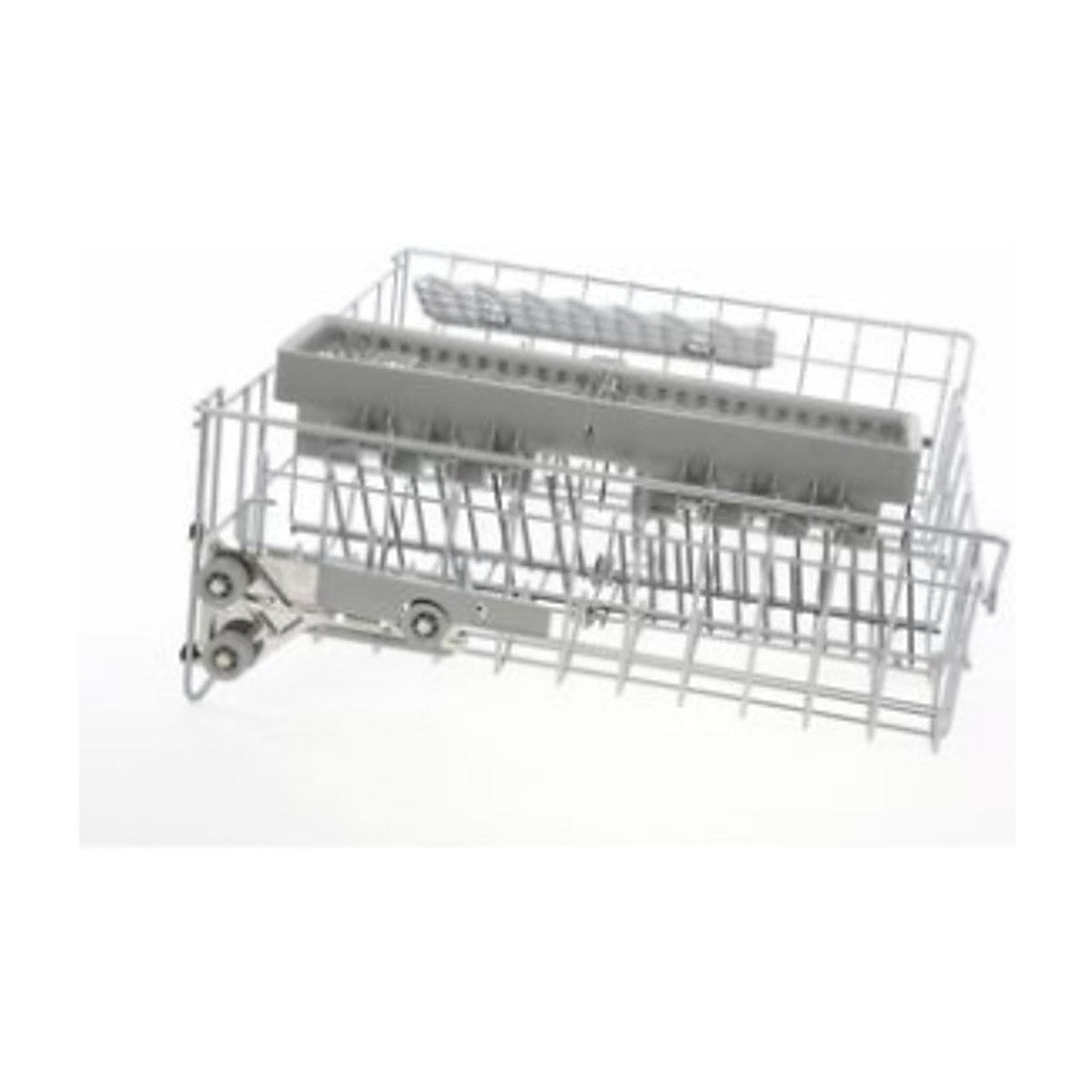

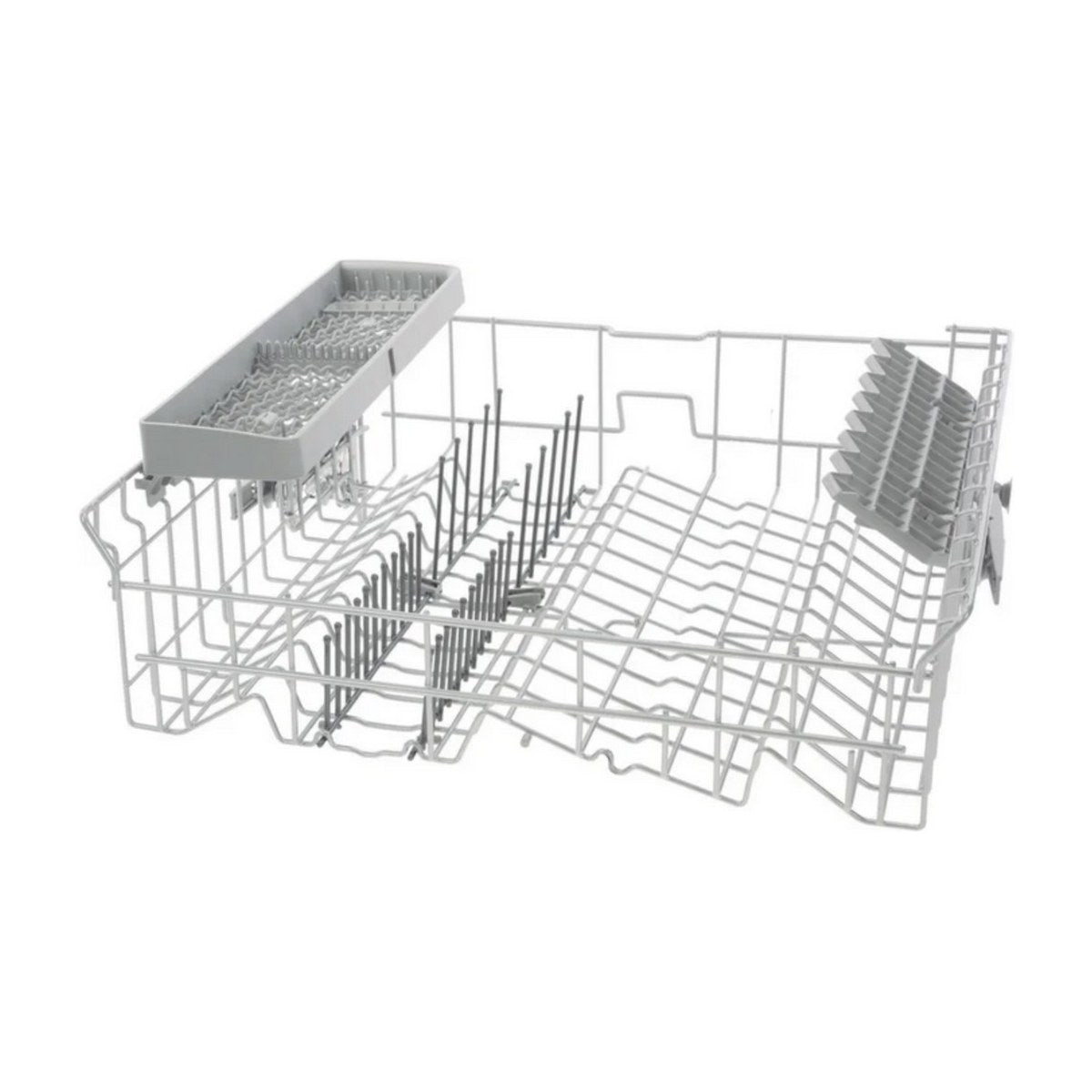

This assembly is the top basket of the dishwasher, where cups, glasses and lightweight items are loaded. It travels on wheels along a rail on each side of the tub. Wear shows up as rust spots where the coating has split, snapped tines, loose or missing wheels, and a basket that wobbles or drops off the rails when pulled out. Rust flakes can end up on glasses or in the filter and pump. Replacing the full assembly is often quicker than chasing individual clips and wheels.

Part details

• Genuine Bosch upper basket assembly 770441 (00770441)
• Linked numbers include 00239503, 00212900, 00235937 and 00236813
• Listed for 27 Bosch SGS, SGU, SGI and SHV model variants

Fitting the basket assembly

Roll the old basket out fully and look at how it is held at the end of each rail, usually by a stop or clip. Release those, lift it clear and keep any parts that are not supplied with the new basket. Fit the new assembly onto the rails, replace the stops, then load a few glasses and check it slides in without catching on the upper spray arm.

Questions about this part

How do I check this basket suits my Bosch?

Matching your dishwasher's E-Nr is the most reliable way. Look for the label on the edge of the door, which shows an E-Nr such as SGS55E42AU and an FD number. Compare it with the 27 listed variants, or send both numbers through the parts enquiry form.
