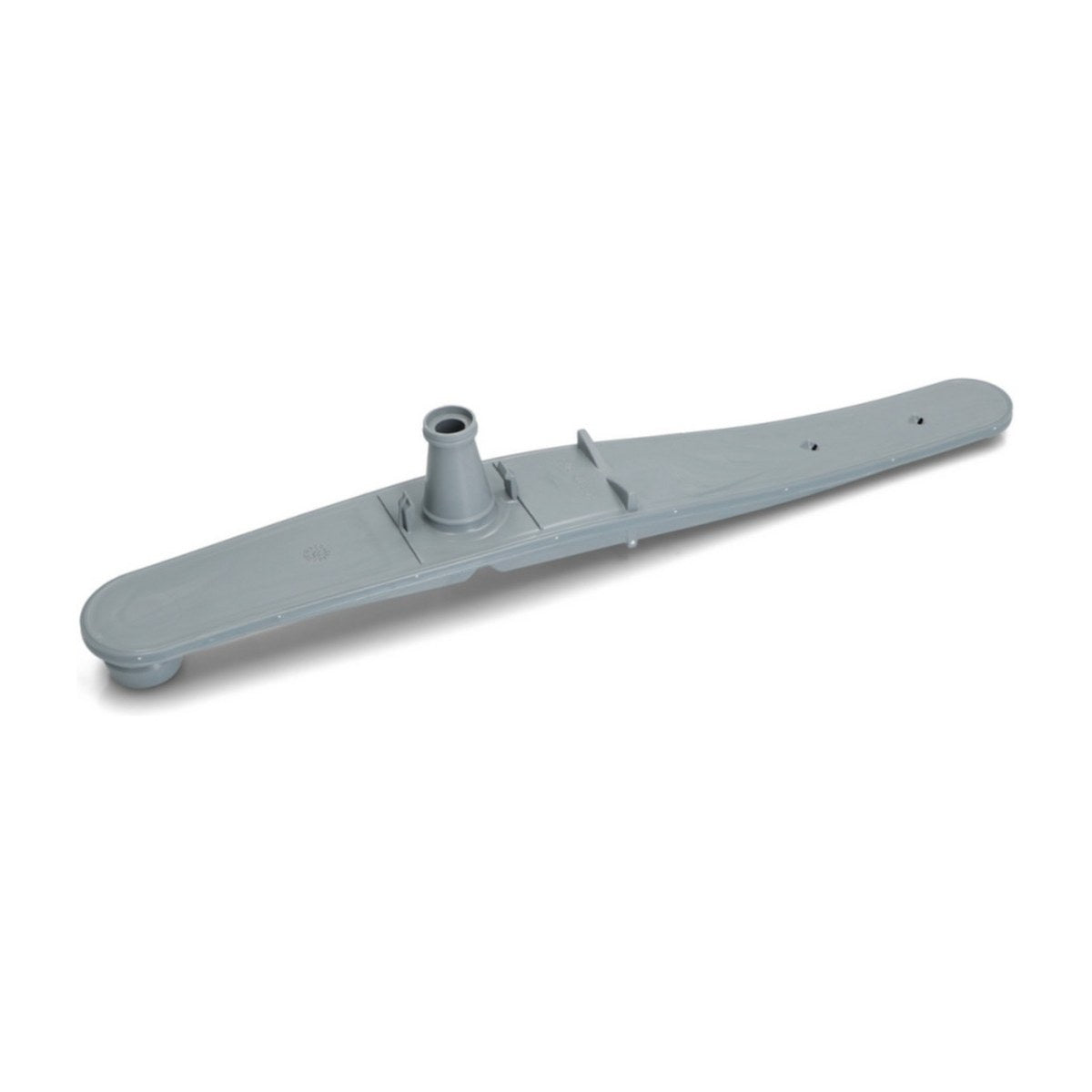

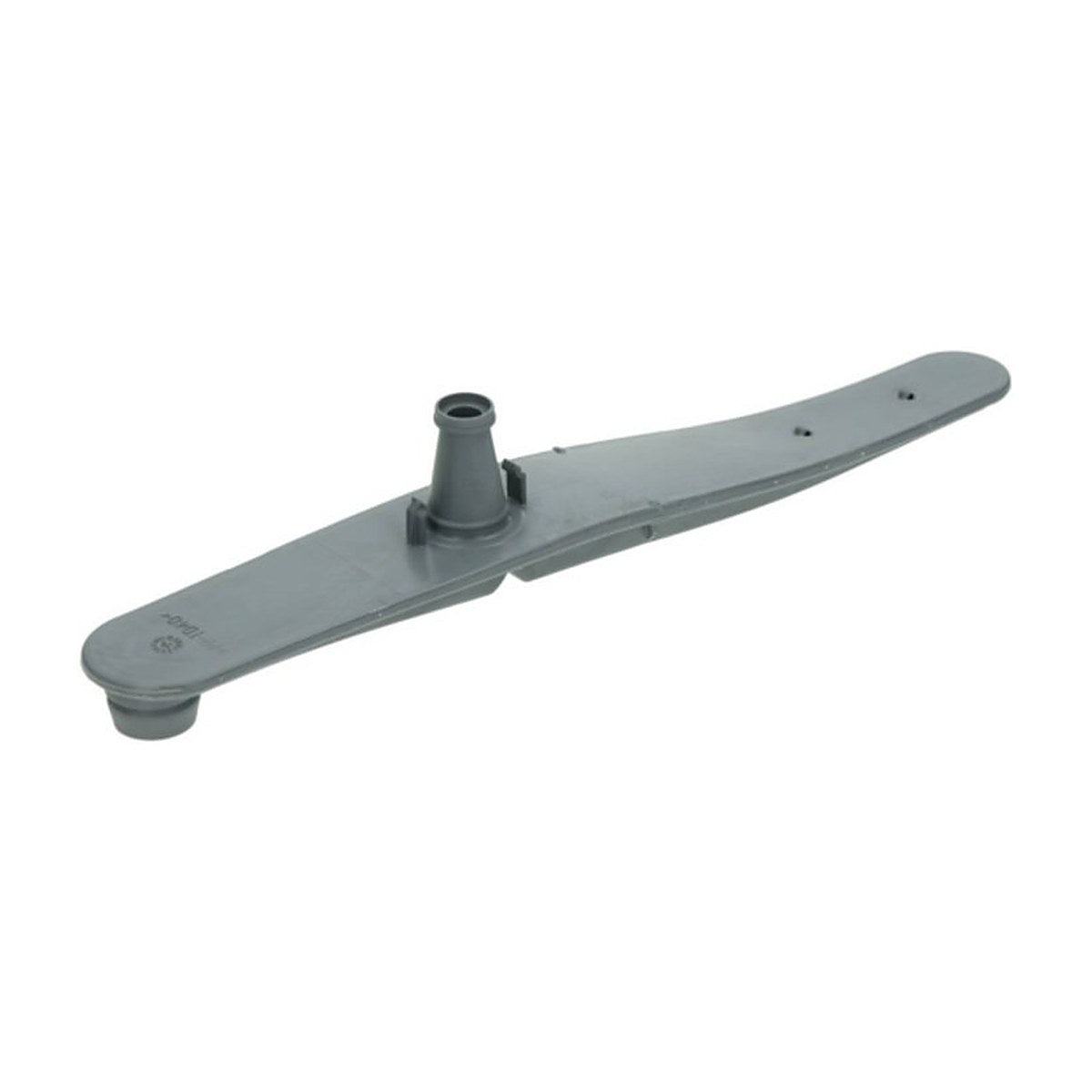

764570188 Genuine Lower Spray Arm for Smeg Dishwashers DWA6214S DWA6314X2 DWA147X DWA157X DWA314X DWA315X DWAU315X1 DWAI6214X DWA6214W

Part 764570188 is the genuine Smeg lower spray arm, also catalogued as 764570114. It is listed for 19 Smeg dishwashers, including the DWA147W and DWA147X, the DWA149W, the DWA157B and DWA157X, the DWA214S and DWA314X, the DWA315X, the DWA6214S and DWA6214W, and the DWA6314B and DWA6314X2. DWAU and DWAI models such as the DWAU315X1 and DWAI6214X are covered too.

Smeg dishwasher leaving the bottom rack dirty?

Water is pumped up into the lower arm and forced out through angled jets, which spin the arm and spray the lower basket from underneath. A crack anywhere along the arm lets water leak out with no force behind it, so the arm slows or stops spinning. Blocked jets, a damaged hub or an arm that catches on a tall plate or the basket frame have the same effect. Pots, plates and cutlery on the bottom rack come out dirty or gritty while the upper rack still cleans properly.

Part details

• Genuine Smeg part 764570188
• Also catalogued as 764570114
• Lower spray arm
• Listed for 19 Smeg DWA, DWAU and DWAI models

Changing the lower arm

Turn the dishwasher off at the wall and pull out the bottom basket. Depending on the model, the arm lifts off its hub or is held by a nut or clip, so note how yours comes off. Clean the filter and sump while you have access, then fit the new arm and turn it by hand to make sure it clears the basket and spins freely.

Questions about this part

Is 764570114 the same arm?

764570114 is linked to this arm as another number. If your dishwasher is one of the listed Smeg models and your old arm shows either number, this genuine Smeg arm is the one to order.
