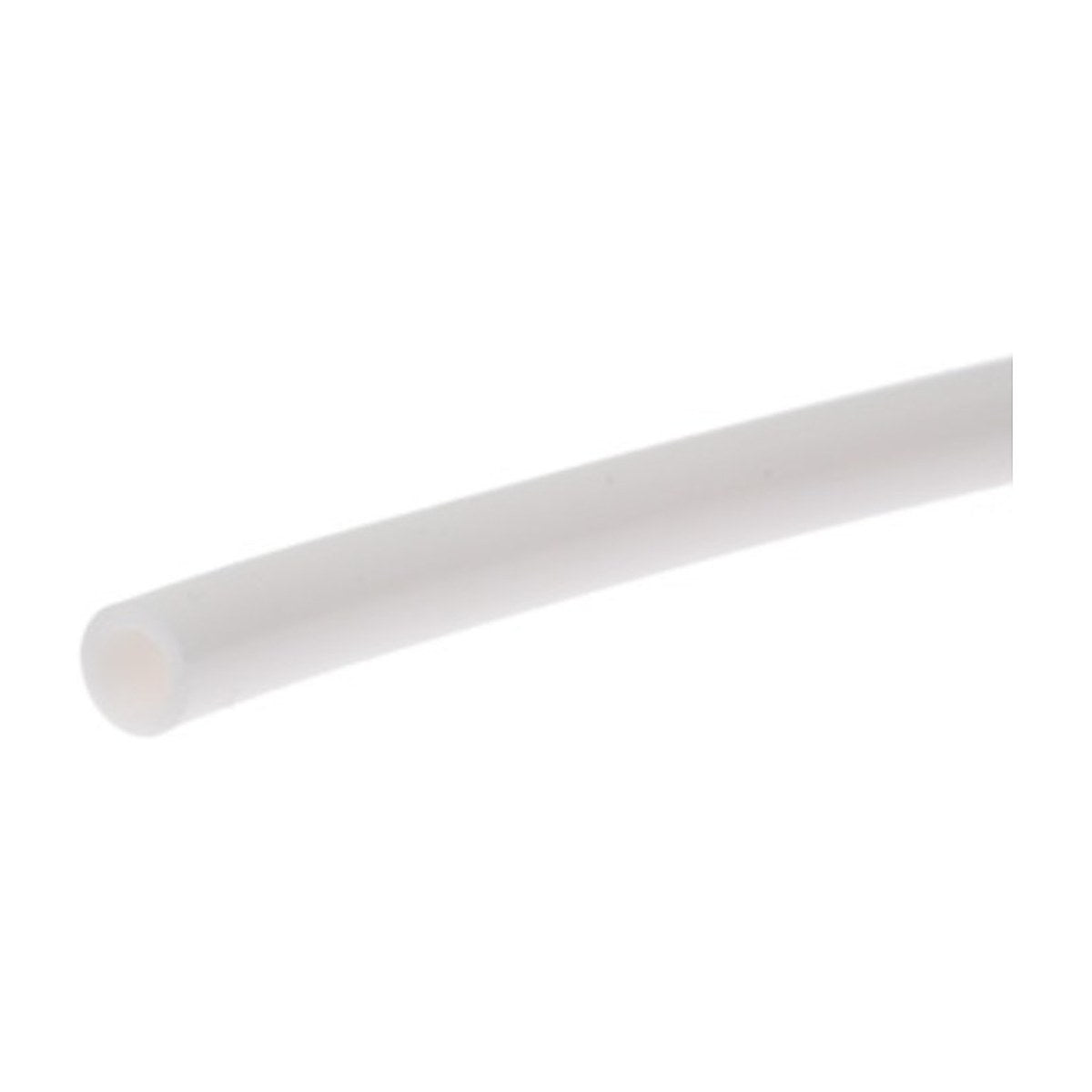

759JG Generic 1/4 Inch 6mm Water Line Tube Sold Per Metre, Universal Fridge and Water Filter Part for Push-Fit Fittings

759JG is 1/4 inch (6mm) water line tube sold by the metre, so you can order exactly the length the job calls for. It's the common size for connecting plumbed fridges, ice makers and many under-sink filter systems, and it pairs with 1/4 inch push-fit fittings and locking clips. Handy for replacing a damaged line or extending a run when the fridge moves.

Using 1/4 inch tube for fridge water connections

Many fridges with a water dispenser or ice maker are fed by a 1/4 inch line from a tap or filter. Over the years that tube can kink, split, go brittle or get crushed when the fridge is pushed back against the wall. The result is a slow or dead dispenser, a wet floor behind the fridge, or a leak that comes and goes. Replacing the run is quick, and fresh tube is also what you need when moving a fridge further from the tap or adding an inline filter.

Part details

• Part number 759JG
• 1/4 inch (6mm) water line tube
• Sold per metre
• Suits 1/4 inch push-fit fittings
• Generic universal part

Cutting and connecting the tube

Turn the water off first. Cut the tube square with a sharp tube cutter or blade, never with side cutters that pinch the end. Push it firmly into the fitting until it passes the collet and bottoms out, then pull back gently to confirm it holds. Fit a locking clip behind the collet and route the line so it can't kink when the fridge goes back into place.

Questions about this part

Will this fit my fridge's water connection?

If your fridge or filter uses 1/4 inch push-fit fittings, yes. Measure the outside of your existing tube or check the marking on the fitting. Some appliances use a 5/16 inch or 8mm line, which needs a different tube.
