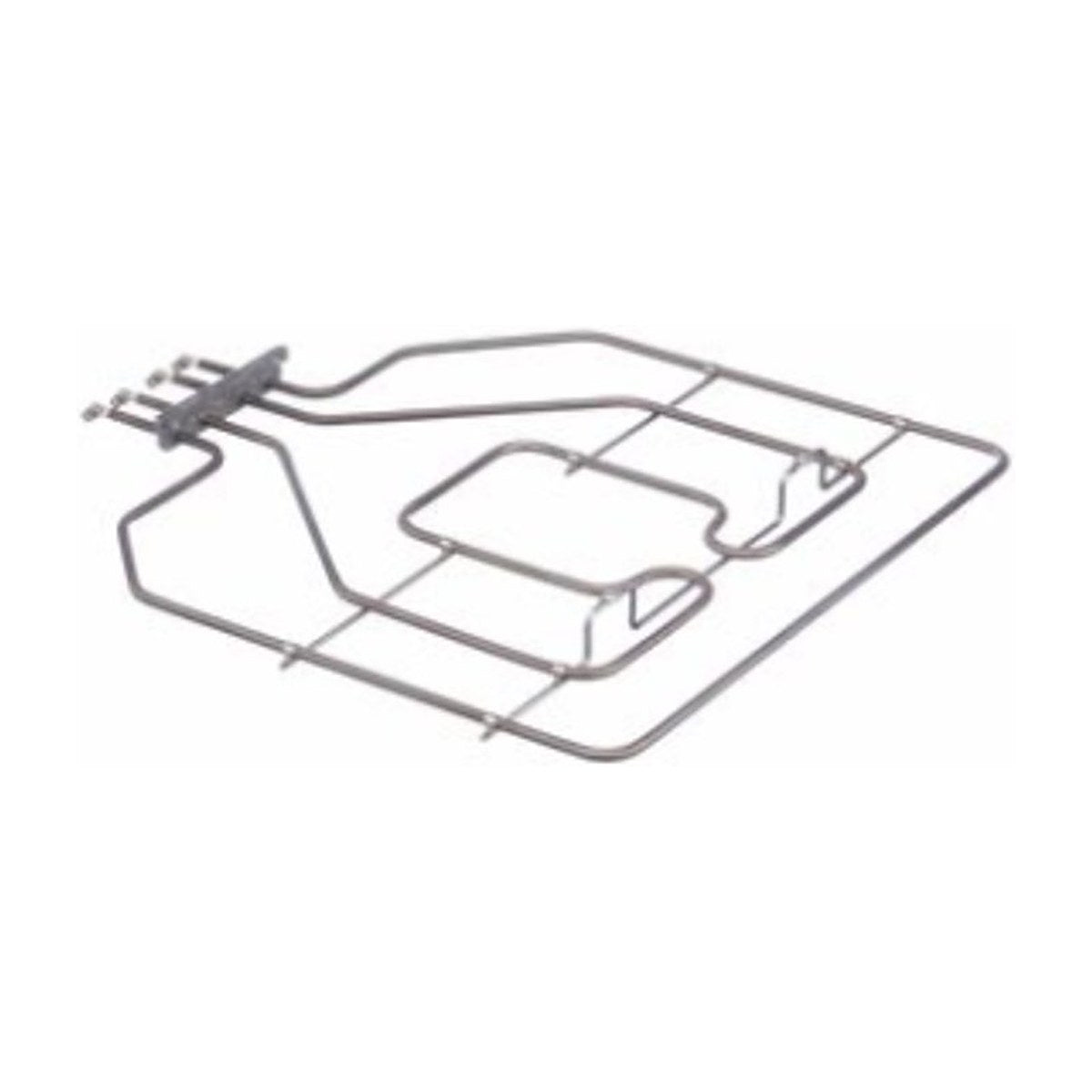

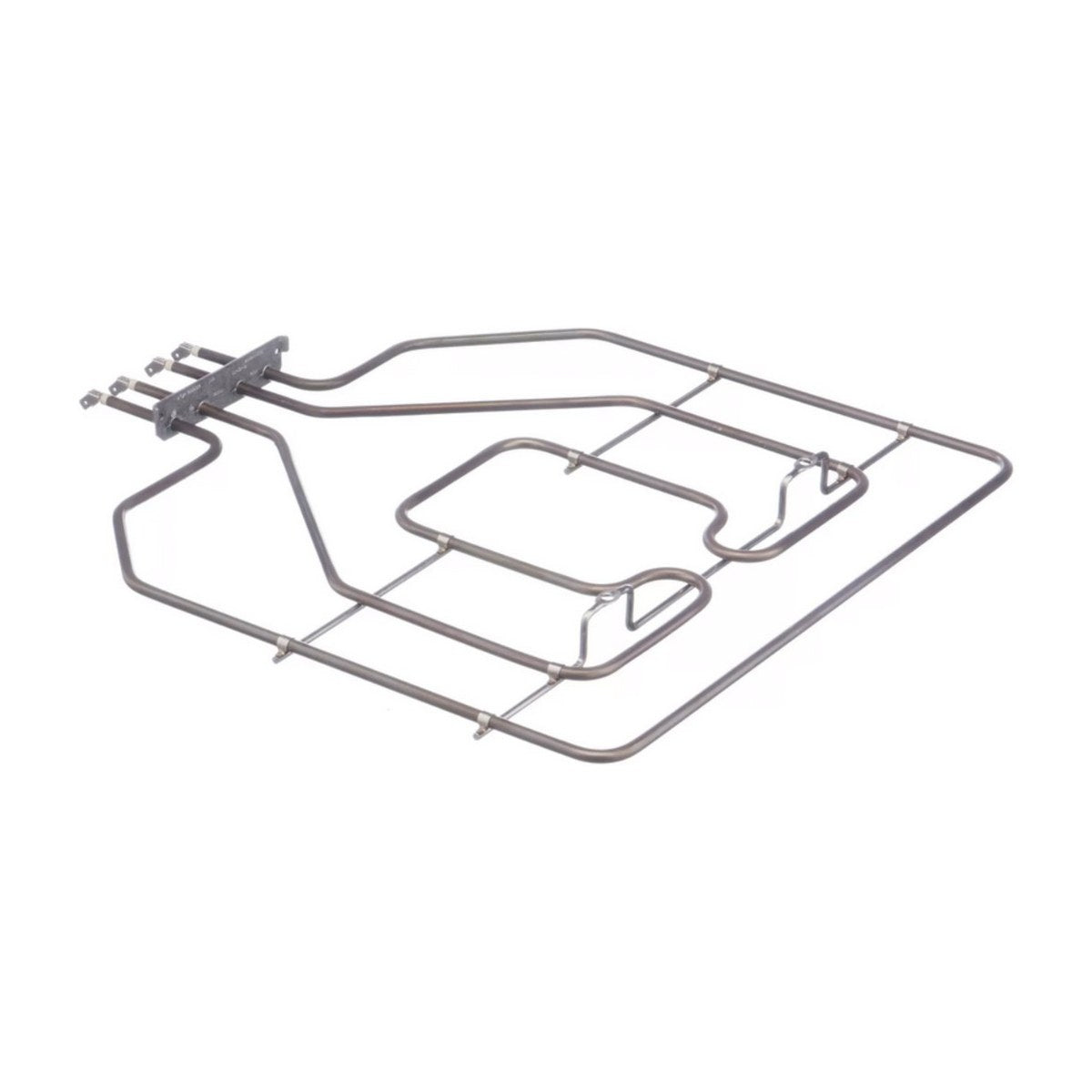

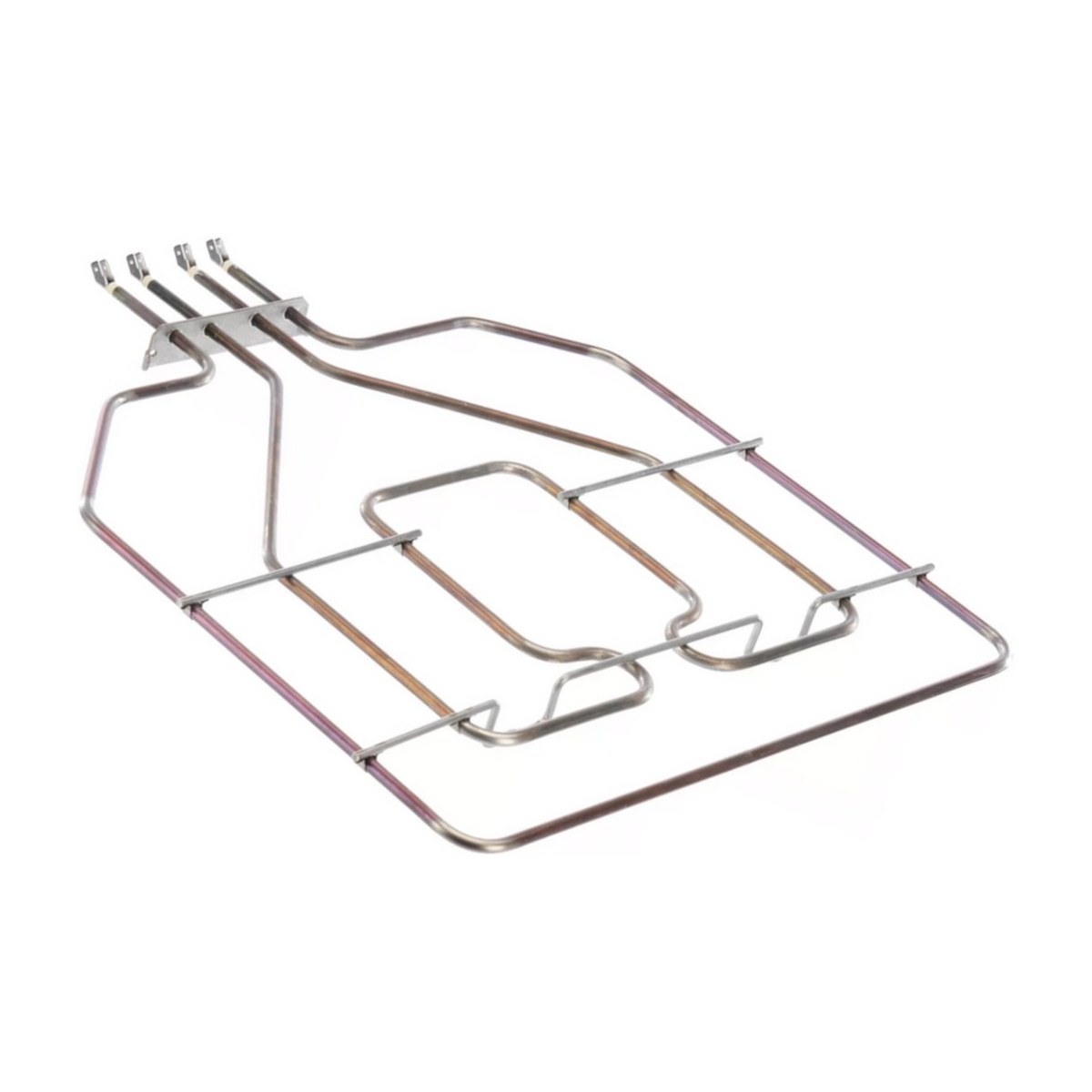

684722 Genuine Dual Upper Grill Element 2800W for Bosch Ovens HBG43S450A HBG43S420A HBR53B550A HBL53B550A HGV74W355A, also 00470970
- Original part no.
- 684722
- Part grade
- Genuine
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Bosch oven grill not heating, or only part of it glowing? Part 684722 is the genuine Bosch dual upper grill element, rated 2800W at 230V, and it's also listed as 00684722 and 00470970. You'll find it on the fit list for the HBG43S450A and HBG43S420A, the HBR53B550A and HBL53B550A, and many versions of the HGV74W355A.
Diagnosing a failed Bosch grill element
Mounted in the roof of the oven, the grill element browns and crisps food on grill settings and adds top heat on several other functions. Being a dual element, it has two heating circuits, so the oven can heat part of the element or all of it. Signs of failure include a grill that stays cold, half the element staying dark, patchy top browning, or the safety switch tripping when grill is selected. Look closely for a split, blister or bright burn spot on the element.
Part details
- Genuine Bosch part 684722, also 00684722
- Cross references 00470970
- Dual upper grill element, 2800W, 230V
- 33 Bosch oven variants on file
| Power | 2800W |
|---|---|
| Voltage | 230V |
| Type | Dual grill element |
Changing the grill element
Switch the oven off at the circuit breaker and let it cool completely. Mounting varies between models, but the wiring is usually reached from the rear once the oven is out of its cabinet. Label the terminals before disconnecting, as the connections on a dual element are easy to mix up. Any hard-wired connection is a job for a licensed electrician.
Questions about this part
Is the 230V rating OK in Australia?
Yes. Australian household mains is nominally 230V, and this element is listed for the Australian Bosch models shown on this page. Check your model and production version against the list before ordering.
Specifications
| Original part number | 684722 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 684722 |
| Appliance | Oven Parts |
| Shipping weight | 0.7 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
