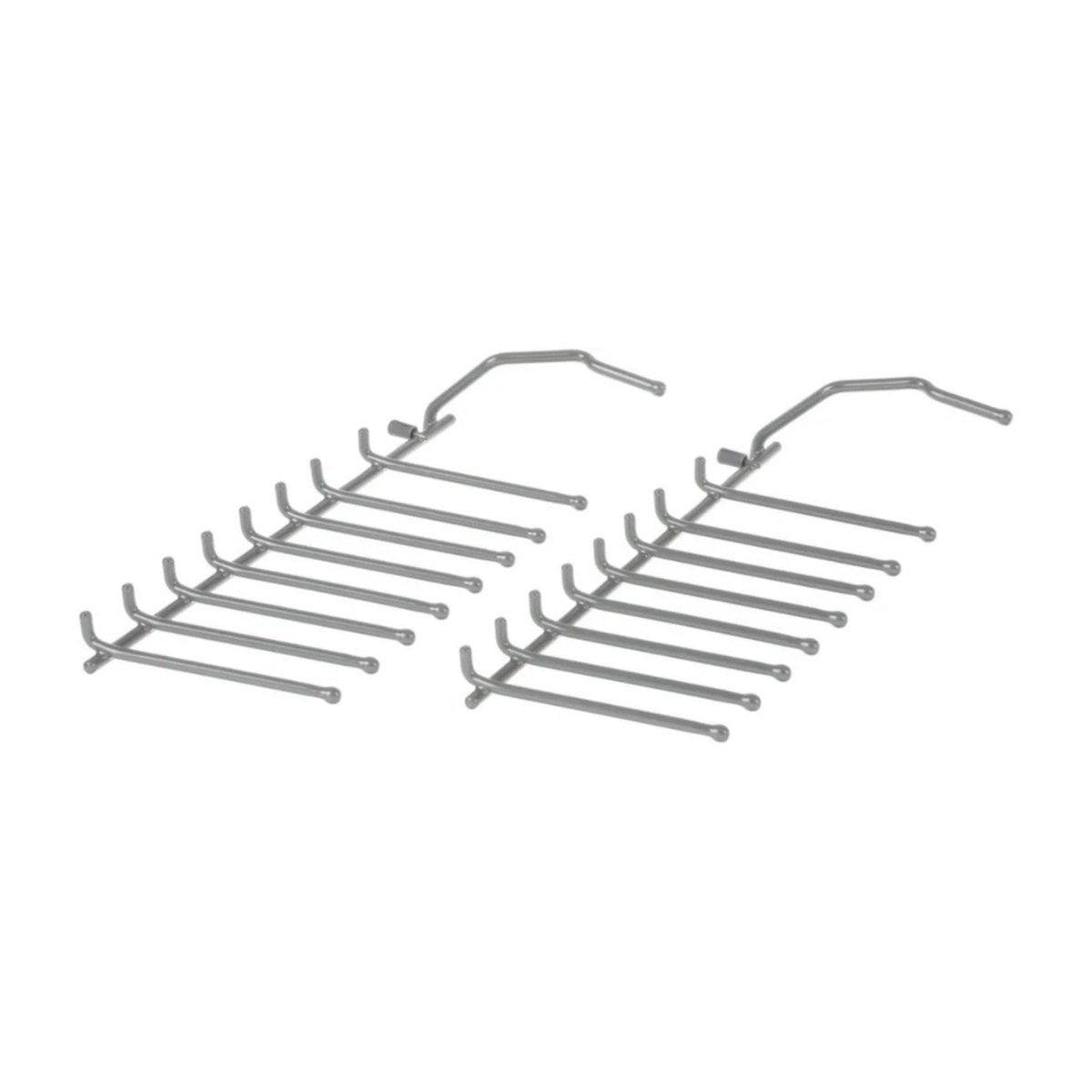

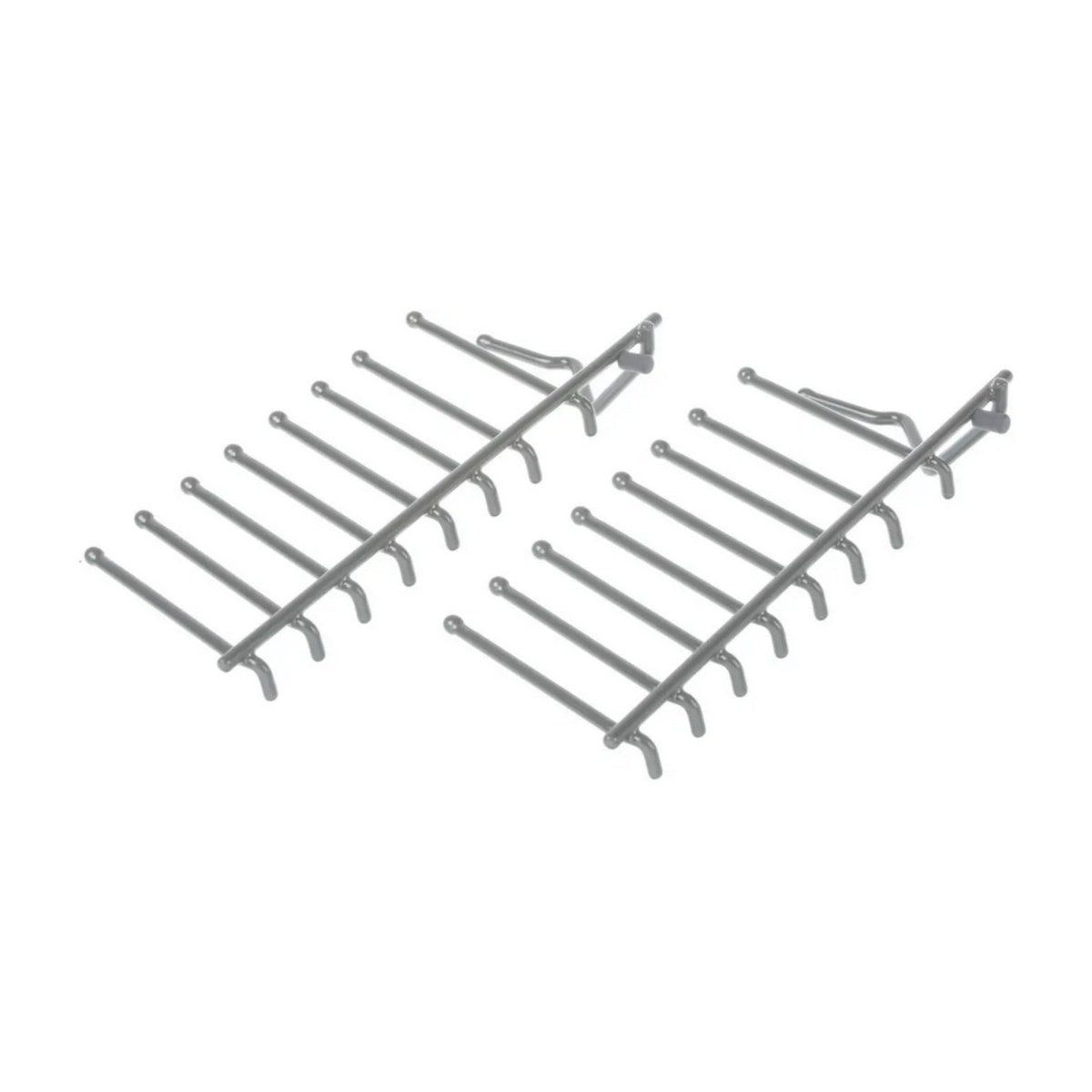

657863 Genuine Lower Rack Rear Right Crock Insert for Bosch, Siemens Dishwashers SMV69P21EU SMV69P40EU SMV69P50EU SMV86M60EU SMV86P50DE SX578S02TA

Part 657863, also written 00657863, is the genuine BSH crock insert for the rear right section of the lower rack. It suits Bosch SMV69P21EU, SMV69P40EU, SMV69P50EU, SMV86M60EU and SMV86P50DE dishwashers, plus the Siemens SX578S02TA. With 38 versions on file, matching your full model number, including the suffix after the slash, is the quickest way to confirm fit.

Broken tines at the back of a Bosch lower rack

Crock inserts are the plate supports clipped into the lower basket, and this one fills the rear right section. They keep plates and bowls standing apart so water from the lower spray arm reaches every surface. Snapped tines let plates slump together, leaving food behind on the faces that touch. A cracked insert can also come loose and drop onto the spray arm, causing knocking noises or stopping the arm turning, which then affects cleaning across the whole load.

Part details

• Genuine Bosch and Siemens part 657863
• Also known as 00657863
• Rear right hand position in the lower rack
• 38 versions on file, including SMV69P21EU and SMV86M60EU

Changing the rear crock insert

Slide the lower rack out and take a photo of how the existing insert clips to the basket wires. Release the old insert, then position the new one at the rear right and press it home at each mounting point. Make sure any folding tines move freely and lock in both positions. Spin the lower spray arm by hand afterwards to check nothing catches.

Questions about this part

Is this the left or right insert?

This one is the rear right hand insert for the lower rack. If the damaged insert in your machine is on the left, send your model number through the parts enquiry form and we'll help track down the correct part.
