6501KW2002B Genuine Rotor Position Sensor for LG Washing Machines WD-1219BD WD-1255RD WD12570FD F1069FD WT-H750 WT-H9506 WT-R10806
- Original part no.
- 6501KW2002B
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

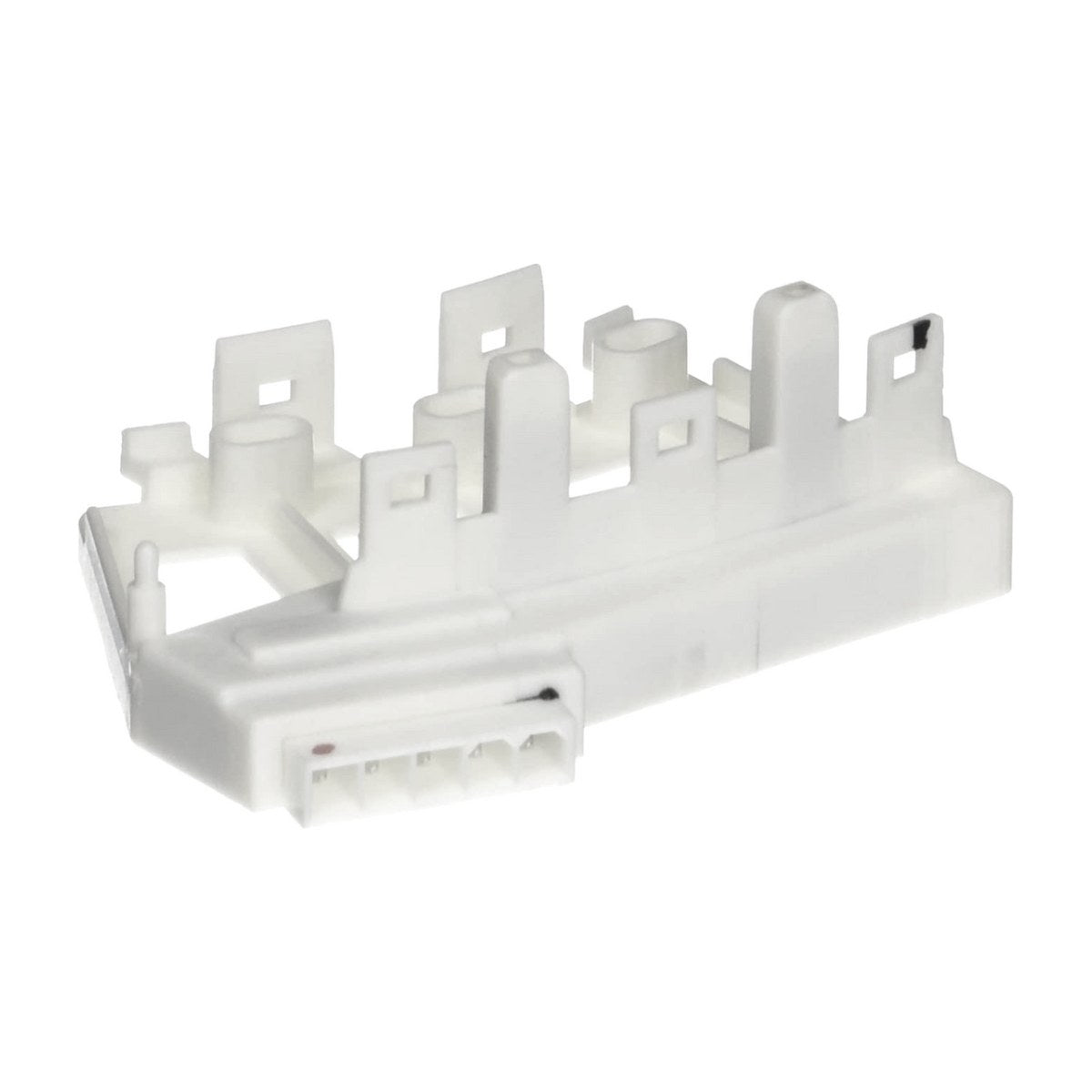

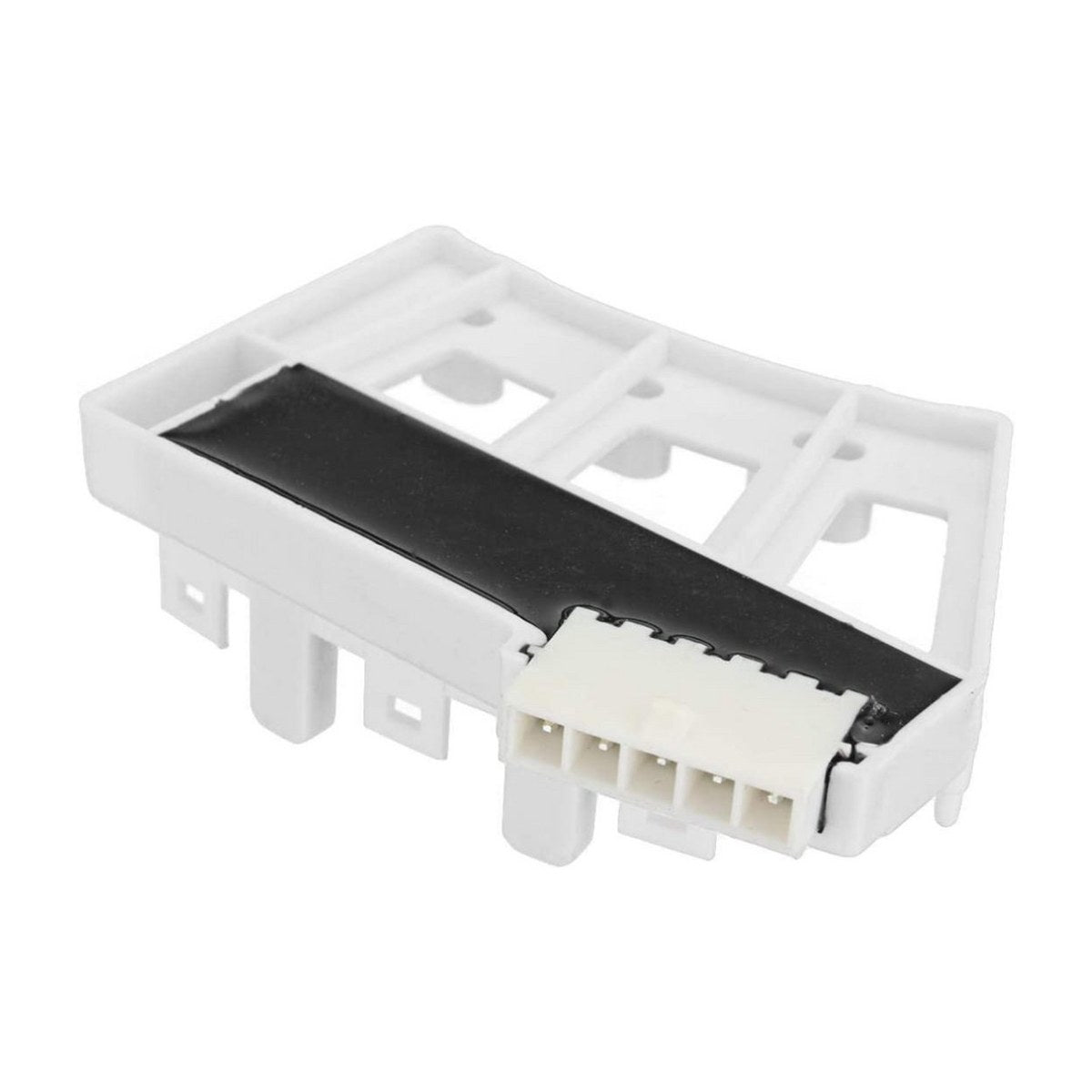

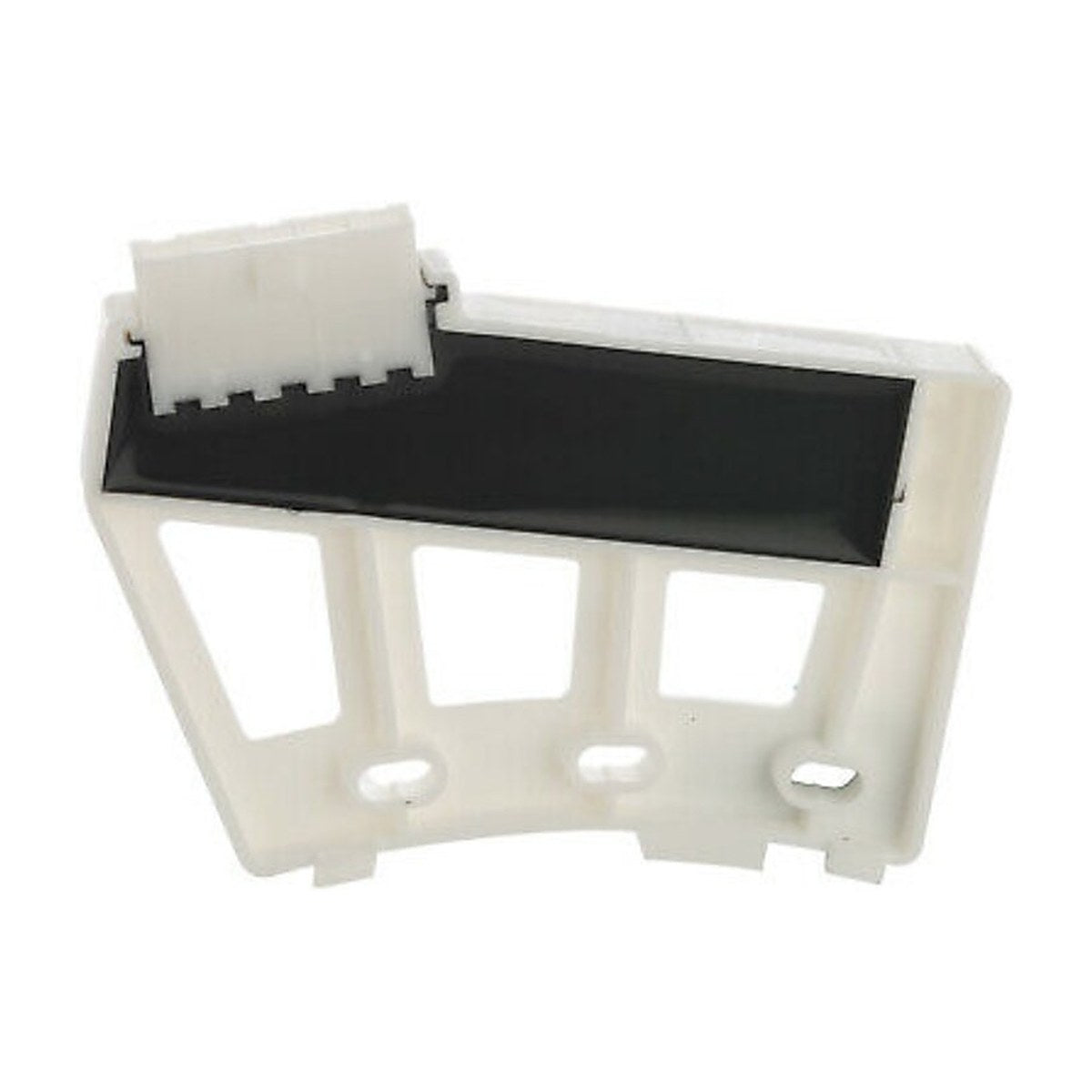

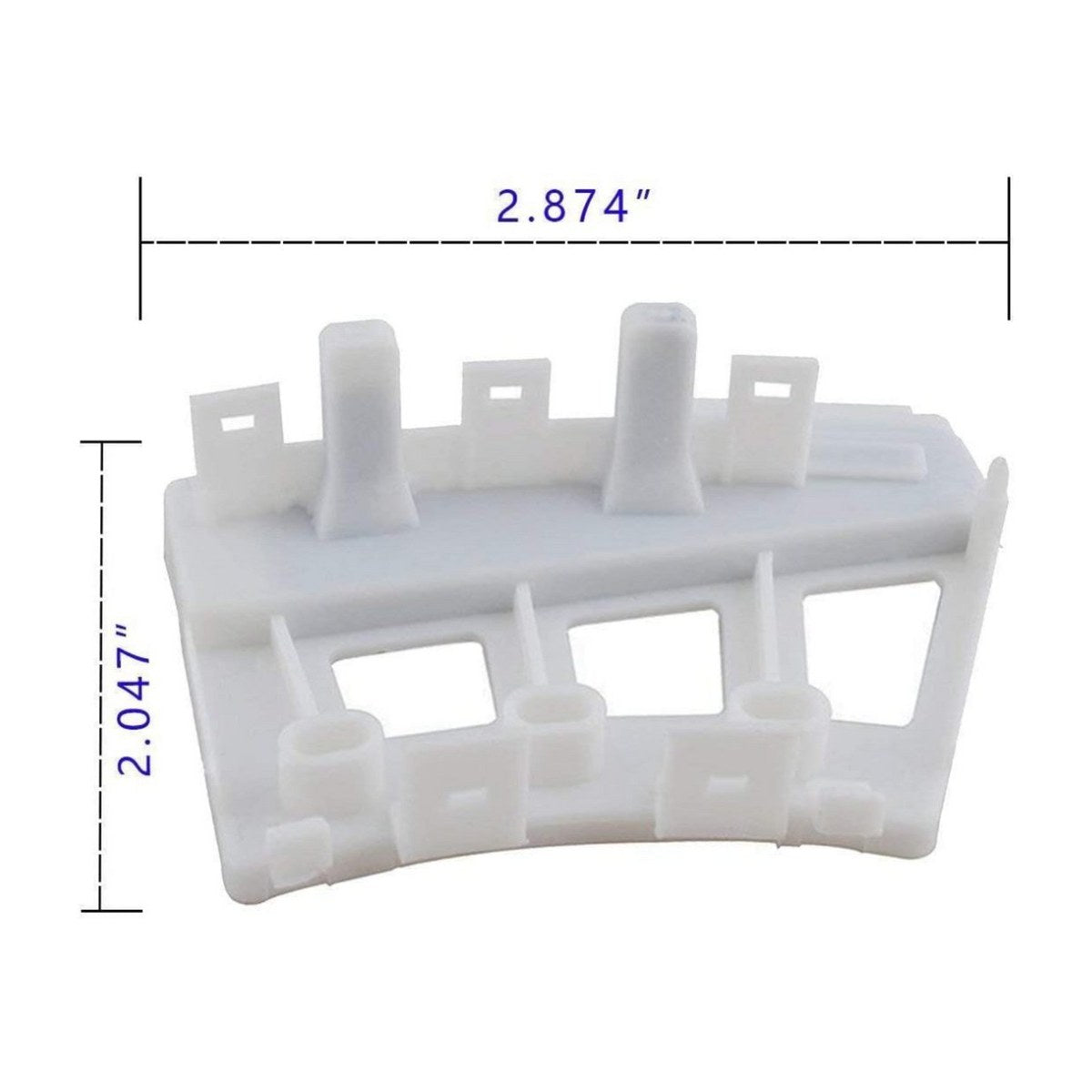

LG direct drive washers use a rotor position sensor to tell the control board exactly where the motor's rotor is, and part 6501KW2002B is the genuine LG sensor for that job. It is linked to 6501KW2002A. Front loaders on file include the WD-1219BD, WD-1255RD, WD12570FD and F1069FD, while on the top load side the list covers the WT-H750, WT-H9506, WT-R10806 and WTG9532WH, among others.
LG washer with an LE error, twitching drum or no spin?
On a direct drive washer the motor is fixed to the back or base of the tub, and the board drives it by switching the windings in sequence. To do that, it needs a constant signal from the rotor position sensor, often called the hall sensor. If that signal drops out, the motor can't run smoothly. Common signs are an LE error, a drum that jerks back and forth instead of turning, a machine that won't spin, loud knocking from the motor, or a washer that stops mid-cycle. Damaged wiring between the sensor and the board can cause the same fault.
Part details
- Genuine LG part 6501KW2002B
- Linked to 6501KW2002A
- Rotor position (hall) sensor for direct drive motors
- Listed for LG front and top loaders, 31 models on file
Fitting the sensor
Pull the plug out and shut both taps first. The sensor mounts on the stator, under the rotor, which is at the back on front loaders and underneath on top loaders. The rotor bolt has to come out and the rotor pulled off before the sensor can be unclipped. Note how the wiring plug is routed, seat the new sensor squarely and tighten the rotor bolt back up firmly.
Questions about this part
Does an LE error always mean the sensor has failed?
No. LE points to a motor fault, which can come from the sensor, the motor wiring, the stator or the control board. Check the sensor plug and wiring first, then test or swap the sensor, as it is a common cause.
Specifications
| Brand | LG |
|---|---|
| Original part number | 6501KW2002B |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 6501KW2002B |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
