6501KW2001B Genuine Hall Sensor for LG Washing Machines WD14030D6 WD12021D6 WD14070SD6 WD-1412RD WD-1236TD F14A8FD WT-R107 WT-R807
- Original part no.
- 6501KW2001B
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

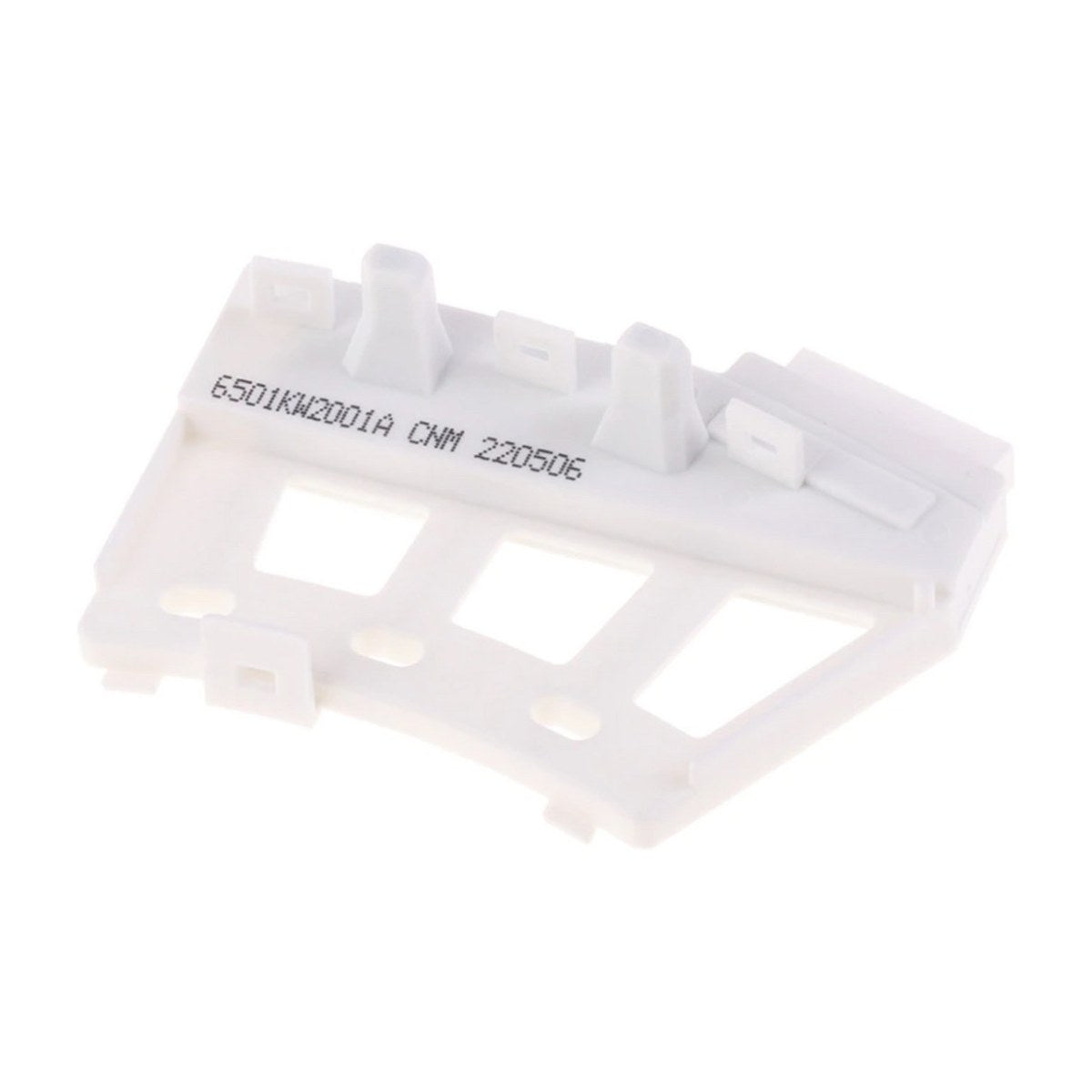

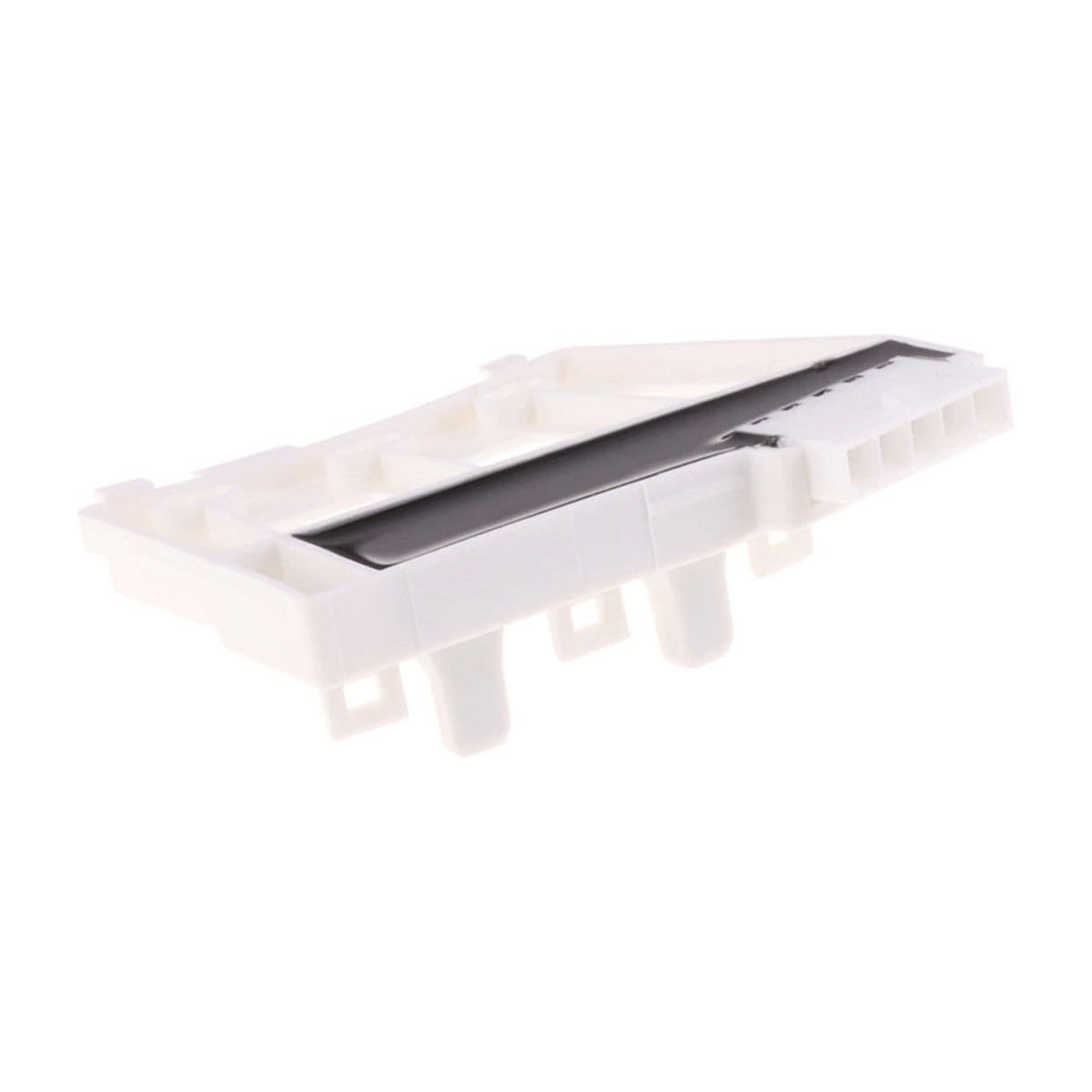

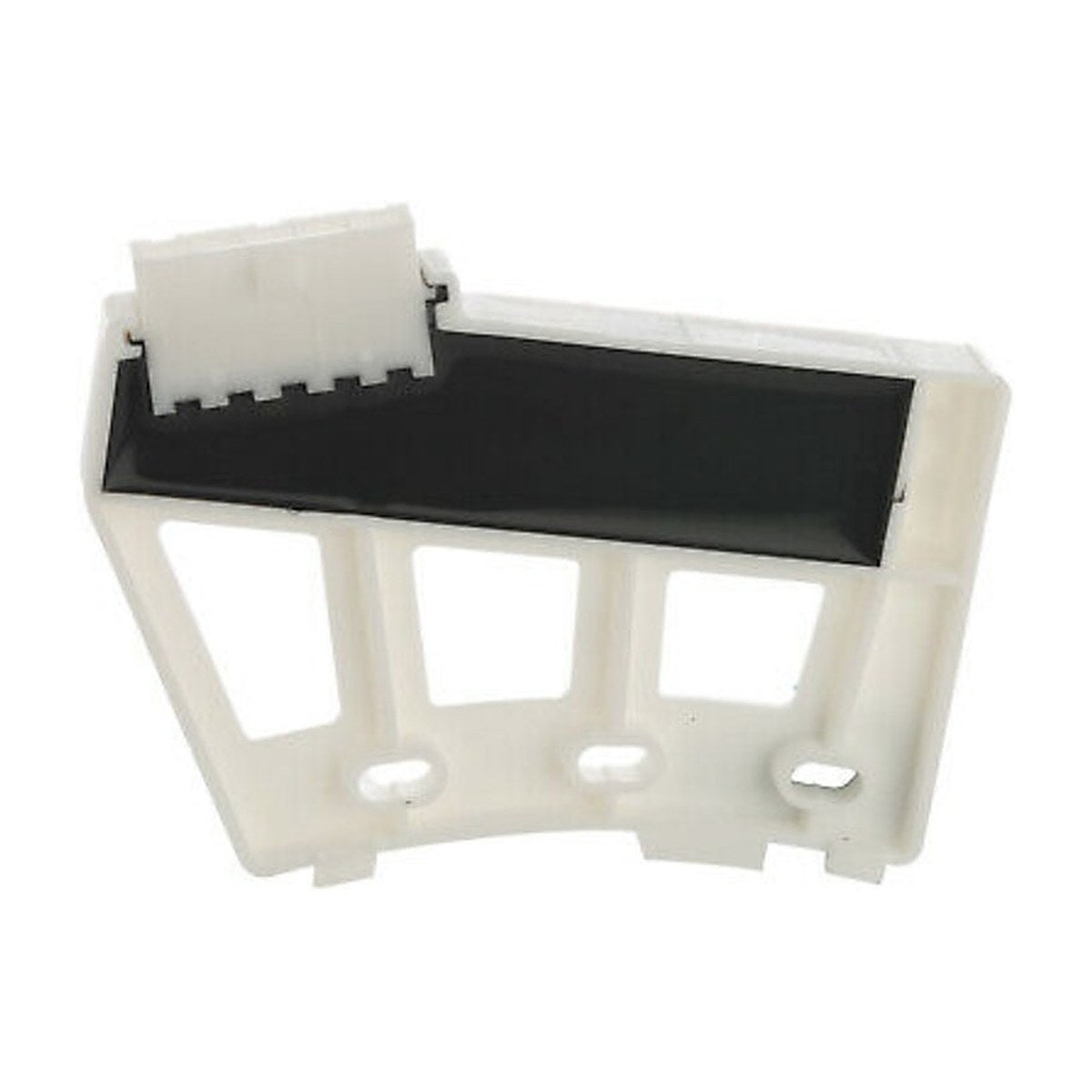

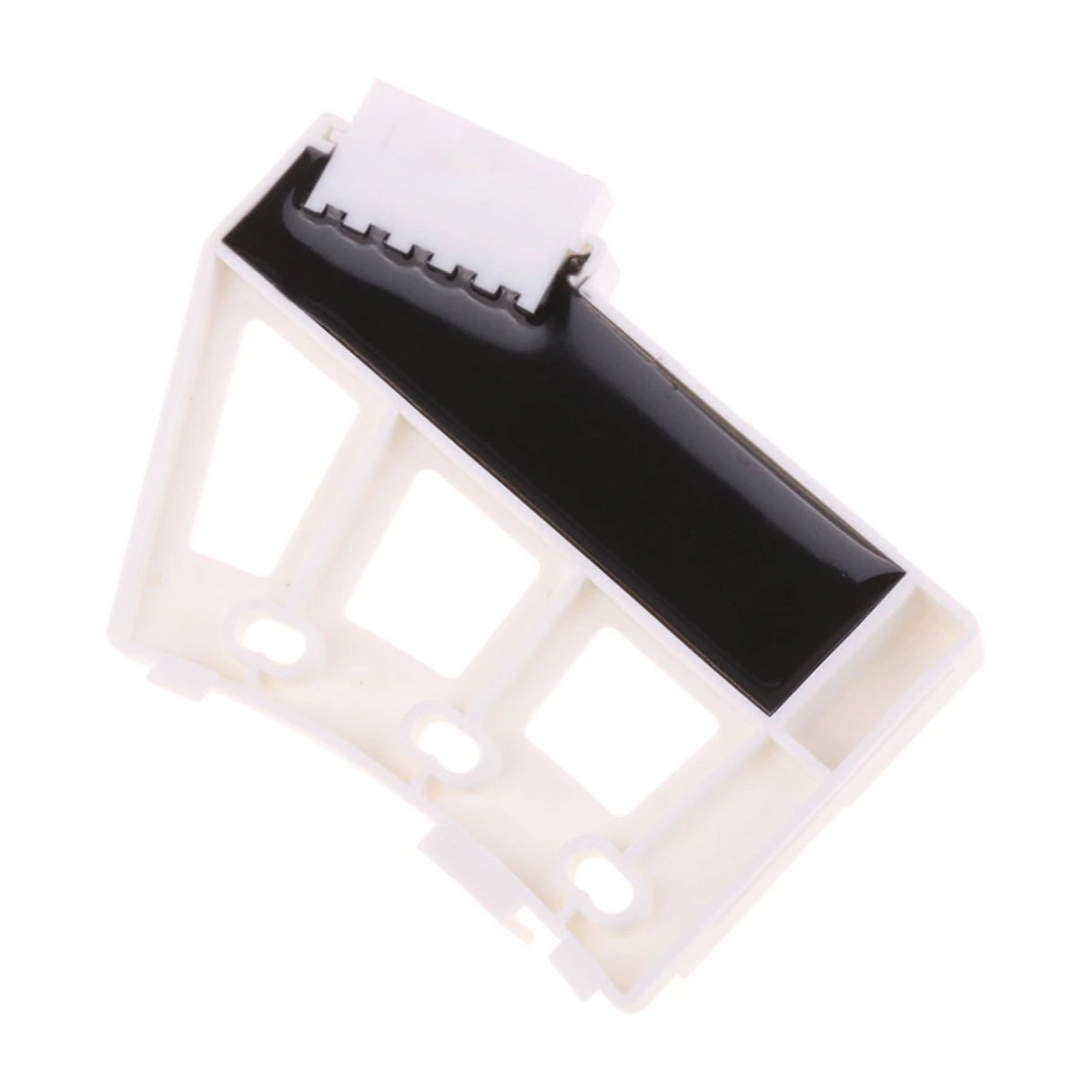

The hall sensor, LG part 6501KW2001B, tells the control board where the rotor of a direct drive motor is so it can turn the drum smoothly. This genuine LG sensor is also listed as 6501KW2001A. It suits LG front loaders such as the WD14030D6 and WD12021D6, the WD-1412RD and WD-1236TD, and F14A8FD, plus WT-R107 and WT-R807 top loaders.
LG washer showing LE or the drum jerking
LG direct drive washers have no belt. The rotor bolts straight onto the drum shaft, and this sensor, mounted on the stator, reads the rotor magnets as they pass. The control board uses that signal to time the motor windings. When the sensor fails, the board loses track of the rotor. The drum may jerk, twitch back and forth, refuse to spin, or stop with an LE motor error, often worse with a heavy load. Moisture or a damaged connector can cause the same faults, so inspect the plug and wiring while you're there.
Part details
- Genuine LG part 6501KW2001B
- Also listed as 6501KW2001A
- Rotor position (hall) sensor for LG direct drive motors
- Suits LG WD front loaders and WT-R top loaders on file
Fitting the hall sensor
Disconnect the washer from power and close both water taps. On front loaders, take off the back panel, undo the centre bolt and pull the rotor off to expose the stator. Top loaders are worked on from underneath. The sensor clips onto the stator and plugs into the loom. Swap it over, refit the rotor and tighten the bolt firmly. Run a spin cycle to check the drum speeds up smoothly.
Questions about this part
Does an LE error always mean a bad hall sensor?
No. LE means the board has detected a motor fault. A worn rotor, damaged stator windings, a loose connector or a fault in the wiring loom can all cause it. Check the wiring and stator alongside the sensor before replacing parts.
Specifications
| Brand | LG |
|---|---|
| Original part number | 6501KW2001B |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 6501KW2001B |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
