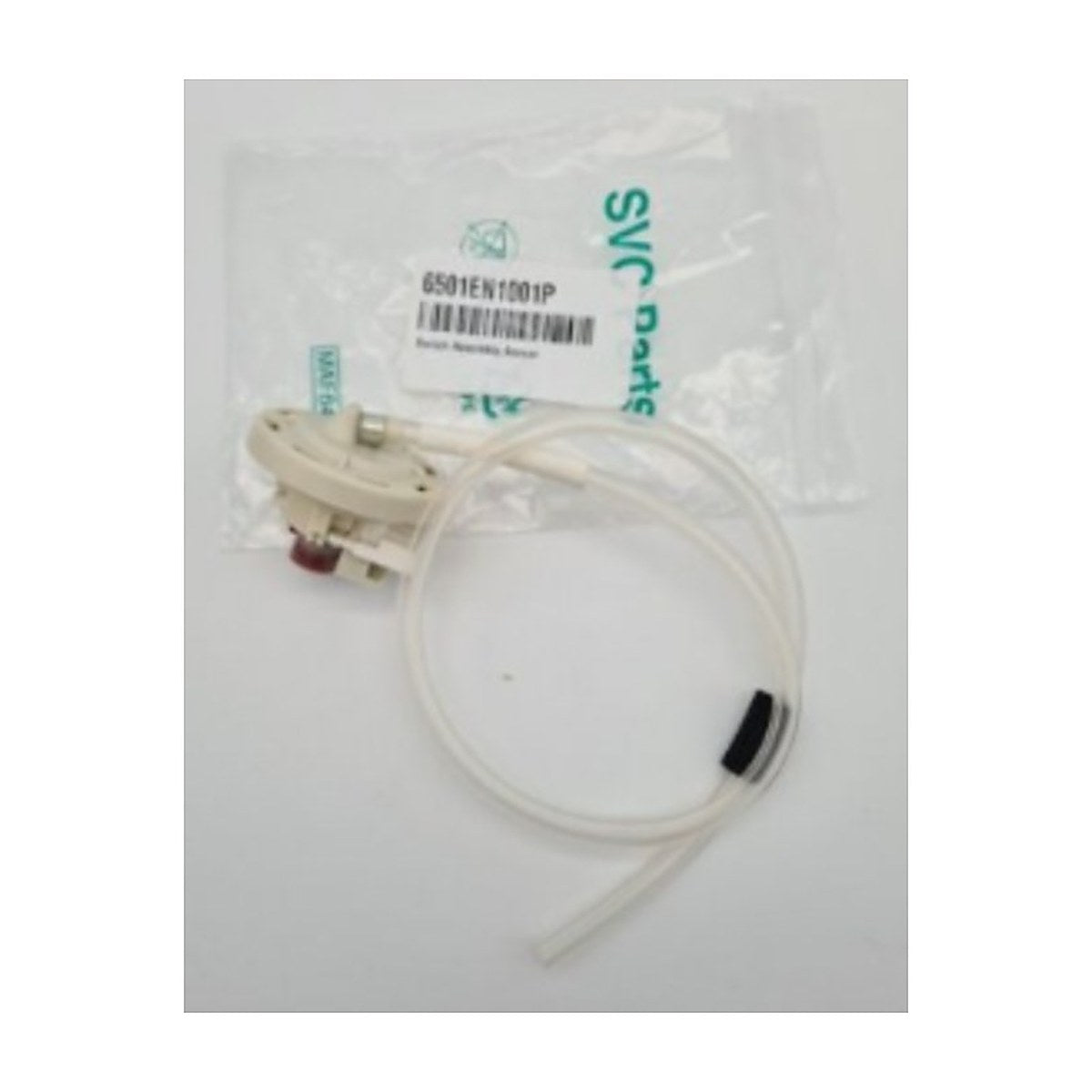

6501EN1001P Genuine Sensor Switch Assembly for LG Washing Machines, LG Washer Water Level Sensor, Switch Assembly Sensor

6501EN1001P is a genuine LG switch assembly, sensor, for LG washing machines. LG generally uses this description for the water level sensor, the part that reads the air pressure in a small tube connected to the tub so the machine knows how much water is inside. With no model list on file, check the number on your old sensor before ordering.

LG washer overfilling, underfilling or showing a fill error?

A water level sensor is usually mounted high in the cabinet and connected to the tub by a thin air hose. As water rises, the trapped air is compressed and the sensor turns that pressure into a signal for the control board. If it fails, the washer may overfill and spill from the dispenser, fill too little, keep filling and draining, or stop with a level related error. A split, kinked or blocked air hose gives the same symptoms and costs far less, so check it first.

Part details

• Genuine LG part 6501EN1001P
• Sensor switch assembly for LG washing machines
• LG description: Switch Assembly, Sensor
• Check the air hose and connector when fitting

Replacing the sensor

Unplug the washer before removing any panels. On most front loaders the sensor sits under the top panel. Pull the air hose off gently, check it's clear by blowing through it, and replace it if it's perished. Unclip the old sensor, move the connector across to the new one and push the hose firmly onto its spigot. Run a fill to check the level is right.

Questions about this part

Can a blocked hose cause the same fault?

Yes. If the small air hose between the tub and sensor is kinked, split or blocked with residue, the sensor can't read the level properly. Clear or replace the hose before deciding the sensor itself has failed.
