6501EA1001R Genuine Water Level Pressure Sensor Switch for LG Top Load Washing Machines, Also Listed as EBF62754506
- Original part no.
- 6501EA1001R
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

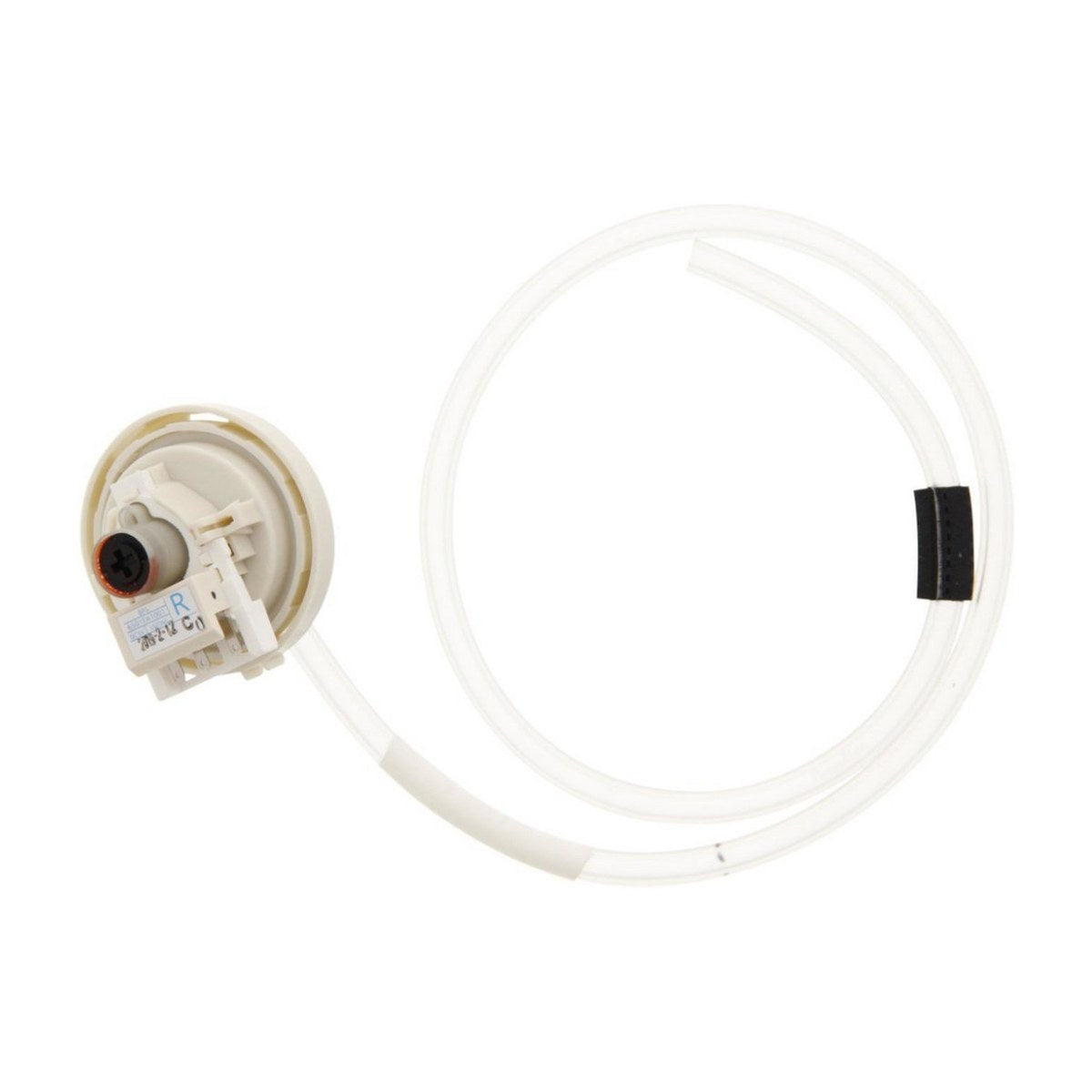

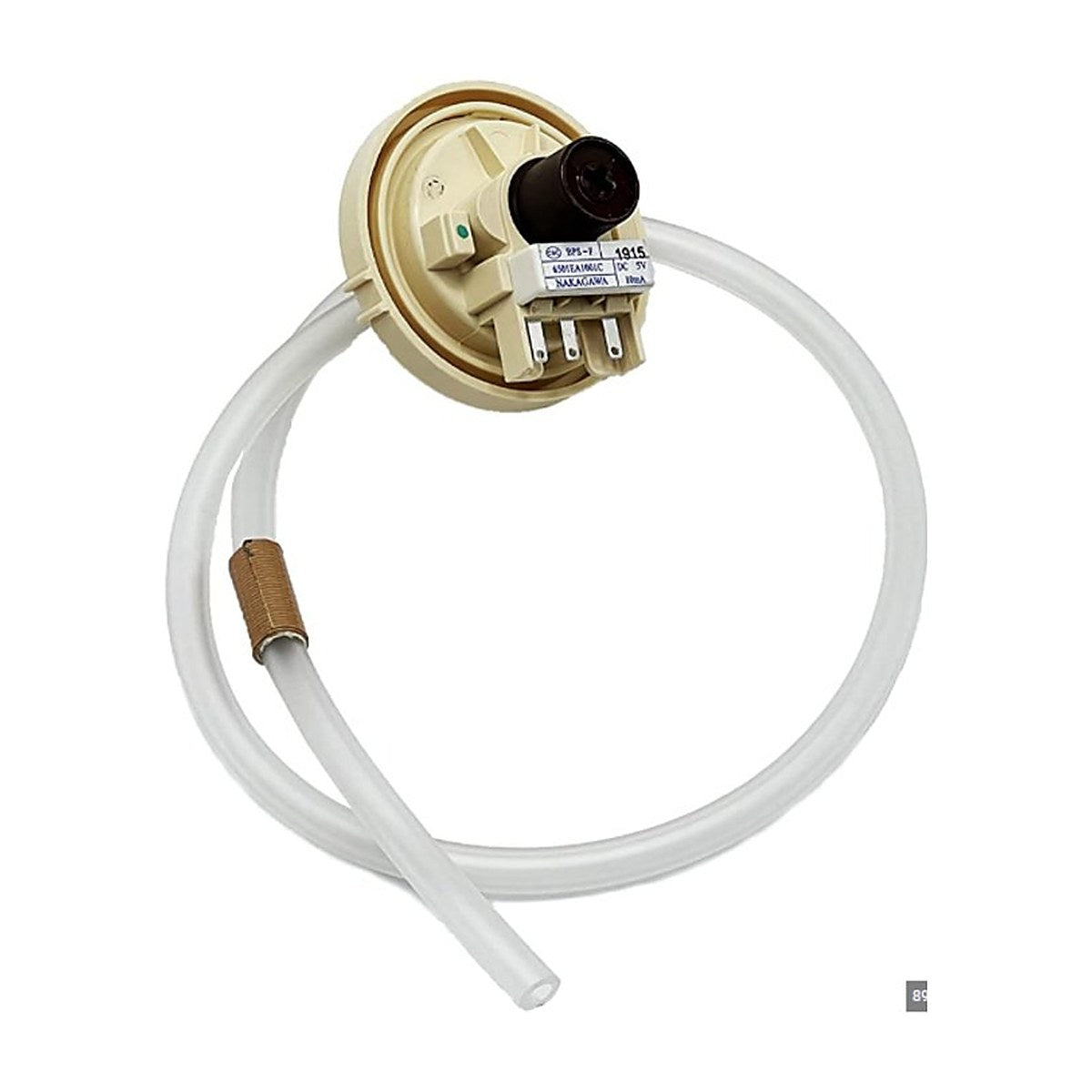

Genuine LG part 6501EA1001R is the water level pressure sensor switch for LG top load washing machines, also listed as EBF62754506. It reads air pressure in a tube connected to the tub to work out how much water is in the machine. No model list is on file, so check that the number on your old sensor, or in your washer's parts list, shows 6501EA1001R or EBF62754506.
LG top loader overfilling or not filling?
As the tub fills, water pushes air up a thin hose to the pressure sensor. The sensor turns that pressure into a signal the main board uses to stop filling at the right level and to check the tub has drained. A faulty sensor can make the washer overfill and spill, stop filling too early, keep filling and draining, refuse to spin, or show a water level error. Before replacing it, check the pressure hose for kinks, splits or a blockage at the tub end, as that causes the same symptoms.
Part details
- Genuine LG part 6501EA1001R
- Also listed as EBF62754506
- Water level pressure sensor switch
- For LG top load washing machines
Fitting the pressure sensor
Unplug the washer and turn off both taps. The sensor is usually found under the top panel or behind the controls. Photograph the wiring plug and hose position, transfer the hose to the new sensor and make sure it's pushed fully on. Run a short fill to check the water stops at the correct level.
Questions about this part
Is EBF62754506 the same part?
Yes, EBF62754506 is listed against this pressure sensor. If your washer's parts list or old sensor shows either 6501EA1001R or EBF62754506, this is the sensor to order.
Specifications
| Brand | LG |
|---|---|
| Original part number | 6501EA1001R |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 6501EA1001R |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
