610147 Generic Door Interlock suits Bosch Washing Machines 00610147 00615789 WAE24460AU WAE22464AU WAE20261AU WAE18060AU WAE26470AU
- Original part no.
- 610147
- Part grade
- Generic
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Quality checked generic part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

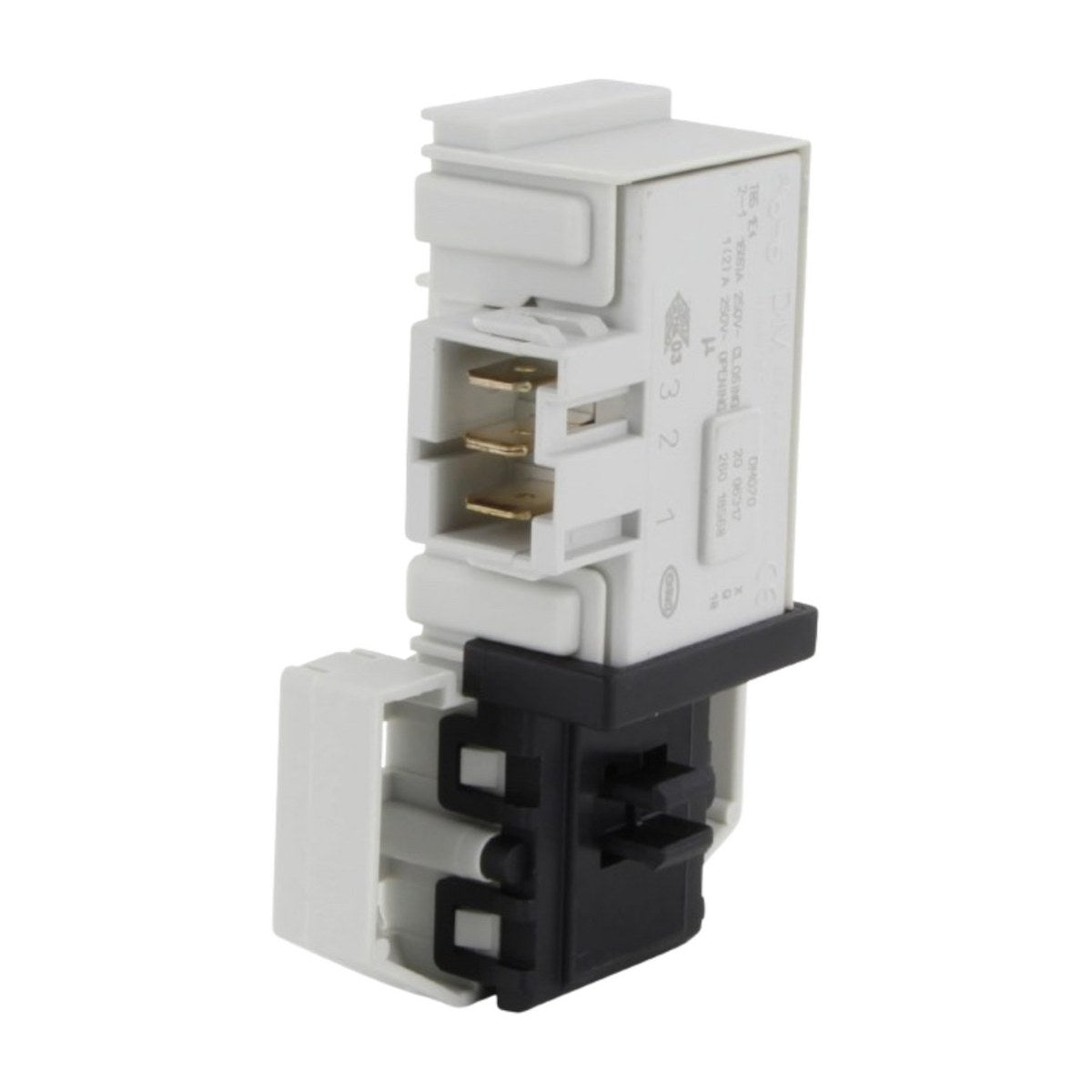

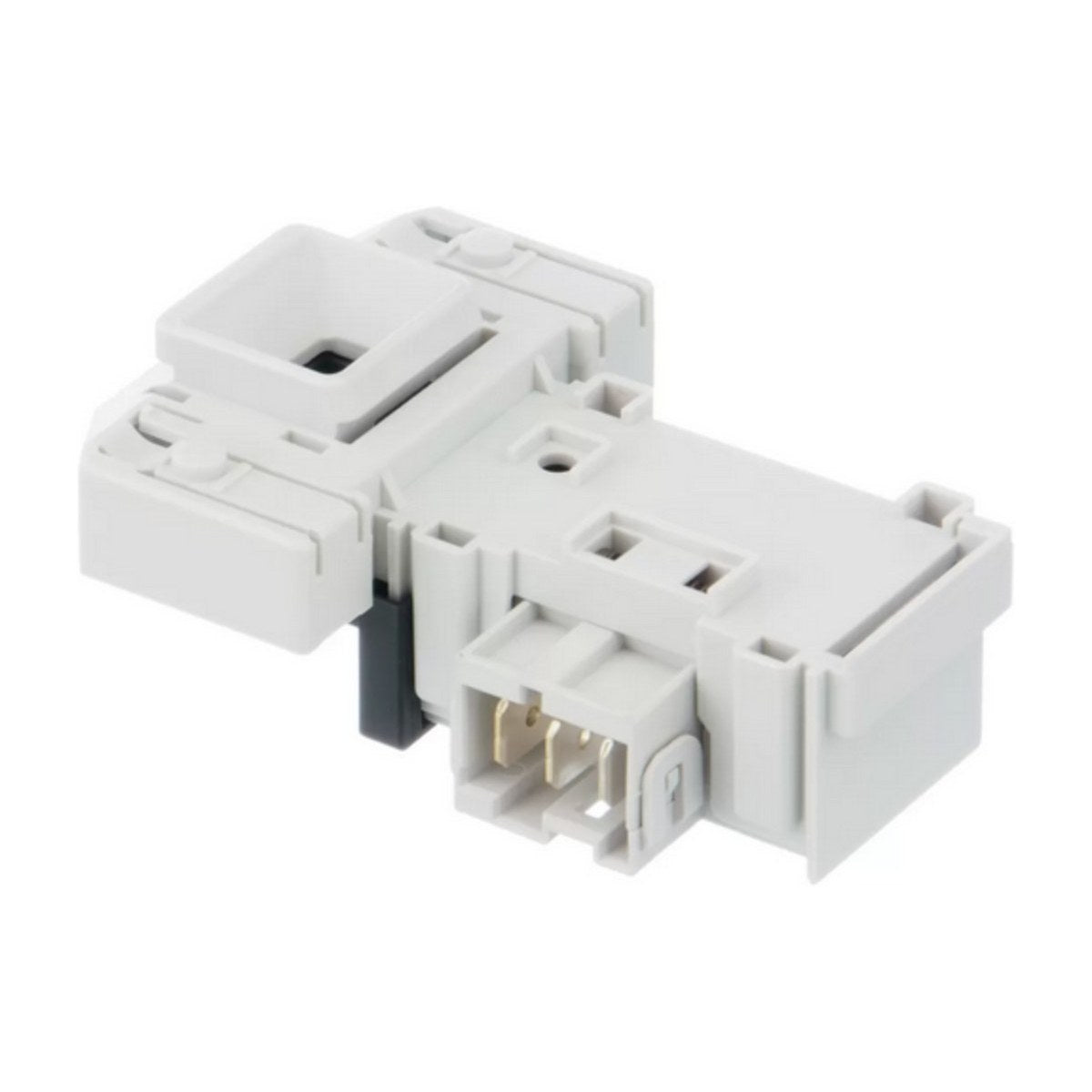

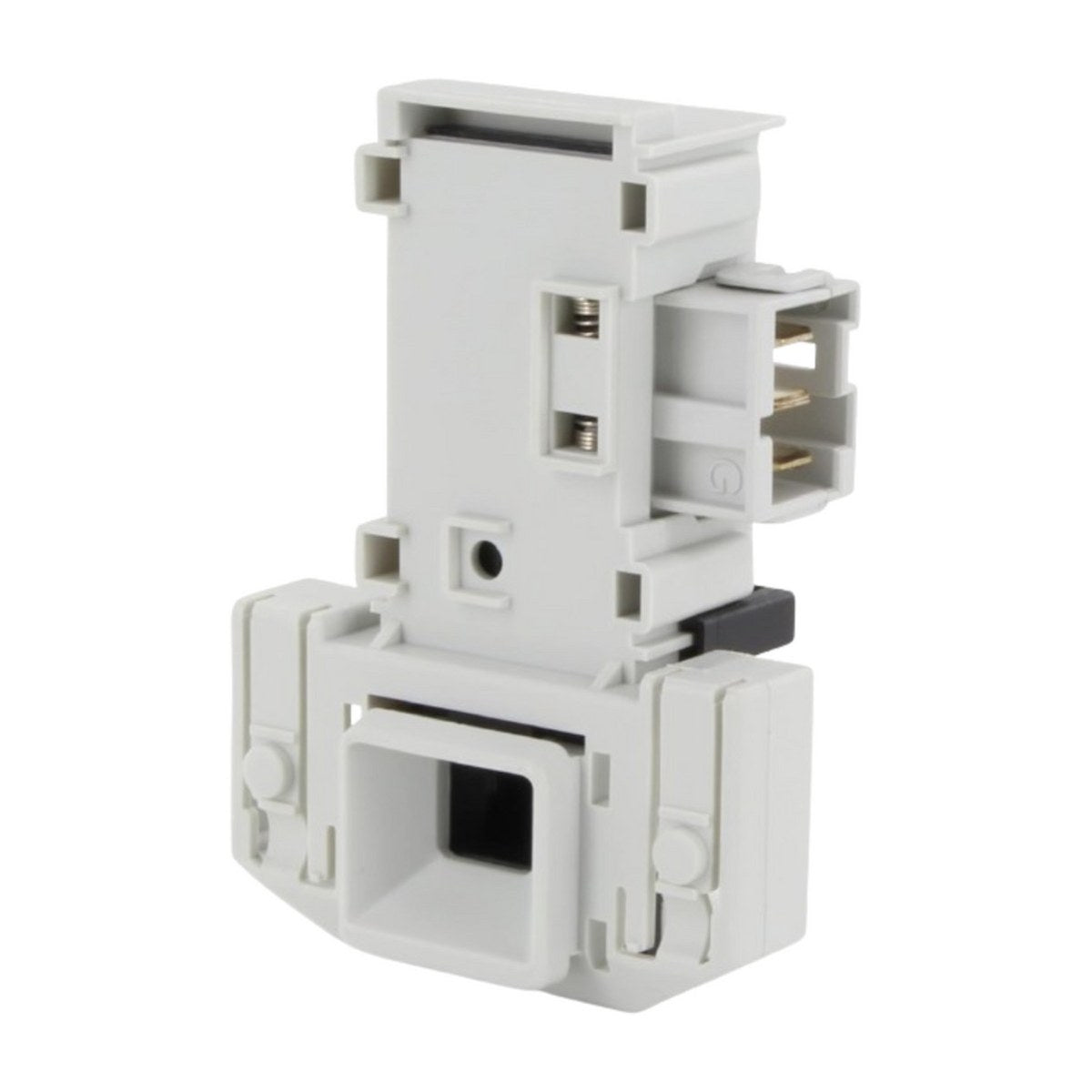

This generic door interlock replaces Bosch part 00610147, listed here as 610147, and it lines up with the Bosch numbers 00615789, 00610682, 00610766, 00638154 and 00658976 as well. It is an aftermarket part, not one made by Bosch. More than 70 Bosch front loader variants are on file. Most are WAE machines, for example the WAE18060AU and WAE22464AU, the WAE24460AU or the WAE26470AU, and a few WFL1880AU and WFL2400AU versions are listed too.
Bosch washer won't start or the door stays locked shut?
The interlock sits in the cabinet front beside the door opening, where the hook on the door engages it. Before a wash begins, the control board energises the interlock, which latches the hook and signals back that the door is shut and secure. It then holds the door closed until the drum has stopped and the water level is safe. When it fails, the machine may refuse to start, stop part way through a program, show a door fault or keep the door locked at the end of the cycle. A broken door hook can cause similar symptoms, so check the hook on the door as well.
Part details
- Replaces Bosch part number 00610147
- Cross references 00615789, 00610682, 00610766, 00638154 and 00658976
- Generic aftermarket door interlock
- Listed for Bosch WAE and WFL series front load washing machines
Replacing the door interlock
Switch off at the wall and unplug the washer, and make sure no water is sitting in the drum. On most front loaders you reach the interlock by removing the retaining wire around the front of the door boot and folding the boot back, then taking out the screws beside the hook opening. Photograph the plug before unclipping it, fit the new interlock, refit the boot evenly and run a rinse program to test.
Questions about this part
Where do I find my Bosch model number?
Open the door and look around the door frame or on the inside edge of the door for the rating label. It shows the model, for example WAE24460AU, plus an FD production code. Send both through the parts enquiry form if your model isn't in the list.
Specifications
| Brand | Universal |
|---|---|
| Original part number | 610147 |
| Part grade | Generic : Generic compatible replacement, a lower cost alternative to the original part. |
| SKU | 610147_G |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
