565932 Genuine User Interface Wiring Harness Kit for Fisher & Paykel Ovens OB60SC7CEPX1 OB60SC9DEX1 OB60SD9PX1 OB60SD11PX1 OB60SL11DEPX1
- Original part no.
- 565932
- Part grade
- Genuine
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

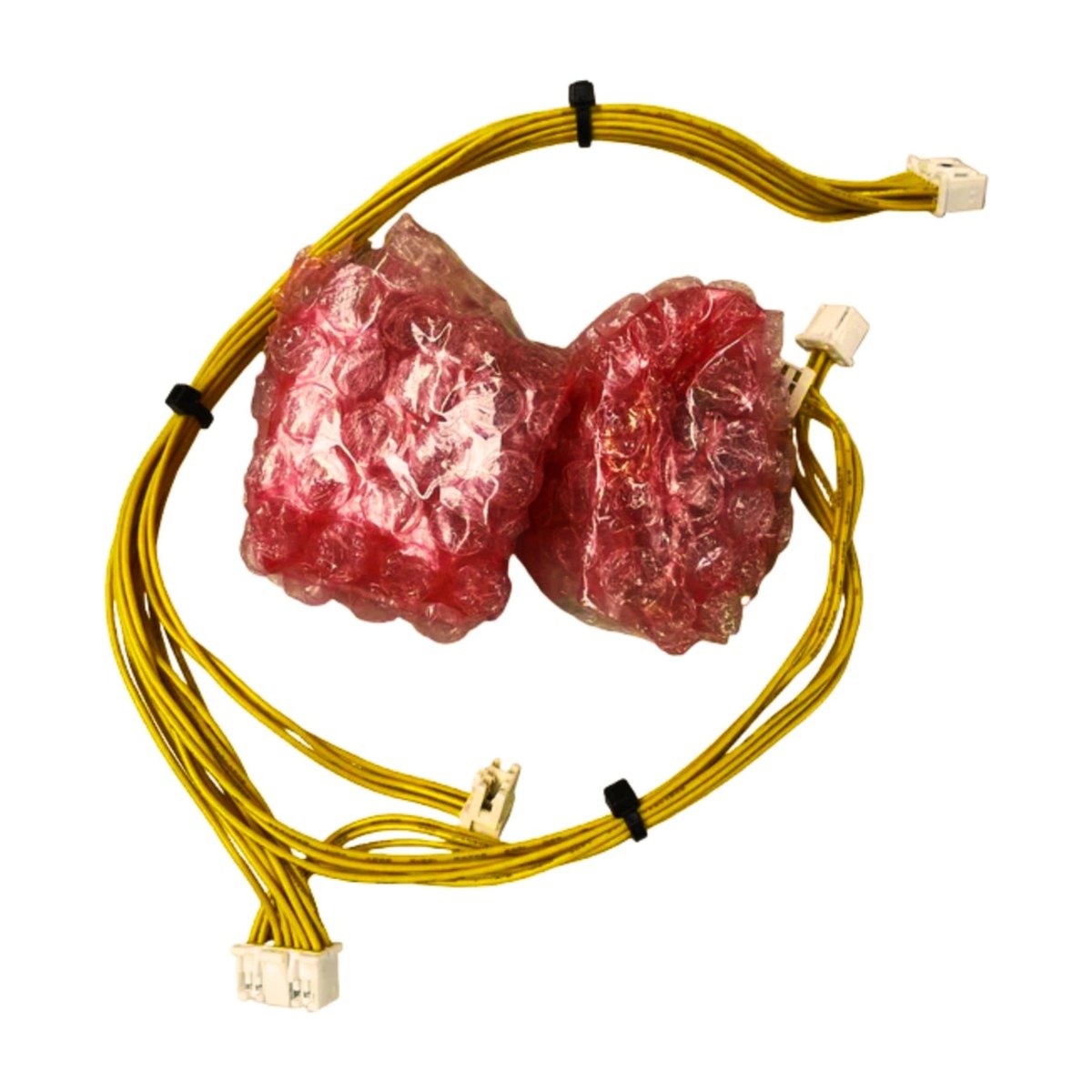

This genuine Fisher & Paykel electrical kit, part 565932, is the wiring harness for the user interface on a range of built-in ovens. It is linked to 551026 and is listed for 20 models, for instance the OB60SC7CEPX1 and OB60SC9DEX1, the OB60SD9PX1 and OB60SD11PX1, the OB60SL11DEPX1 and the OB60NC9DEX1. It is a specialised part, so confirm your model before ordering.
When an oven wiring harness needs replacing
The user interface harness carries power and signals between the oven's control electronics and the display and controls on the front panel. Heat from the oven over many years can make insulation brittle, and plugs can loosen or discolour where they connect. A damaged harness can cause a blank or flickering display, controls that do not respond, intermittent faults that come and go as the oven warms up, or error codes linked to communication between boards. Inspect it for scorched plugs or cracked insulation before replacing more costly boards.
Part details
- Genuine Fisher & Paykel harness kit 565932
- Linked number 551026
- User interface wiring for built-in ovens
- Listed for 20 Fisher & Paykel OB60 oven models
Fitting advice for the harness
Built-in ovens are normally hard-wired, so leave this job to a licensed electrician or a qualified appliance technician. Isolate power at the switchboard before removing any panels. Photograph every plug and the cable route before disconnecting, run the new harness along the same path away from hot surfaces, and check every plug is fully home before restoring power.
Questions about this part
Do I need this harness or a new control board?
Display and control faults can come from either part. If the harness plugs look burnt or the wires are damaged, start with the harness. If it looks fine, have a technician test the boards before you buy. Send your model and fault details through the parts enquiry form if you need help.
Specifications
| Brand | Fisher & Paykel |
|---|---|
| Original part number | 565932 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 565932 |
| Appliance | Oven Parts |
| Shipping weight | 0.4 kg |
