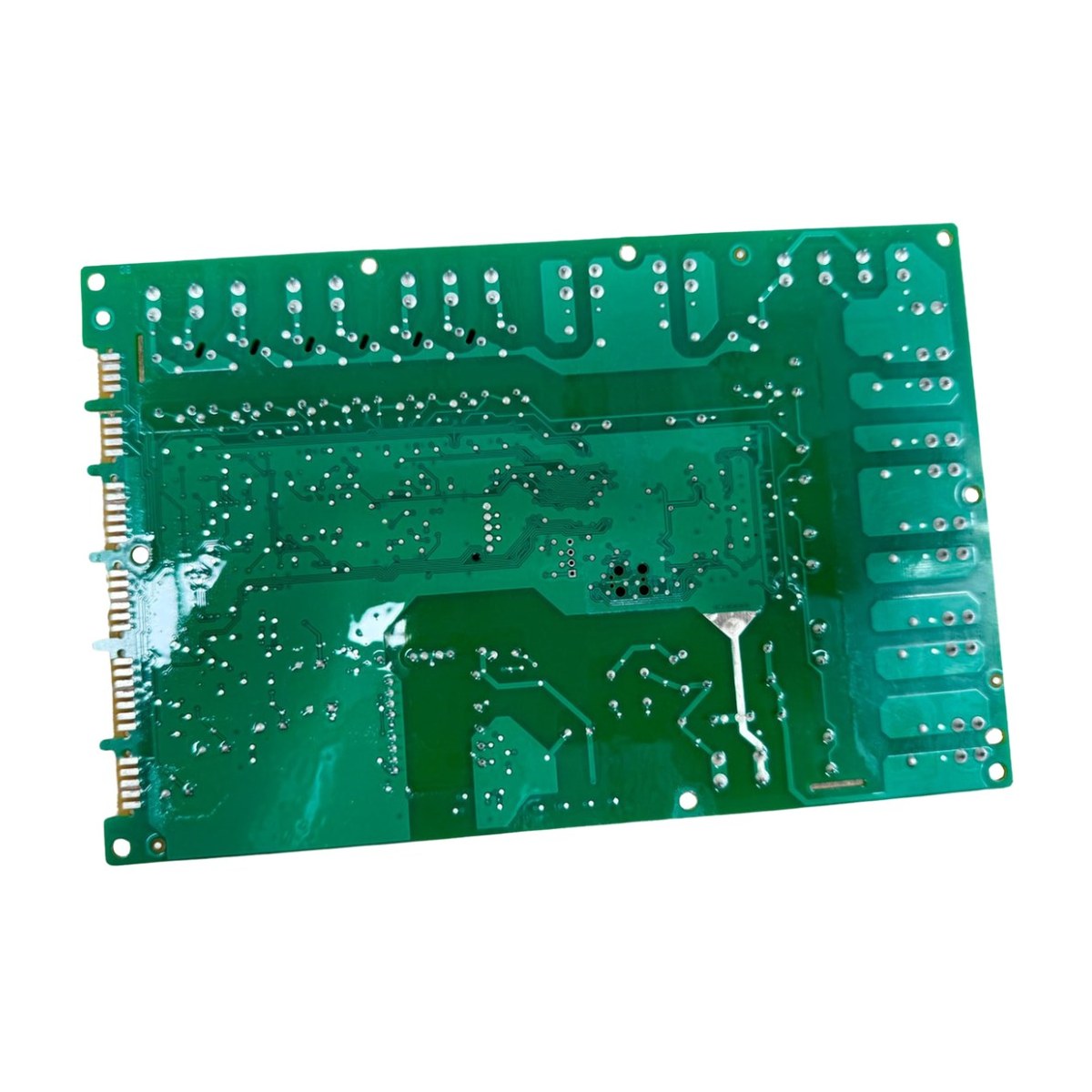

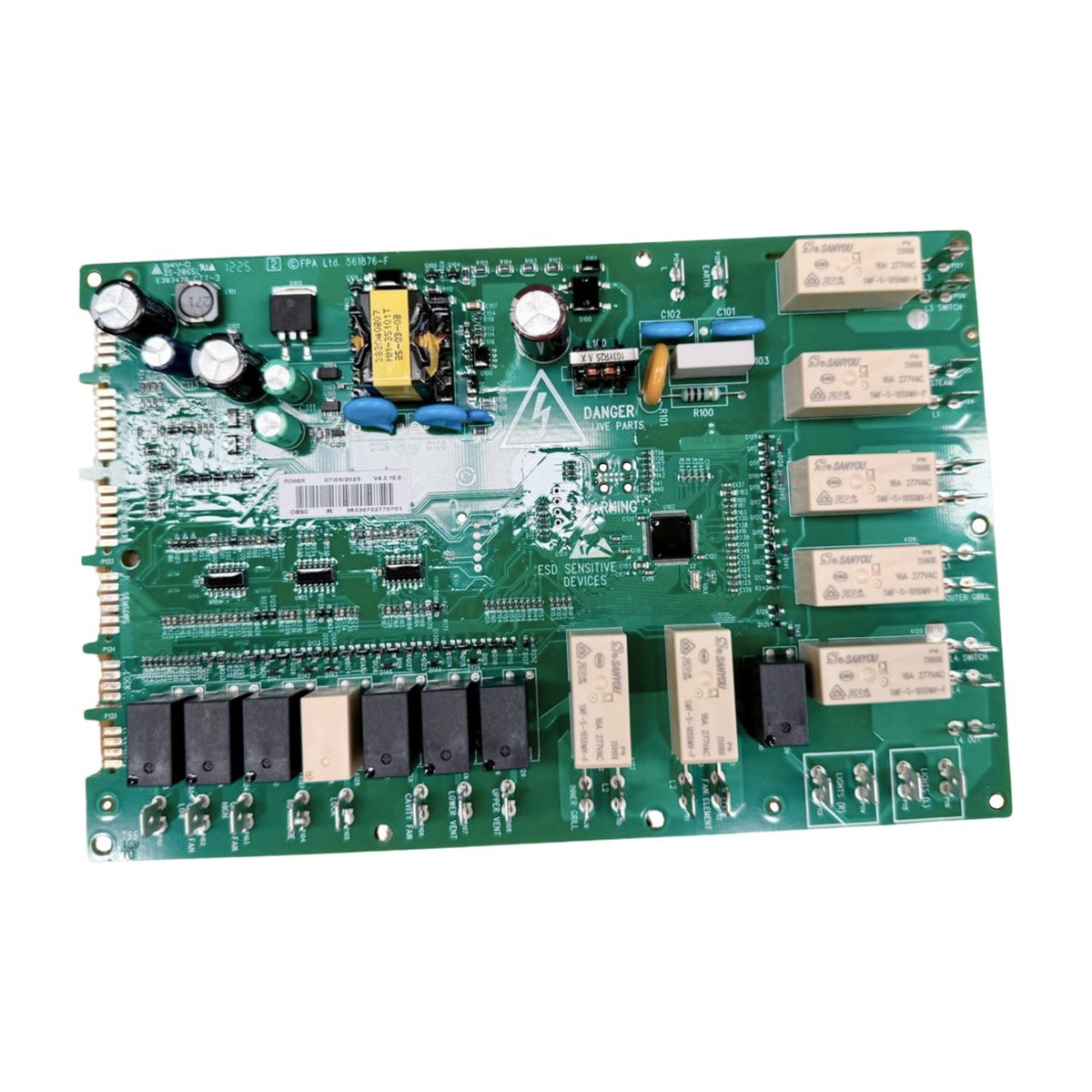

563689 Genuine Oven Power Module PCB for Fisher & Paykel Ovens OB60SC5CEPX2 OB60SC6CEPX2 OB60SC7CEPX2 OB60SC8DEPX2
- Original part no.
- 563689
- Part grade
- Genuine
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Fisher & Paykel's genuine power module 563689 is the board that handles the mains side of the oven's electronics, switching loads such as the elements and fans on command from the controls. It is listed for four OB60 built-in ovens: the OB60SC5CEPX2 first, then the OB60SC6CEPX2, the OB60SC7CEPX2 and finally the OB60SC8DEPX2. Check the full model on your rating label, including the X2 ending, before ordering.
Fisher & Paykel oven dead or not heating with no obvious cause?
In an electronic oven, the display takes your settings and the power module does the heavy lifting, switching relays to send power to the elements, fans and lamp. When a relay sticks or burns, or a component on the board fails, you can end up with a display that works but no heat, one function missing, an oven that heats nonstop, or a completely dead unit. Burn marks, a smell of hot electronics or a tripping safety switch can also point here. Test the elements and wiring first, as they fail more often and are simpler to replace.
Part details
- Genuine Fisher & Paykel part 563689
- Oven power module PCB
- Four OB60SC models on file, from the 5CEPX2 to the 8DEPX2
- Handles the mains switching side of the oven electronics
Fitting the power module
This is mains wiring on a hard-wired oven, so it must be fitted by a licensed electrician with the circuit isolated at the switchboard. Allow time for any stored charge to discharge. Photograph every connector before unplugging, handle the new board by its edges to avoid static damage, and check all plugs are fully seated before power goes back on. Test each cooking function afterwards.
Questions about this part
Can I fit this to a model not on the list?
It is best not to. Oven boards are matched to specific models, and a board from another variant may not work or may damage components. Send your full model and serial number through the parts enquiry form and we will check the right board.
Specifications
| Original part number | 563689 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 563689 |
| Appliance | Oven Parts |
| Shipping weight | 0.4 kg |
