547680P Genuine Fan Forced Oven Element Kit 2500W for Fisher & Paykel Ovens OB30SDPTX1 OB30DDPTDX1 OB76SDPTX1 OB76DDPTDX2 OB30SDPTB1
- Original part no.
- 547680P
- Part grade
- Genuine
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

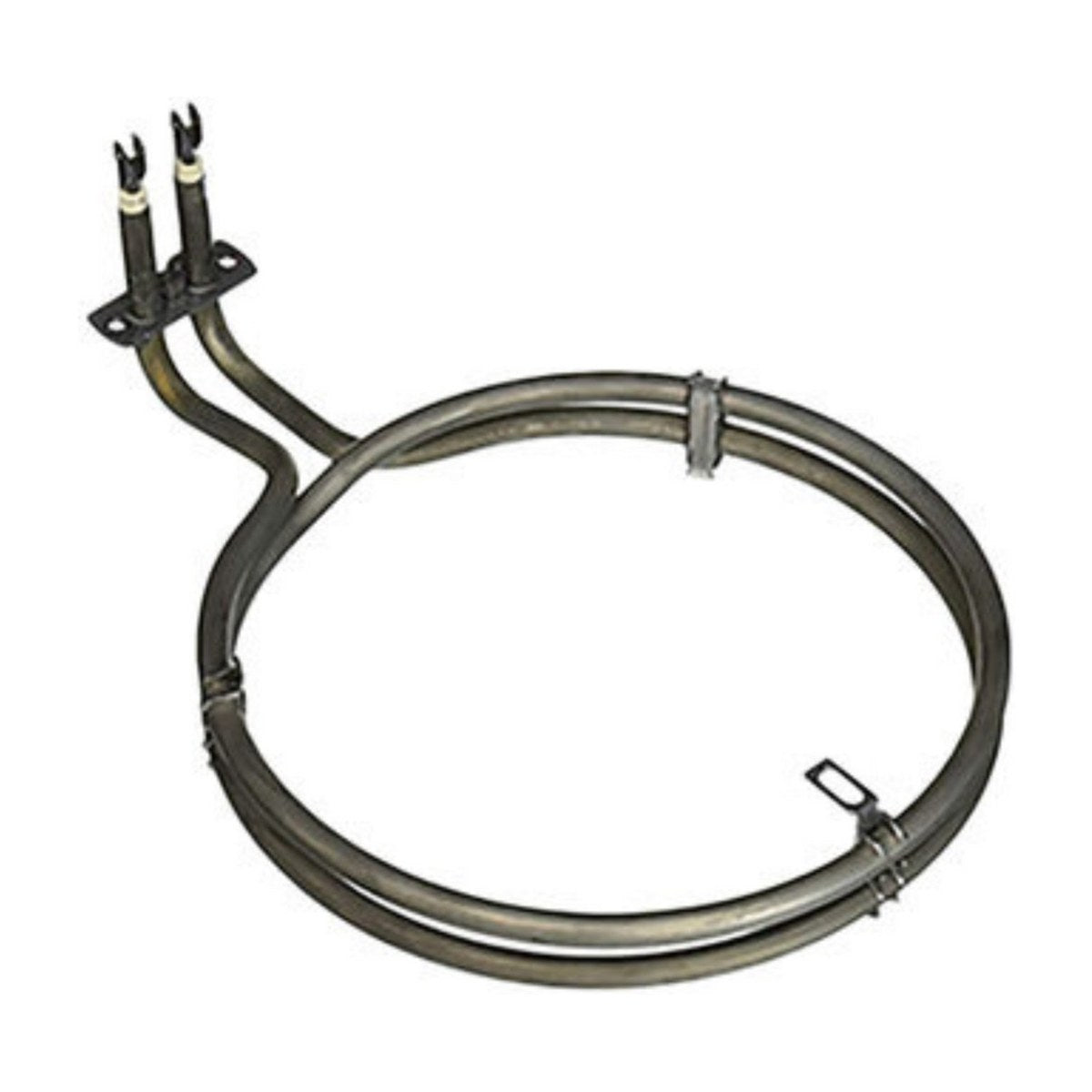

This genuine Fisher & Paykel kit replaces the 2500W fan forced element in OB30 and OB76 series ovens. The kit number is 547680P, and the element is also known as 547680. Models on file include the OB30SDPTX1 and OB30SDPTDX2, the OB30DDPTDX1 and OB30DPPTX1, the OB30SD14PLX1 and the OB30SDPTB1. On the OB76 side there are the OB76SDPTX1 and OB76DDPTDX2, plus the OB76DPPTX1 and OB76SDPTDB1. Twenty model versions are listed in total.
Fan forced oven not heating? Check the fan element
The fan element is the round element wrapped around the fan at the back of the oven. The fan blows air across it and spreads heat evenly through the cavity on fan bake and similar functions. When it burns out, the fan still runs but the oven stays cold or barely warms on fan modes, while the top and bottom elements may still work on other settings. A blown element can also trip the RCD or safety switch the moment a fan function is selected. Look for a visible break or bubbling on the element.
Part details
- Genuine Fisher & Paykel part 547680P
- Also known as 547680
- 2500W fan forced element kit
- Listed for OB30 and OB76 series ovens
| Power | 2500W |
|---|
Fitting the fan element
Isolate the oven at the switchboard before starting, and have a licensed electrician do the work if the oven is hard-wired. Remove the back panel inside the oven to reach the fan and element. The terminals are often reached from behind, so the oven may need to come out of the cabinet. Photograph the wiring before disconnecting it, and fit the new element so it sits evenly around the fan without touching the blade.
Questions about this part
Is 547680P the same as 547680?
They refer to the same 2500W fan forced element. The P version is the kit listed here, so either number on your old element or in your paperwork points to this part for the OB30 and OB76 models shown.
Specifications
| Original part number | 547680P |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 547680P |
| Appliance | Oven Parts |
| Shipping weight | 0.7 kg |
