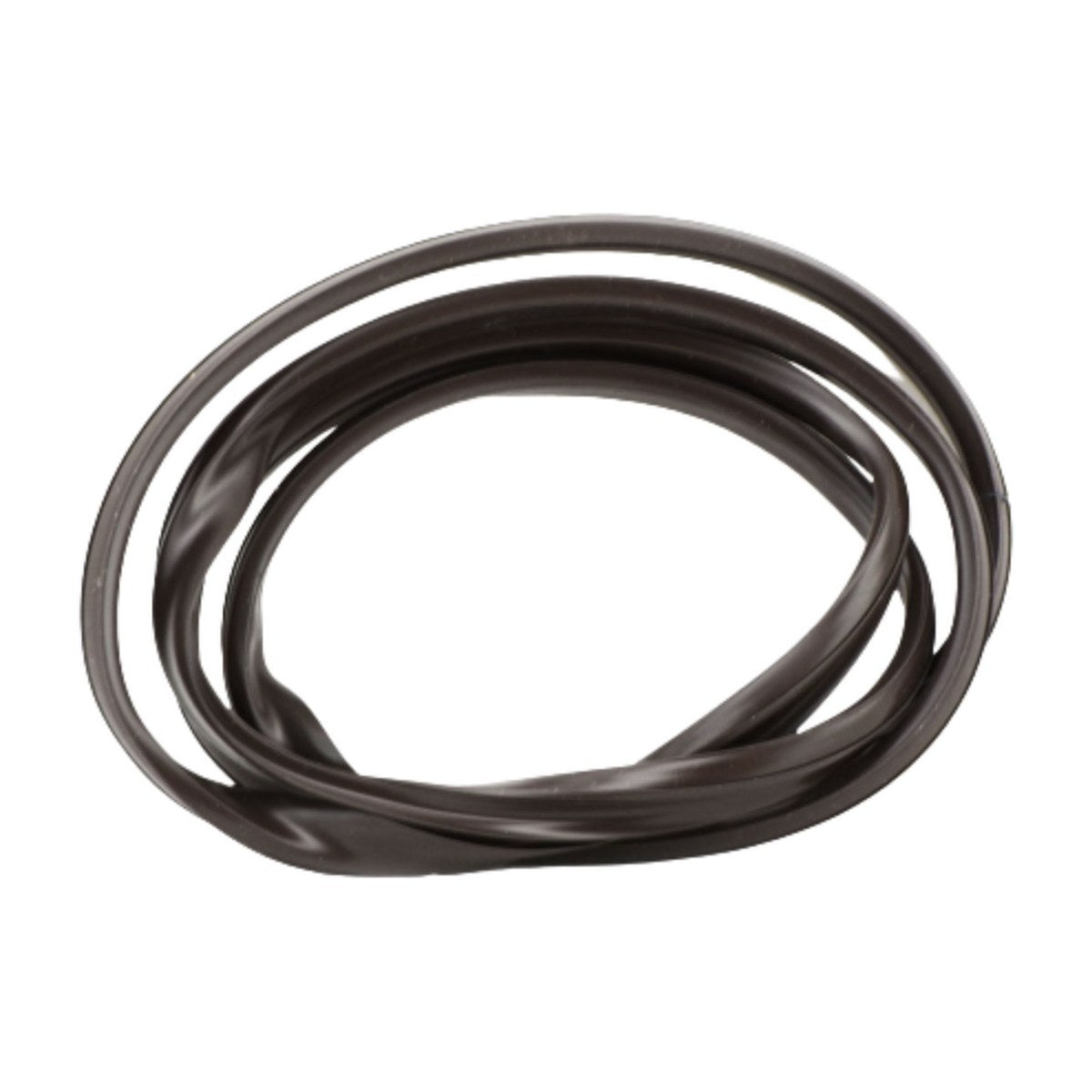

542554 Genuine Oven Door Seal for Fisher & Paykel Ovens BI603E BI603X BI603CE BI603DE BI603MDE BI603QASE BI603XC DI1203DG

Fisher & Paykel BI603 built-in ovens use this genuine door seal, part 542554. It is listed for the whole BI603 run on file, from the BI603E and BI603X to the BI603XC, the BI603CE and BI603CTE, the BI603DE and BI603DX, the BI603MDE and BI603MDX, and the BI603QASE and BI603QASX. The DI1203DG is listed too. A fresh seal brings back a proper close between the door and the oven front.

Fisher & Paykel oven losing heat around the door?

The oven seal runs around the front of the cavity and presses against the inner door glass when the door shuts. As it ages, it can go brittle, flatten, split or pull away at the corners. Heat then escapes through the gap, so the oven takes longer to reach temperature, food cooks unevenly and the door handle, knobs and nearby cupboards get hotter than they should. Steam or smoke drifting out from the top of the door during cooking is a common giveaway.

Part details

• Genuine Fisher & Paykel part 542554
• Oven cavity door seal
• Listed for BI603 series built-in ovens
• Also listed for the DI1203DG

Replacing the door seal

Let the oven cool fully and switch it off at the wall or isolator. Open the door as wide as it goes and look at how the old seal is held before removing it carefully. Warm the new seal to room temperature so it is flexible, then fit it starting from the top centre and work evenly around the corners. Close the door and check the seal contacts the glass all the way round.

Questions about this part

How do I know my oven is a BI603 model?

The model number is on a rating label, normally visible on the oven frame when the door is open. For this seal it starts with BI603. Match the full number, letters included, to the list before ordering.
