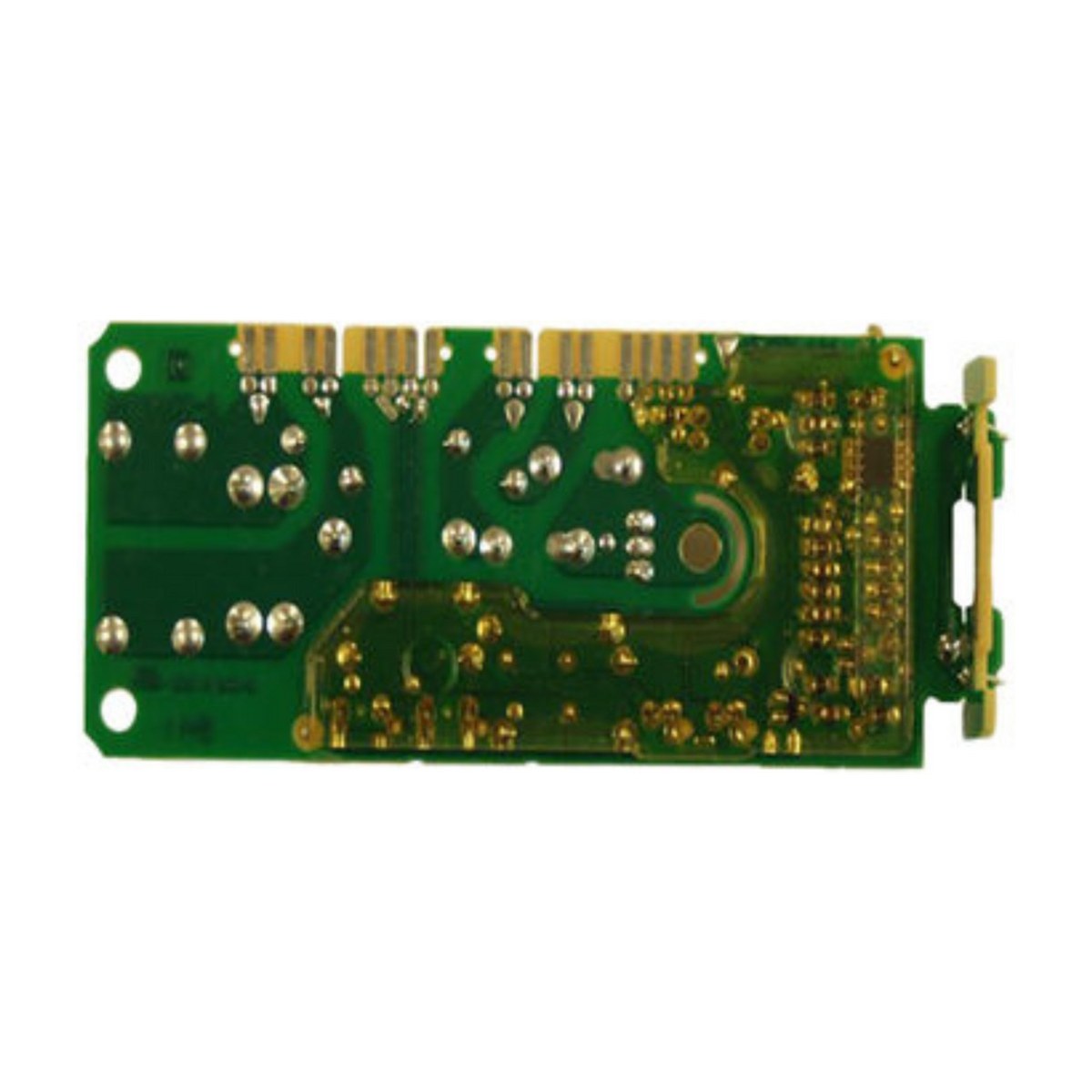

528599MP Genuine DishDrawer Mains Filter Board 230V for Fisher & Paykel Dishwashers DD603 DD6031 DD603MFD DS603 DS6031 DS603MFD

Fisher & Paykel's genuine 230V mains filter board for DD603 and DS603 DishDrawers is part 528599MP, and it also covers the DD6031 and DS6031 and the DD603MFD and DS603MFD. It replaces the earlier 525958MP, and 525958NP is linked to it as well, so if your old board carries either of those numbers, this is the current part. It's the RoHS compliant version.

DishDrawer dead or tripping power? Check the mains filter

The mains filter sits where power enters the dishwasher. It smooths out electrical noise and spikes before they reach the control electronics, and helps stop the dishwasher feeding interference back into your home's wiring. When it fails, the DishDrawer may be completely dead, power up only intermittently, or trip the safety switch as soon as it's turned on. Scorch marks, a swollen component or a burning smell near the filter point the same way. Water leaks onto the board are a common cause, so find and fix any leak at the same time.

Part details

• Genuine Fisher & Paykel part 528599MP
• Replaces 525958MP, also linked to 525958NP
• 230V mains filter board, RoHS version
• For DD603 and DD6031, DD603MFD, DS603, DS6031 and DS603MFD

Fitting the mains filter

Switch off at the wall and unplug the dishwasher, or have a licensed electrician isolate the circuit if it's hard-wired. Give any stored charge time to drain before handling the board. Photograph the connections, fit the new filter in the same orientation and make sure the earth connection is secure. Once it's back together, run a short program and confirm the drawer powers up normally.

Questions about this part

My old board says 525958MP. Is this the right replacement?

Yes. 528599MP is the replacement number for 525958MP on the listed DishDrawers, so order this one if your old board or parts list shows the earlier number.
