524947 Genuine DishDrawer Crockery Insert for Fisher & Paykel Dishwashers DD60DAX9 DD60DAW9 DD60DAX8 DD60DAW8 DD60SAX9 DD60SAW9

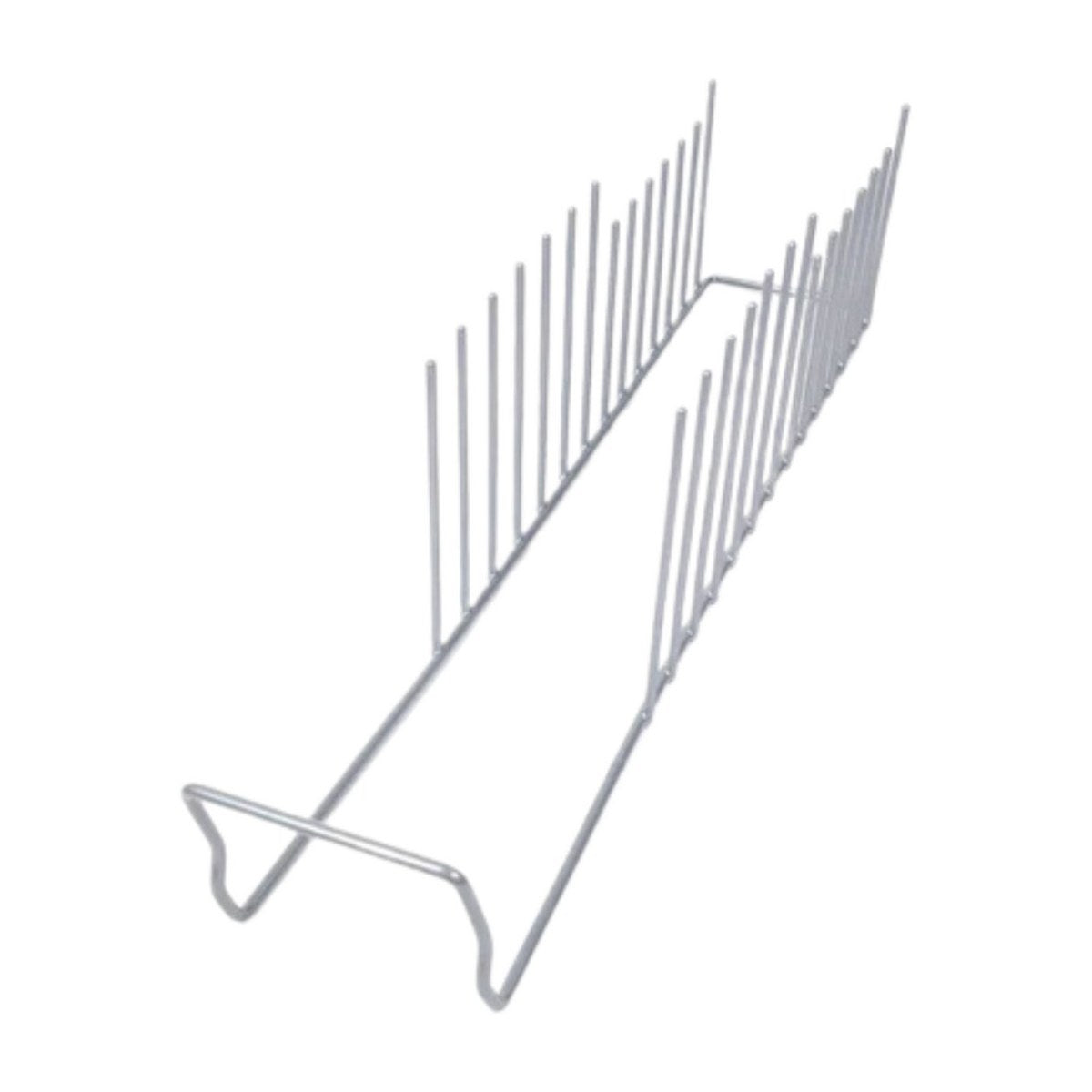

Part 524947 is a genuine Fisher & Paykel crockery insert for the DD60DA and DD60SA DishDrawer models. It is the plate section of the rack, giving each plate and bowl its own slot so they stand upright and spaced. Six models are on file, the DD60DAX8 and DD60DAX9, the DD60DAW8 and DD60DAW9, and the DD60SAX9 and DD60SAW9. A DD60DC or DD60SC model may need a different insert, so match your model carefully.

DishDrawer plates leaning, chipped or coming out dirty?

Plates need to stand apart for water to reach their faces, and the insert's tines do that job load after load. Once tines crack off or bend over, plates slump against each other and block the spray, so food stays stuck in the middle of the stack. A loose insert can also rattle, shift when the drawer slides, or let a plate drop onto the spray arm. Broken locating clips and split frames are common, and a new insert brings back proper spacing.

Part details

• Genuine Fisher & Paykel part 524947
• Crockery insert for DishDrawer racks
• Suits the DD60DA and DD60SA models on file
• DD60DC models are listed against a different insert

Swapping the insert

Make sure the drawer is off and empty, then pull it right out. Release the old insert from its clips, taking note of its orientation. Line the new one up the same way and press it in until it locks at each clip point. Close and open the drawer a couple of times and stand a few plates in it to check the fit before the next wash.

Questions about this part

How do I tell if I have a DD60DA or DD60DC model?

The full model is printed on the rating label, usually visible on the side of the drawer when it is open. This insert is listed for DD60DA and DD60SA models only, while DD60DC and DD60SC models are listed against a different insert.
