524922P Genuine DishDrawer Motor Rotor Assembly for Fisher & Paykel Dishwashers DD60DCX9 DD60SCX9 DD60DAX8 DD60D4NX9 DD60SI9 DD60ST4NB9
- Original part no.
- 524922P
- Part grade
- Genuine
- Appliance
- Dishwasher Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

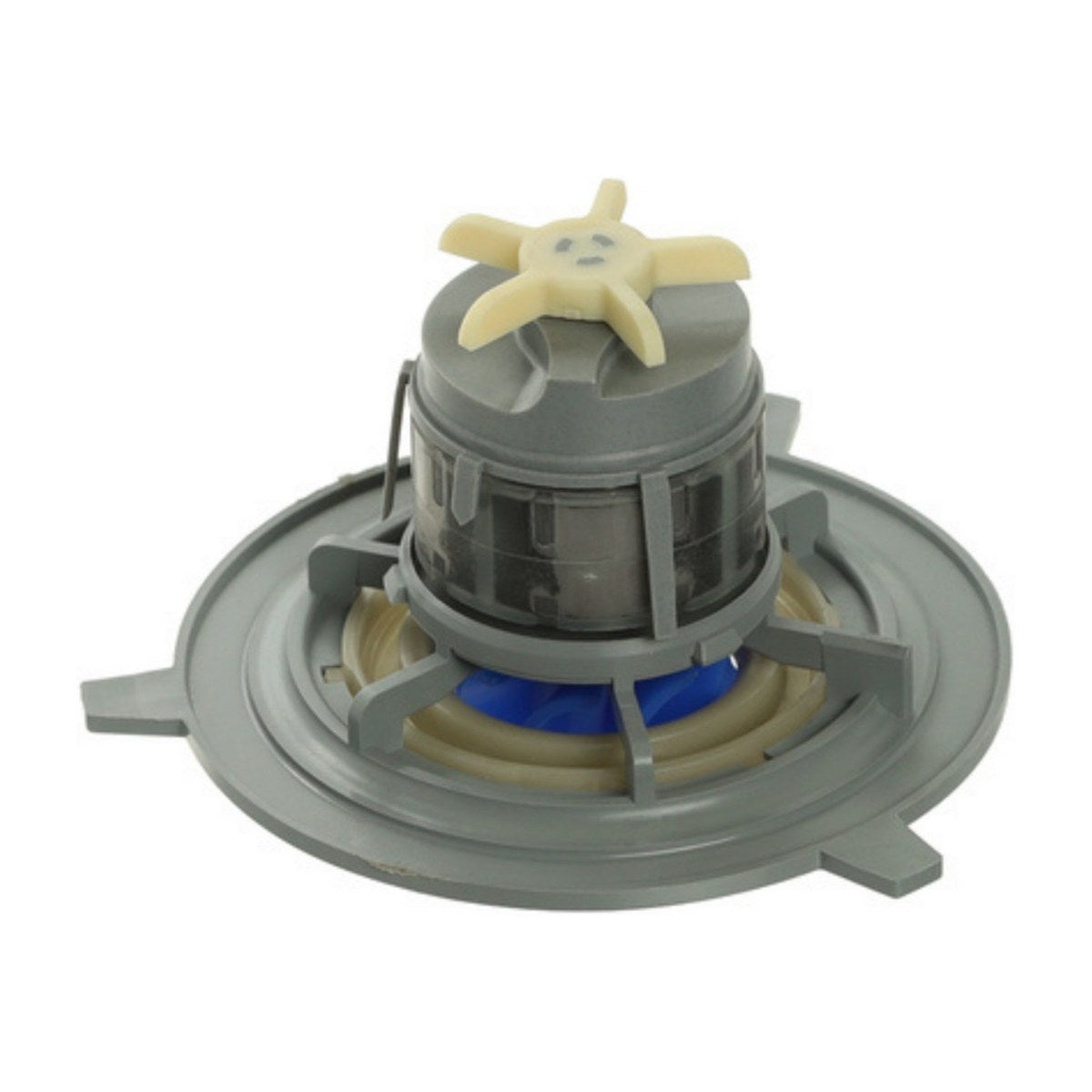

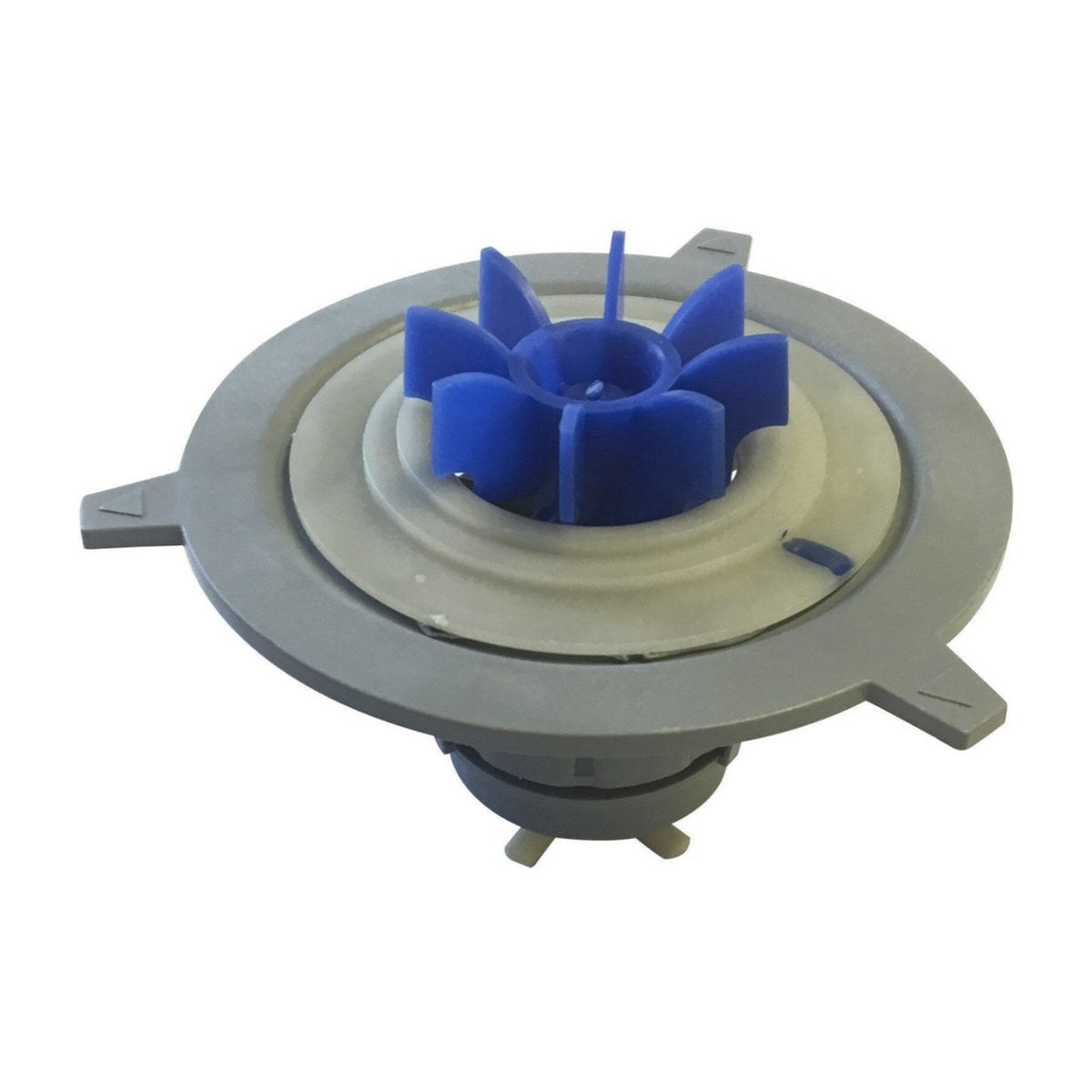

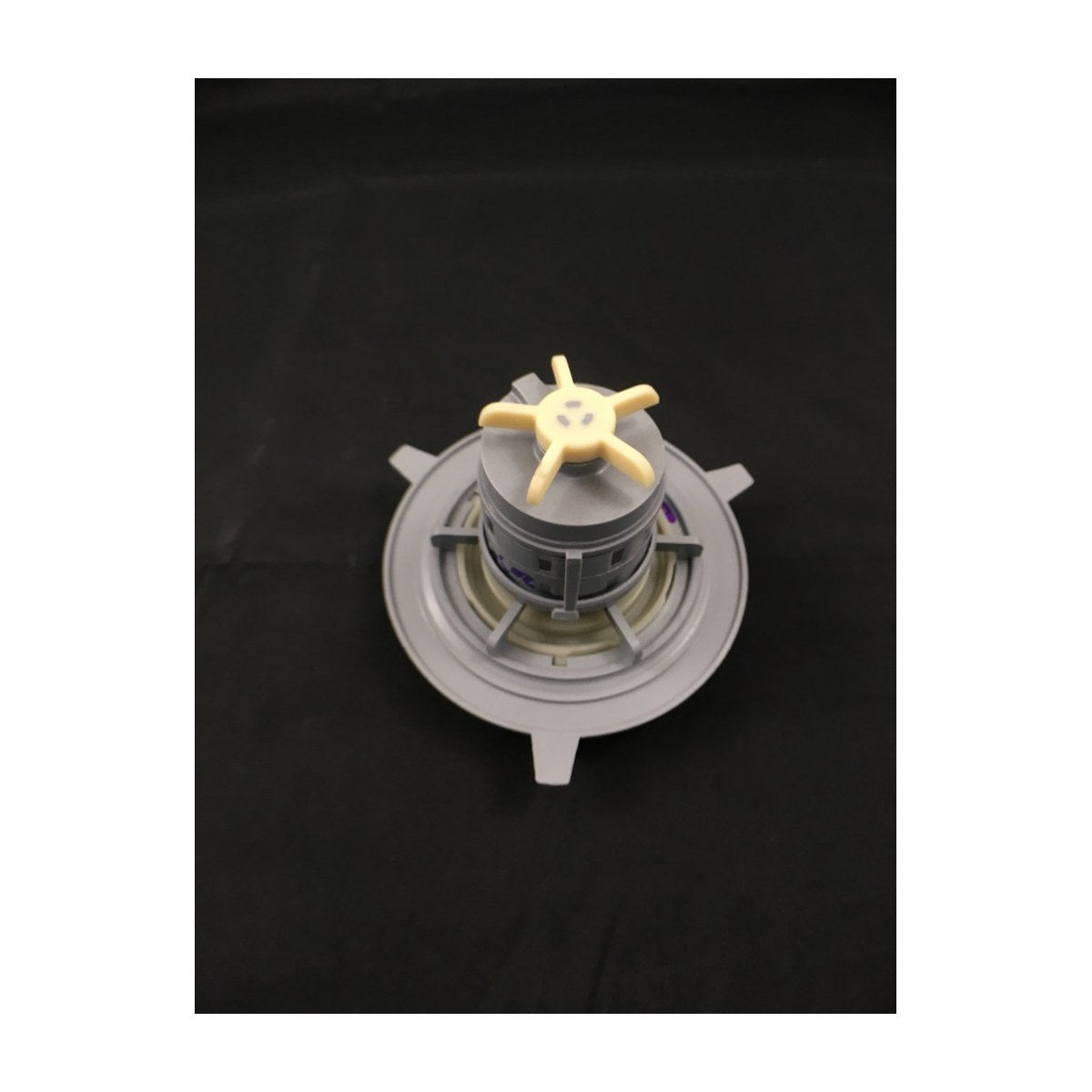

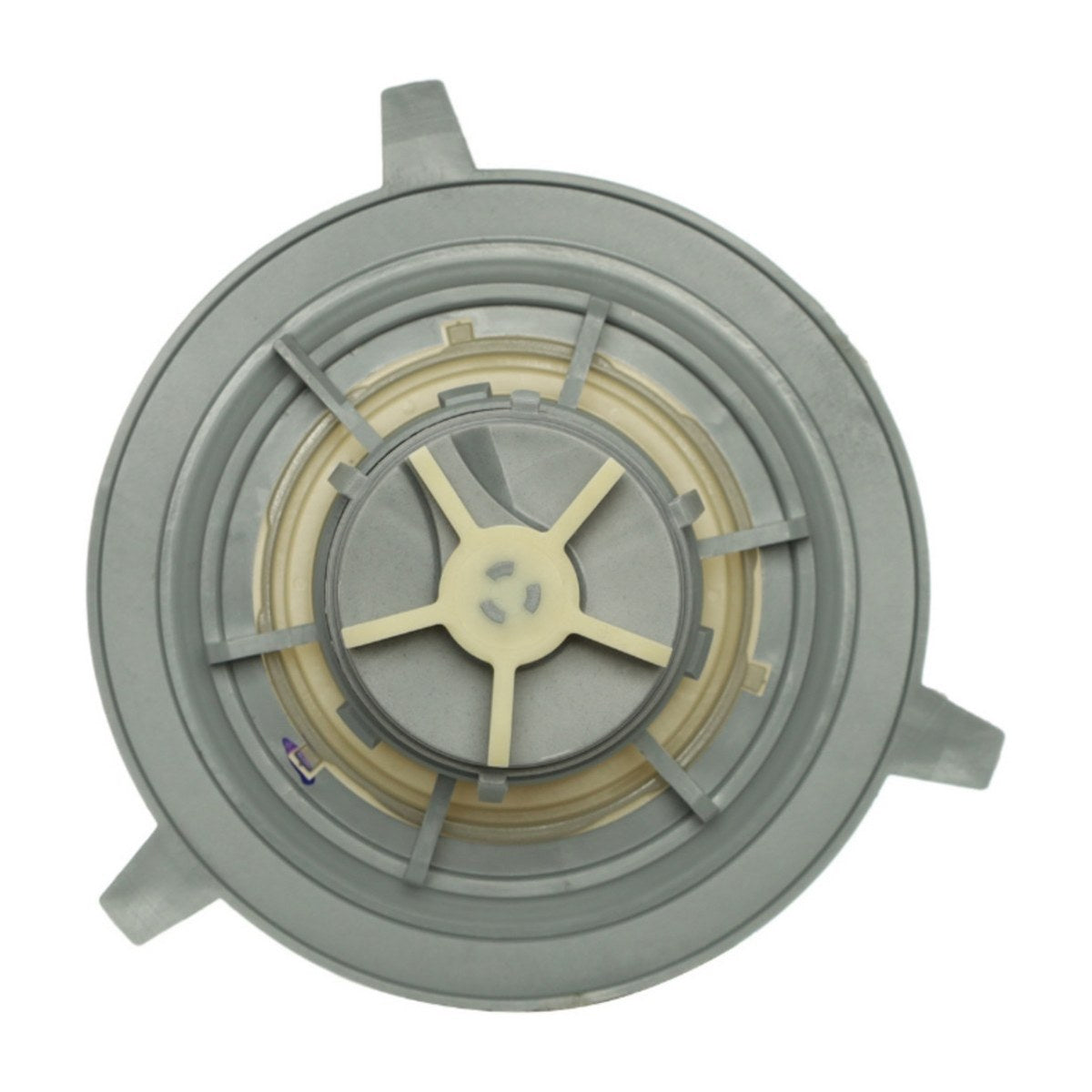

Fisher & Paykel 524922P is the genuine motor rotor assembly for later DishDrawer models in the DD60 series ending in 8 and 9. Examples include the DD60DAX8 and DD60DCX9, the DD60SCX9 and DD60D4NX9, and the DD60SI9 and DD60ST4NB9, covering both single and double drawer versions. It looks a lot like the older 524285P rotor, but the two won't swap between machines.
Symptoms of a worn DishDrawer wash motor rotor
Each drawer has its own wash pump, driven by a motor built into the base of the tub. The rotor is the magnetic part that turns inside that motor and spins the impeller, which pushes water up through the spray arm. When it's damaged, the drawer may run but leave food on the dishes, sound gravelly while washing, or stop part way through with a pump related fault. Debris such as broken glass, bones or fruit stones caught in the pump is a frequent culprit.
Part details
- Genuine Fisher & Paykel part 524922P
- Motor rotor assembly for DD60 DishDrawers ending in 8 and 9
- Fits single and double drawer models listed
- Not interchangeable with 524285P
Before you start
Isolate power at the wall. Take the filter and spray arm out of the drawer to expose the pump. Clean out any debris you find around the impeller, as whatever damaged the old rotor can damage the new one. Seat the replacement squarely, reassemble the drawer and run a short program to confirm the wash sounds smooth.
Questions about this part
Where do I find my DishDrawer model and product code?
Pull the drawer out and look for the compliance label, usually on the side of the drawer frame. It shows a model number like DD60DCX9 and a product code, and both help confirm you're ordering the right rotor.
Specifications
| Original part number | 524922P |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 524922P |
| Appliance | Dishwasher Parts |
| Shipping weight | 1.5 kg |
