524786 Genuine DishDrawer Spray Arm for Fisher & Paykel Dishwashers DD60DCX7 DD60DCW7 DD60SCX7 DD60SCW7 DD60DI7 DD60SI7 DD60DDFX7

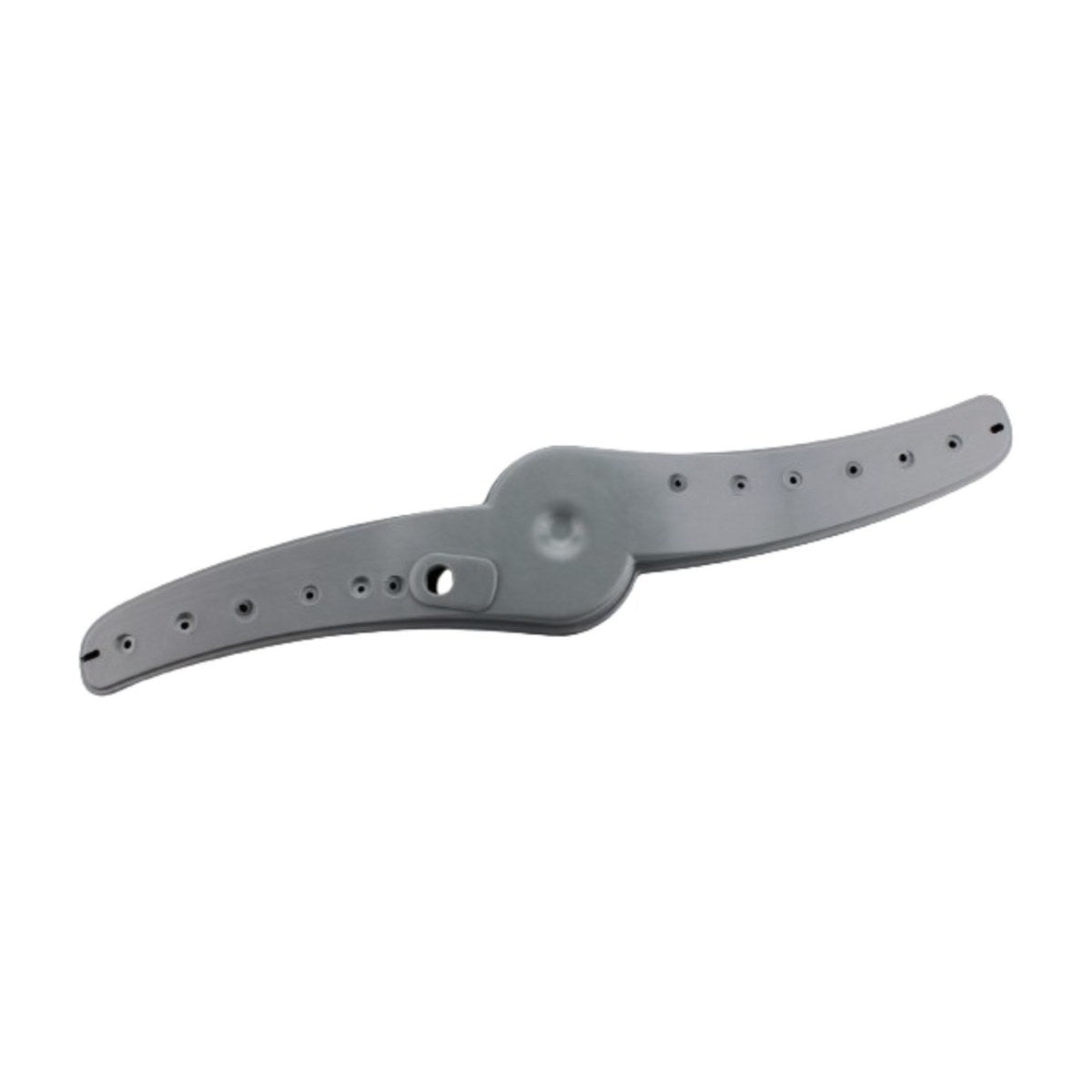

This genuine spray arm assembly, part 524786, is listed for 19 Fisher & Paykel DishDrawer models whose numbers end in 7. They include the single drawer DD60SCX7, DD60SCW7 and DD60SI7 and the double drawer DD60DCX7, DD60DCW7 and DD60DI7, plus the DD60SCTX7, DD60SCTM7 and DD60DDFX7. Check the model label on your drawer to confirm yours is one of them before ordering.

DishDrawer not cleaning dishes properly?

Water from the wash pump is forced through the spray arm, which spins and sprays it up through the racks. A cracked arm, a worn hub or nozzles blocked with food, seeds or limescale cut the spray pressure, leaving dirty dishes, gritty residue and food stuck in corners. An arm that wobbles or does not spin freely can also knock against items in the basket, making rattling or clunking noises during the wash. If cleaning the nozzles does not fix it, fitting a new arm is the next step.

Part details

• Genuine Fisher & Paykel spray arm 524786
• Supplied as a spray arm assembly
• Listed for 19 DishDrawer models ending in 7
• Suits single and double drawer versions

Changing the DishDrawer spray arm

Turn the dishwasher off and remove the rack so you can reach the base of the drawer. Note how the old arm locks onto its hub, then release it and lift it off. Rinse the area around the hub to remove any debris, fit the new arm so it seats fully, and spin it by hand to check it turns without catching.

Questions about this part

How can I tell which DishDrawer I have?

The model number is printed on a label on the drawer, usually visible on the side or front edge when the drawer is open. Models listed here start with DD60 and end in 7, such as DD60DCX7 or DD60SI7.
