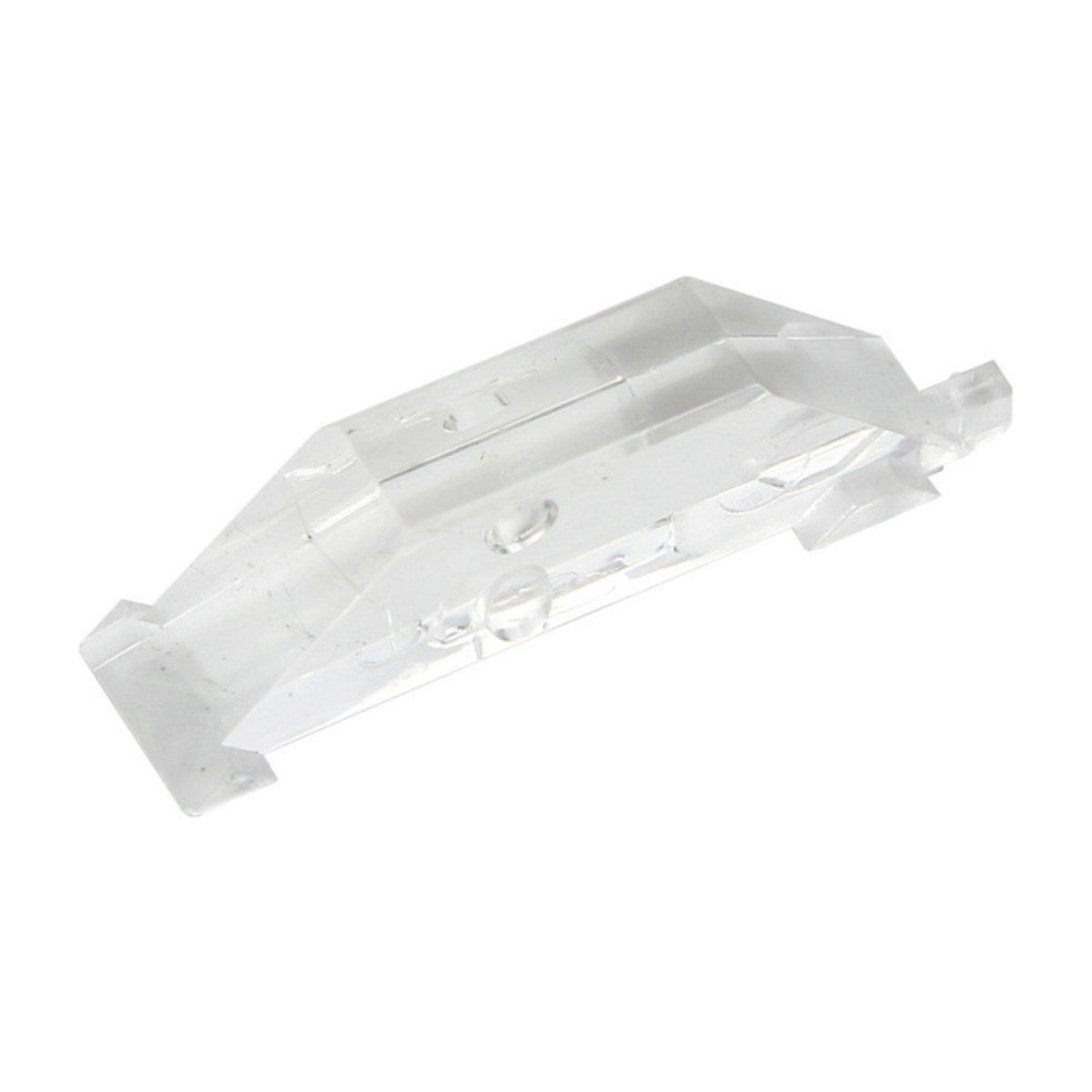

524568 Genuine 3 Degree Prism for Fisher & Paykel DishDrawer Dishwashers DD60DCW7, also listed as 523277

Listed for the DD60DCW7 double DishDrawer, part 524568 is a genuine Fisher & Paykel prism with a 3 degree angle. It is also known by the number 523277, so look for either code on the old part or in your service paperwork. The 3 degree angle is part of what identifies this small moulded piece, so compare it with the one you're replacing before you order.

Matching the right prism for your DishDrawer

Fisher & Paykel uses a number of small moulded parts in its DishDrawer dishwashers that look alike but differ in shape and angle. This one is identified by its 3 degree angle and carries both 524568 and 523277. Small parts like this usually need replacing after they've cracked, gone missing during a repair, or been damaged when the dishwasher was pulled out of its cavity. If you're rebuilding a DD60DCW7 drawer and your parts breakdown calls for a 3 degree prism, this is the one. When you have the old part in hand, compare the shape and angle carefully.

Part details

• Genuine Fisher & Paykel part 524568
• Also listed as 523277
• 3 degree prism
• Listed for the DD60DCW7 double DishDrawer

Fitting the prism the right way round

Turn the dishwasher off at the wall before working on it. Note exactly how the old prism sits, including which way the angle faces, and take a photo before removing it. Fit the new one in the same orientation and make sure it seats fully. Then run the drawer through a cycle and check that everything operates normally.

Questions about this part

Is 524568 the same as 523277?

Both numbers are linked to this 3 degree prism, so an old part marked with either one should be matched by 524568. If your old part shows a different angle or another number, send us your model and serial number through the enquiry form before ordering.
