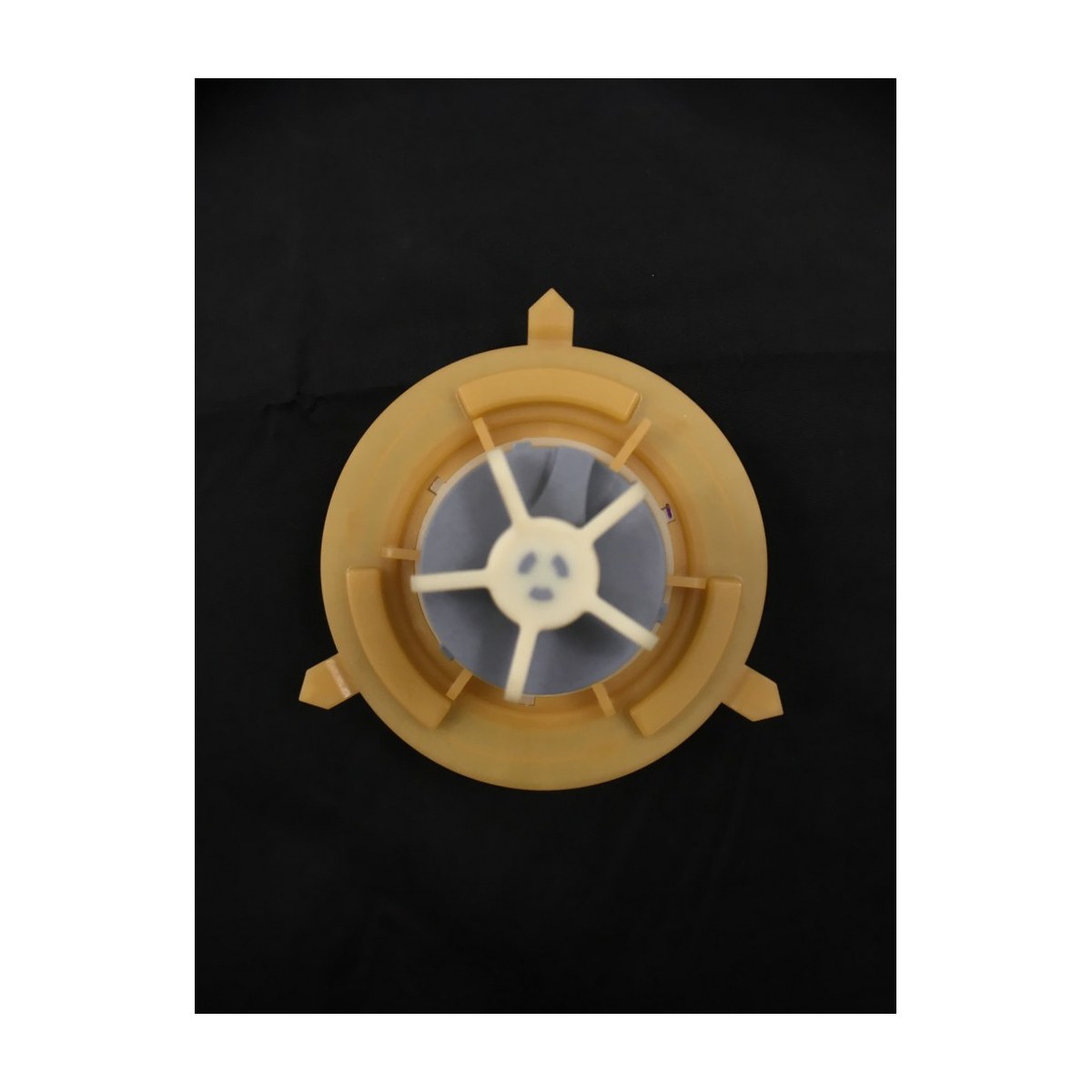

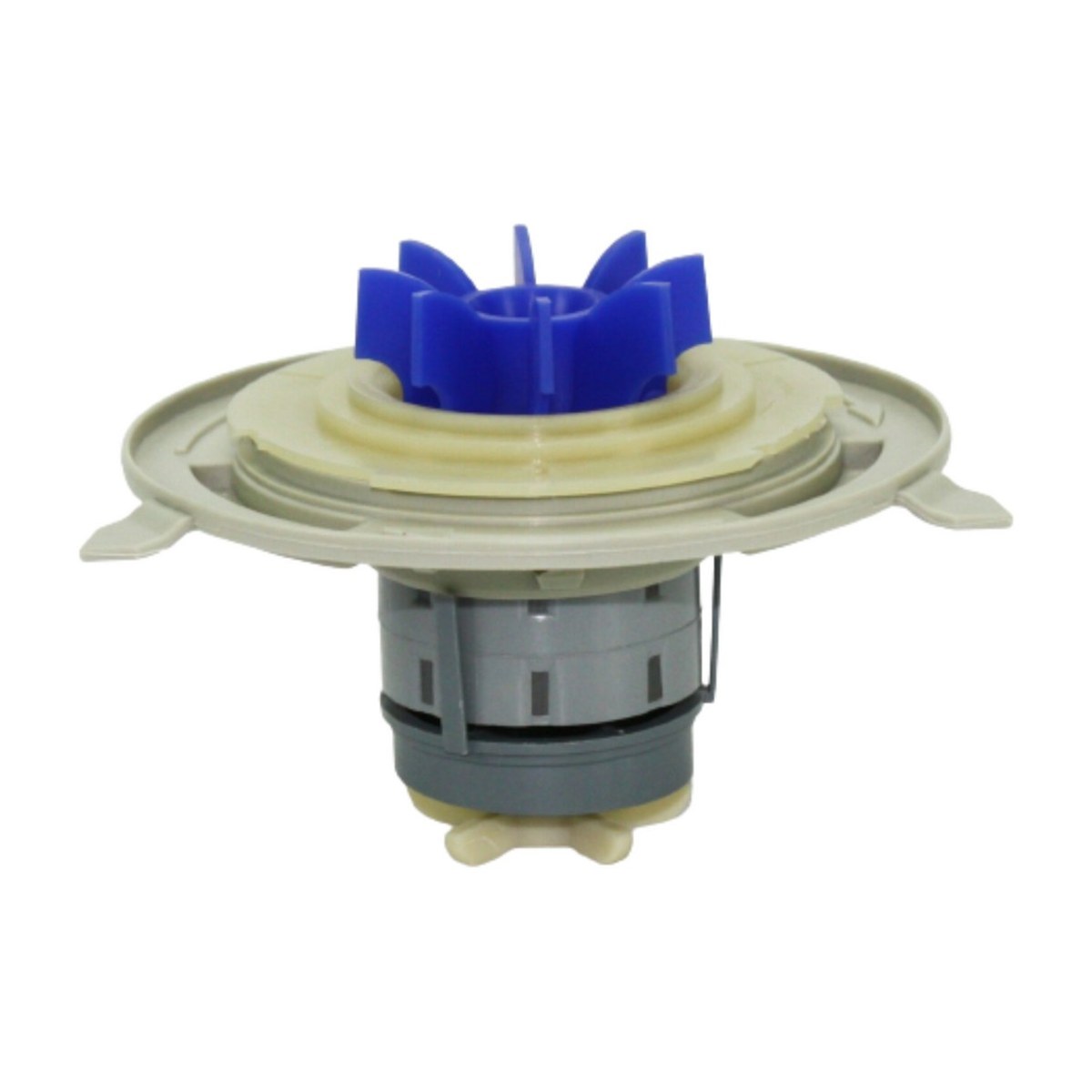

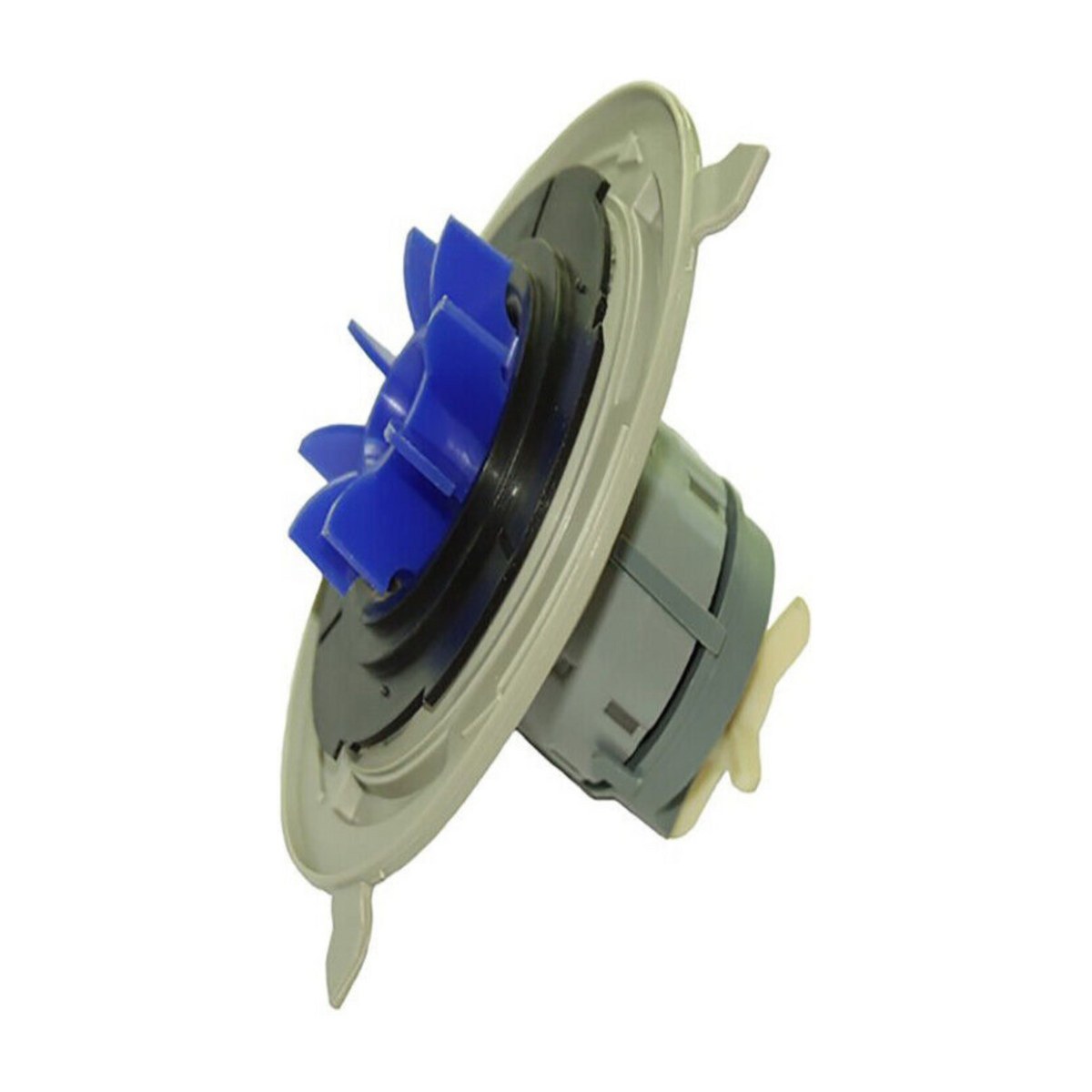

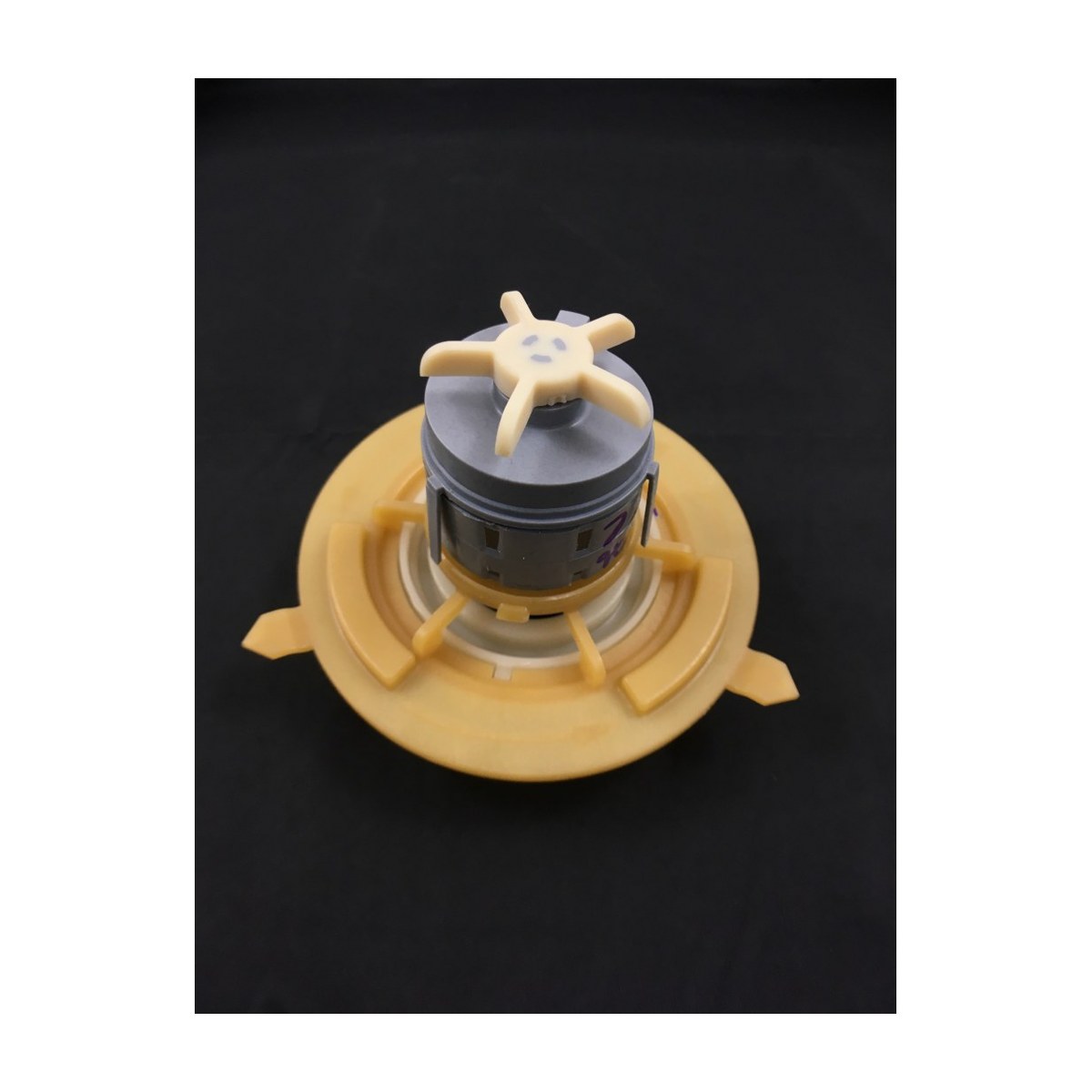

524285P Genuine DishDrawer Motor Rotor Assembly PH5 for Fisher & Paykel Dishwashers DD605 DD60DCX6 DD60DCX7 DD60SCTX7 DD60DI7 DS605

Built for PH5 DishDrawers, 524285P is the genuine Fisher & Paykel wash motor rotor, the version with a notch. It's listed for the DD605 and DS605 models, plus DD60 drawers ending in 6 and 7, such as DD60DCX6, DD60DCX7, DD60SCTX7 and DD60DI7. Fisher & Paykel also make a similar looking rotor, 524922P, for later drawers, and the two are not interchangeable.

DishDrawer not washing or making grinding noises

In a DishDrawer the wash pump motor is built into the base of the drawer, and the rotor is the part that spins inside it to drive the impeller. A damaged rotor can cause grinding or rattling during the wash, a weak spray, dishes coming out dirty, or the drawer stopping with a motor or pump fault. Broken glass, grit and small bones drawn into the pump are common causes. Check the filter and sump area for debris at the same time, or the new rotor can suffer the same fate.

Part details

• Genuine Fisher & Paykel part 524285P
• PH5 motor rotor assembly with notch
• Also listed as 528136P
• Not interchangeable with 524922P
• Listed for DD605, DS605 and DD60 drawers ending in 6 and 7

Fitting the rotor

Read the model and product code from the compliance label before ordering, because the two F&P rotors look much alike. To fit it, switch the dishwasher off at the wall, then remove the drawer filter and spray arm to reach the pump area. Seat the rotor carefully so the seals aren't damaged, refit the spray arm and run a rinse while listening for any rubbing.

Questions about this part

How do I tell 524285P and 524922P apart?

524285P is the PH5 rotor with a notch, listed for DD605, DS605 and DD60 models ending in 6 or 7. 524922P suits the later DD60 models ending in 8 and 9. Go by your model and product code, not by looks.
