522566 Genuine Lid Seal Diaphragm Kit for Fisher & Paykel DishDrawer Dishwashers DD605 DD605FD DD605I DS605 DS605FD DS605I

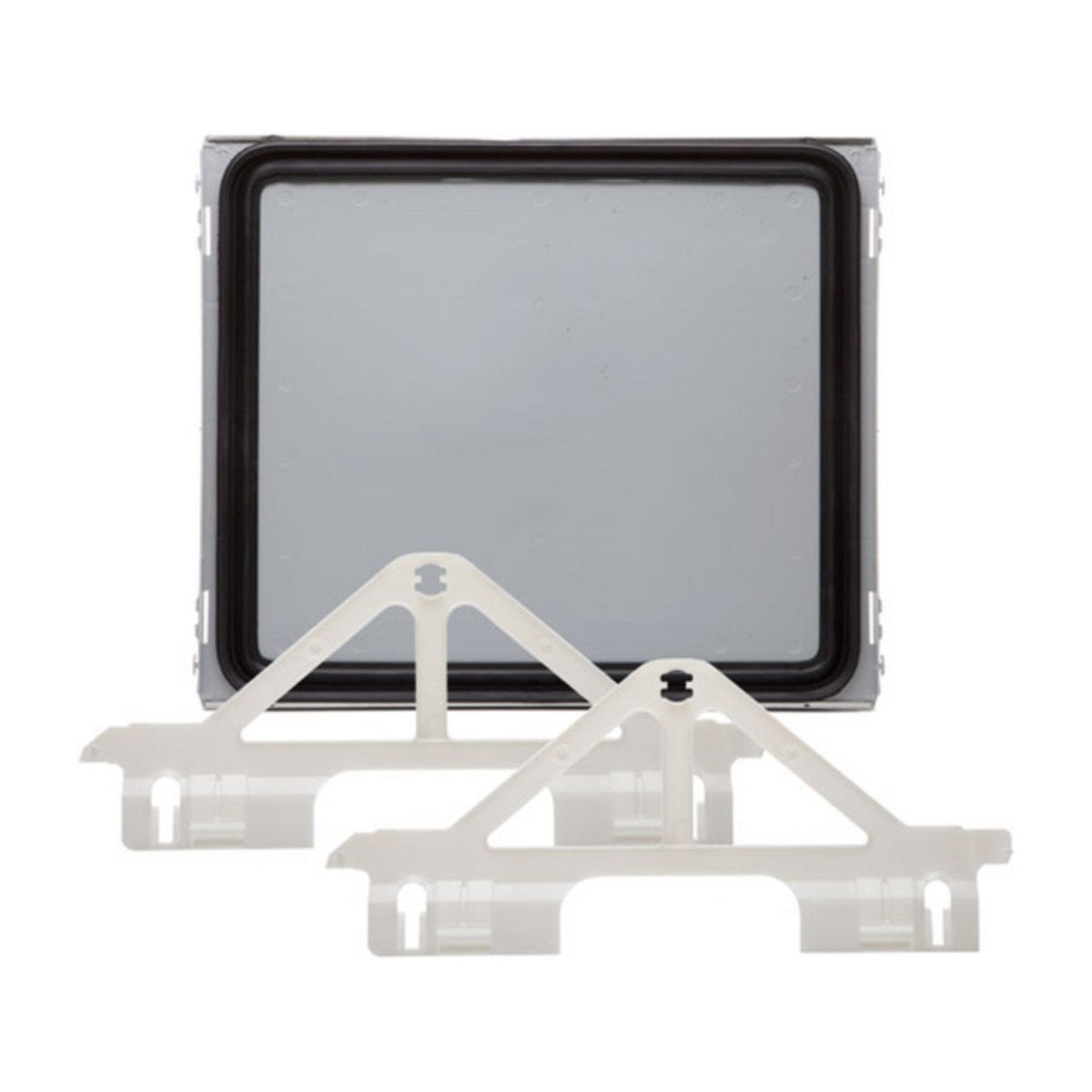

Fisher & Paykel's genuine 522566 kit replaces the lid seal diaphragm in the 605 series DishDrawer. It suits double and single drawer versions alike, covering the DD605, DD605FD, DD605I, DS605, DS605FD and DS605I. When a drawer starts leaking at the front, or the lid no longer seals against the tub properly, this kit is one of the first parts worth checking.

DishDrawer leaking from the front of the drawer?

A DishDrawer doesn't have a door in the usual sense. Instead, a lid above the wash tub closes down onto the drawer once it's shut, sealing it for the wash. The diaphragm in this kit is a flexible part of that lid sealing arrangement. Once it ages, splits or loses its flexibility, the lid may not seal evenly and water can escape. Typical symptoms are water dripping from the front of the drawer, puddles on the floor after a cycle, damp cabinetry beside the dishwasher, or water marks on the kickboard.

Part details

• Genuine Fisher & Paykel kit, part 522566
• Lid seal diaphragm for the 605 series DishDrawer
• Listed for DD605, DD605FD, DD605I, DS605, DS605FD and DS605I
• Suits double and single drawer models in the range

Replacing the lid seal diaphragm

Isolate power at the wall and shut off the water tap before you begin. Take photos as you dismantle the drawer and keep screws in labelled groups so it all goes back the same way. Fit the new diaphragm evenly with no twists or folds, as a crease can let water past. Run a short rinse program afterwards and watch the front edge of the drawer for drips.

Questions about this part

Does this fit a single drawer DS605?

Yes. The kit is listed for the single drawer DS605, DS605FD and DS605I as well as the double DD605 models. On a double DishDrawer each drawer has its own lid, so work out which drawer is leaking before you order.
