5221ER1002A Genuine 4 Way Cold Water Inlet Valve for LG Washing Machines WD-1247RD WD-1248RD WD12490FD WD12570FD WD12595FD6
- Original part no.
- 5221ER1002A
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

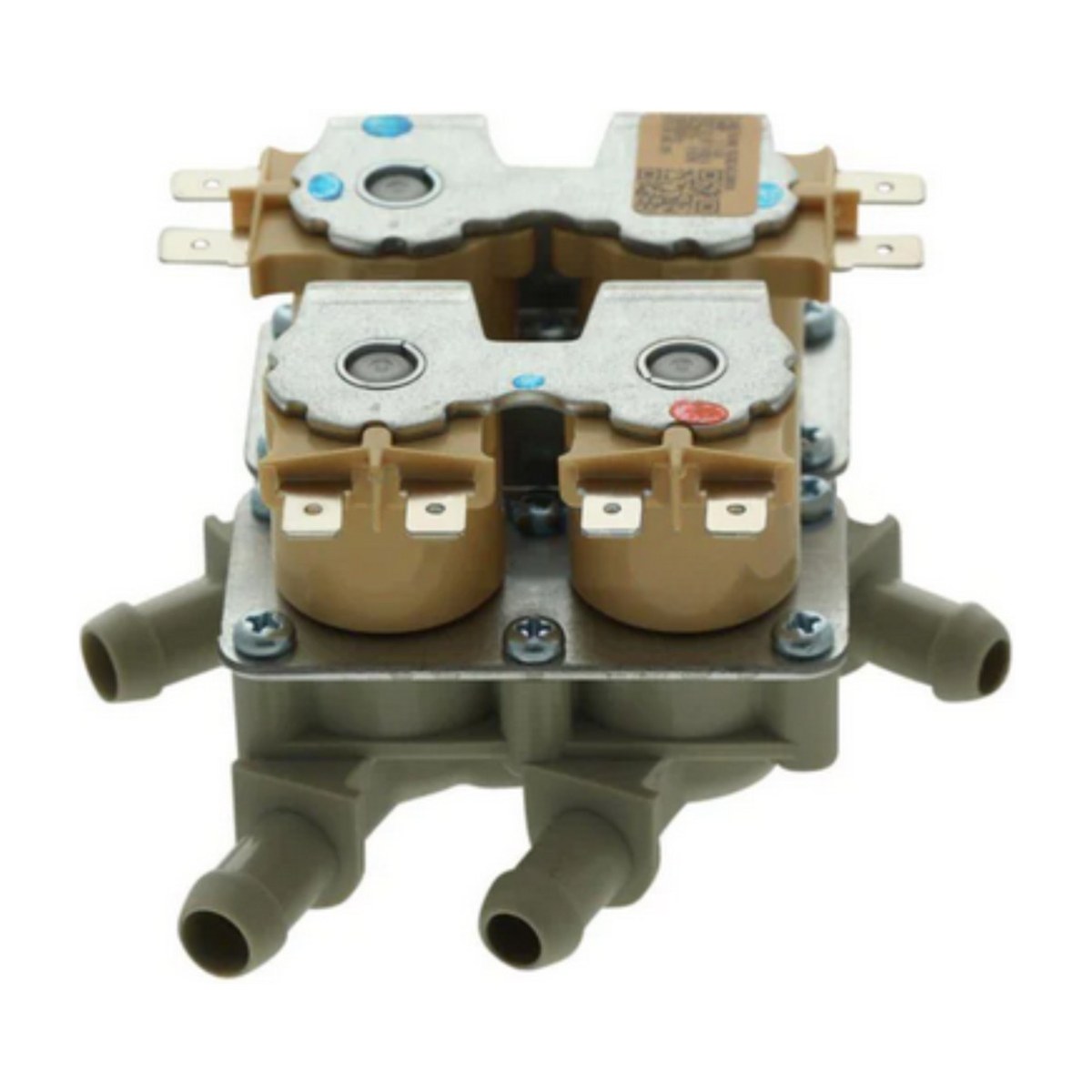

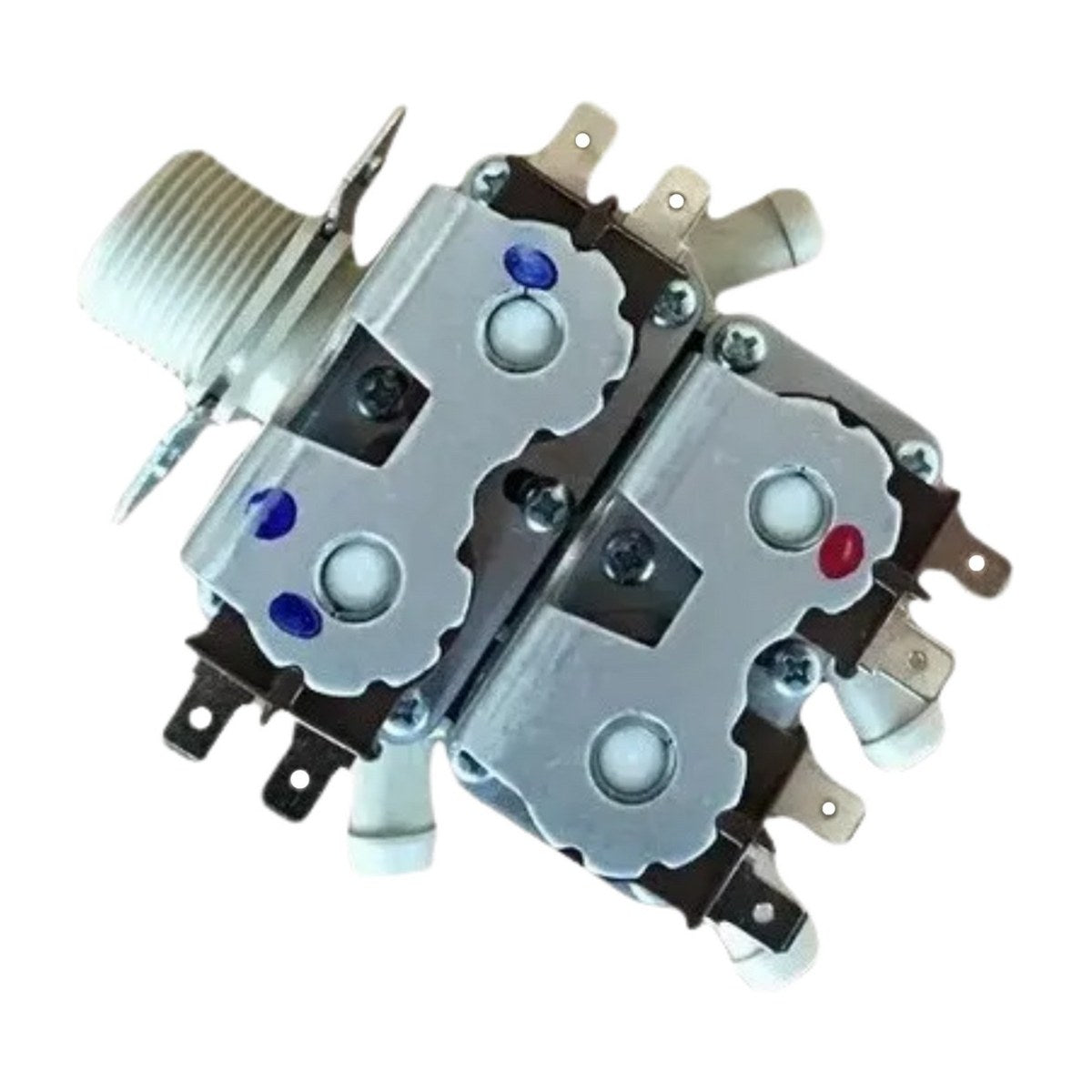

Part 5221ER1002A is the genuine LG cold water inlet valve with four ways, made for LG WD series washing machines. Nine models are on file, among them the WD-1247RD and WD-1248RD, the WD-1256RD, and the WD12490FD, WD12570FD and WD12595FD6. Cold water entering the machine runs through this valve, which sends it to different outlets as the program needs.
LG washer not filling properly? Test the cold valve
Inside, a set of electric coils opens the valve's outlets, and the control board picks which ones to energise at each point in the cycle. A failed coil can stop water reaching one dispenser compartment, so you might find powder left in the drawer or the softener not used. A valve that won't open at all stops the wash at the fill stage with an error, while a valve that leaks through keeps water trickling into the drum even when the machine is off. A multimeter check on each coil narrows it down.
Part details
- Genuine LG part 5221ER1002A
- 4 way cold water inlet valve assembly
- Suits LG WD series washing machines
- 9 models on file
| Outlets | 4 way |
|---|---|
| Water | Cold |
Tips for fitting the cold valve
Turn off the taps and unplug the washer before working on it. The valve sits at the back of the machine under the top panel, where the cold hose connects. Mark each internal hose and wiring plug with tape before pulling them off, as mixing them up sends water to the wrong compartment. Once fitted, open the cold tap and run a rinse program to check every outlet fills without drips.
Questions about this part
Does this valve handle hot water too?
No, 5221ER1002A is the cold water valve. Some LG washers also have a separate hot inlet. Check which hose connection is leaking or not filling, and if it's the hot side, send us your model number so we can find that valve.
Specifications
| Brand | LG |
|---|---|
| Original part number | 5221ER1002A |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 5221ER1002A |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
