5221EN2003L Genuine 3 Way Water Inlet Valve Assembly for LG Washing Machines WD1408NCW WD1409NCE WD1409NCW WD1475NPW WTW1409VCW WTW1409VCB
- Original part no.
- 5221EN2003L
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

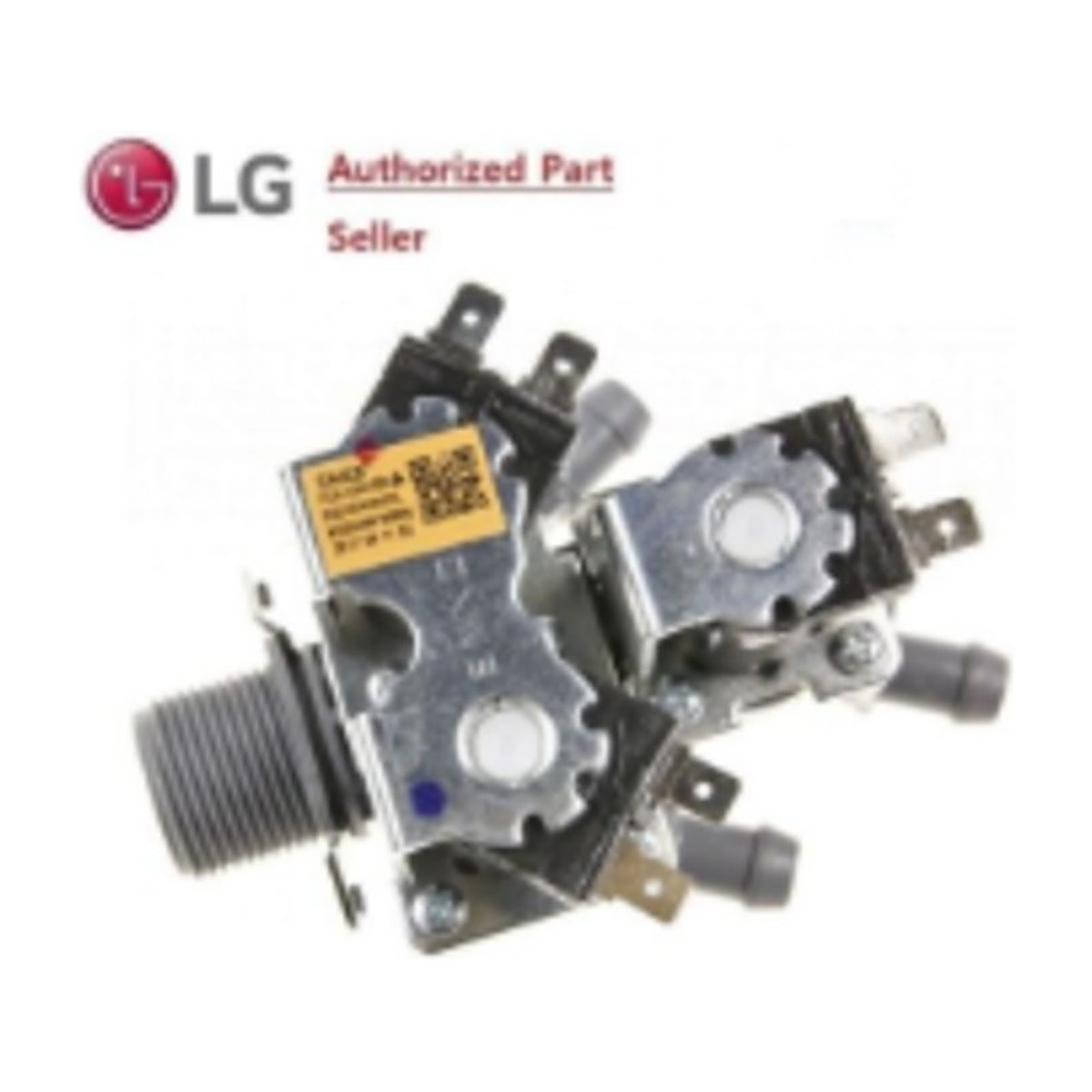

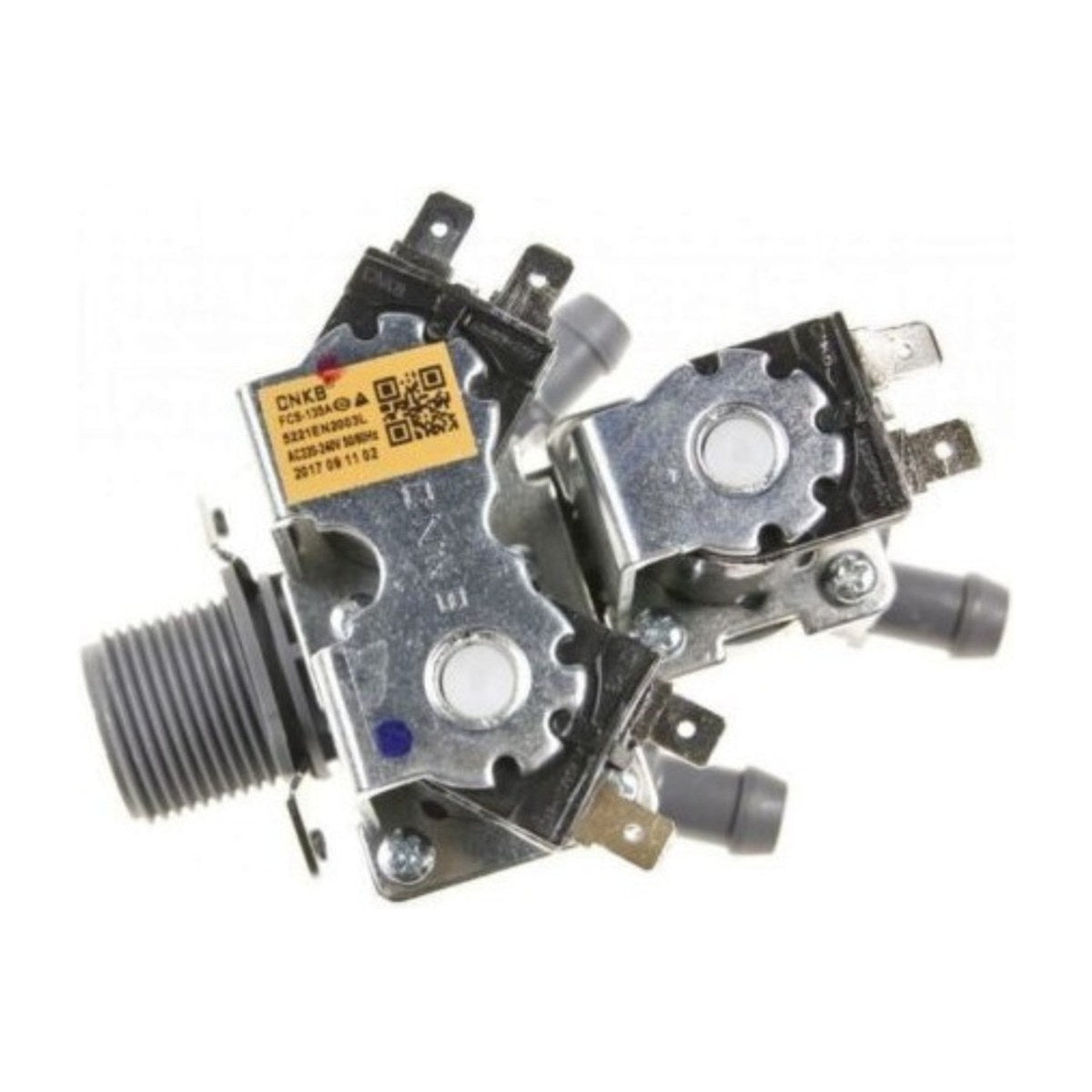

This is the genuine LG inlet valve assembly, part number 5221EN2003L, with three outlets that direct water through the detergent dispenser. It is listed for the LG WD1408NCW, WD1409NCE, WD1409NCW and WD1475NPW, plus the WTW1409VCB and WTW1409VCW. Compare the LG number on your current valve body, or the model on your machine's rating label, with this listing before you buy.
LG washing machine not filling? Test the inlet valve
When a wash program calls for water, the control board energises one or more of the solenoid coils on the inlet valve. Each coil opens its own path so water can flow through the dispenser and carry detergent or softener into the drum. A faulty valve can leave the washer slow to fill or not filling at all, often with an IE error, or it can let water trickle in while the machine is switched off. Poor rinsing and softener left sitting in the drawer can also point to one coil that has stopped working.
Part details
- Genuine LG part 5221EN2003L
- 3 way water inlet valve
- Supplied as a valve assembly
- Listed for six LG WD and WTW series models
| Outlets | 3 way |
|---|
Swapping the inlet valve
Switch off at the wall, unplug the washer and turn both taps off before you disconnect the fill hoses. On these machines the valve normally sits at the top rear, under the top panel. Take a photo of the hoses and wire positions so each coil goes back on the same terminals, fit the new valve, then run a short program and check every joint for drips.
Questions about this part
Where do I find my LG model number?
LG washers usually have a label inside the door opening or on the back panel showing the model and serial number. Match that model against the six listed here, or send it through the parts enquiry form and we will check it for you.
Specifications
| Original part number | 5221EN2003L |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 5221EN2003L |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
