5220FR2067R Genuine Double Inlet Valve 12V for LG Washing Machines WV5-1275W WV5-1408W WV5-1409W WV5-1410W WV5-1208W
- Original part no.
- 5220FR2067R
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

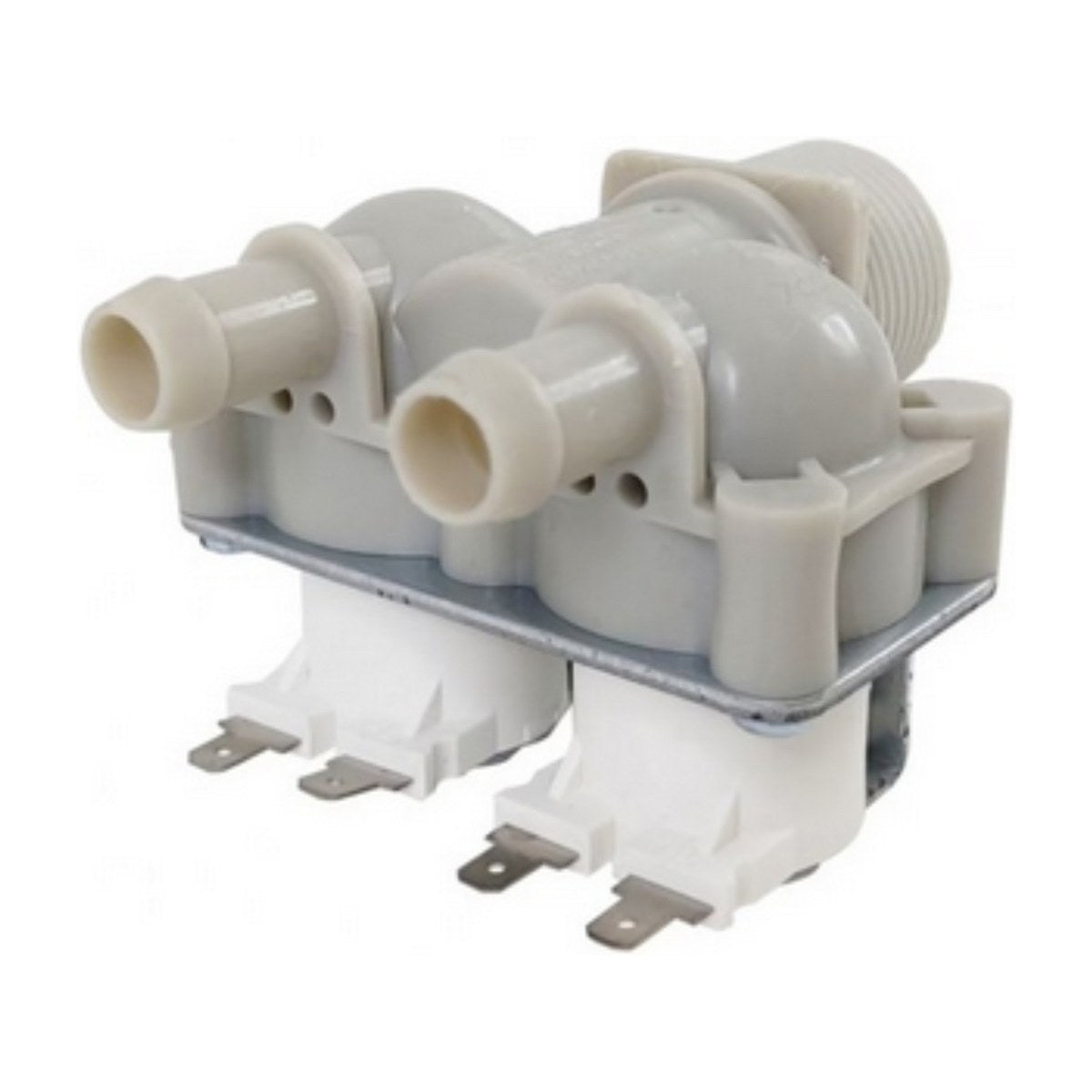

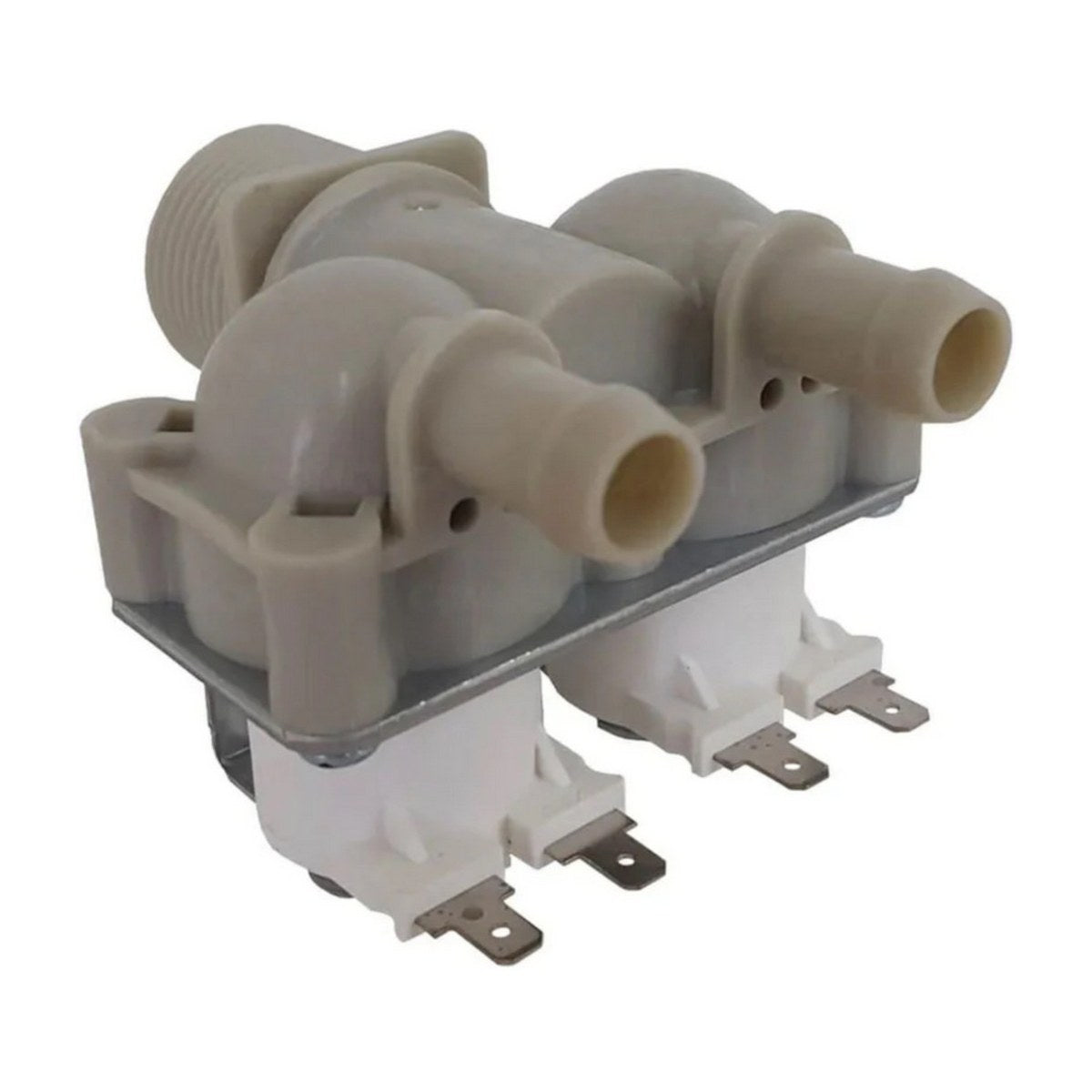

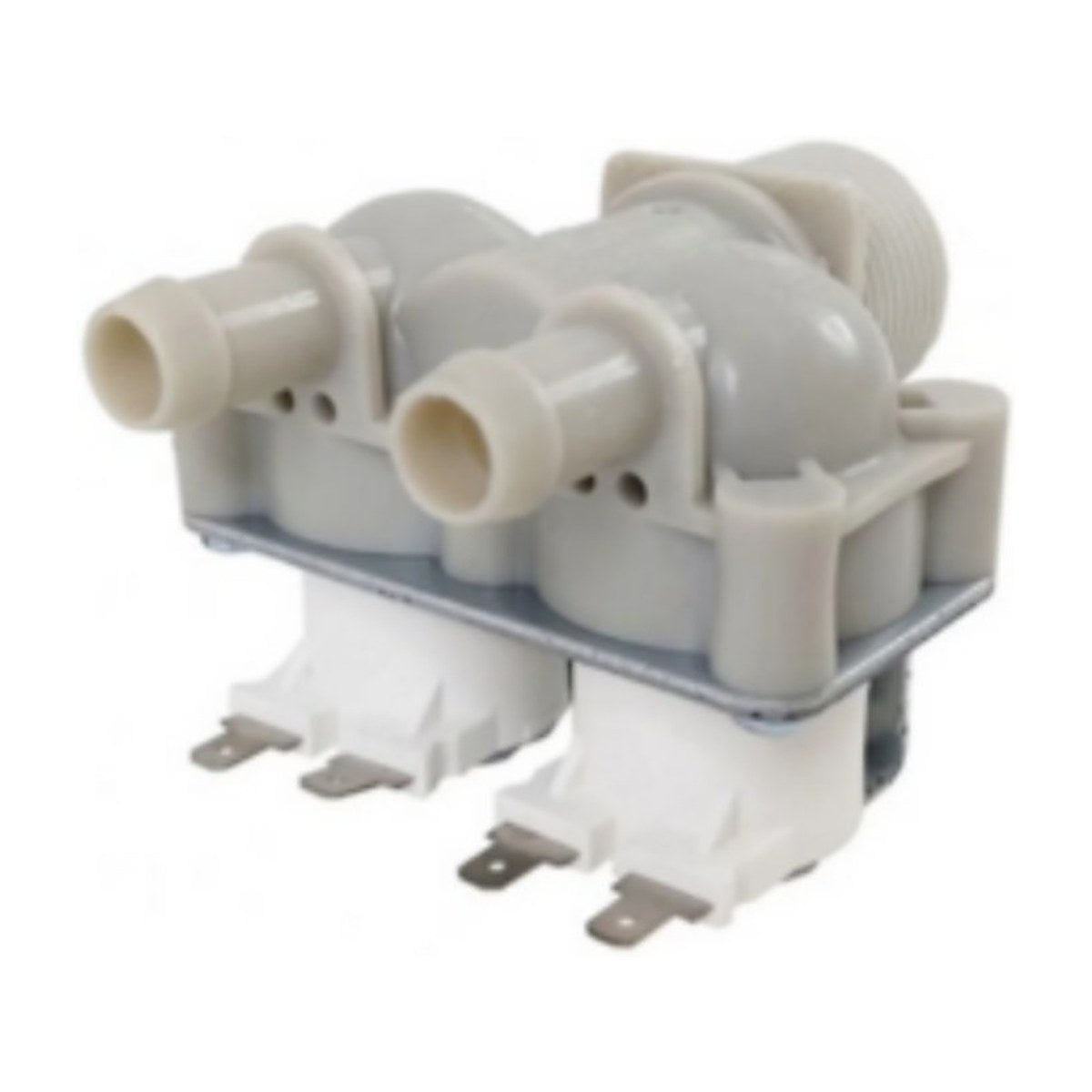

Part 5220FR2067R is a genuine LG two-way inlet valve with 12V coils, made for LG washing machines in the WV5 series. It's listed for the WV5-1208W and WV5-1275W, along with the WV5-1408W, plus the WV5-1409W and WV5-1410W. You may also see it sold under the alternative number 5220FR2067S.
LG washer not taking water
Every litre that enters the machine passes through the inlet valve. This double valve has two solenoids that the control board opens as needed during the fill. If a coil burns out, the machine may not fill, may fill very slowly, or may stop with an inlet error code such as IE. Debris caught in the valve can stop it closing fully, so water trickles in while the machine is off. Before replacing the valve, check the tap is fully open, the hose isn't kinked and the filter screen in the valve inlet is clean, then test each coil.
Part details
- Genuine LG part 5220FR2067R
- Double (two-way) inlet valve
- 12V coils
- Alternative number 5220FR2067S
- Suits LG WV5 series washing machines
| Coil voltage | 12V |
|---|---|
| Type | Two-way (double) inlet valve |
Replacing the LG inlet valve
Turn the taps off, unplug the washer and disconnect the inlet hoses. The valve is mounted at the back where the hoses connect, and is usually reached by lifting the top panel or removing a rear cover. Label each wire before unplugging it, because each coil must go back on the same terminals. Refit the hoses with new washers if the old ones are flattened, then check for leaks during the first fill.
Questions about this part
Is 5220FR2067S the same valve?
5220FR2067S is listed as an alternative number for this valve. If your old valve or parts list shows either number, this is the one to order. Confirm your washer's model number is on the list first.
Specifications
| Original part number | 5220FR2067R |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 5220FR2067R |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
