5220FR1280G Genuine Single Inlet Valve 180 Degree for Simpson, LG Washing Machines 36S501E 36S502E 36S503E 36S511E 22S701E 22S703E
- Original part no.
- 5220FR1280G
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

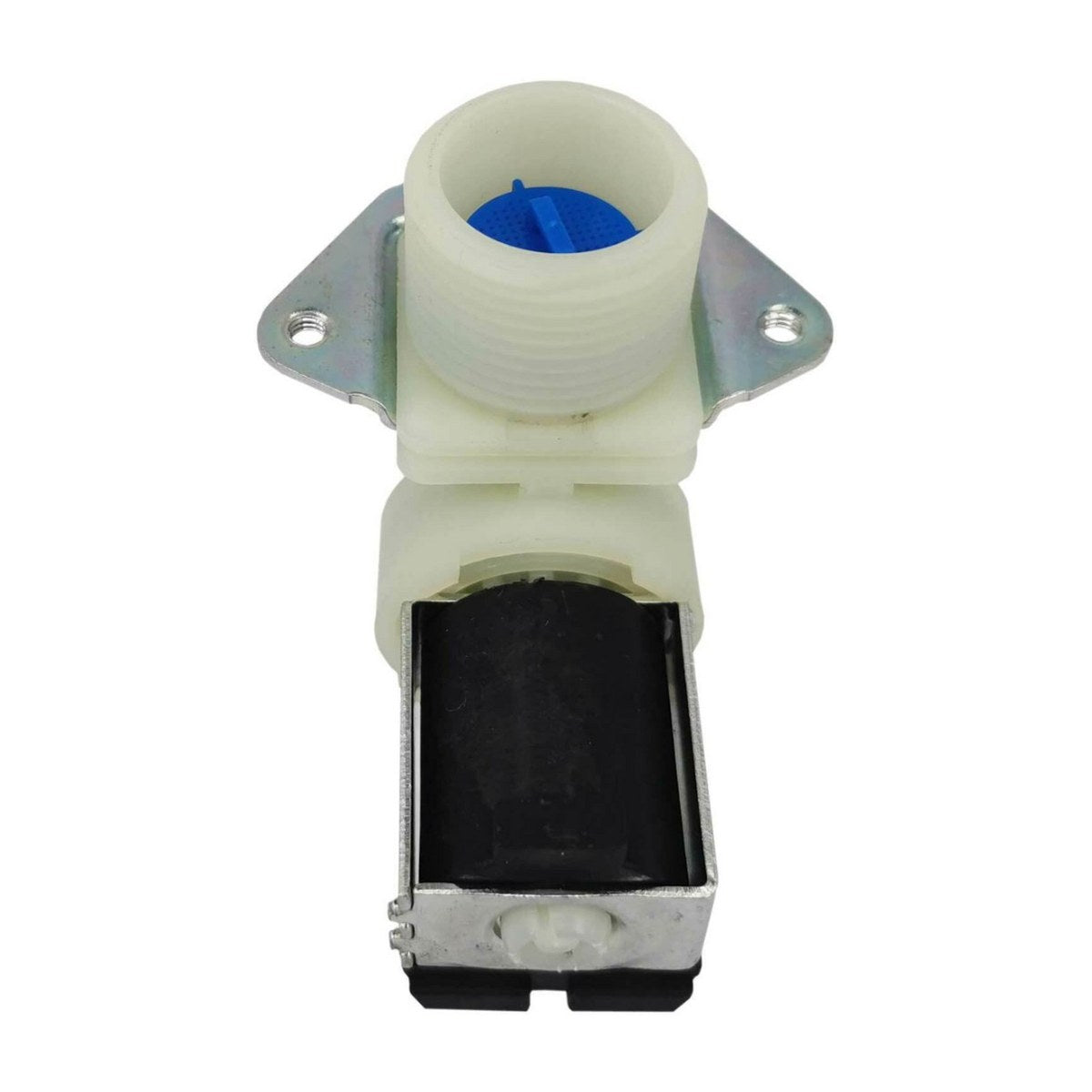

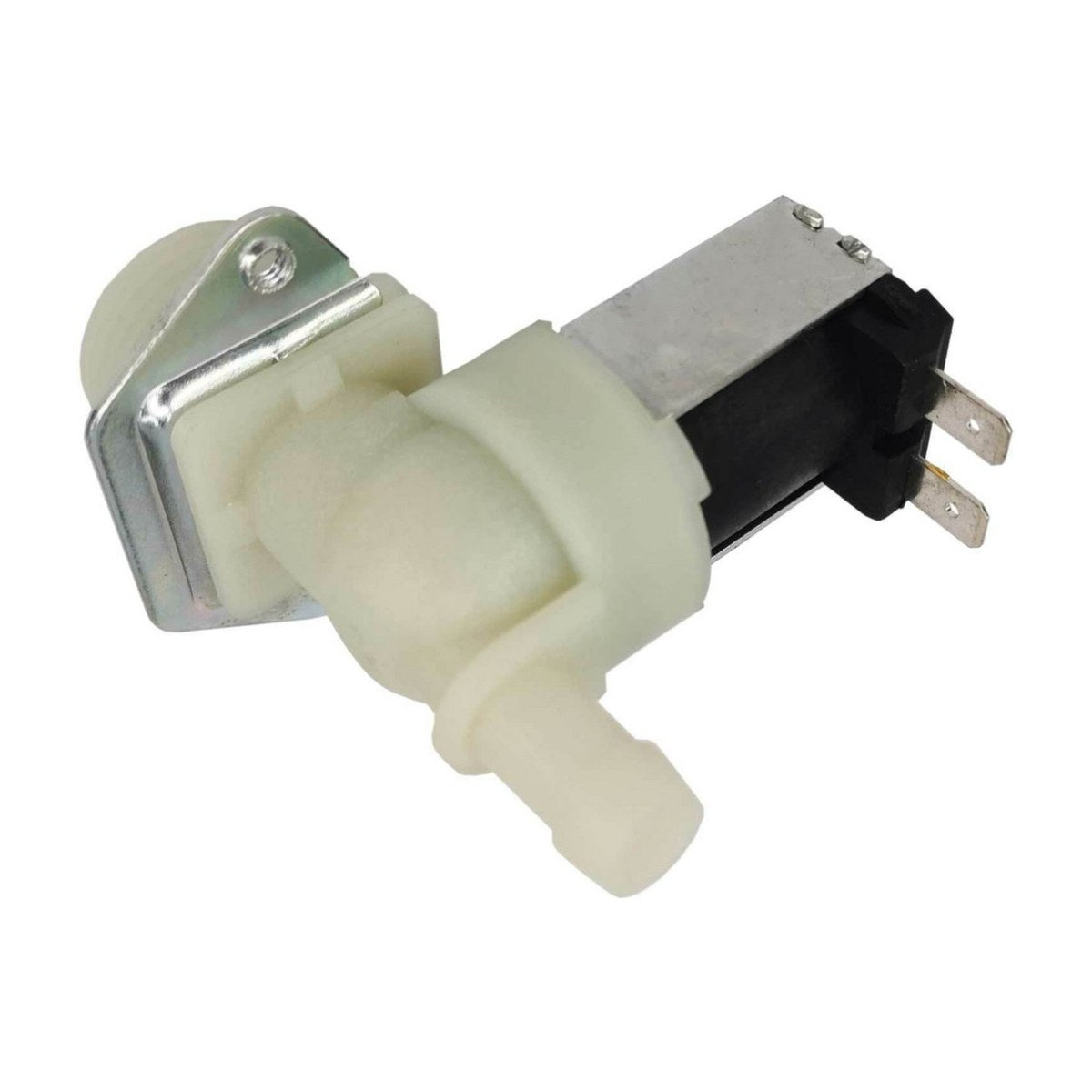

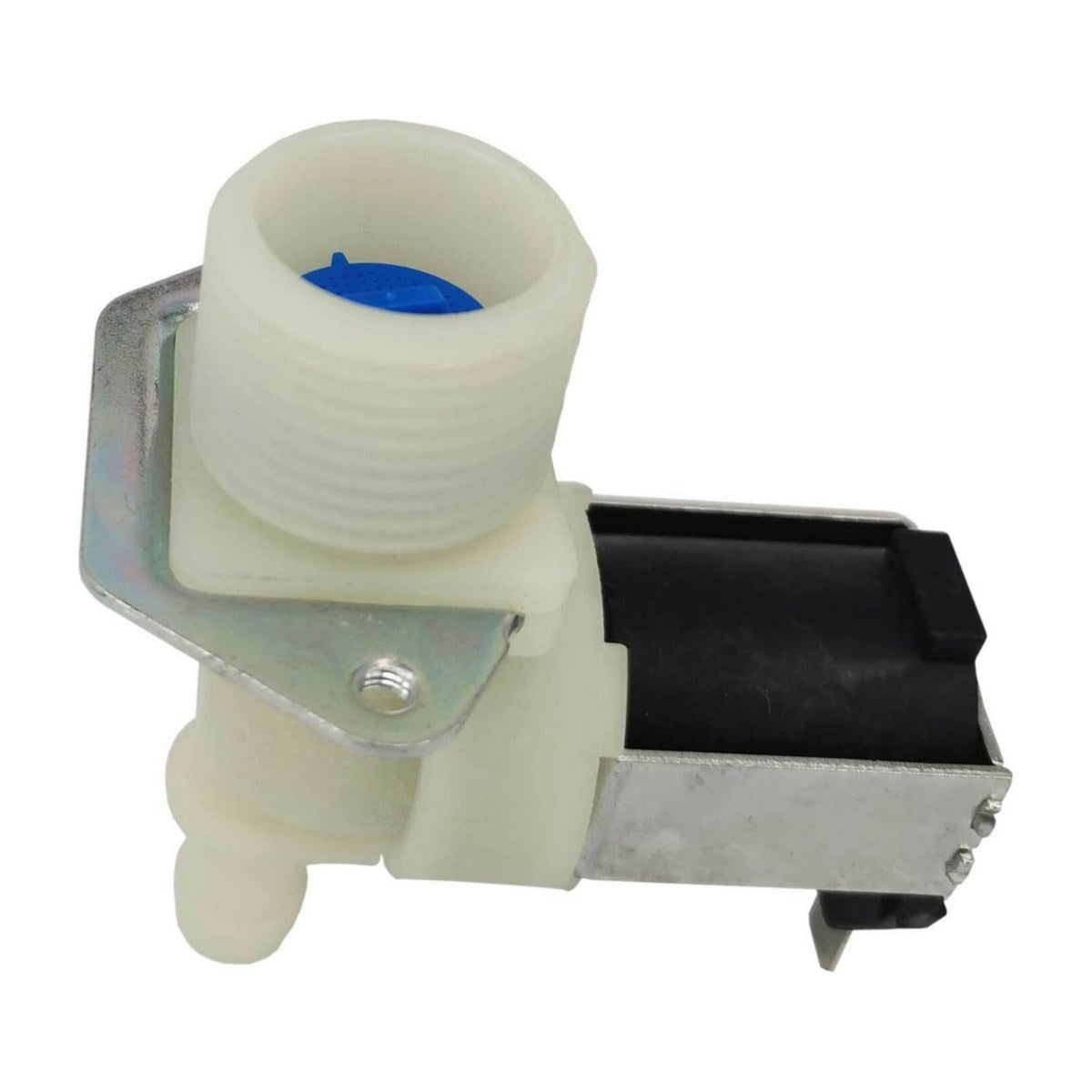

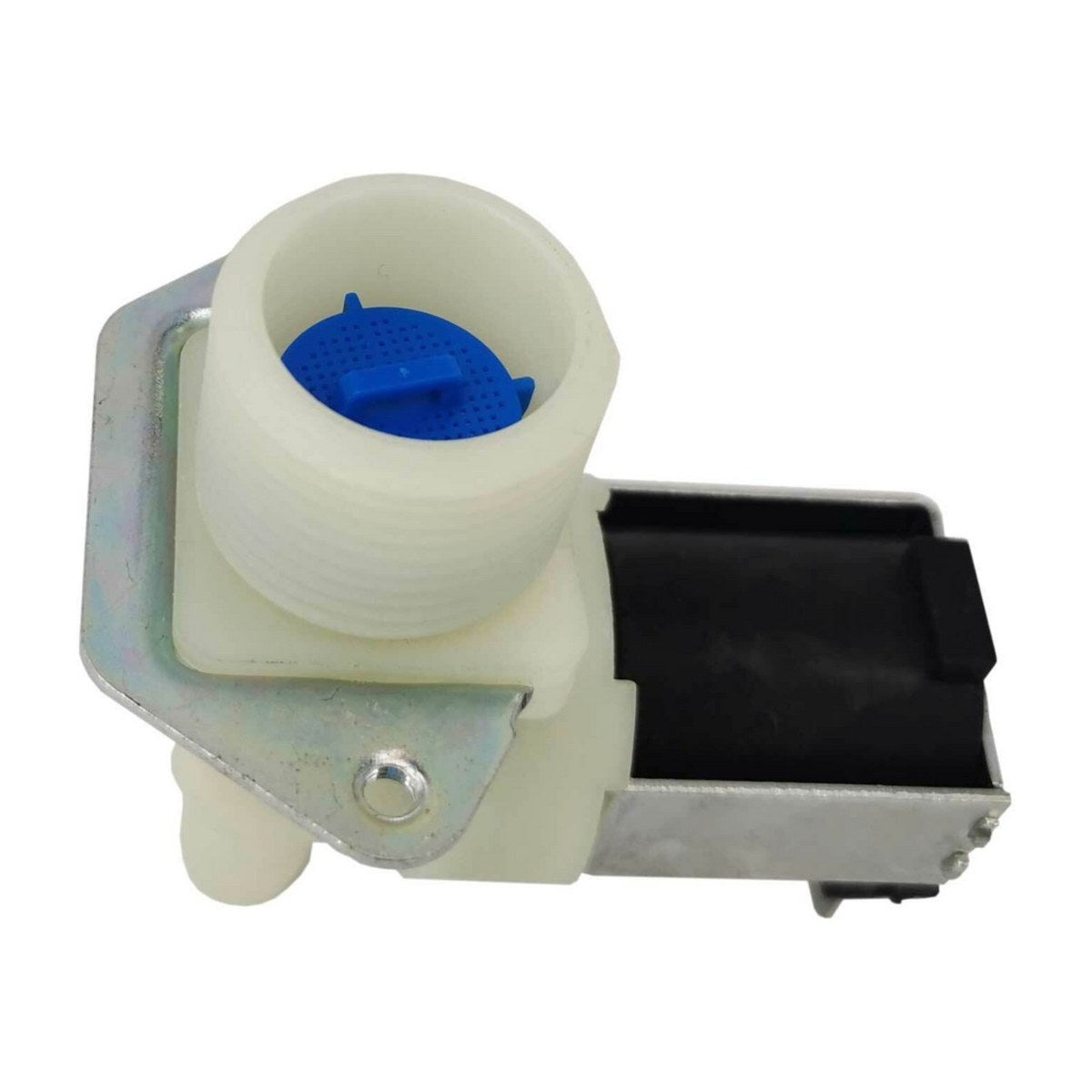

Part 5220FR1280G is a genuine LG single inlet valve, a 180 degree, 10mm type rated at 15 litres per minute. The same valve is referenced as 0136200083 for Simpson washing machines, and it's on file for the Simpson 36S and 22S top load ranges, including the 36S501E and 36S514E as well as the 22S701E and 22S713E. It controls the water flowing from the tap hose into the machine.
Washer not filling or won't stop filling?
An inlet valve is an electrically operated tap. When the control board sends power to its coil, the valve opens and lets water in, and when power is cut, it snaps shut. A coil that burns out leaves the machine unable to fill, so it sits there humming or shows a fill fault. A valve that sticks open, or has debris caught in its diaphragm, lets water trickle in even when the washer is off, and can overflow the tub. Blocked inlet screens cause slow filling too, so check those first.
Part details
- Genuine LG part 5220FR1280G
- Cross reference 0136200083
- Single inlet valve, 180 degree
- 10mm, rated at 15 litres per minute
- Listed for Simpson 36S and 22S top loaders
| Type | Single inlet valve |
|---|---|
| Angle | 180 degrees |
| Size | 10mm |
| Flow rate | 15 litres per minute |
Swapping the inlet valve
Turn off the taps and unplug the washer at the wall, then disconnect the fill hose at the back. Remove the top or rear panel to reach the valve, and photograph which wire goes to which terminal. Undo the mounting screws, ease the internal hose off the outlet and fit the new valve the same way. Reconnect the hose, open the taps and watch for drips while it fills.
Questions about this part
Will this suit an LG washing machine?
It's a genuine LG valve, but the models on file for it are Simpson top loaders. If you have an LG washer, check its model on the rating label and send it through the parts enquiry form so we can confirm before you order.
Specifications
| Brand | LG |
|---|---|
| Original part number | 5220FR1280G |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 5220FR1280G |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
