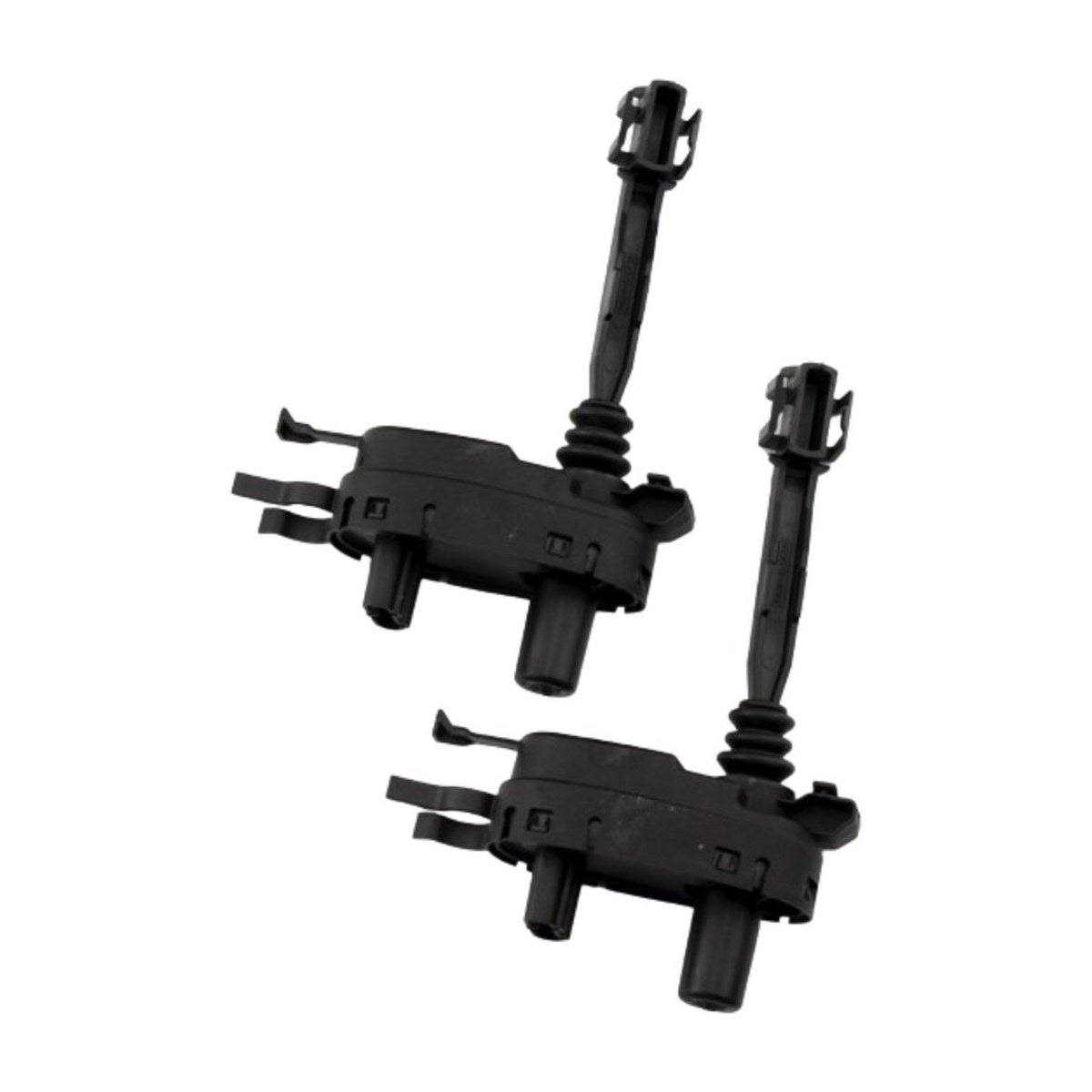

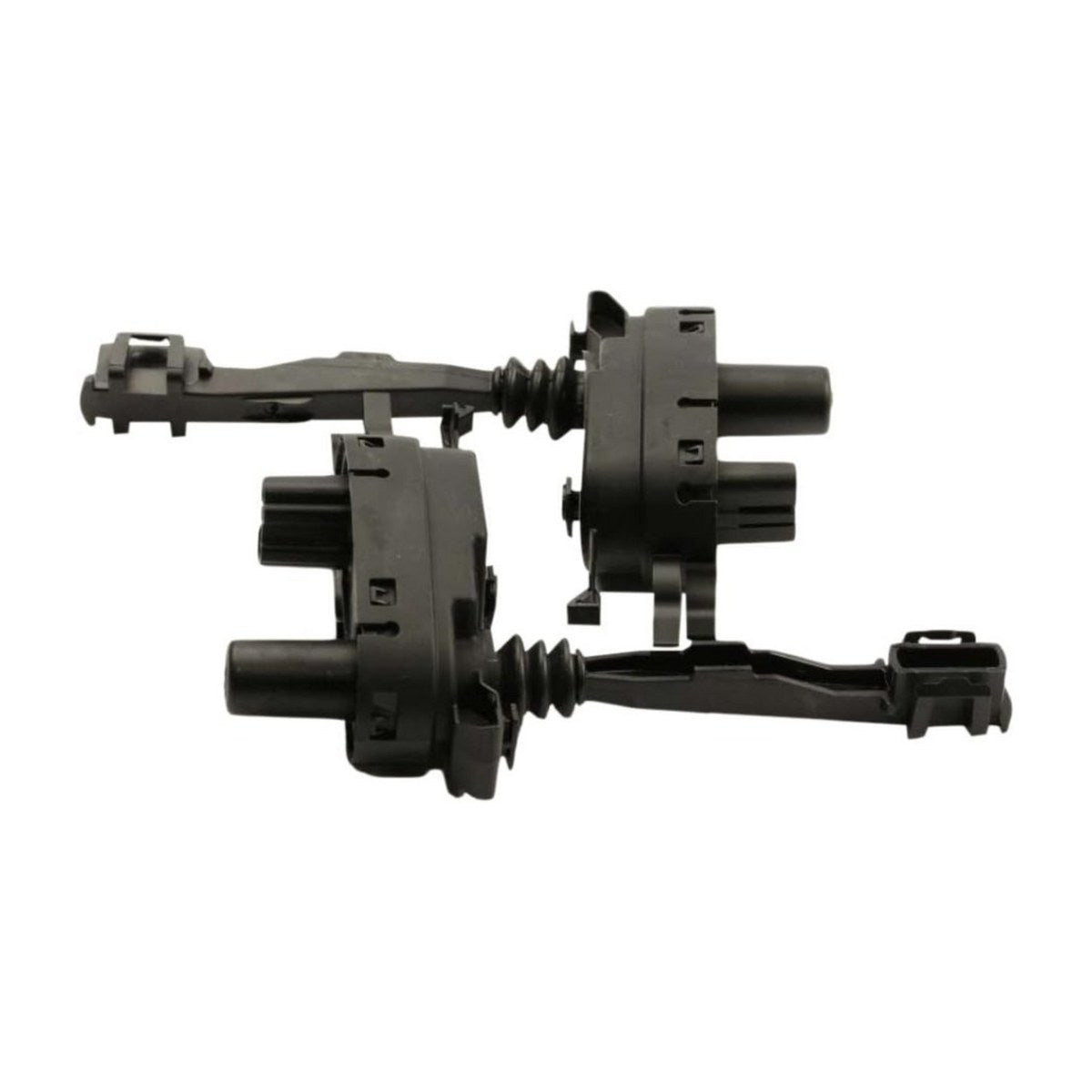

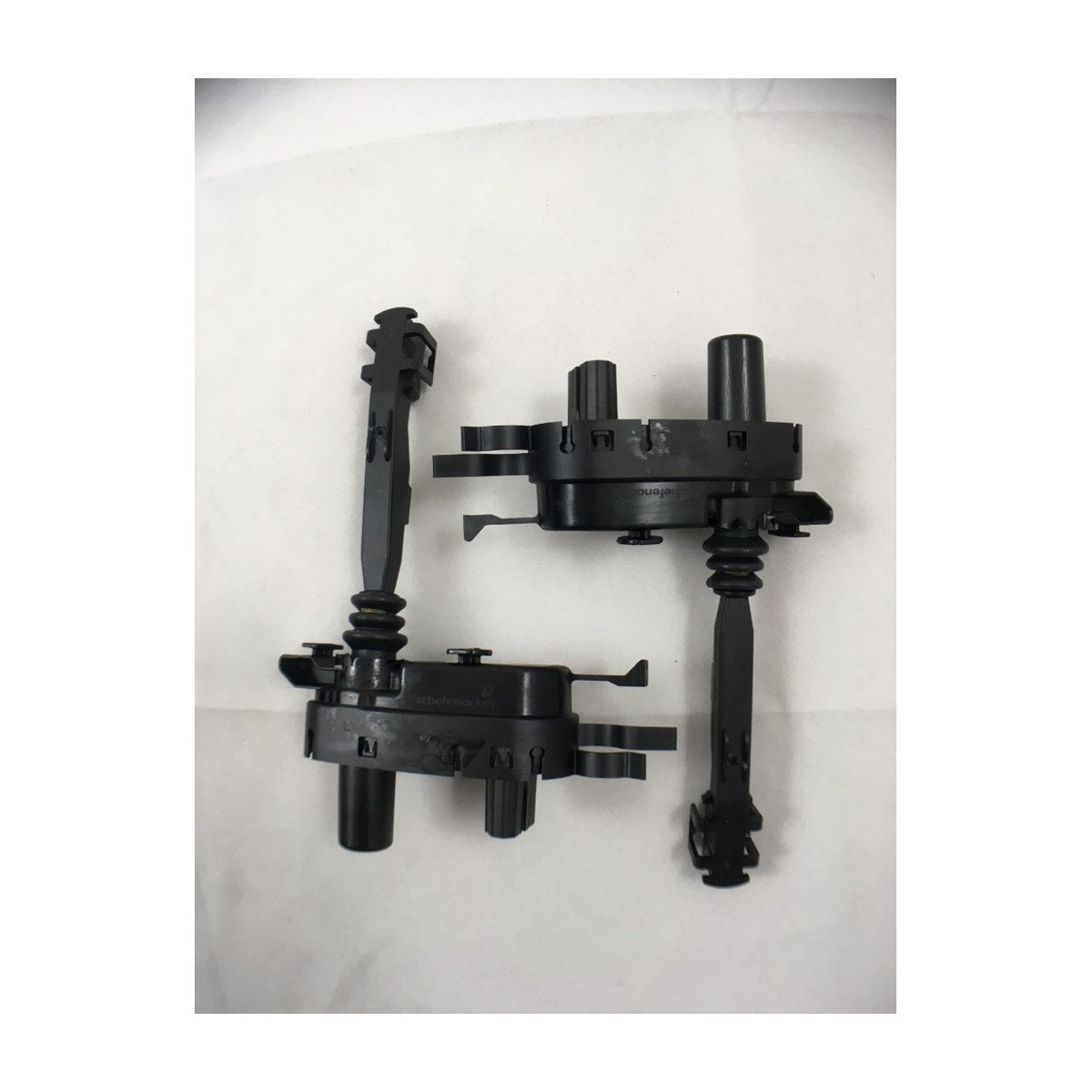

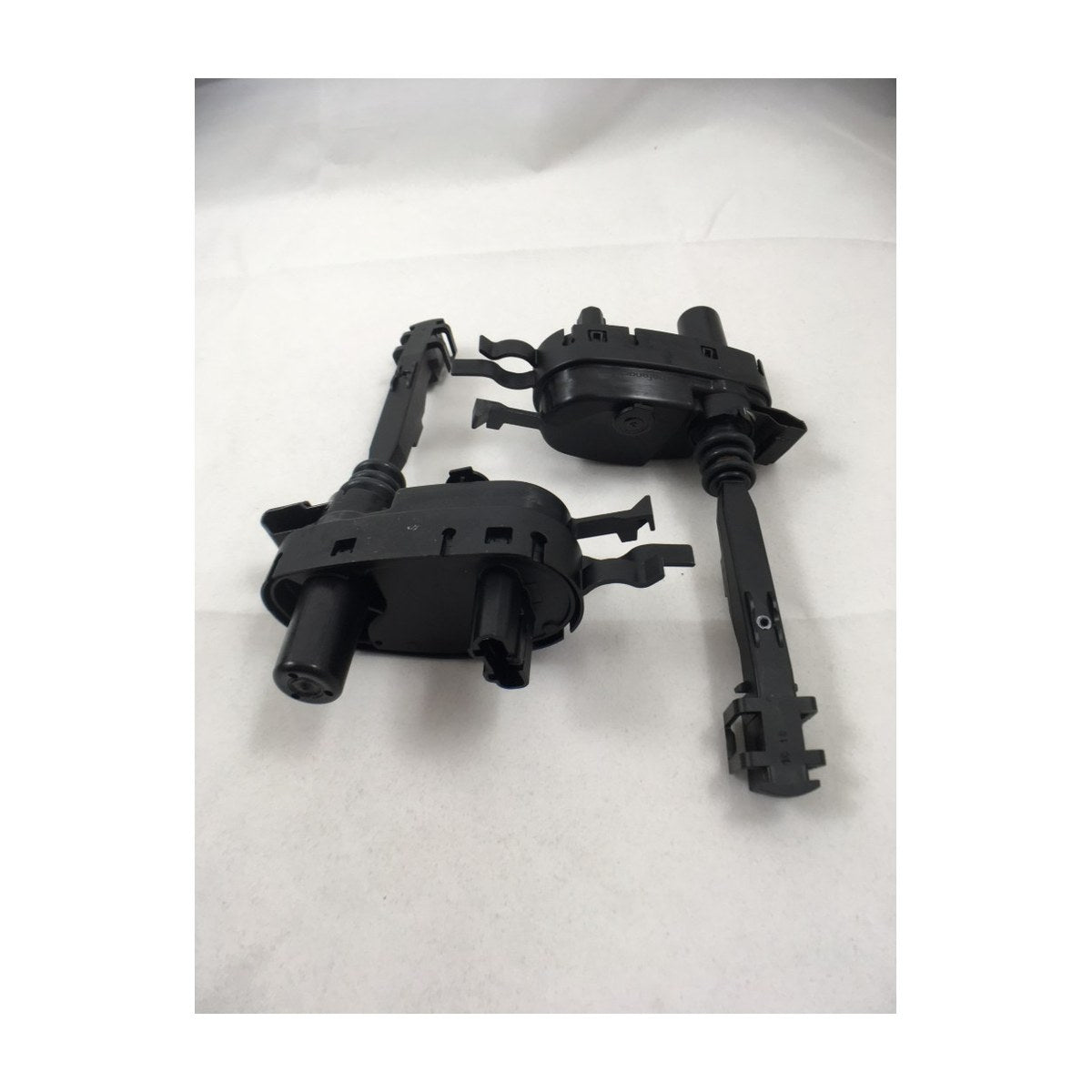

522085 Genuine DishDrawer Lid Actuator Kit Pack of 2 for Fisher & Paykel Dishwashers DD60DCX6 DD60SCX7 DD605 DS605 DD60DCX9 DD90SDFTX2

Fisher & Paykel part 522085 is a genuine kit of two lid actuators for DishDrawer dishwashers. The lid is the panel that comes down onto the wash tub to seal it while the drawer runs, and these actuators move it. The kit is listed for the DD605 and DS605 drawers, DD60 models ending in 6, 7 and 9, and the DD90SDFTX and DD90STI. Wiring isn't included, so your existing connections are reused.

DishDrawer leaking or the lid not sealing

Each drawer has a lid in the top of the cabinet that seals the tub during the wash. At the start of a cycle the actuators lower the lid onto the tub, and at the end they release it so the drawer can open. When an actuator weakens or fails, the lid doesn't clamp down evenly. Water can escape over the tub edge, the drawer may leak onto the floor or into the drawer below, and the cycle may stop with a fault. Fitting both actuators from the kit at once keeps the lid pulling down evenly.

Part details

• Genuine Fisher & Paykel part 522085
• Pack of 2 lid actuators
• Wiring not included, the existing connections are reused
• Suits DD605, DS605 and DD60 DishDrawer models on file
• Also listed for DD90SDFTM, DD90SDFTX and DD90STI

Replacing DishDrawer lid actuators

Switch the dishwasher off at the wall and turn off the water supply. Access to the actuators varies by model, so check the service information for your drawer before you start. Photograph the wiring and how each actuator mounts before removing it. Fit both new actuators, reconnect the original wiring and run a short cycle to check the lid lowers and the drawer stays dry.

Questions about this part

Does this kit include the wiring?

No. The kit contains two lid actuators without wiring. Your existing wires connect to the new actuators, so check the old wiring and connectors are in good condition before fitting them.
