5215DD1001E Genuine Dishwasher Inlet Hose with Aquastop for LG Dishwashers XD3A15BS XD3A25MB XD4B24PS XD5B14PS XD5B24PS LD-1420T2 LD-1415M1

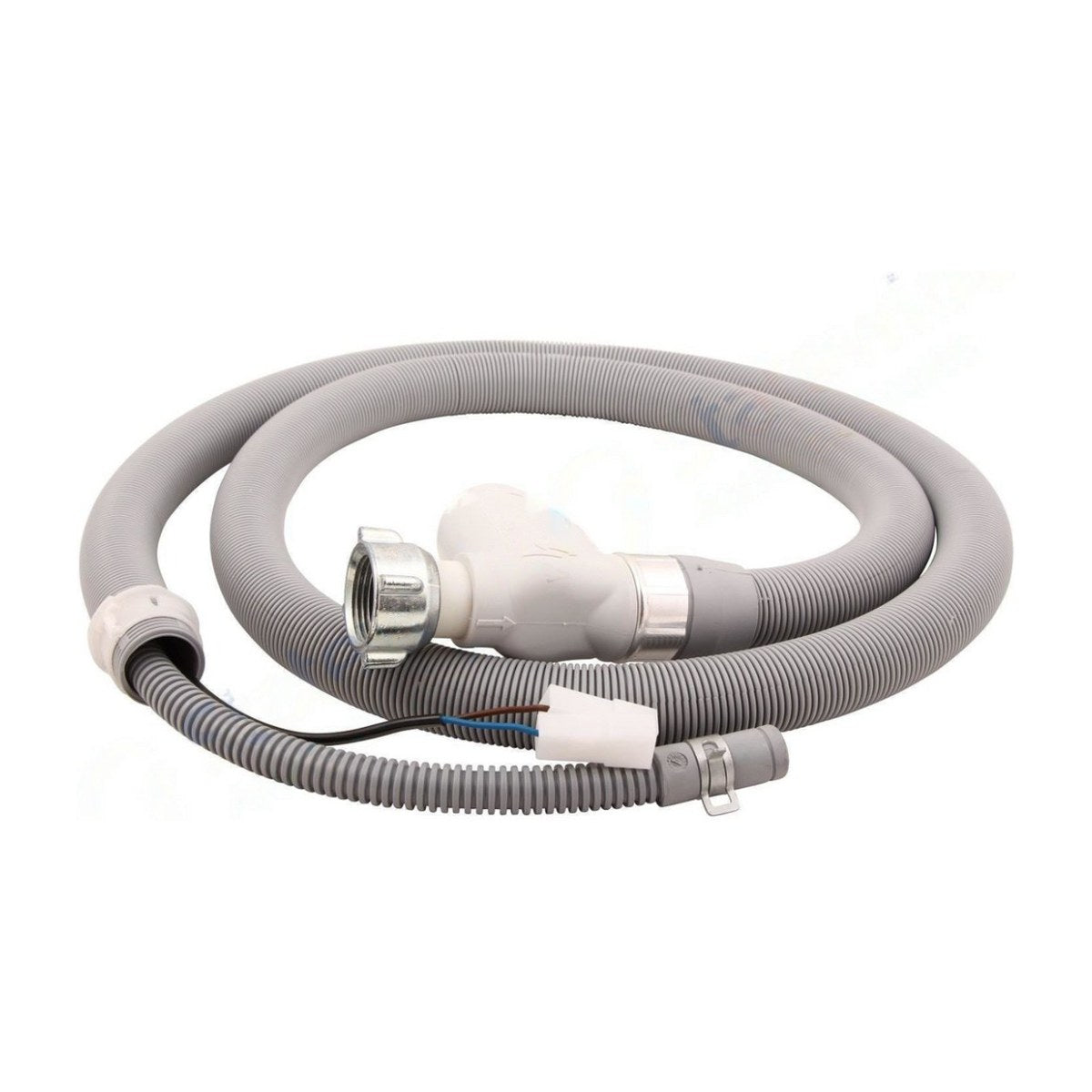

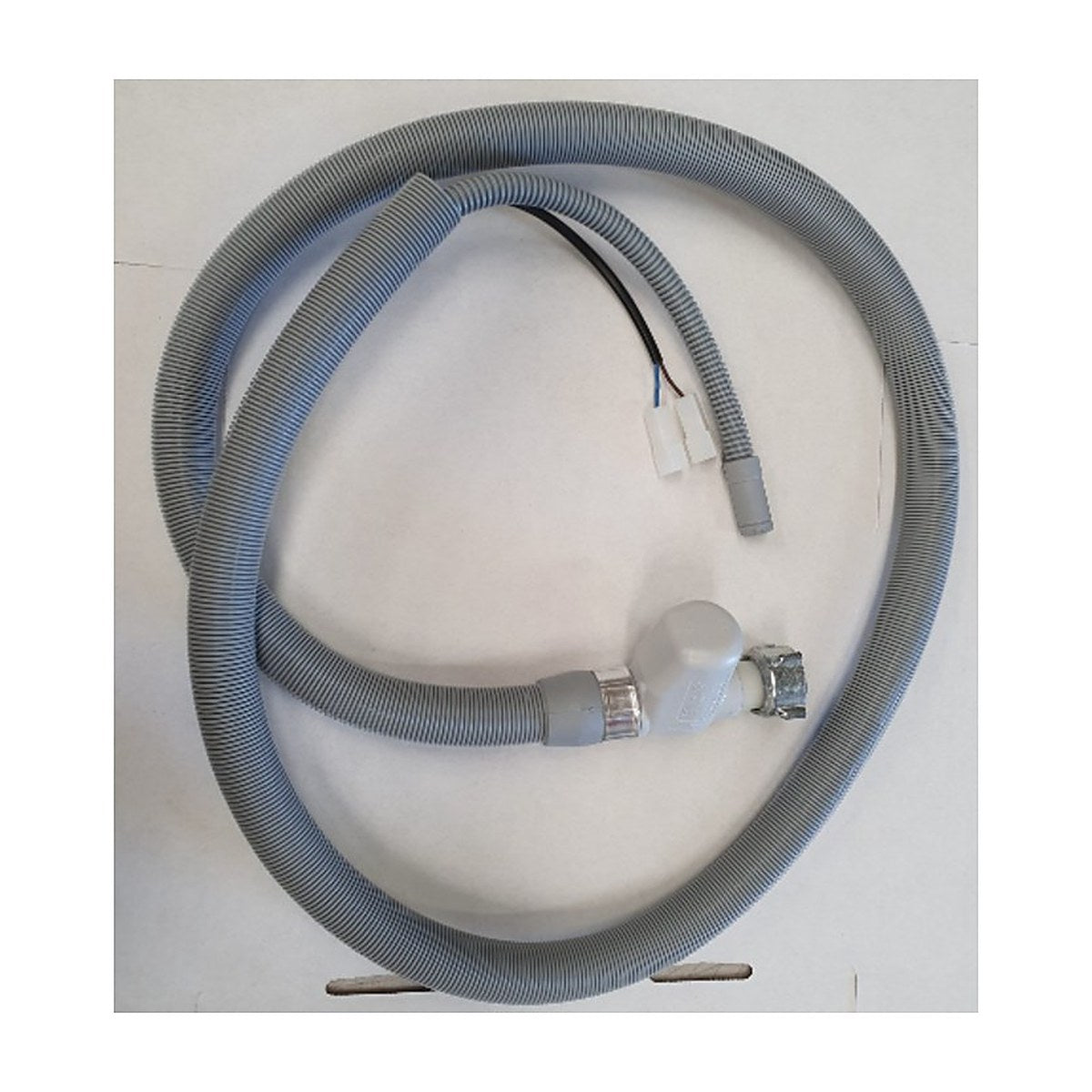

LG's genuine inlet hose assembly with Aquastop, part 5215DD1001E, feeds water to the dishwasher and cuts the supply off at the tap end if a leak is detected. It replaces 5215DD1001C and several earlier 5215ED1001 and 5215ED1002 numbers. It suits LG XD3A15BS and XD3A25MB, XD4B24PS, and XD5B14PS and XD5B24PS dishwashers, as well as older LD-1415, LD-1420 and LD-1483 models.

LG dishwasher not filling or showing a leak error

The Aquastop hose has an electrically operated valve at the tap end, rated 220-240V. When the dishwasher calls for water the valve opens, and if the inner hose splits, the outer sleeve contains the leak while the safety system shuts the water off. When the valve coil fails or a leak has been detected, the machine won't fill. You might see an inlet or leak error on the display, hear the dishwasher hum without water arriving, or find a damp outer sleeve. Because the valve is built into the hose, the whole assembly is replaced as one.

Part details

• Genuine LG part 5215DD1001E
• Inlet hose with Aquastop valve, 220-240V
• Replaces 5215DD1001C, 5215ED1001A, 5215ED1002A, 5215ED1002D and 5215ED1002F
• Fits LG XD and LD series dishwashers listed

Replacing the Aquastop hose

Switch the dishwasher off at the wall and close the tap. The hose's electrical connection is inside the dishwasher, usually reached by removing the kickplate or a side panel. Unplug the old hose's wiring, unscrew it from the tap and the inlet, and fit the new one the same way. Open the tap slowly and check for leaks before restoring power.

Questions about this part

Which LG dishwashers does 5215DD1001E fit?

It's listed for the XD3A15BS and XD3A15NS, the XD3A25MB, the XD4B24PS and XD4B15PS, and the XD5B24PS and XD5B14WH, among other XD models, plus LD series models such as LD-1420T2 and LD-1483T4.
