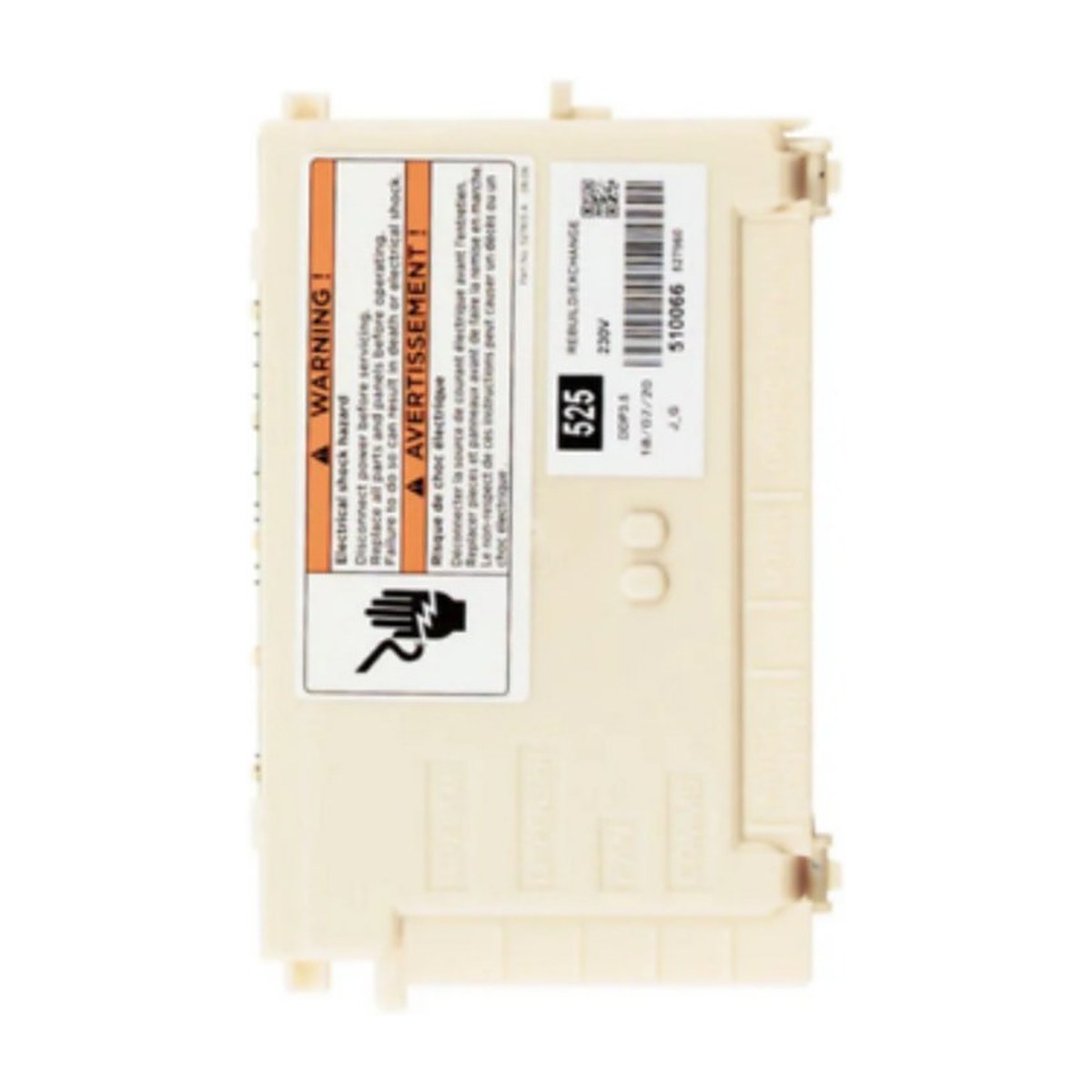

519325P Genuine Motor Control Module Kit for Fisher & Paykel Double DishDrawer Dishwashers DD60DAX9 DD60DAW9 DD60DCX9 DD60DDFX9 DD60DI9

Part 519325P is the genuine Fisher & Paykel motor control module kit for double DishDrawer dishwashers, made for a 230V supply. It is also linked to 510686P. Models on file are the DD60DAW8 and DD60DAX8, the DD60DAW9 and DD60DAX9, the DD60DCW9 and DD60DCX9, the DD60DDFB9 and DD60DDFX9, and the DD60DI9.

DishDrawer not washing? The motor controller could be the fault

The DishDrawer wash pump is driven by a motor that relies on this module for its power and speed control. If the module fails, the drawer may fill and then sit without washing, stop partway through a cycle, hum without pumping, or beep and show a fault. Water from a leak, or a power surge, can also take a module out. Because the same symptoms can come from a faulty motor, wiring or the main controller, it pays to confirm the diagnosis before ordering.

Part details

• Genuine Fisher & Paykel part 519325P
• Linked number 510686P
• Motor control module kit, 230V
• For double DishDrawer models
• Listed for DD60DAX9, DD60DCX9, DD60DDFX9 and DD60DI9

Fitting the motor control module

This is a job for an experienced repairer. Switch the dishwasher off at the wall and unplug it before opening any panels, and turn off the water tap. Photograph every connector before unplugging it, handle the board by its edges, and check the wiring for water damage or burnt pins. Run a full test cycle once it is back together.

Questions about this part

Will this fit a single DishDrawer?

It is listed for double DishDrawer models only, such as DD60DCX9 and DD60DAX9. Single drawer models are not on file for this part, so check your model number on the rating label and send it through the parts enquiry form if you are unsure.
