514236P Genuine Wash Control Kit P9 V2 for Fisher & Paykel DishDrawer Dishwashers DD60DAX9 DD60SCX9 DD60SDFX9 DD60SCTX9 513002P 511992P

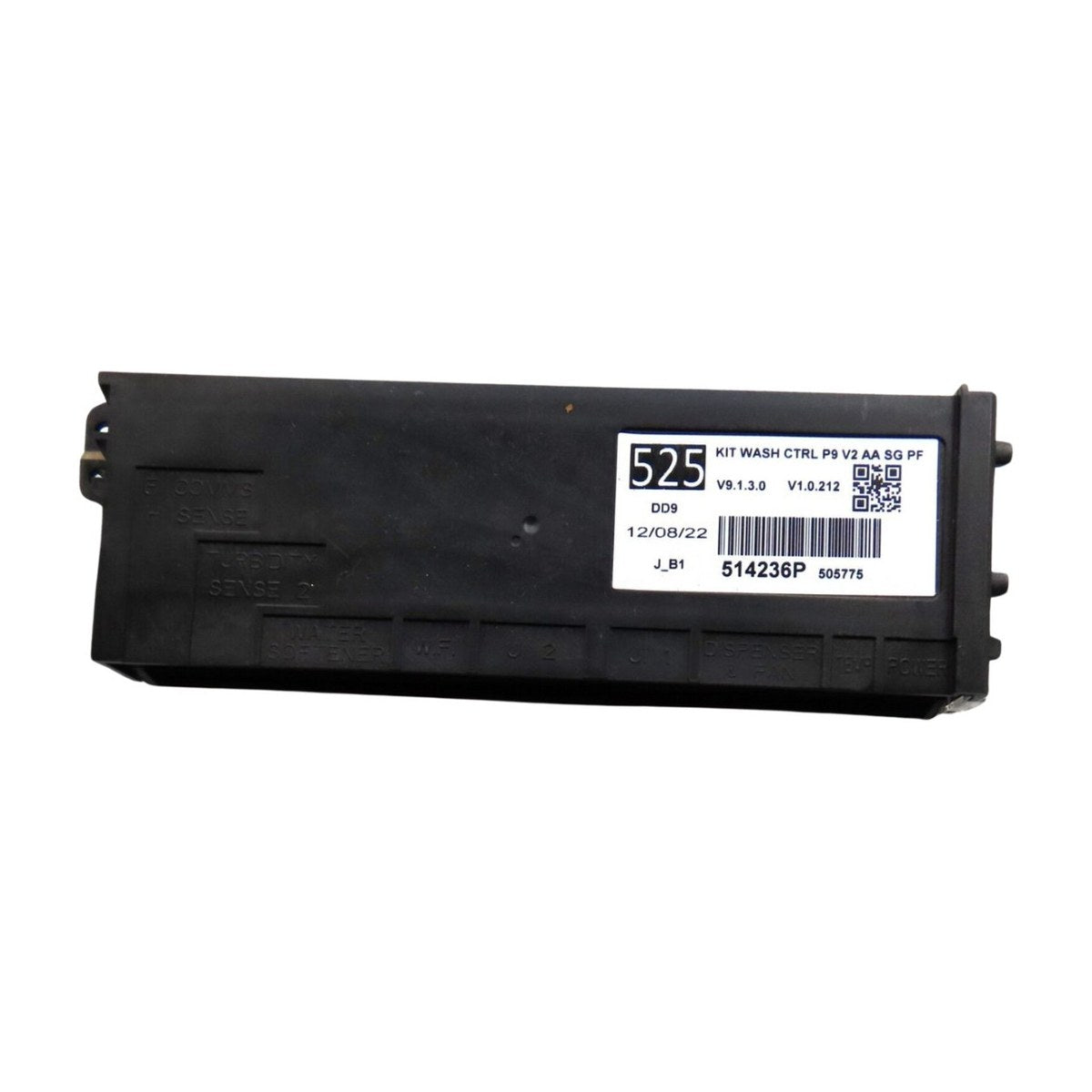

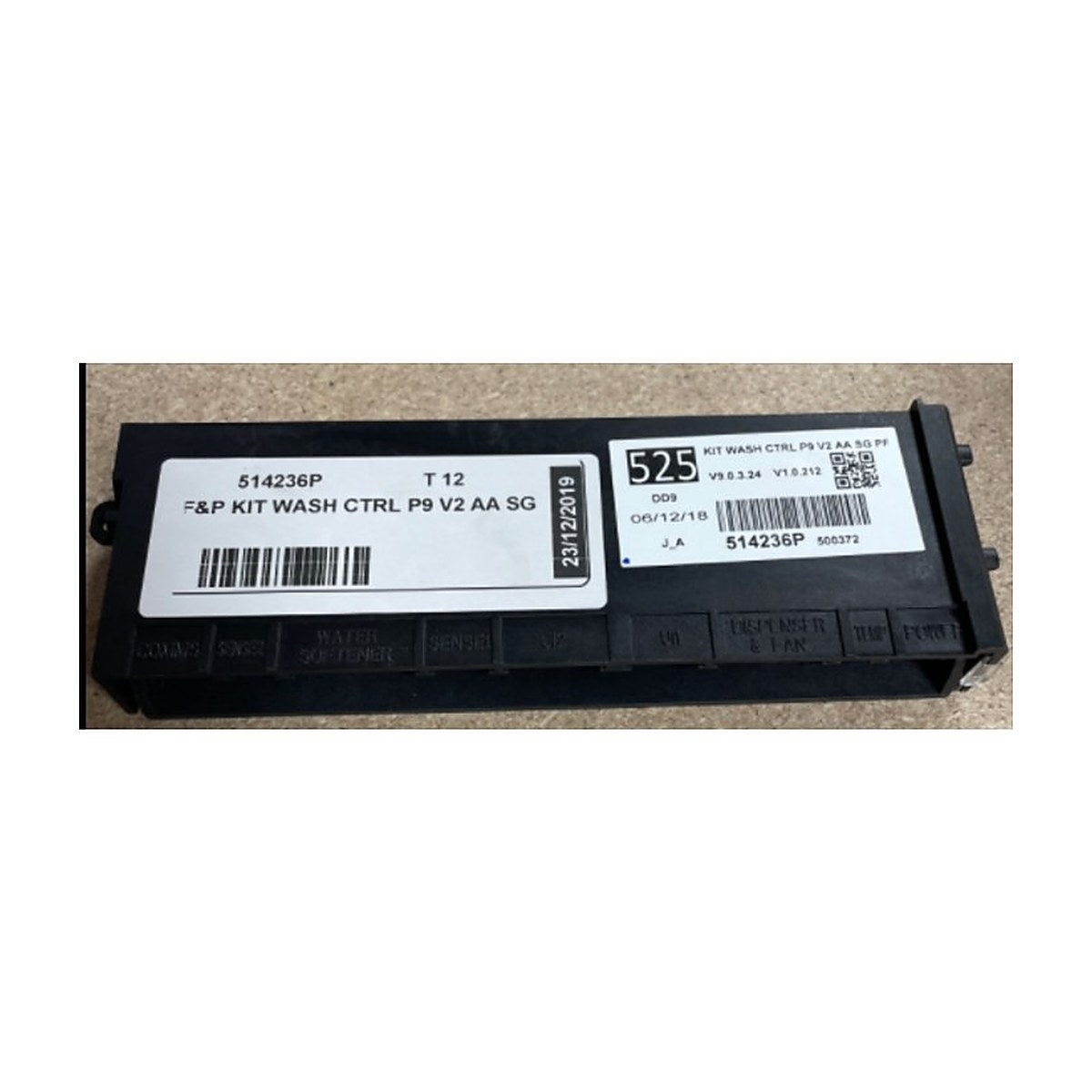

Part 514236P is the genuine Fisher & Paykel wash control kit for DishDrawer dishwashers, listed for the DD60DAX9, DD60SCX9, DD60SDFX9 and DD60SCTX9. The earlier numbers 513002P and 511992P are also linked to this kit. It is the electronic controller that runs the wash program, so it is the part to order once a fault has been traced to the controller.

DishDrawer not starting or showing faults?

The wash controller is the brain of the drawer. It reads the buttons and sensors, then switches the motor, water valve, heater and drain in the right order for each program. When it fails, a drawer may be completely dead, refuse to start, stop partway through, beep or show fault codes, or run steps out of sequence. Faults in the motor, wiring or sensors can produce similar signs, so it pays to have the fault diagnosed properly before buying a controller.

Part details

• Genuine Fisher & Paykel part 514236P
• Linked to earlier numbers 513002P and 511992P
• Wash control kit for DishDrawer dishwashers
• Listed for DD60DAX9, DD60SCX9, DD60SDFX9 and DD60SCTX9

Fitting the controller kit

This job suits an experienced appliance technician. Turn off the power at the wall and isolate the water before starting. The drawer needs to come out of the cabinet to reach the electronics, so follow the service steps for your model and photograph each connector before unplugging it. Follow any instructions supplied in the kit, then run a full cycle to confirm every stage works.

Questions about this part

Will 514236P replace my old 513002P controller?

513002P and 511992P are linked to this kit as earlier numbers. If your DishDrawer is one of the four listed models and your old controller carries one of those numbers, this kit is listed as its replacement.
