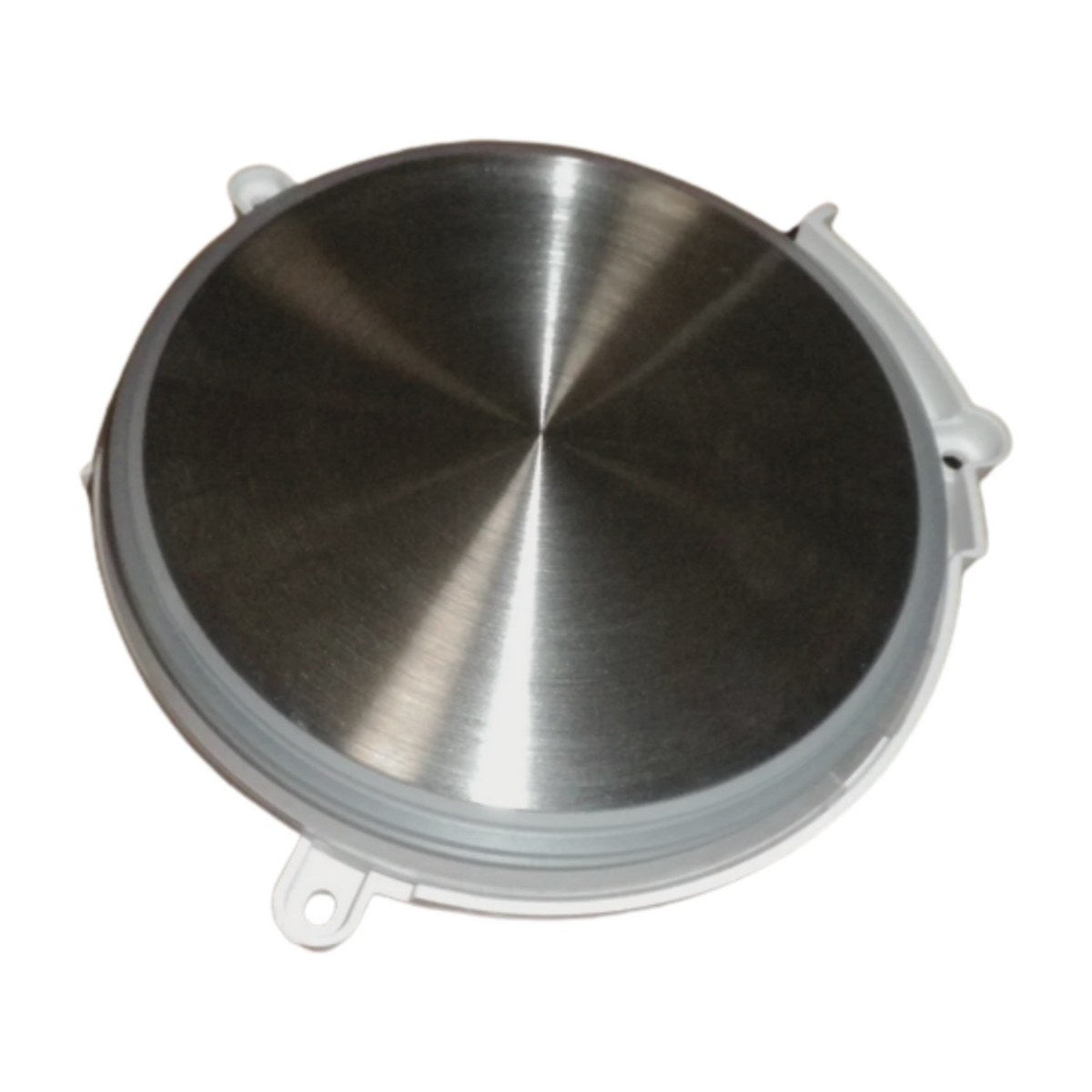

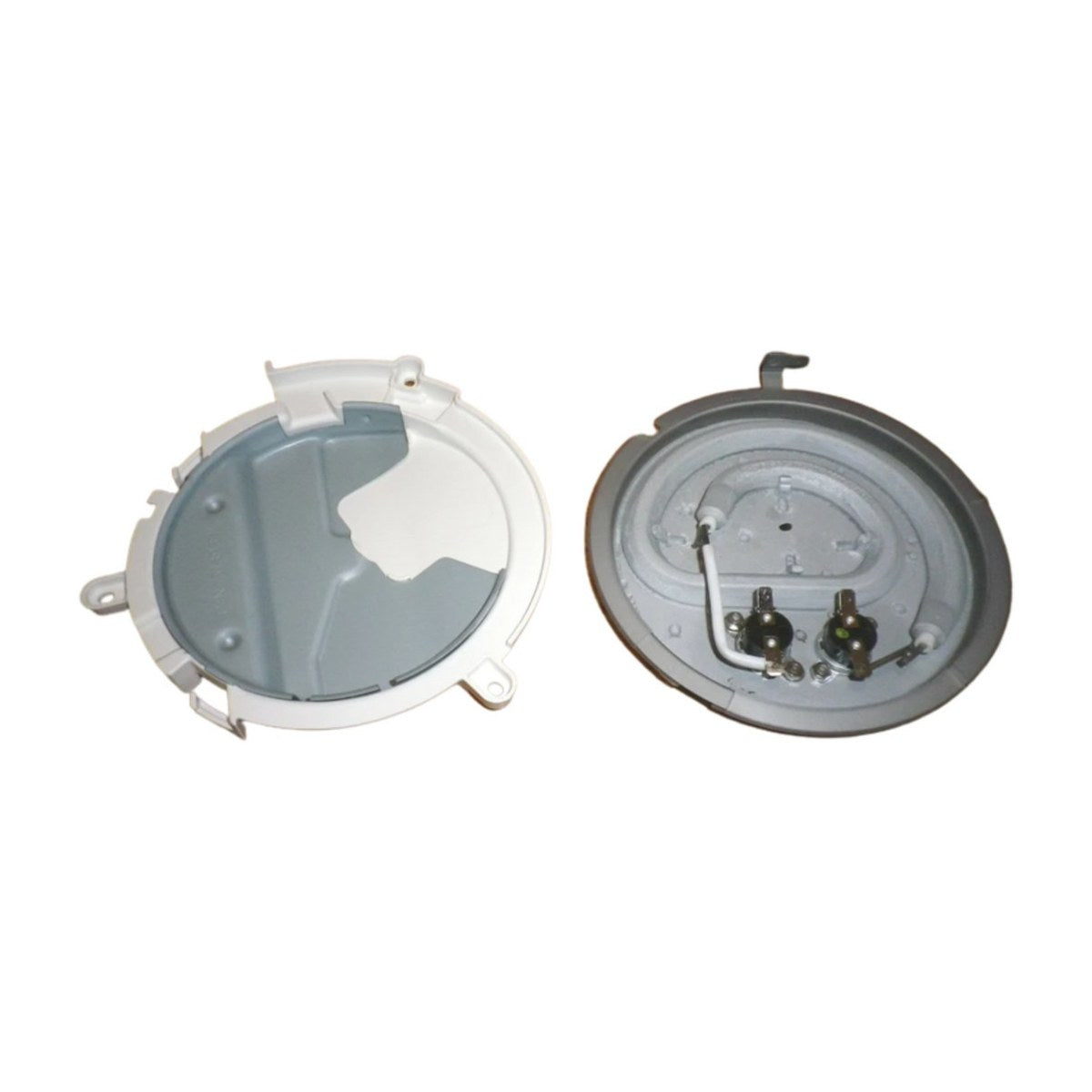

514230 Genuine Heating Element and Seal Kit 230V for Fisher & Paykel DishDrawer Dishwashers DD60DCX9 DD60DCW9 DD60SCX9 DD60DAX8 DD60DDFX9

Part 514230 is a genuine Fisher & Paykel element and seal kit for DishDrawer dishwashers, rated at 230V. It's also referenced as 510923. The kit is listed for DD60 DishDrawers whose model numbers end in 8 or 9, among them the DD60DCX9 and DD60DCW9, the DD60SCX9, the DD60DAW8 and DD60DAX8, and the DD60DDFX9, DD60DI9 and DD60SI9.

DishDrawer not heating or dishes not drying

The element heats the wash water so detergent can work properly and dishes come out hot enough to dry. Where the element meets the drawer tub, a seal keeps the water in, which is why the two come together in this kit. When the element fails, the wash runs cold, greasy residue stays on plates and dishes come out wet. A failing seal shows up as water leaking below the drawer. Depending on the model, the DishDrawer may also stop and show a heating fault rather than finish the cycle.

Part details

• Genuine Fisher & Paykel part 514230
• Also referenced as 510923
• Heating element and seal kit
• Rated at 230V
• Suits DD60 DishDrawers with model numbers ending in 8 or 9

Replacing the DishDrawer element

Isolate power at the wall and turn off the water before starting. The drawer usually needs to come out of the cabinet to reach the element connections. Photograph the wiring, fit the new seal with the element so it beds down evenly, and tighten fixings gradually. Run a full hot program and check underneath for leaks. This job is best left to a qualified appliance technician.

Questions about this part

My model ends in 7. Will this kit fit?

The kit is listed for DD60 DishDrawers ending in 8 or 9, such as the DD60DAW8 and DD60DCX9. Earlier models may use a different element, so check your full model number on the product label and compare it with the list before ordering.
