5006EA3009B Genuine Pulsator Cap for LG Top Load Washing Machines WTG8532WH WTG9532WH WTG1032WF WTR1132WF WT-H800 WT-R107 T1532AFPS5

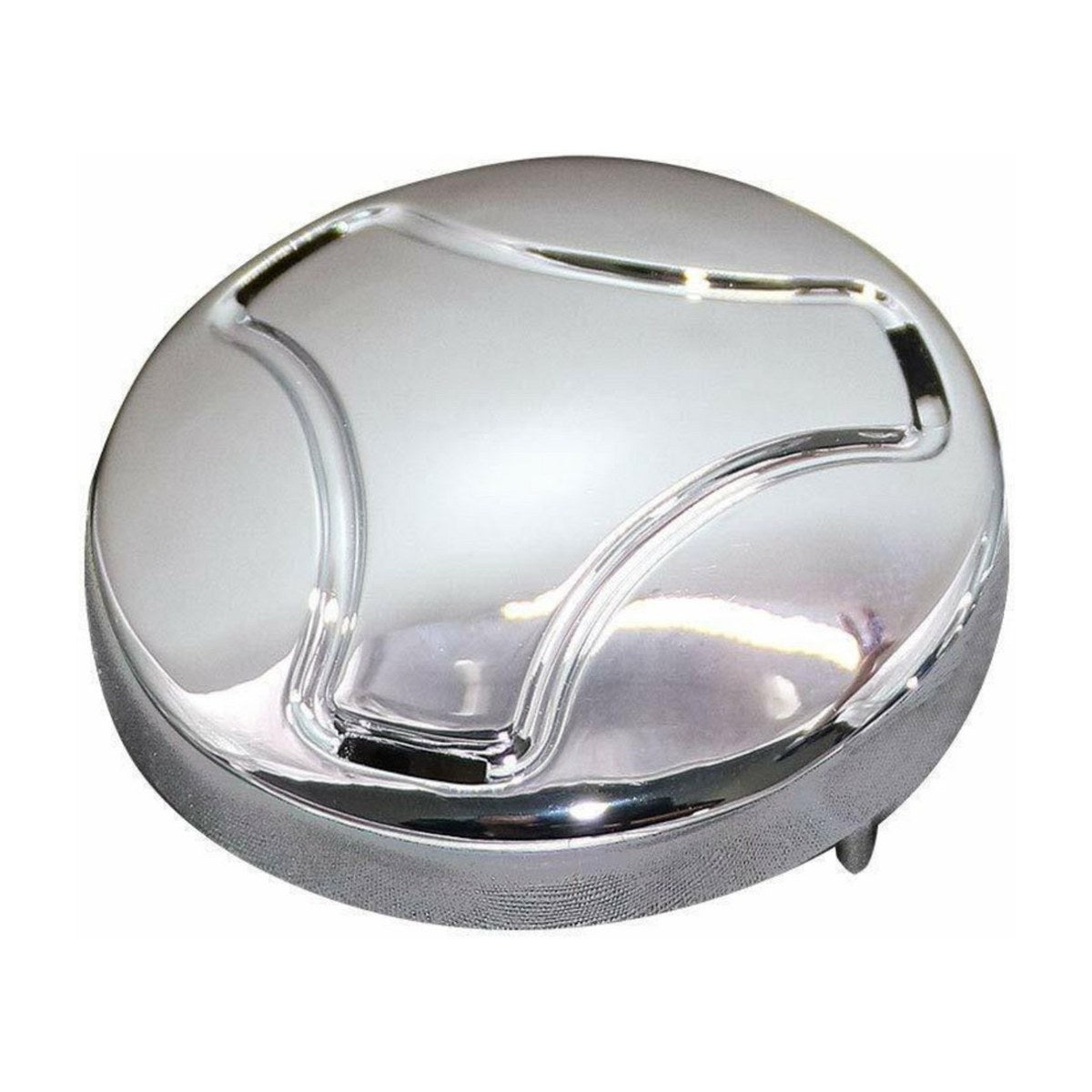

Lost the centre cap from your top loader's wash plate? 5006EA3009B is the genuine LG pulsator cap, also linked to MBL65219301 and 5006EA3009C. It is listed for 43 LG top load models, including the WTG8532WH, WTG9532WH, WTG1032WF, WTR1132WF, WT-H800, WT-R107 and T1532AFPS5. LG pulsator assembly 5845EA1003B comes without a cap, so this is the part to add when you replace it.

What the pulsator cap does on an LG top loader

The pulsator is the plate at the bottom of the wash bowl that moves clothes around. Its centre is held onto the drive shaft by a bolt, and the cap covers that bolt. Without it, small items like socks, coins and underwire can catch on the bolt head, and fabric can snag or tear. Water and detergent also sit on the exposed fixing, which encourages corrosion and makes the pulsator harder to remove later. Caps go missing after a repair or crack with age, and a cracked one can catch fabric just as easily.

Part details

• Genuine LG part 5006EA3009B
• Linked numbers MBL65219301 and 5006EA3009C
• Covers the bolt in the centre of the pulsator
• Not included with pulsator assembly 5845EA1003B
• Listed for 43 LG top load models

Fitting a pulsator cap

Turn the machine off at the wall and make sure the bowl is empty. Check the pulsator bolt is tight before you cover it. Line the cap up with the centre of the pulsator and press or twist it into place, matching how the old one was fitted, until it sits flush. Run a short rinse afterwards and check it has stayed in place.

Questions about this part

Will this cap fit my LG model?

It is listed for 43 LG top loaders across the WT-H, WT-R, WTG and WTR ranges plus T1532AFPS5. Find the model on the label on the back or under the lid and match it to the list before ordering.
