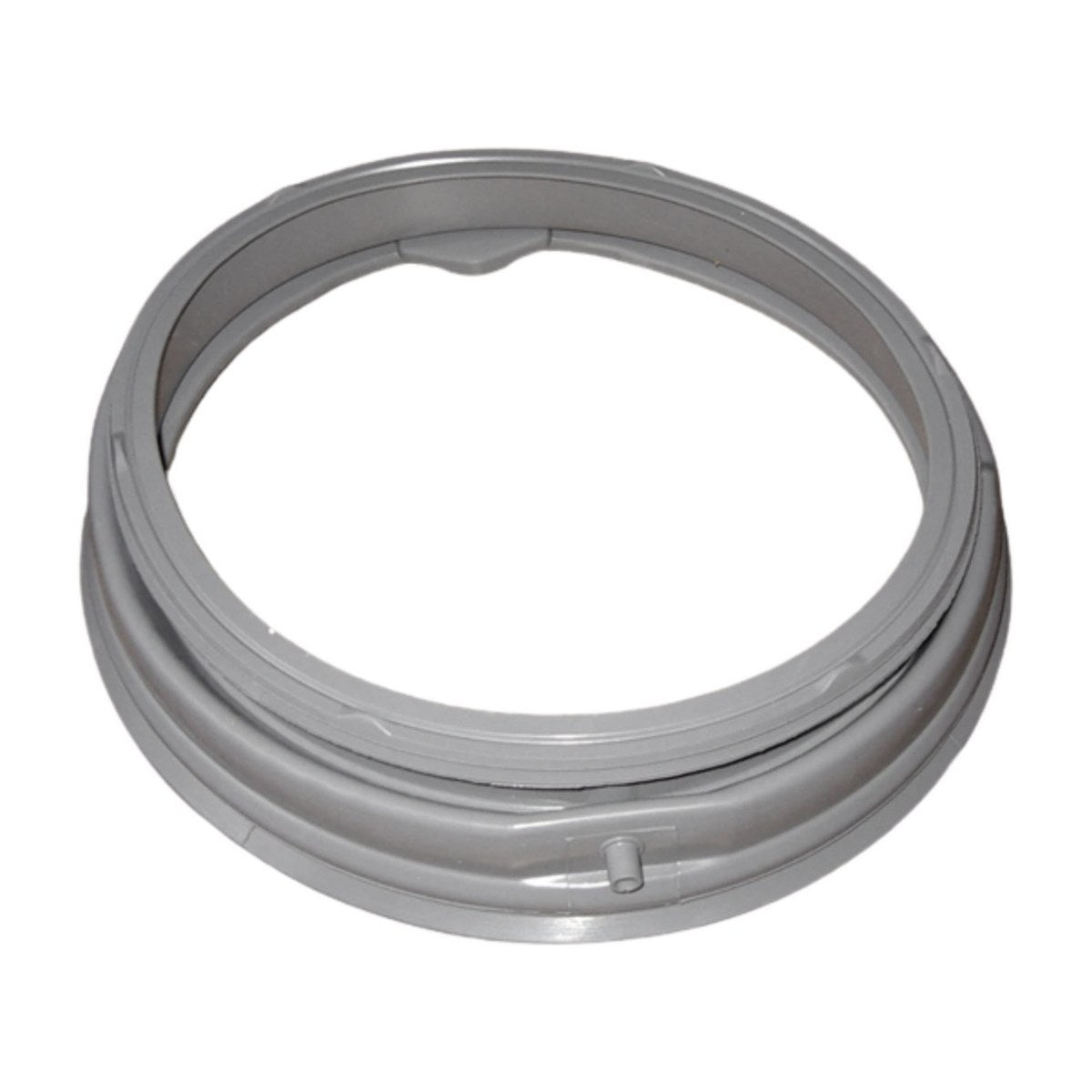

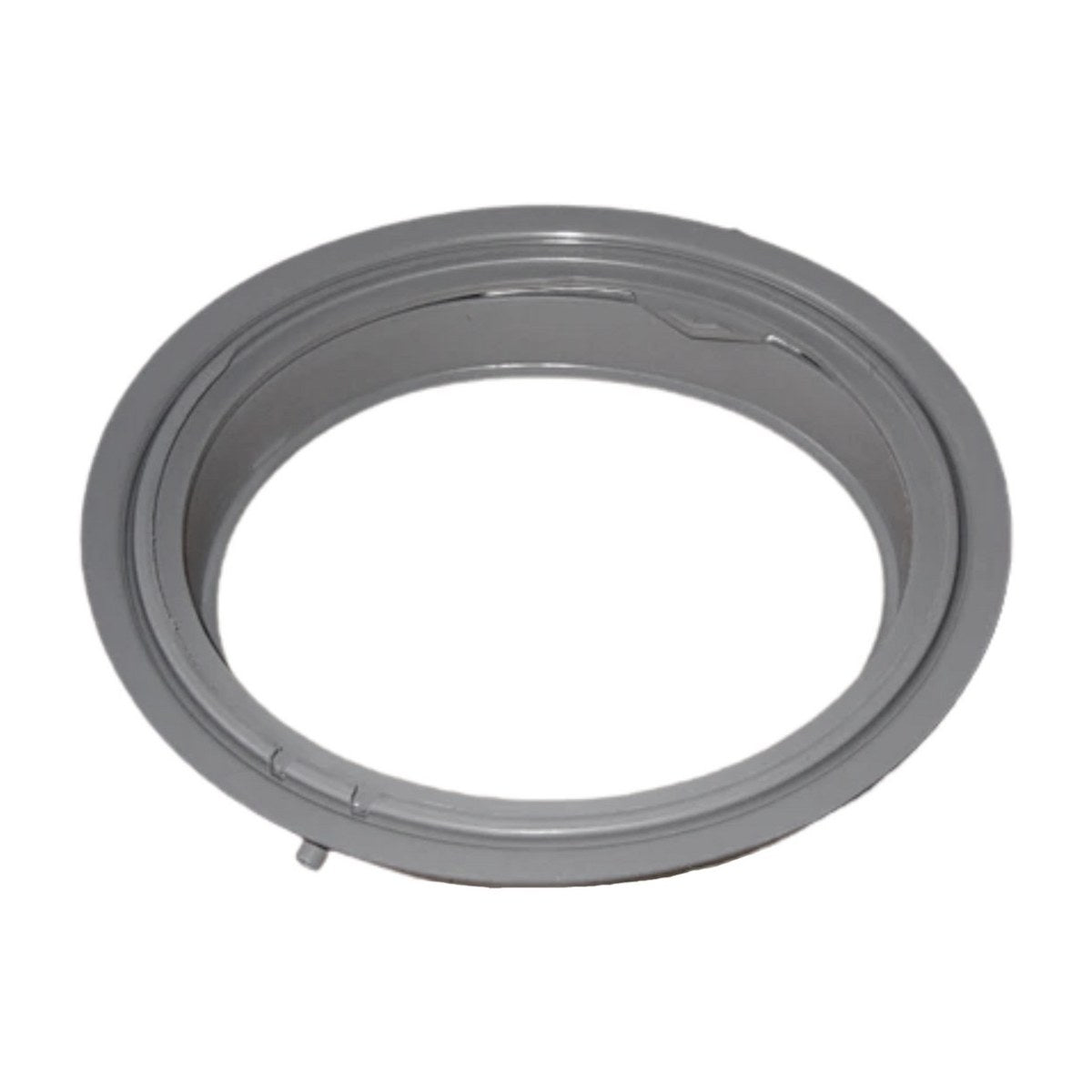

4986ER1005C Genuine Door Seal with Hole for LG Front Load Washing Machines WD12020D WD13020D WD14022D6 WD1402CRD6 WD-1435RD WD14700RD

This genuine LG door gasket, part 4986ER1005C, is the version with a hole in the boot, and LG also lists it as 4986EN1003B. It's on file for front loaders such as the WD11020D and WD12020D, the WD13020D, WD14022D6 and WD1402CRD6, and the older WD-1433RD and WD-1435RD models. Fit it when the old seal is torn, perished or growing mould that won't scrub off.

LG washer leaking from the door

The gasket is the flexible rubber boot that links the cabinet front to the tub, sealing against the glass when the door closes. It flexes every time the drum moves, so after years of use it can split along a fold, get punctured by a coin or underwire, or harden and crack. Water dripping from under the door during the wash is the classic sign. Black mould that has soaked into the rubber, a lingering musty smell and pockets of trapped water are other good reasons to replace it.

Part details

• Genuine LG part 4986ER1005C
• Also numbered 4986EN1003B
• Gasket version with a hole
• Listed for LG WD series front load washers

Tips for fitting an LG door seal

Unplug the washer and turn off the taps. Remove the outer clamp band, peel the gasket off the front panel, then release the inner clamp holding it to the tub. Line up the hole and any marks on the new seal with the old one's position, refit the inner clamp first and finish with the outer band. Run a rinse cycle to check for leaks.

Questions about this part

Does it matter which hole layout I choose?

Yes. LG gaskets come with different hole arrangements depending on the machine. Match the hole count and position on your old seal, and check your model against the list for 4986ER1005C before ordering.
