4986ER1005A Genuine Door Seal Gasket for LG Front Load Washing Machines WD-1015FB WD-1223FB WD-1433RD WD-1438RD WD-8016F WD-1236TD WD-1610FD

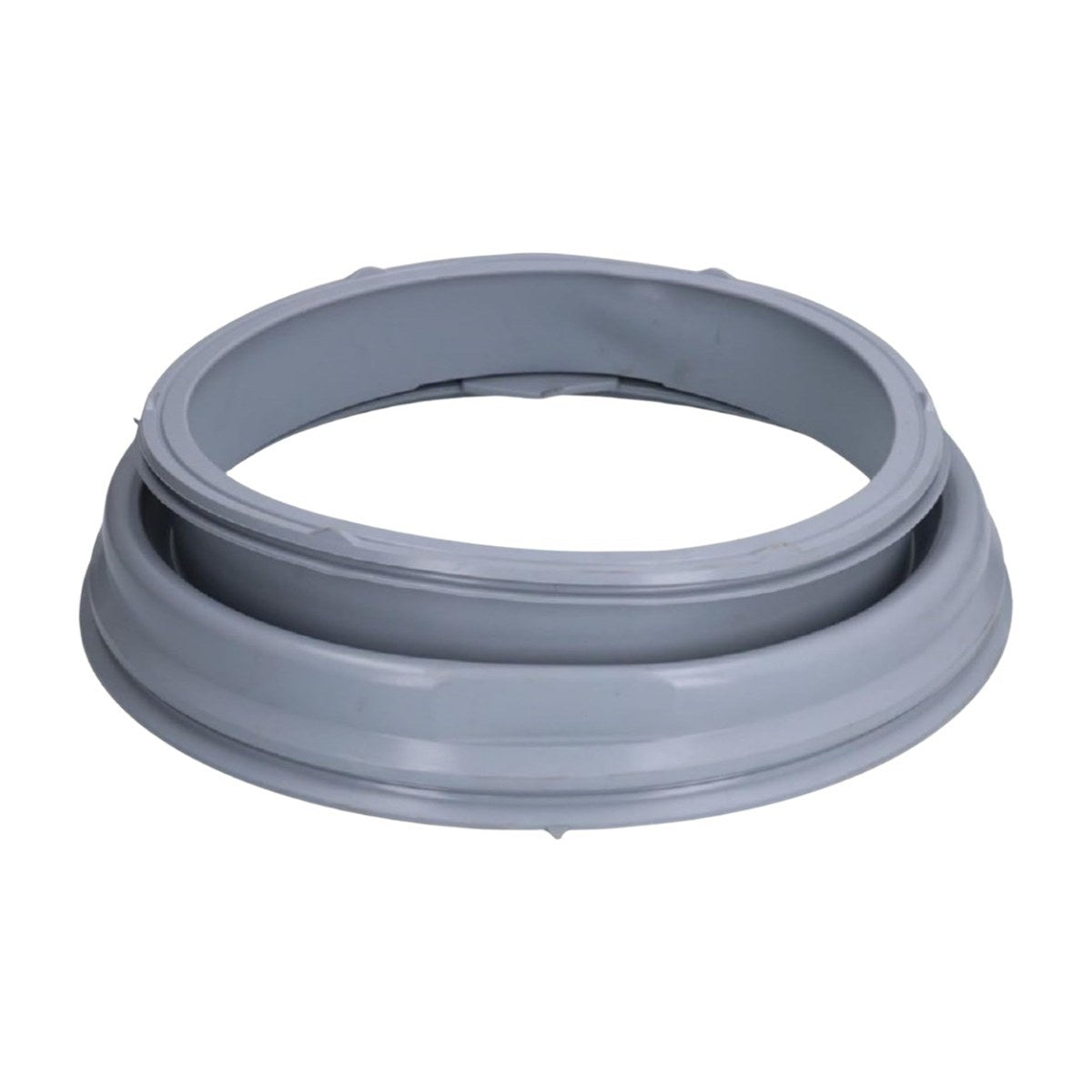

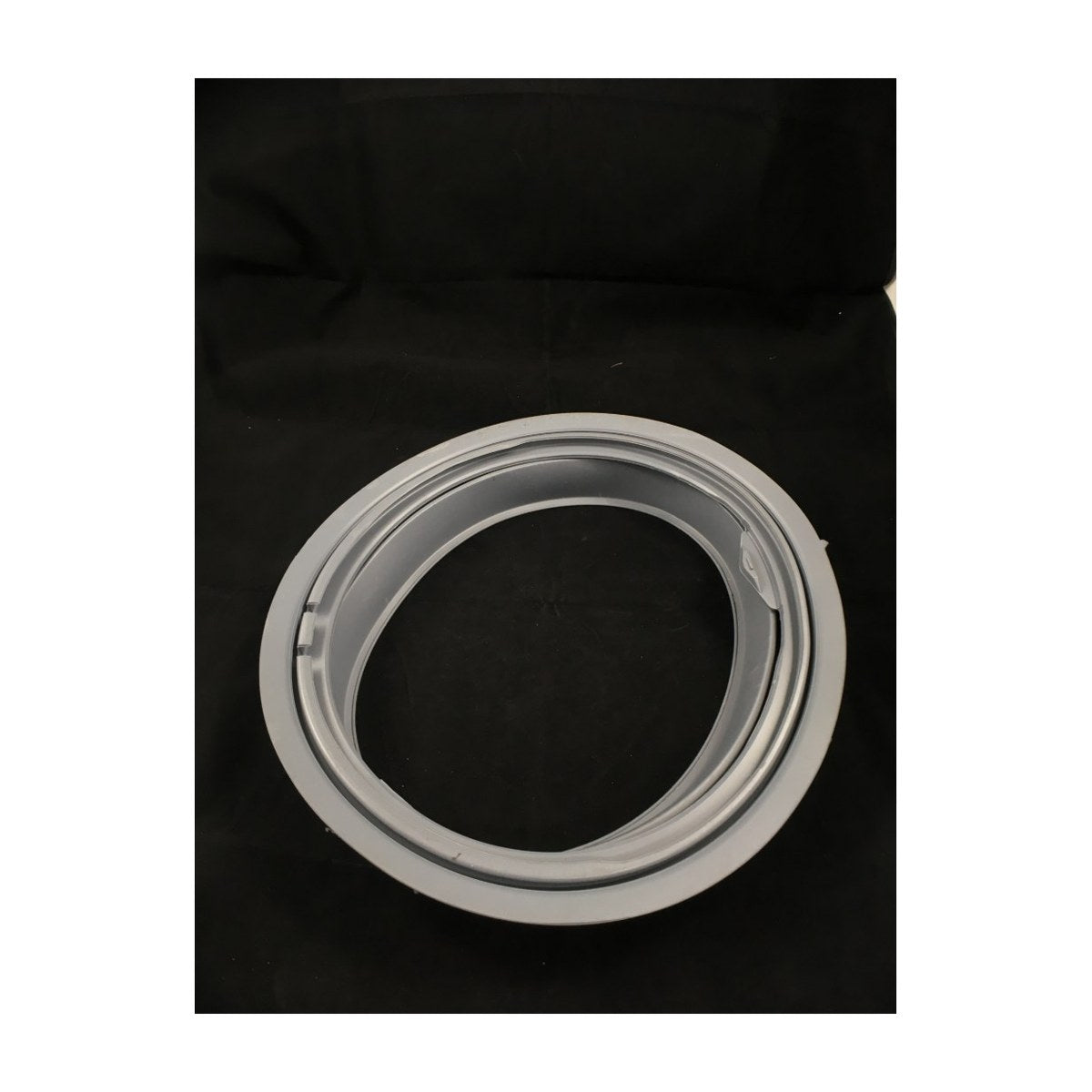

Genuine LG door seal 4986ER1005A replaces a torn, mouldy or leaking gasket on a range of LG front load washers. It cross references to 4986ER1003A and 4986ER1008A, so look for any of those numbers on your old seal or parts list. Models on file include the WD-1015FB and WD-1223FB, the WD-1433RD and WD-1438RD, and the WD-8016F and WD-1610FD.

LG washing machine leaking from the door? Signs the seal has failed

This rubber gasket lines the door opening and joins the cabinet to the tub, sealing against the glass when the door is shut. Its deep folds trap water, lint and detergent, which is why black mould and smells build up there first. Everyday wear, plus the odd coin or hairpin, eventually causes tears, most often low in the seal where water sits. Look for water on the floor in front of the machine, a wet front panel after a cycle, visible splits, and mould that has eaten into the rubber.

Part details

• Genuine LG door seal 4986ER1005A
• Cross references 4986ER1003A and 4986ER1008A
• Suits LG WD-10, WD-12, WD-14, WD-16 and WD-80 series models on file
• Also listed for the WD1402CRD6

Changing an LG door seal

Unplug the washer and turn the taps off. Remove the outer clamp ring and peel the seal back from the front panel, then take the front panel off to reach the inner clamp at the tub. Note any alignment mark or drain hole on the old seal and line the new one up the same way before seating it evenly on the tub lip. Leaving the door ajar between washes helps the new seal stay fresh.

Questions about this part

My old seal says 4986ER1003A. Is this the right one?

4986ER1003A is listed as a cross reference for this seal, along with 4986ER1008A. If your washer's model is also on the list on this page, 4986ER1005A is the seal to order.
