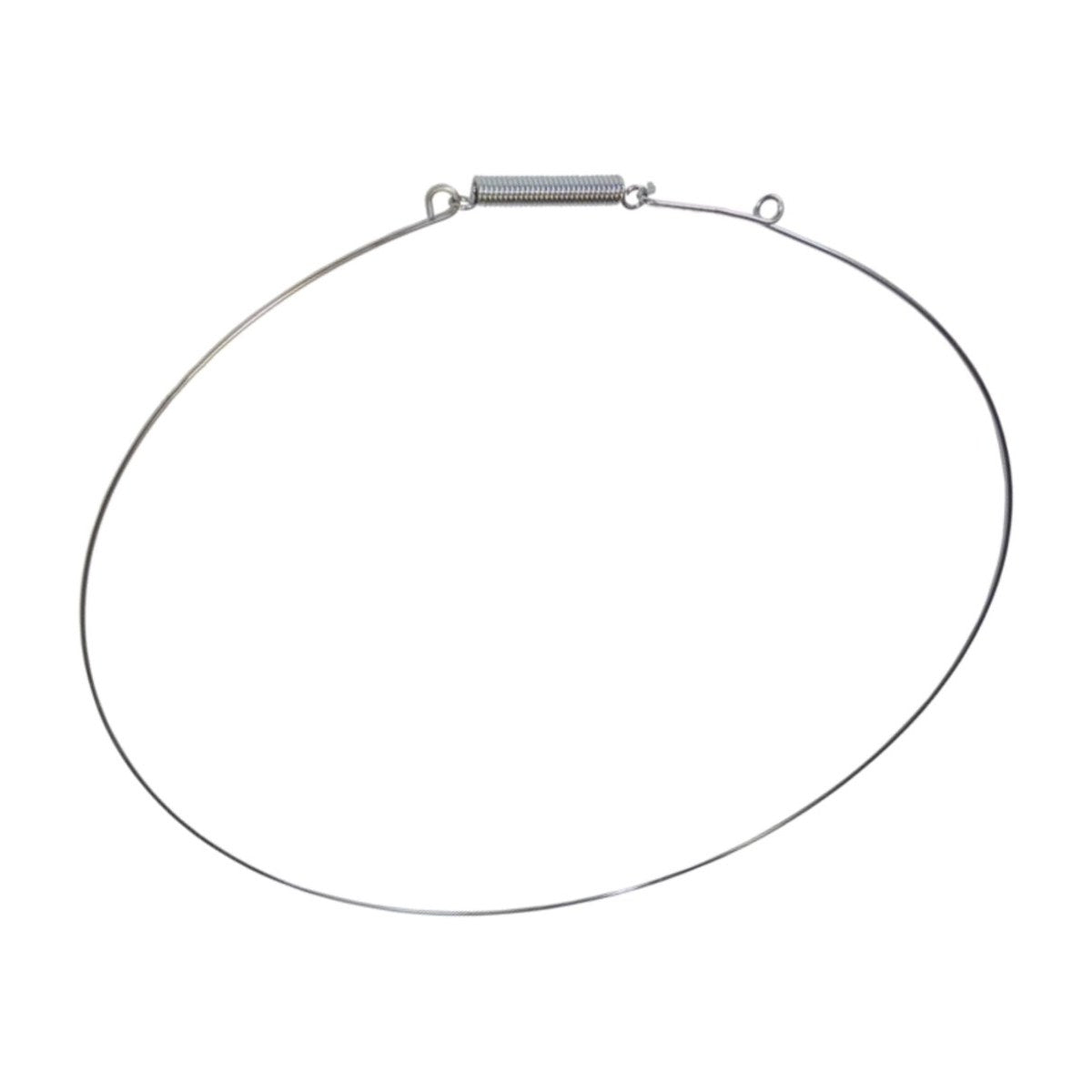

4861EN3002A Genuine Door Seal Wire Clamp for LG Front Load Washing Machines WD-1018C WD-1023C WD-1238C WD-1049C WD-8013C WD-8015C WD-8016C

The door seal on a front loader is only as good as the clamp holding it. 4861EN3002A is the genuine LG wire clamp assembly for the door seal on WD series front load washers, starting with the WD-1018C and WD-1023C, along with WD-1049C and WD-1238C. The WD-8013C and WD-8015C are on the list too, as is the WD-8016C. Order it when the old clamp has stretched, rusted or gone missing after a seal change.

Why a loose door seal clamp causes leaks

The door boot on a front loader is held in place by wire clamps that pull the rubber tight into its groove. If a clamp loosens, stretches or springs off, the seal lip can lift away, and water finds the gap during the wash or spin. Signs include water pooling at the front of the machine, a seal edge that pops out of place, or a clamp you can see hanging loose inside the door opening. Clamps are easy to bend when a seal is changed, so it pays to have a new one on hand for that job.

Part details

• Genuine LG part 4861EN3002A
• Wire clamp assembly for the door seal
• Suits LG WD series front load washers
• Seven LG WD series models on file

Fitting the clamp

Unplug the machine and make sure the drum is empty. Seat the rubber fully in its groove all the way round before the clamp goes on. Work the clamp around the lip a section at a time, using a flat blade screwdriver to guide the wire into place without tearing the rubber. Check it sits evenly all the way round, then run a rinse and look for drips.

Questions about this part

Do I need a new clamp when replacing the door seal?

Not always. If the old clamp is still springy, rust free and holds its shape, it can be reused. If it has stretched, kinked or lost tension, fit a new one so the seal stays put.
