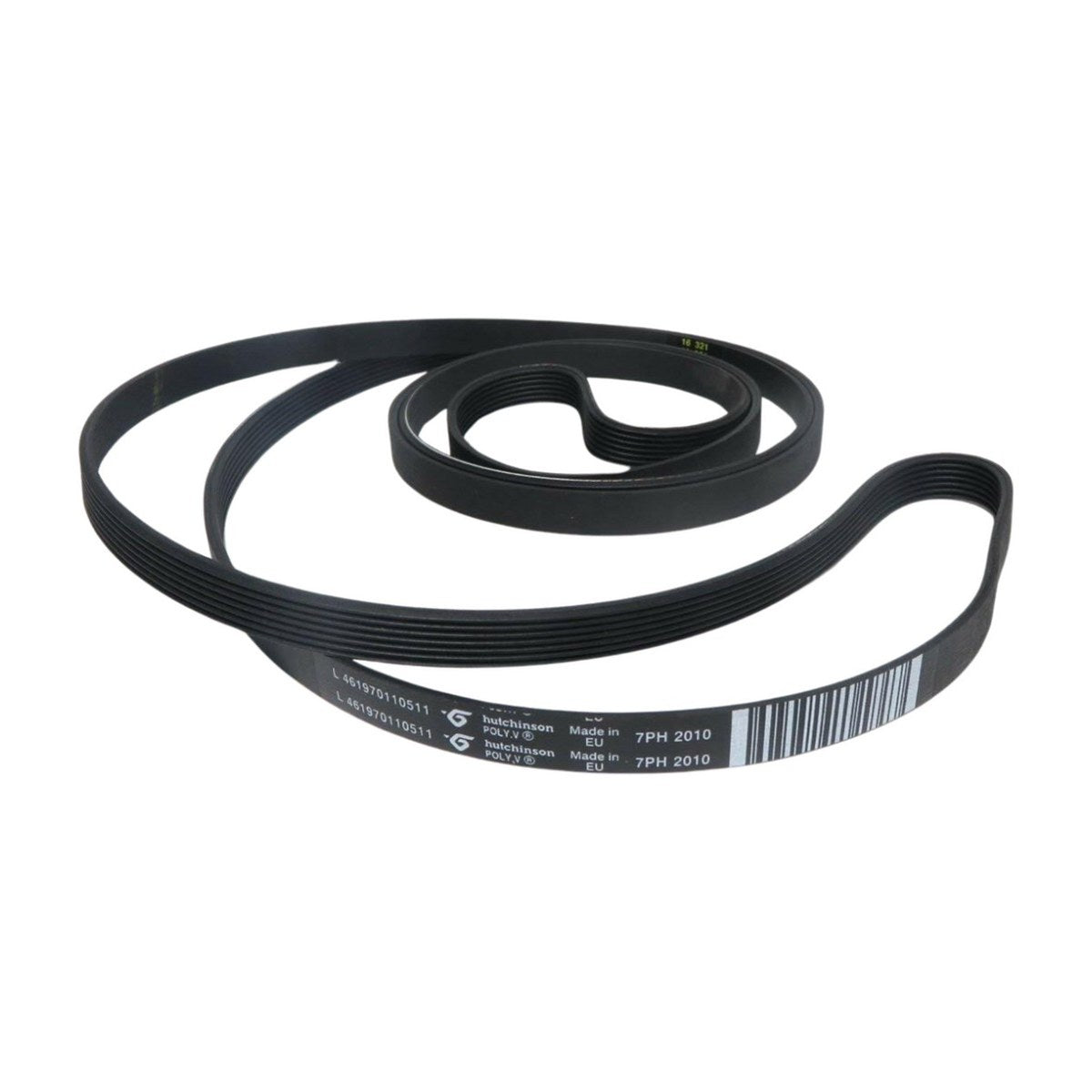

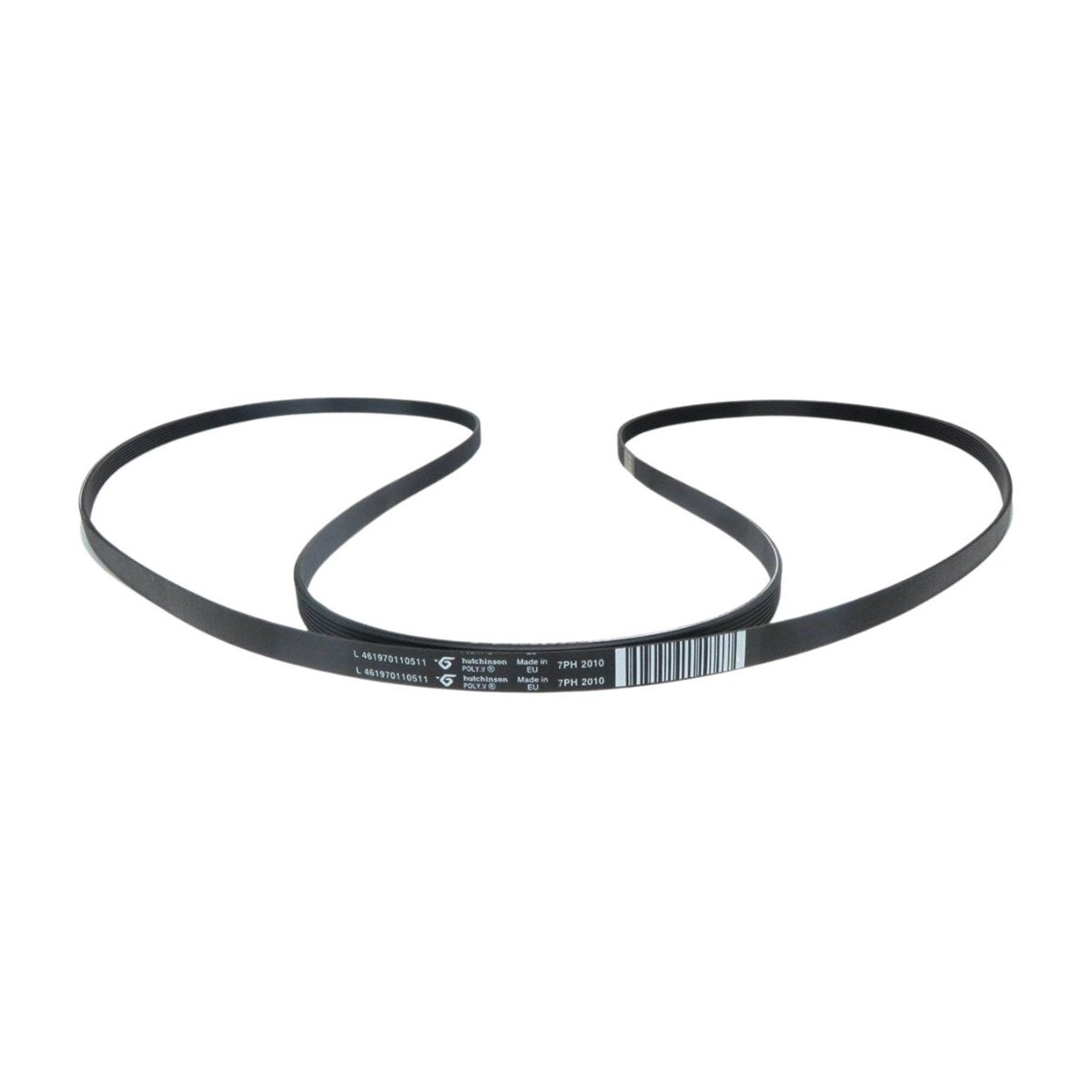

480112101469 Genuine Dryer Drive Belt 7PH2010 for Whirlpool Tumble Dryers AWZ7456 AWZ9777 AWZ8CDUK HSCX80420 DDLX80114 AZB8570 WDEHP80DW

Part 480112101469 is the genuine Whirlpool drive belt in the 7PH2010 size, used on a very wide range of tumble dryers from the Whirlpool group. Over 1,100 entries are on file, covering models such as the AWZ7456, AWZ7556, AWZ9777 and AWZ9888, the HSCX80420 and DDLX80114, the WDEHP80CW and WDEHP80DW, and a long list of AZA and AZB machines.

Dryer drum not turning but the motor runs?

The drive belt wraps around the outside of the drum and over a small pulley on the motor shaft, held tight by a tension wheel. When the motor runs, the belt turns the drum and tumbles the clothes through the warm air. Belts stretch, crack and eventually snap with age and heavy loads. The classic sign is a dryer that hums or runs and heats while the drum stays still, or a drum that spins far too freely by hand. A slipping or frayed belt can also cause squealing, thumping or clothes coming out damp because they aren't tumbling properly.

Part details

• Genuine Whirlpool part 480112101469
• Drive belt, 7PH2010 size
• Over 1,100 model entries on file
• Listed for AWZ, AZA, AZB, DDLX, HSCX and WDEHP dryers

Fitting a new dryer belt

Switch off at the wall and unplug the dryer. Depending on the model, access is through the top, front or rear panel. Loop the new belt around the drum with its ribs facing the same way as the old belt, following the track it left. Route it around the tension wheel and over the motor pulley as your service information shows, then turn the drum by hand to check the belt runs straight before closing up.

Questions about this part

Where do I find my Whirlpool dryer's model number?

Look for the rating label around the door opening or on the back of the dryer. It shows the model name and a 12 digit service number. Both help confirm fit, so send them through the parts enquiry form if your model isn't clear in the list.
