479627 Genuine SmartPump Drain Pump Kit 4 Screw for Fisher & Paykel AquaSmart Washing Machines WL70T60CW1 WL80T65CW1 WL80T65DW1 WA1068G1

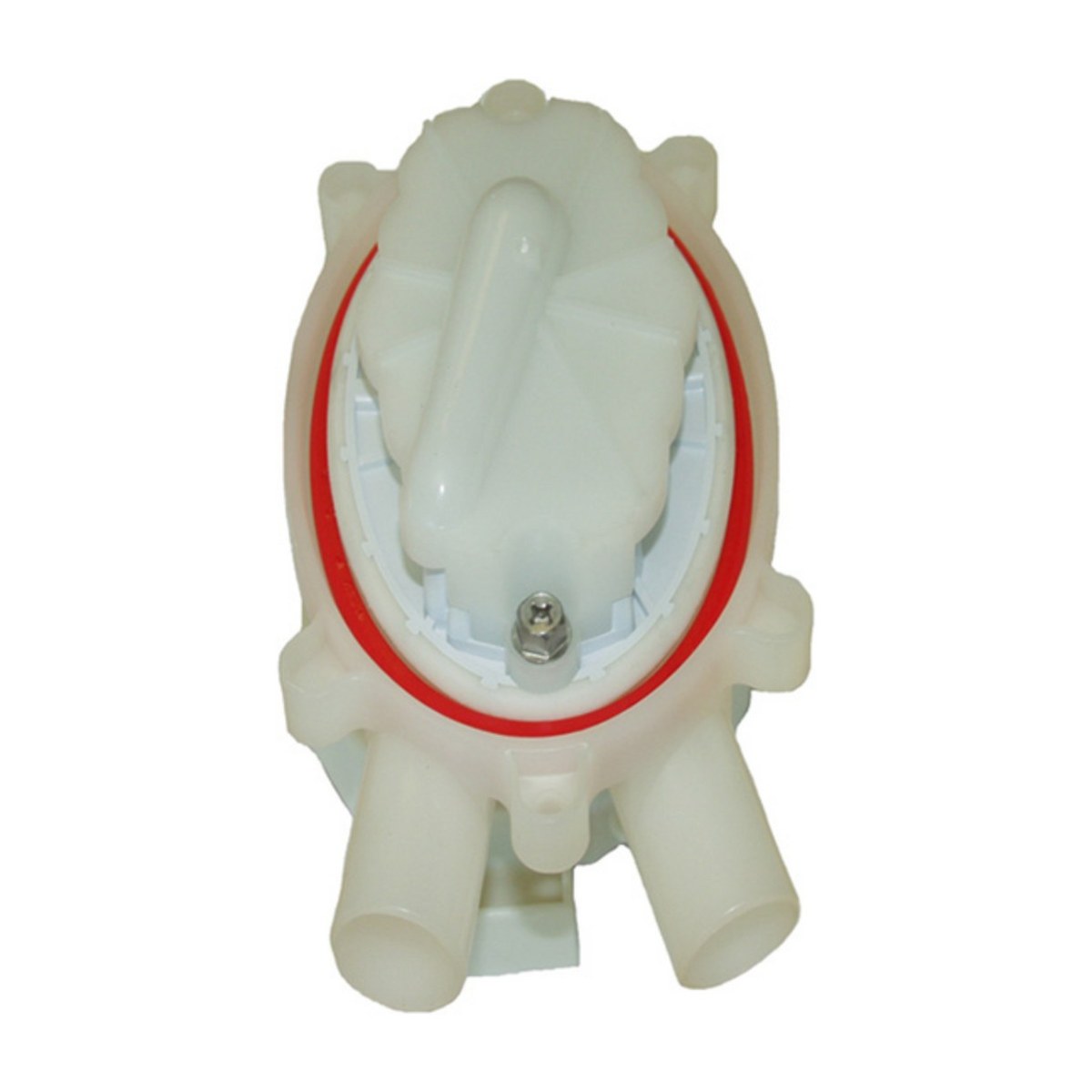

Part 479627 is a genuine Fisher & Paykel SmartPump kit with a 4 screw mounting, made for AquaSmart washing machines. It is listed for the WL70T60CW and WL70T60CW1, the WL70T60DW1 and WL80T65CW, the WL80T65CW1, WL80T65CW2 and WL80T65DW1, plus the WA1068G1 and WL1068P1. It's the pump to order when the machine stops with water still sitting in the bowl.

Fisher & Paykel washer not draining or stopping with water in the bowl?

The SmartPump empties the bowl at the end of each wash and rinse, pushing water up the drain hose and into the tub or standpipe. Lint, coins and hair ties often find their way into the pump and jam it, and the motor or impeller can wear out with age. Typical signs are water left in the machine after a cycle, a drain fault code, slow draining, a loud whirring or grinding as it pumps, or a hum with no water moving. Clearing the pump inlet sometimes fixes it, but a cracked housing or failed motor means a new pump.

Part details

• Genuine Fisher & Paykel part 479627
• SmartPump assembly kit
• 4 screw mounting
• Listed for AquaSmart WL70T60 and WL80T65 models plus WA1068G1 and WL1068P1

Fitting the SmartPump

Switch off at the power point, unplug the machine and close both taps. Bail out any water left in the bowl, then tilt the washer back or lay it on a blanket to reach the pump underneath. Photograph the hose and wiring connections, remove the four mounting screws and lift the old pump out. Fit the new one, tighten the screws evenly, reconnect everything and run a drain to check for leaks.

Questions about this part

How do I know if my machine takes the 4 screw pump?

Count the screws holding your old pump to the machine. This kit uses a 4 screw mount. Then check the model number on the rating plate against the list on this page before ordering.
