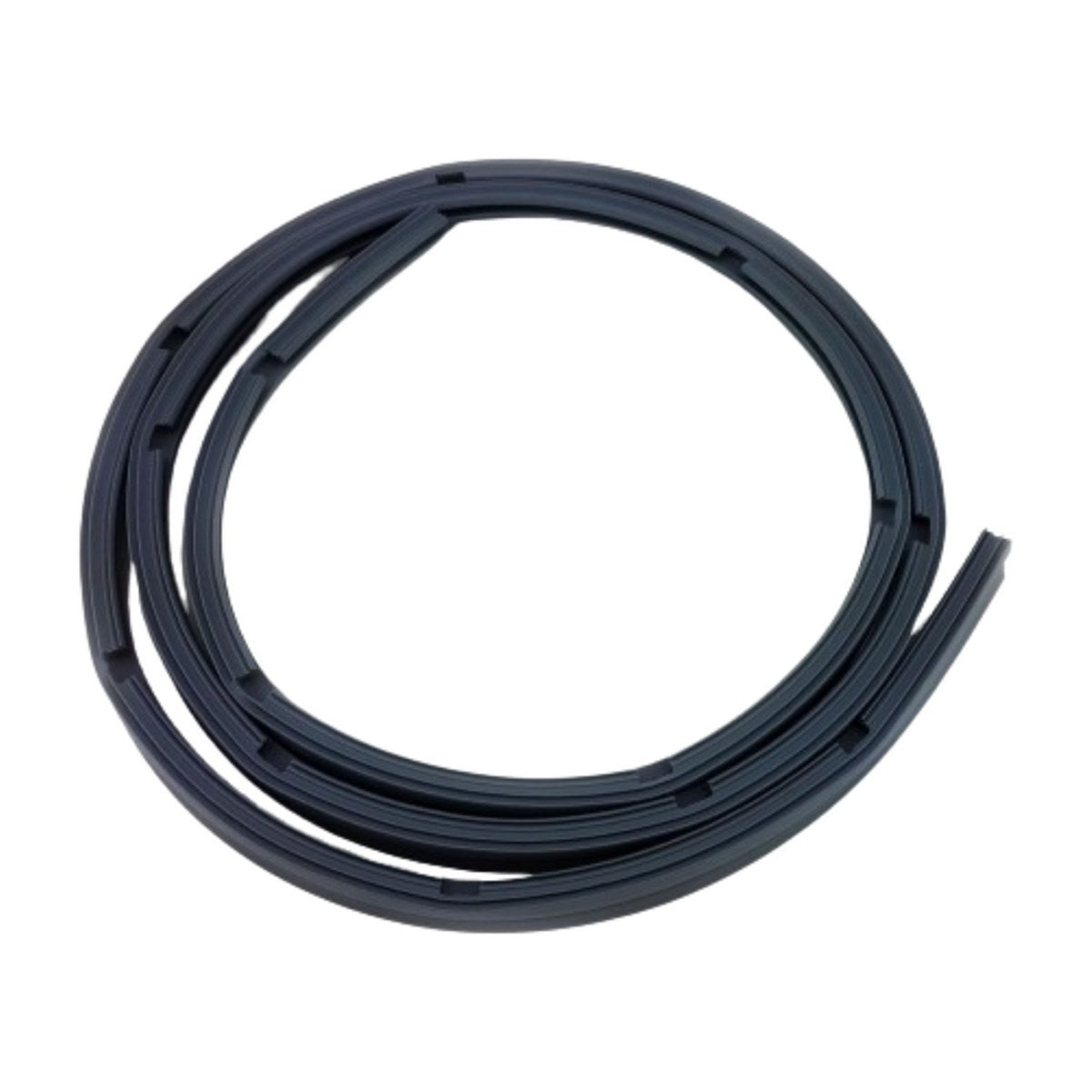

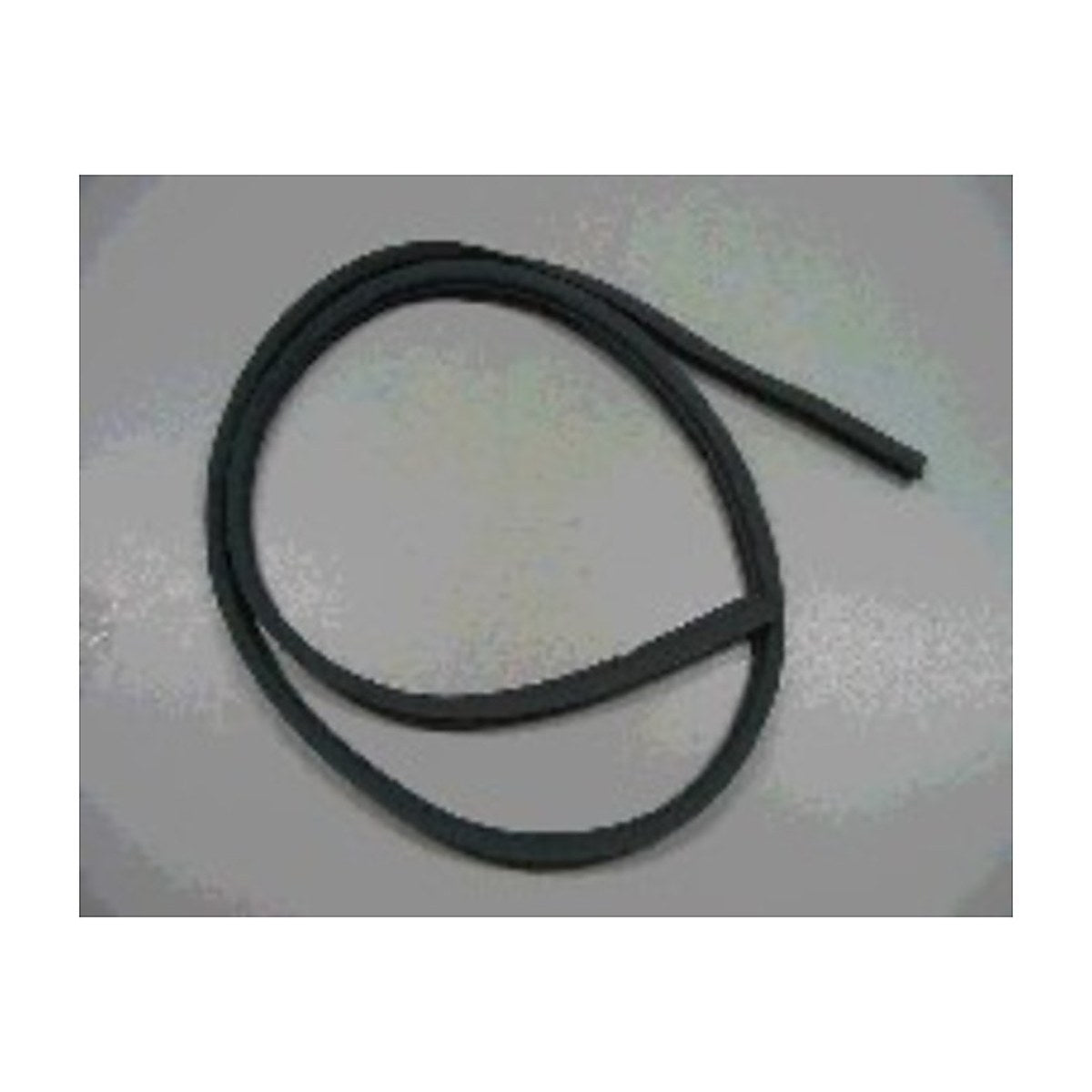

473543P Genuine Dishwasher Door Gasket for Fisher & Paykel Dishwashers DW920 DW820 912T 913T 918TD 812E 813E 818S 3886S 3885S

Water dribbling from the bottom of the dishwasher door is often a sign the tub seal has had its day. This genuine Fisher & Paykel door gasket, part 473543P, is listed for 16 F&P dishwashers. The DW820 and DW920 are on the list, as are numbered models such as the 812E, 813E and 818S, the 912T, 913T and 918TD, the 3885S and 3886S, and the L80.

Fisher & Paykel dishwasher leaking from the door?

The gasket lines the edge of the tub and presses against the inside of the door when it closes, keeping wash water and steam inside. Years of heat, detergent and grease make the rubber shrink, harden and crack, and food debris caught against it can stop it sealing. Signs include water pooling in front of the dishwasher, drips running down the door face, steam escaping around the edges and a gasket that looks flattened, split or pulled out of its channel.

Part details

• Genuine Fisher & Paykel part 473543P
• Door gasket (tub seal)
• Listed for 16 F&P dishwasher models

Fitting the door gasket

Turn the dishwasher off at the wall. Pull the old gasket out of its channel and clean the groove thoroughly, getting rid of grease and detergent build up. Press the new gasket into the channel evenly, without stretching it, working your way around from one end. Close the door to help it settle, then run a rinse cycle and check for leaks.

Questions about this part

Is this the right seal for my older F&P dishwasher?

Check the model on the label at the edge of the door or the side of the tub. If it matches one of the 16 listed models, such as the DW920 or 913T, this is the right gasket. If not, send the model through our parts enquiry form.
