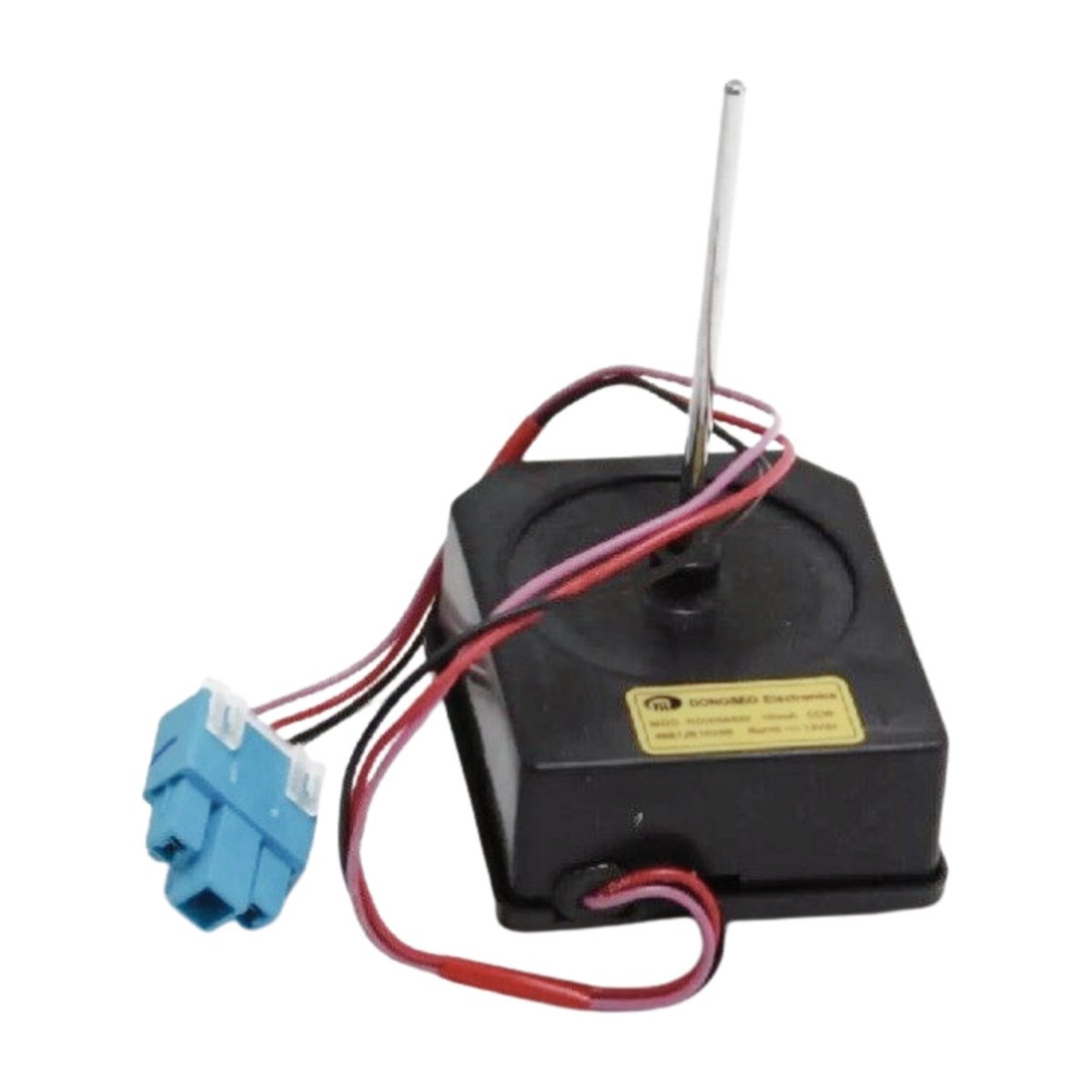

4681JB1029B Genuine Fan Motor Assembly for LG Fridges GR-B207NIS GR-L207NIS GR-L247NIS GR-B197WVS GR-L267NIS GC-L197NIS

Genuine LG fan motor 4681JB1029B suits a long list of LG fridges, including the GR-B197, GR-B207, GR-L207, GR-L247 and GR-L267 families plus the GC-L197 and GC-P197 models. The numbers 4681JB1027A and 4681JB1017D are also linked to this motor, so check your parts list for any of the three. A fan that has stopped turning is a common reason an LG fridge loses its cool.

LG fridge not cold or noisy? Check the fan motor

Frost free fridges make cold air in one spot and rely on fans to move it around. This motor drives a fan blade that keeps air flowing through the cooling system. When it slows down or stops, the fridge can run constantly yet still feel warm, frost can build up in the freezer, and food in the fresh food section spoils faster. A worn motor often gives a warning first, with a squeal, buzz or ticking sound from inside the freezer or at the back of the cabinet.

Part details

• Genuine LG part 4681JB1029B
• Linked numbers 4681JB1027A and 4681JB1017D
• Fan motor assembly for LG fridges
• Listed for GR-B197, GR-B207, GR-L207, GR-L247, GR-L267, GC-L197 and GC-P197 models

Replacing the fan motor

Unplug the fridge before you start, and move food to an esky if the job will take a while. Depending on where the fan sits, you'll remove either a cover inside the freezer or a rear access panel. Note how the blade sits on the shaft and how the wiring is routed, transfer the blade to the new motor if needed, and check it spins freely before restoring power.

Questions about this part

Will 4681JB1029B fit my LG GR-L247NIS?

Yes, the GR-L247NIS is on file for this fan motor. It's also listed for many other GR-B and GR-L models, so check the full model on the label inside your fridge to confirm the match.
