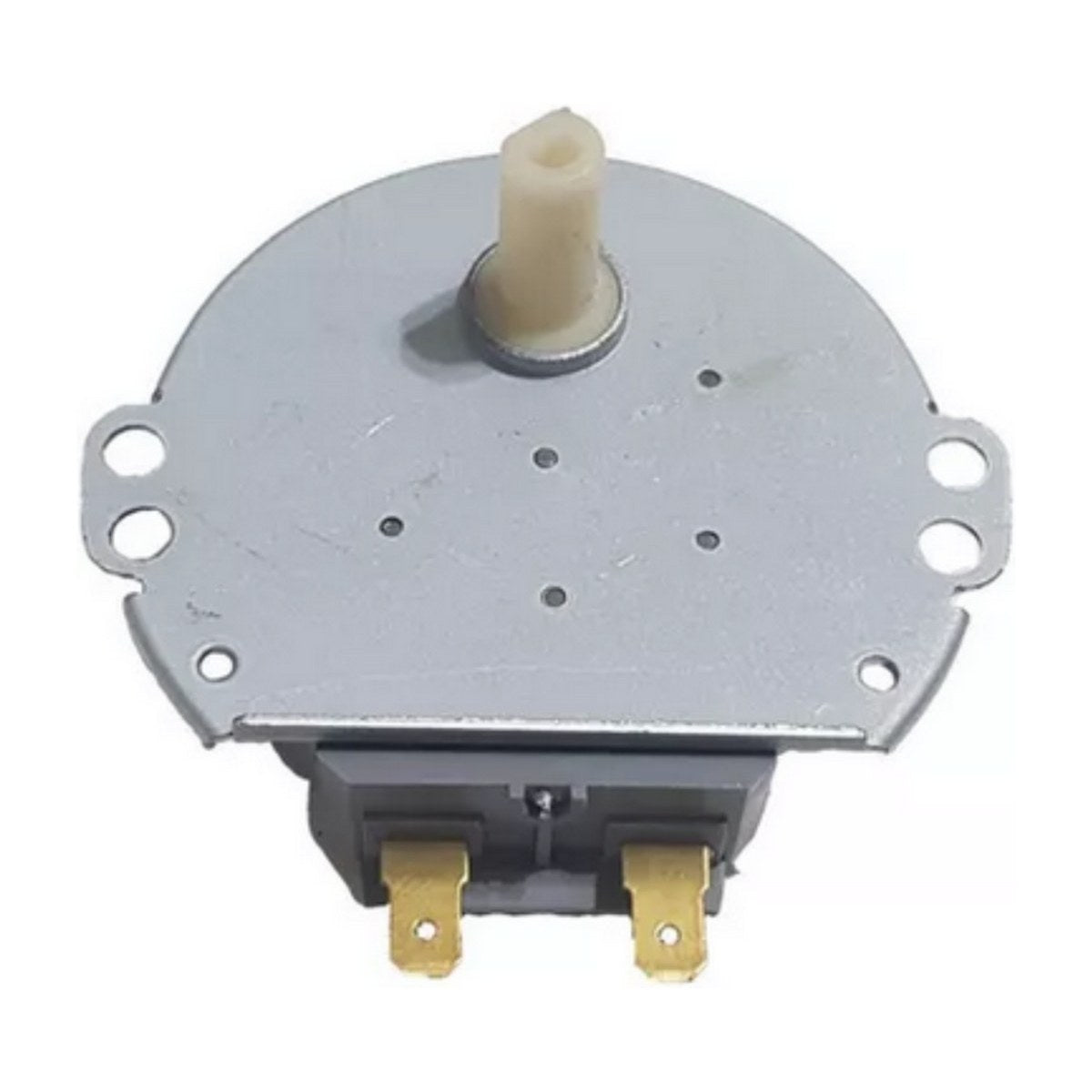

4681ED3001E Genuine AC Stepping Motor Assembly for LG Dishwashers LD-1420W2 LD-1482S4 LD1452WFEN2 XD3A25BS XD4B24PS XD5B14WH
- Original part no.
- 4681ED3001E
- Part grade
- Genuine
- Appliance
- Dishwasher Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Genuine LG motor 4681ED3001E is the AC stepping motor assembly used across a wide range of LG dishwashers. It's listed for LD-1419, LD-1420 and LD-1482 series machines, the LD1452 and LD1453 models, and the XD3A, XD4B and XD5B ranges. Match 4681ED3001E against your model's parts list, or any label on the old motor, before you order.
What the stepping motor does in an LG dishwasher
A stepping motor turns in small, precise steps rather than spinning freely. That lets the dishwasher's control board move part of the wash system to an exact position and hold it there. When the motor fails, the mechanism it drives stops moving, which can leave some of the load poorly washed, cause clicking or buzzing noises, or bring up an error code. A broken wire or loose plug at the motor can cause the same symptoms, so check those connections first.
Part details
- Genuine LG part 4681ED3001E
- AC stepping motor assembly
- Listed for LD-1419, LD-1420, LD-1421, LD1452, LD1453 and LD-1481 to LD-1485 models
- Also listed for XD3A15, XD3A25, XD4B14, XD4B15, XD4B24, XD5B14 and XD5B24 models
Fitting the step motor
Unplug the dishwasher and turn off the water tap first. Depending on the model, you may need to remove the kick panel or tilt the machine to reach the motor, so empty any water from the base and put a towel down. Photograph the motor's position and wiring plug before removal and fit the new one the same way round. Run a full cycle and listen for normal operation.
Questions about this part
How do I find my LG dishwasher model number?
Open the door and look for the rating label, usually on the side edge of the inner door. It shows the full model, for example LD-1482S4 or XD4B24PS, which you can match against the list for this motor.
Specifications
| Original part number | 4681ED3001E |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 4681ED3001E |
| Appliance | Dishwasher Parts |
| Shipping weight | 1.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
