4681A20122A Genuine DC Fan Motor Assembly for LG Air Conditioner Outdoor Units, Condenser Fan Motor
- Original part no.
- 4681A20122A
- Part grade
- Genuine
- Appliance
- Air Conditioner Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

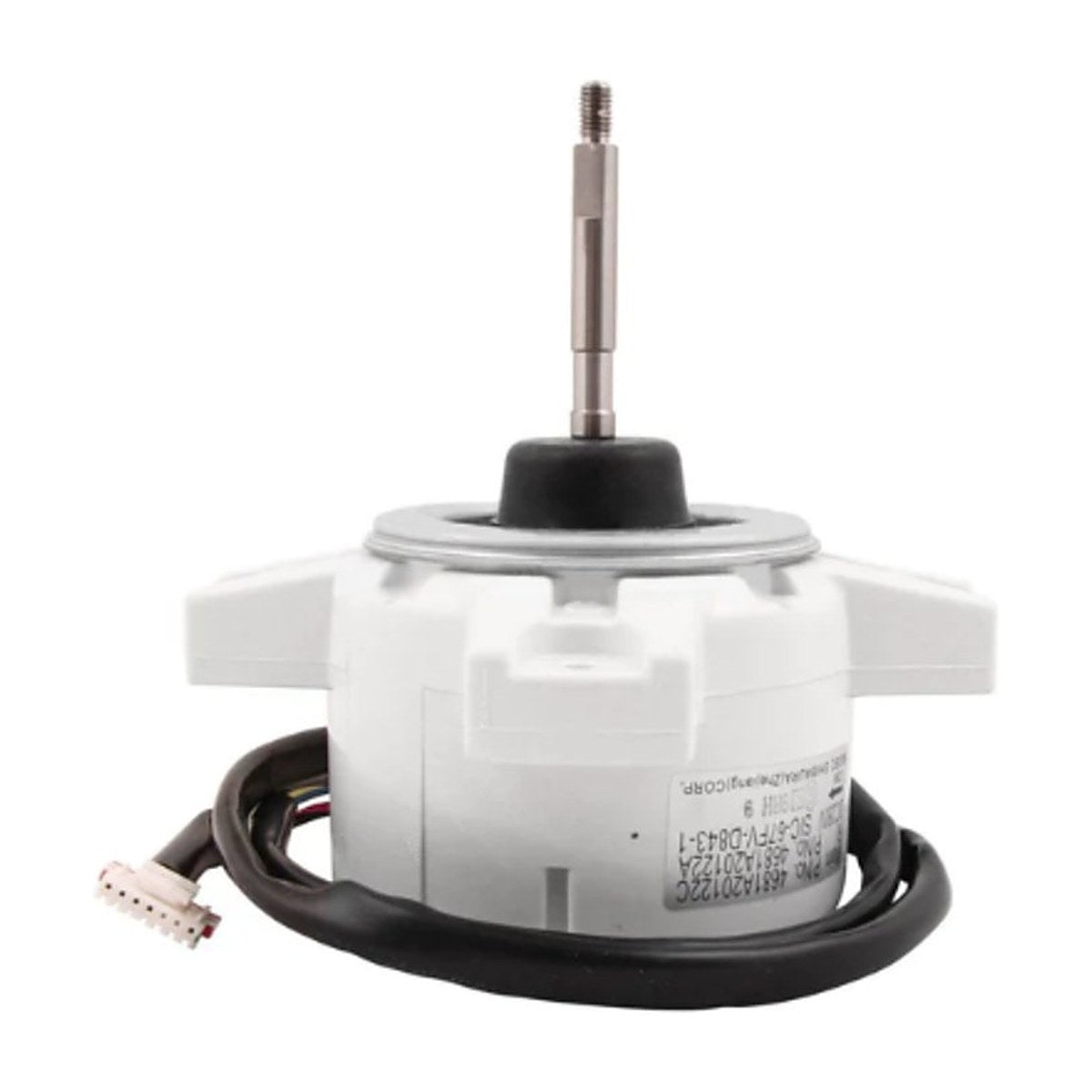

4681A20122A is the genuine LG fan motor assembly for the outdoor unit of LG air conditioners, and it's a DC motor. The outdoor fan moves air across the coil so the system can shed heat in cooling mode or gather it in heating mode. One thing to know before ordering. If 4681A20122A isn't the motor your unit was built with, the LG adaptor cable EAD60714820 is needed to connect it.
LG outdoor fan not spinning?
In cooling mode the outdoor fan pushes heat away from the condenser coil, and in heating mode it helps the coil draw heat from the outside air. If the fan motor fails, the system may cool or heat poorly, shut down on a high pressure or temperature protection, or show an outdoor fan error code. You may notice the fan sitting still while the compressor runs, a fan that starts and stops, or grinding and rattling from worn bearings. DC fan motors are driven by the outdoor control board, so a board fault can look similar and is worth ruling out.
Part details
- Genuine LG part 4681A20122A
- Outdoor unit fan motor assembly
- DC motor
- Adaptor cable EAD60714820 required when this motor replaces a different original motor
| Motor type | DC |
|---|
Fitting the outdoor fan motor
Turn the air conditioner off, then switch off the outdoor isolator and the circuit at the switchboard. Wait several minutes before opening the unit, as the inverter board can hold a charge. This is a job for a licensed electrician or qualified air conditioning technician. Remove the fan blade carefully, note how the wiring is routed, and fit adaptor cable EAD60714820 if your unit originally had a different motor.
Questions about this part
When do I need the EAD60714820 adaptor cable?
When 4681A20122A is replacing a motor with a different part number, for example where your unit was built with an earlier motor. If the motor coming out is already a 4681A20122A, it plugs straight in and the adaptor cable isn't needed.
Specifications
| Original part number | 4681A20122A |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 4681A20122A |
| Appliance | Air Conditioner Parts |
| Shipping weight | 1.5 kg |
