430144 Genuine Drain Pump 230V for Fisher & Paykel Top Load Washing Machines WA80T65G WA70T60G WA65T60G WA55T56G GW712
- Original part no.
- 430144
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

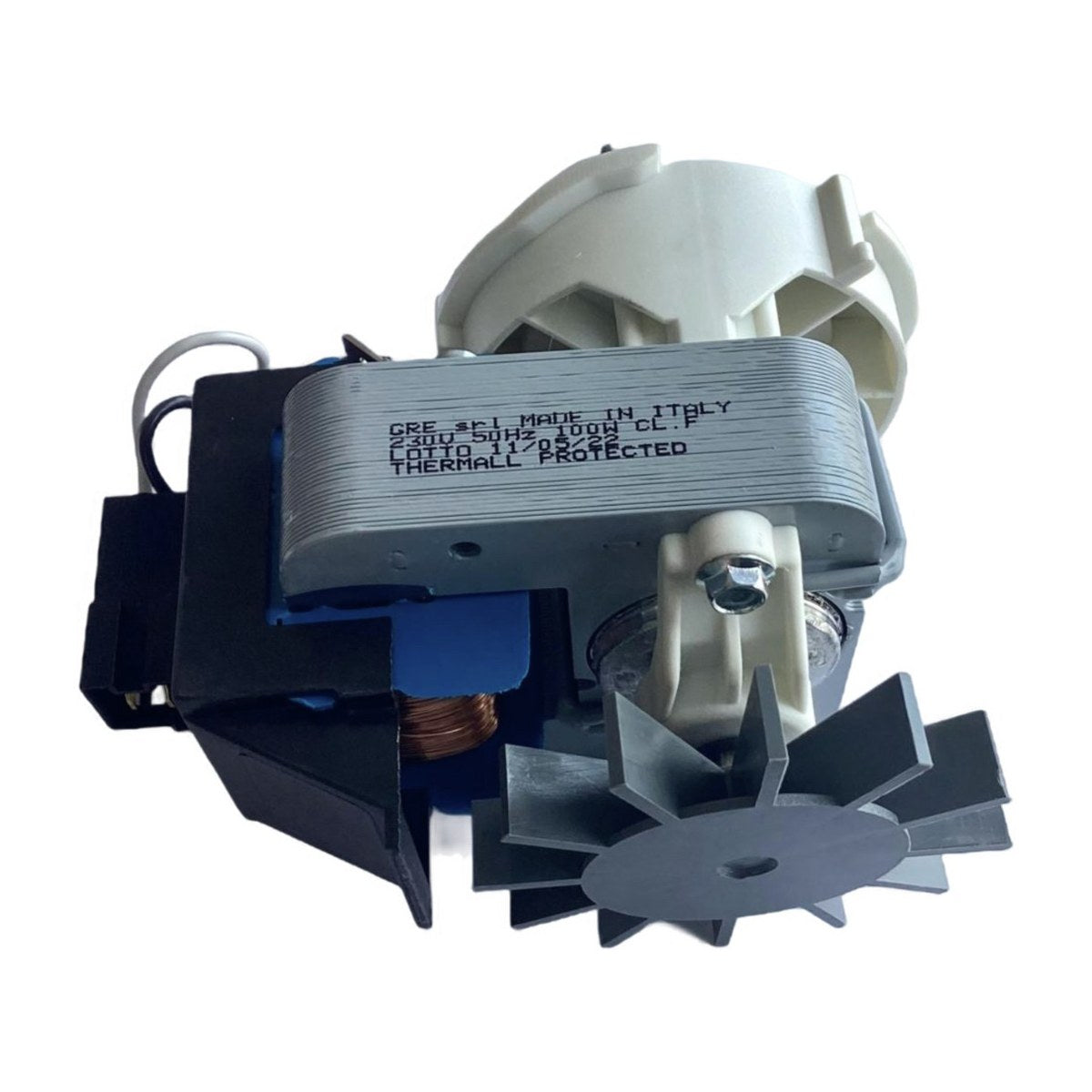

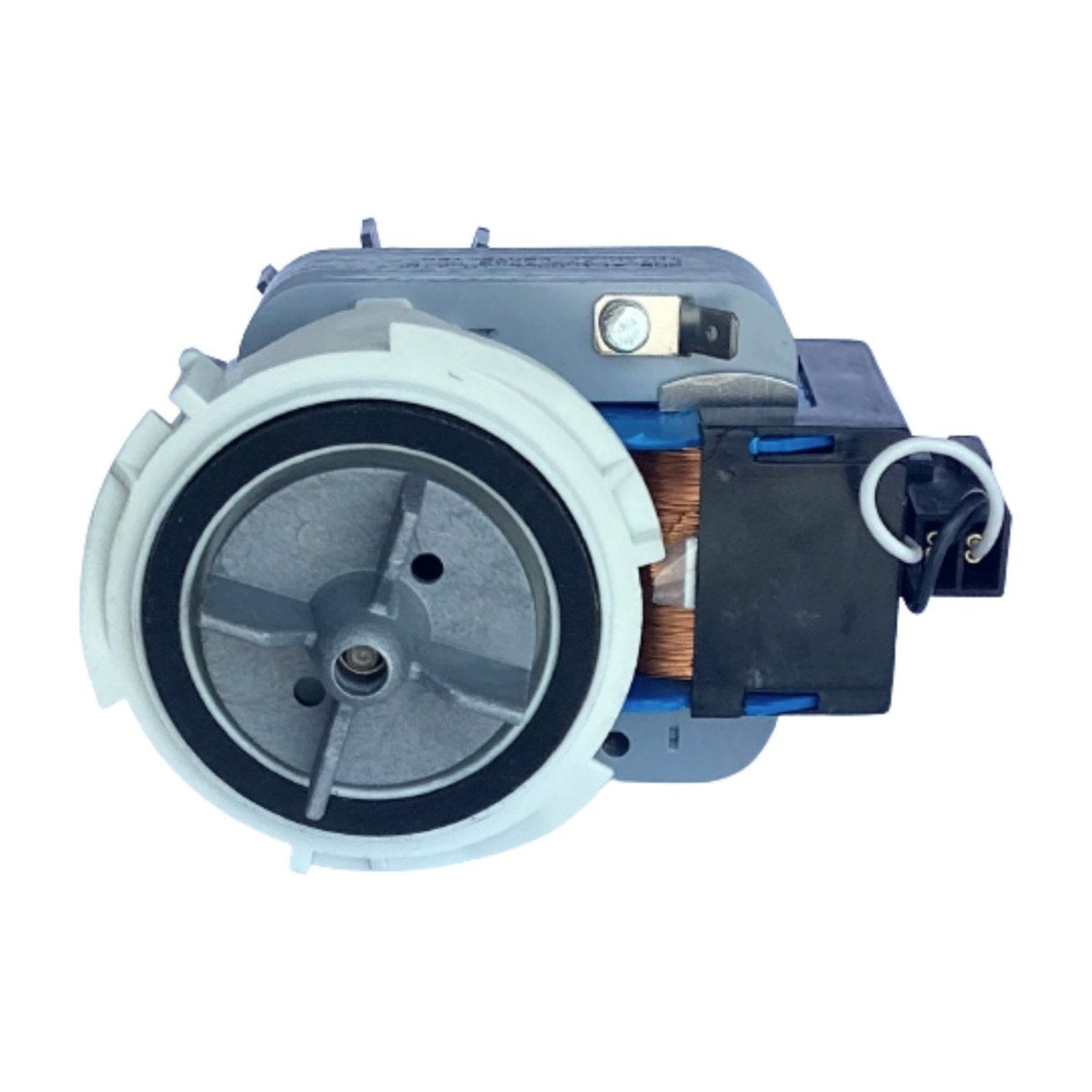

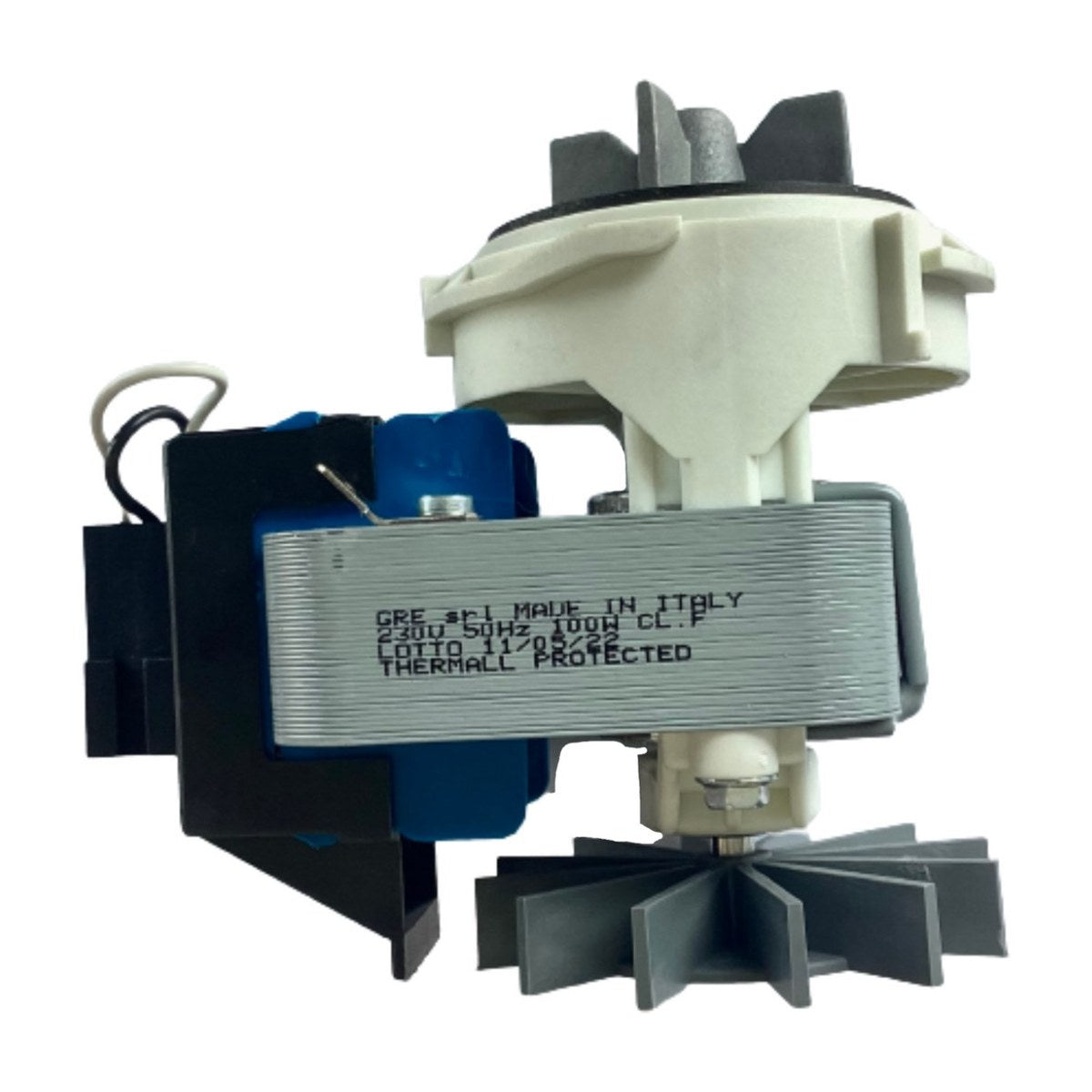

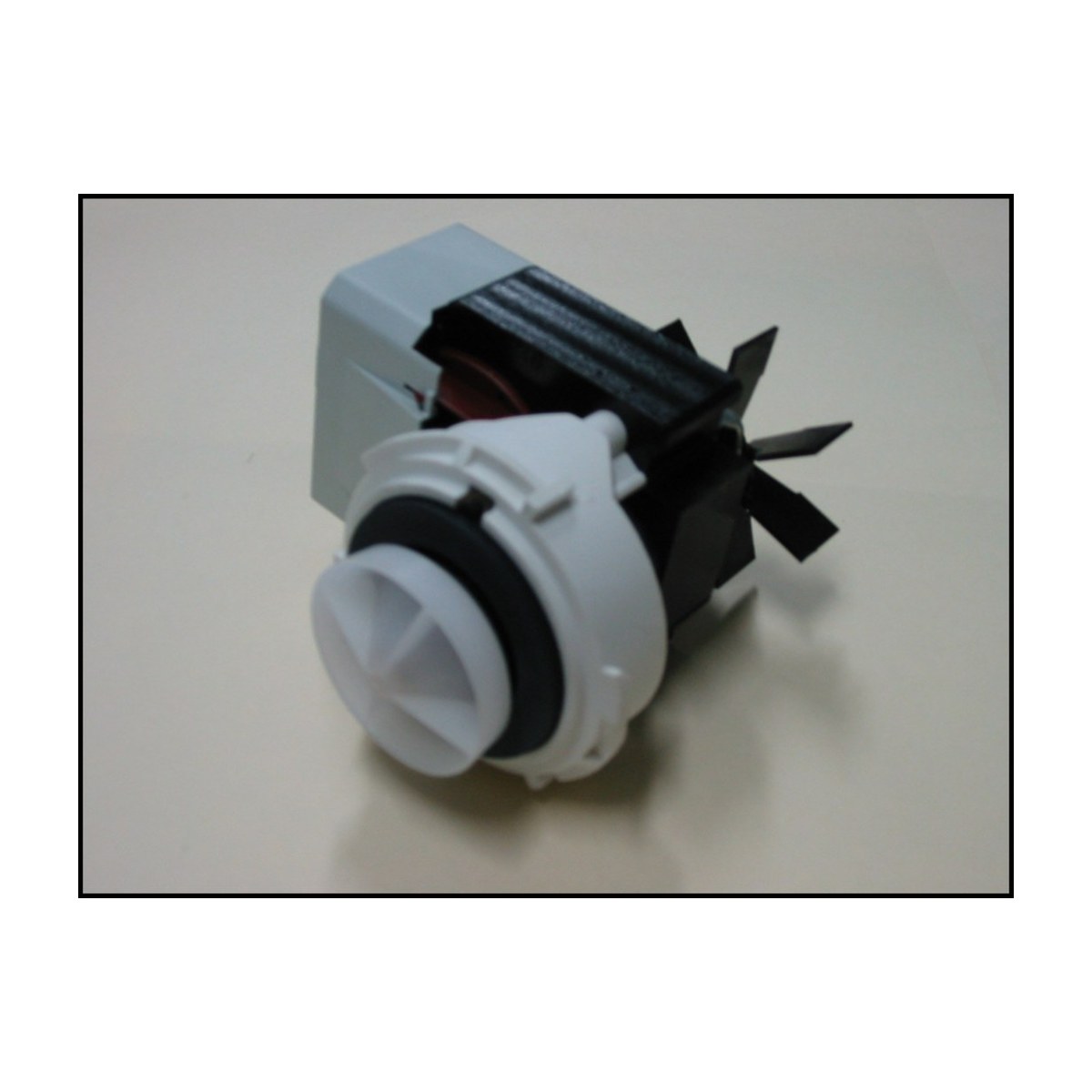

This is the genuine Fisher & Paykel drain pump, part number 430144, which replaced the earlier 420324P. It's a 230V pump for SmartDrive top load washers, with listed models running from the smaller WA55T56G to the WA80T65G, plus GW series machines up to the GW712. If your F&P is leaving water in the bowl or stopping before the spin, the drain pump is a common culprit.
Fisher & Paykel washer not draining? Check the pump
In a SmartDrive machine, the drain pump empties the bowl after each wash and rinse. Lint, coins, hair ties and small socks can jam the impeller, and the motor itself can eventually burn out. The usual signs are water sitting in the bowl at the end of a cycle, a buzzing noise with no water moving, or the machine stopping with a drain fault. If clearing the pump and drain hose doesn't help, the pump has most likely failed and 430144 is the replacement.
Part details
- Genuine Fisher & Paykel part number 430144
- Replaces 420324P, also cross referenced to 426956P and 426719P
- 230V drain pump
- 6.4mm spade terminals
- Suits SmartDrive top loaders such as the WA80T65G, WA70T60G and GW712
| Voltage | 230V |
|---|---|
| Terminals | 6.4mm spade |
Fitting the new 430144 pump
Unplug the washer and turn off the taps first. Bail or drain out as much water as you can, because the bowl and hoses will still hold some. Take a photo of the wiring and hose positions, swap the pump over, and check the hose clamps are tight. Run a short rinse and spin, then look underneath for drips before pushing the machine back.
Questions about this part
Will this pump fit a WL series or Gentle Annie?
No. This pump is not listed for WL series machines, Gentle Annie models or the GW52U. It suits SmartDrive machines such as the WA70T60G and the GW series up to the GW712, so check the model label on your washer first.
Is 430144 the same as 420324P?
Yes. 430144 is the current Fisher & Paykel number for this pump and it replaces 420324P. If your old pump or parts list shows 420324P, this is the one to order.
Specifications
| Original part number | 430144 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | 430144 |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.8 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
