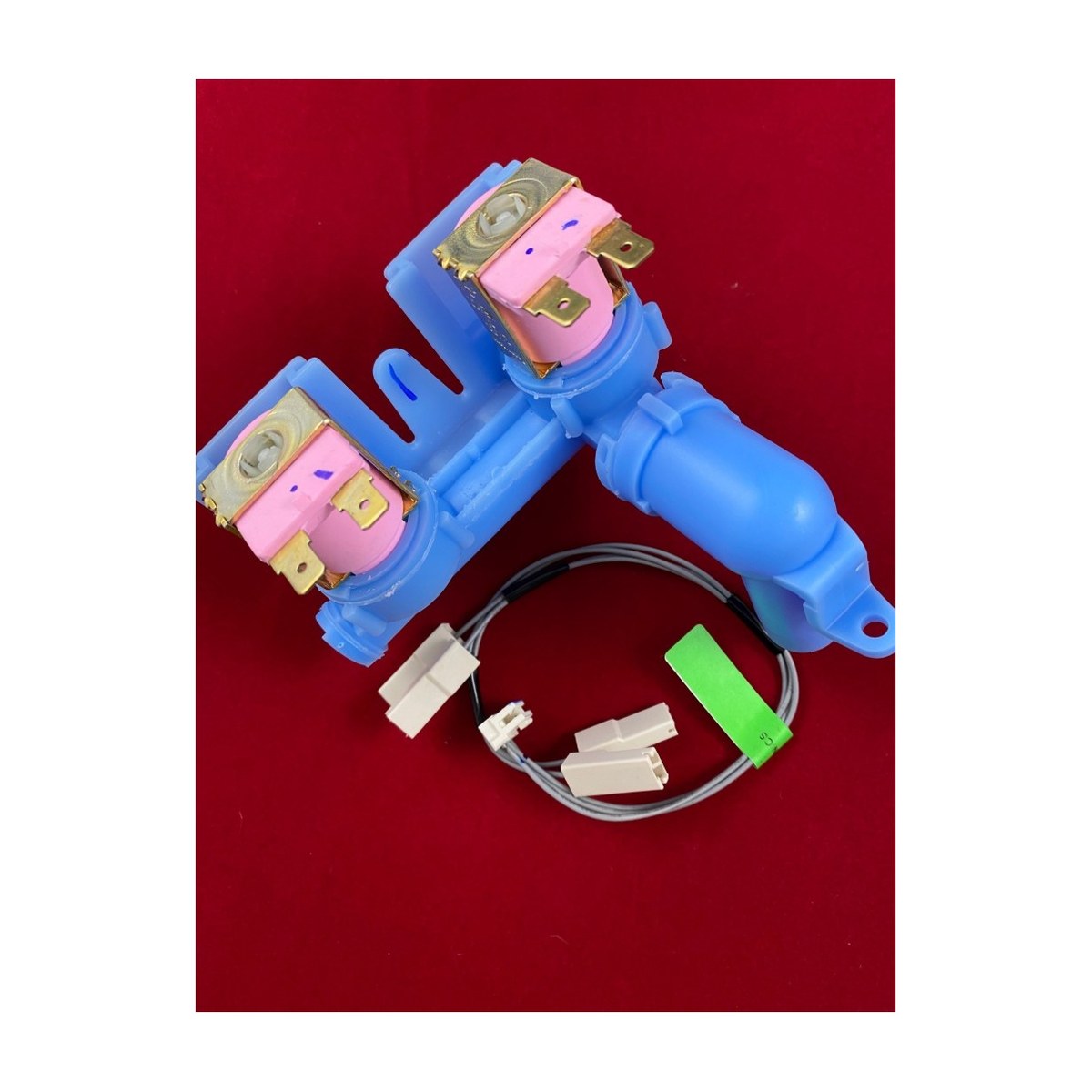

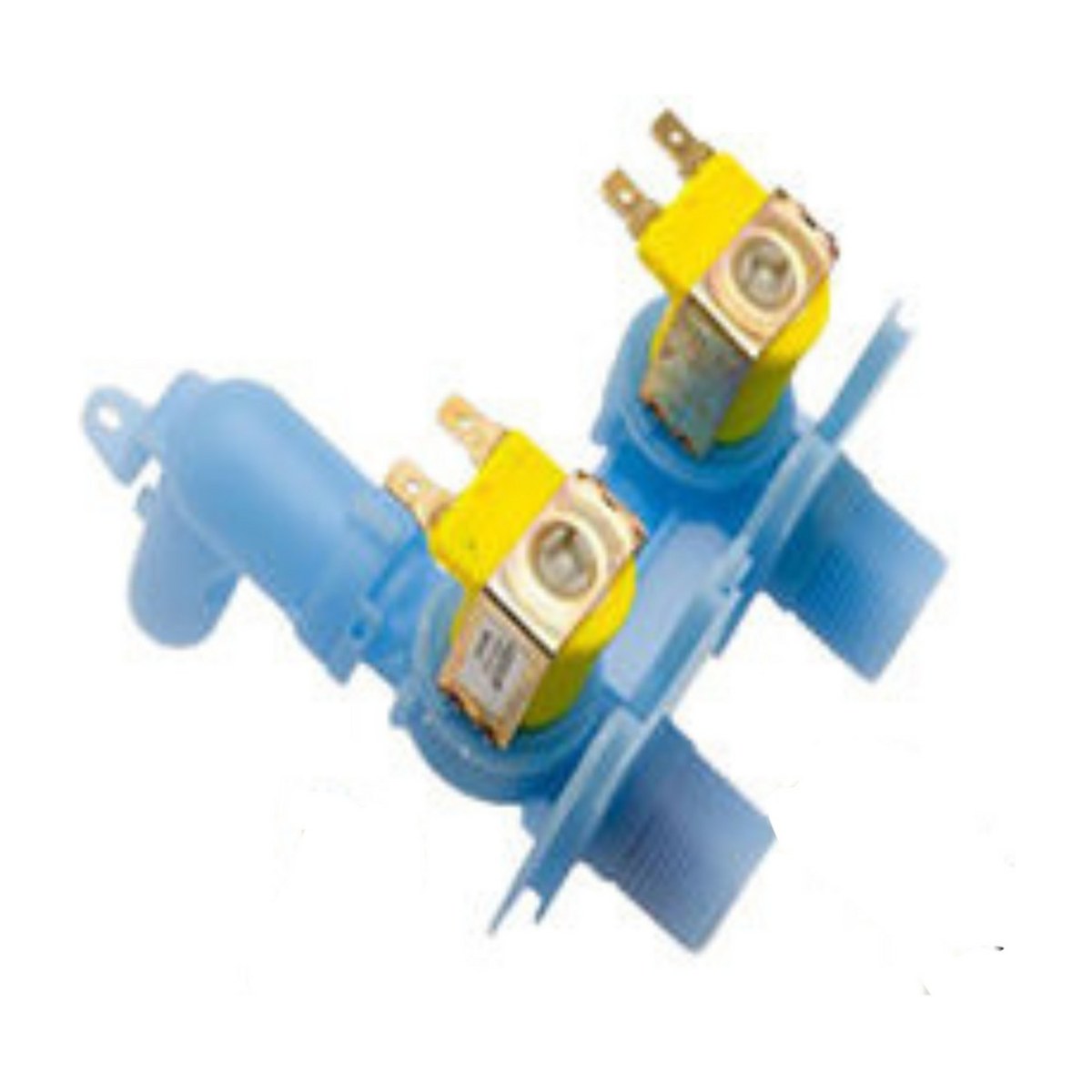

430041P Genuine Dual Water Inlet Valve BSP for Fisher & Paykel Washing Machines WA8560G1 WA8560E1 WA1068G1 WA1068P1 MW512 MW513 MW60

Fisher & Paykel replaced part 424320P with 430041P, the genuine dual inlet valve with BSP threaded inlets. It handles both the hot and cold supply into the washer. You'll find it listed for the WA8560G1 and WA8560E1, the WA1068G1 and WA1068P1, and the MW512, MW513 and MW60. If your washer fills with only hot or only cold water, this valve is a prime suspect.

Fisher & Paykel washer won't fill or water keeps running

Each side of the valve has its own solenoid. The washer's controller opens hot, cold or both to get the right temperature, then closes them once the bowl reaches the set level. A solenoid that fails leaves that side dead, so the machine fills only with hot or only with cold, or not at all, and may stop with a water fault. Grit caught in a valve seat can stop it closing fully, so water creeps into the bowl even when the washer is idle. Weeping from the valve body or hose connections is another reason to replace it.

Part details

• Genuine Fisher & Paykel part 430041P
• Replaces 424320P
• Dual valve for the hot and cold supply
• BSP threaded inlets
• Suits WA8560, WA1068, MW512, MW513 and MW60 washers

Changing the dual valve

Shut off both taps and unplug the machine. Unscrew the two hoses, being ready for a little water, and inspect the hose washers for cracks. With the cover off, mark which wires and outlet tubes go to the hot and cold sides before moving them across. Once the valve and panels are back in place, open the taps gradually and watch the connections through a full fill.

Questions about this part

What does BSP mean on this valve?

BSP refers to the British Standard Pipe thread on the inlets, which is the thread used for washing machine hoses and taps in Australia. Standard inlet hoses screw straight on. Always fit the hose washers so the joints seal properly.
