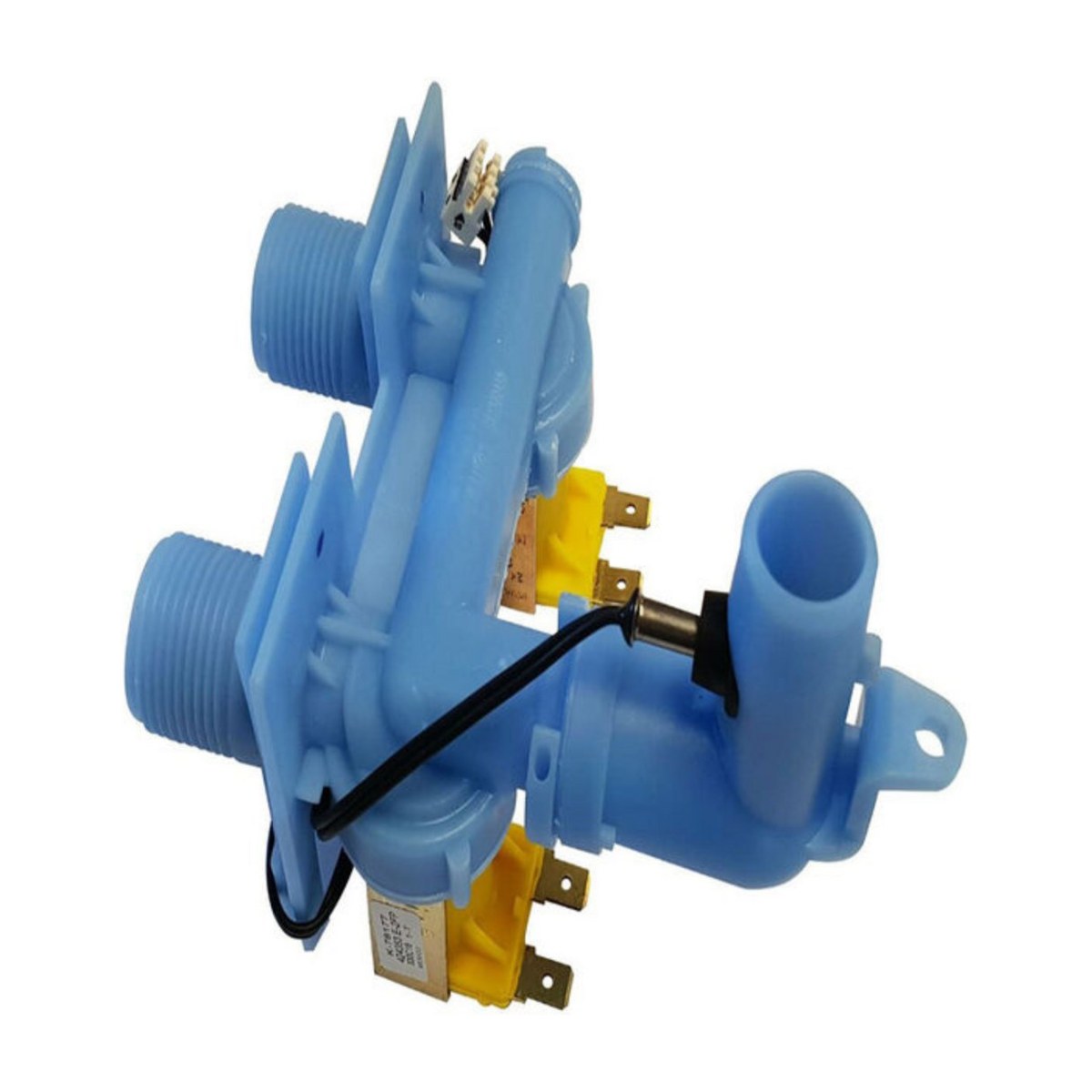

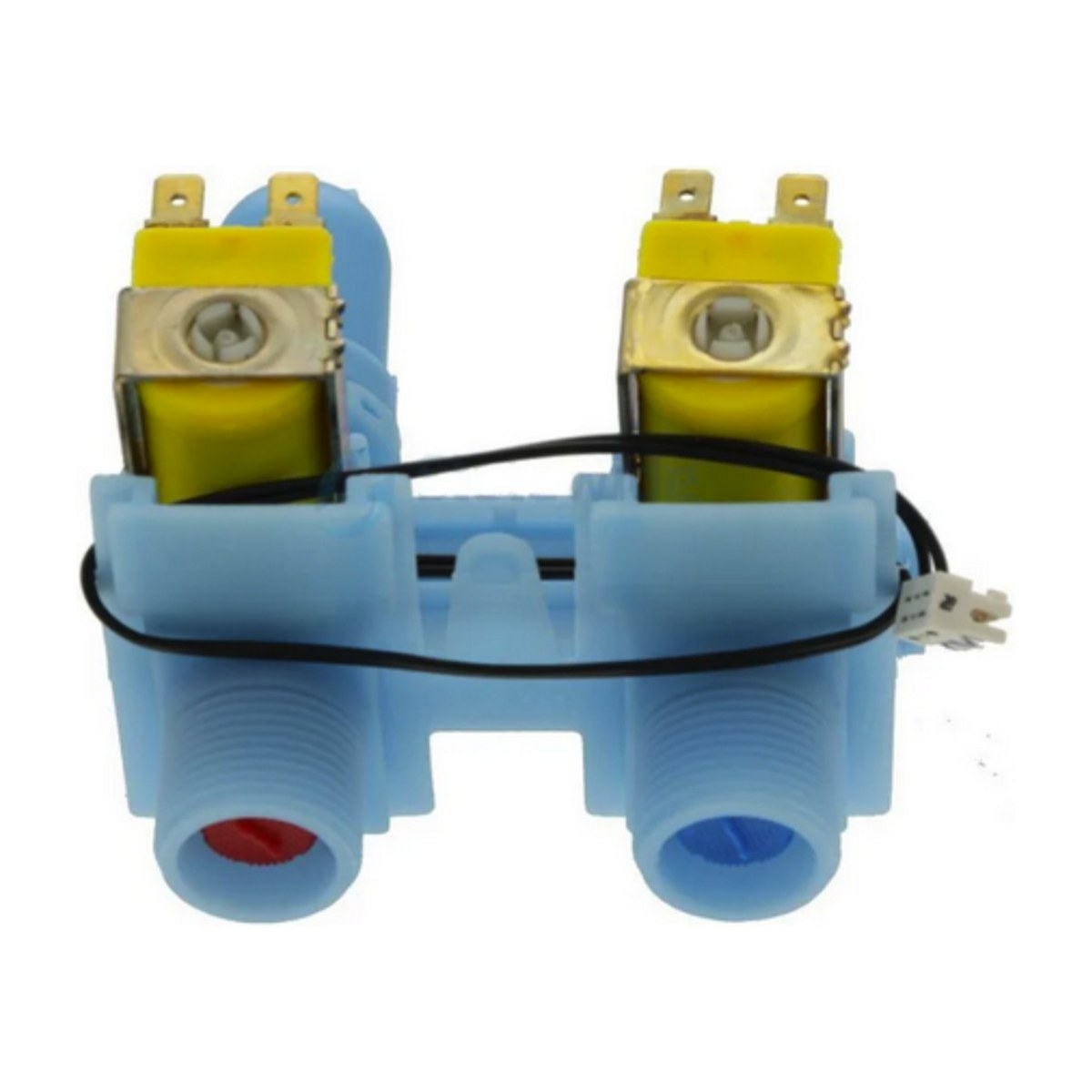

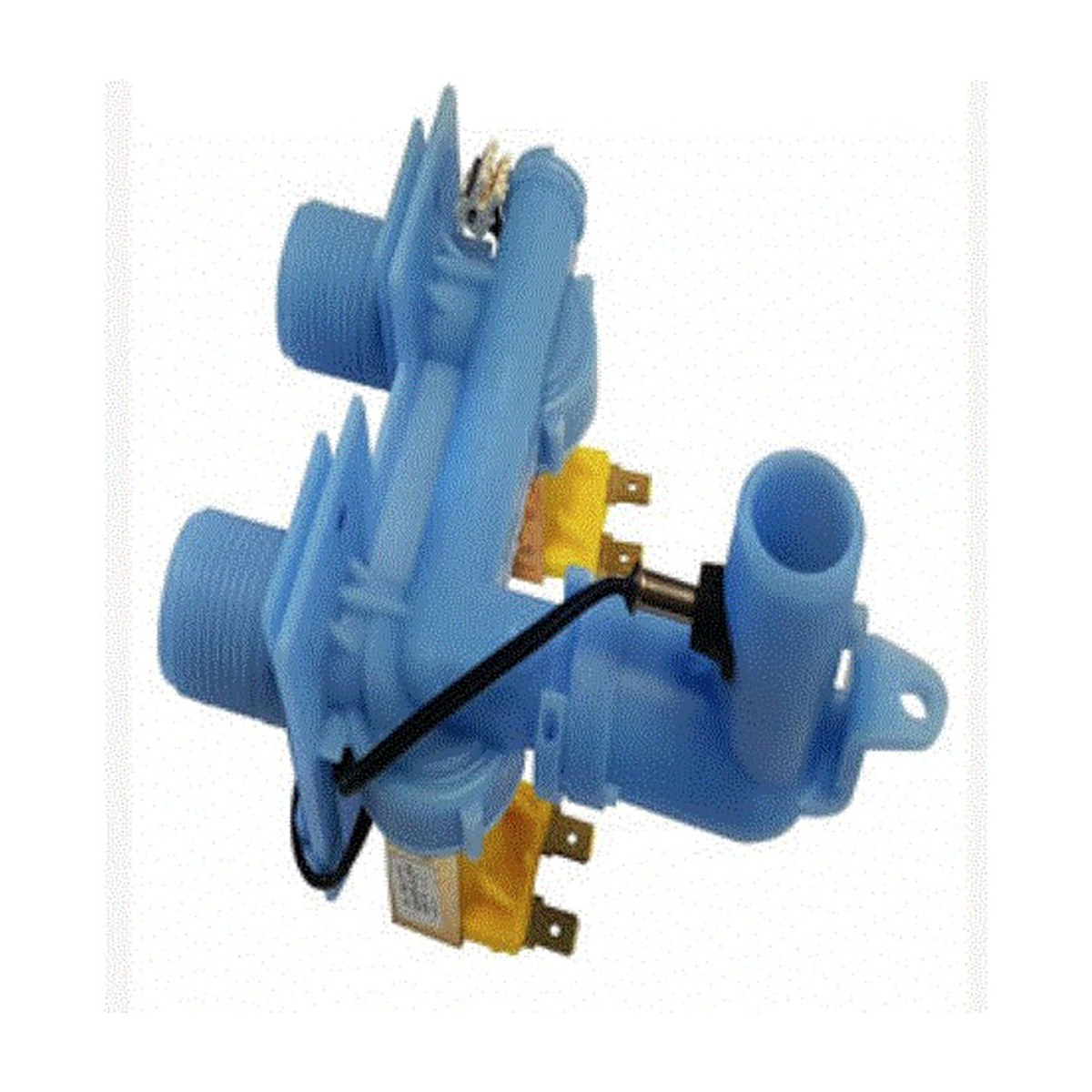

429657P Genuine Dual Water Inlet Valve with Sensor for Fisher & Paykel Top Load Washing Machines GW512 GW612 GW712 IW712 IW812 WA80T65GW1

This is the genuine Fisher & Paykel dual inlet valve with built-in sensor, part 429657P, for top load washing machines. It is linked to the numbers 421174P and 424353P. On file are the GW512 and GW612, the GW712, and the IW712 and IW812, along with models such as the WA55T56GW1 and WA60T56GW1, the WA70T60GW1 and the WA80T65GW1.

Fisher & Paykel top loader not filling or wrong water temperature

The dual valve has separate hot and cold solenoids that open to let water into the tub, plus a sensor in the valve body that the controller reads during filling. If a solenoid fails or the inlet screens block, the machine fills slowly, fills only hot or only cold, or stops with a water supply fault. A valve that won't close fully lets water trickle in even when the machine is off. A sensor fault can show up as a temperature or fill error. Check both taps are fully on and the hoses aren't kinked before replacing the valve.

Part details

• Genuine Fisher & Paykel inlet valve 429657P
• Dual valve for hot and cold supply
• Built-in sensor
• Linked numbers 421174P and 424353P
• Listed for GW512, GW612, GW712, IW712, IW812 and WA80T65GW1, plus other models on file

Installing the inlet valve

Turn off both taps and unplug the machine. Disconnect the inlet hoses at the back, then lift the lid or top deck to reach the valve. Photograph the wiring and sensor plug, unclip the hoses that run to the tub, and remove the mounting screws. Fit the new valve, reconnect everything as photographed, then turn the taps on slowly and check for leaks during a fill.

Questions about this part

Do I need the version with the sensor?

Yes, if your machine is one of the models on file. These machines expect the sensor in the valve, so a plain valve without it may cause fill or temperature errors. Match 429657P, 421174P or 424353P on the old valve to be sure.
