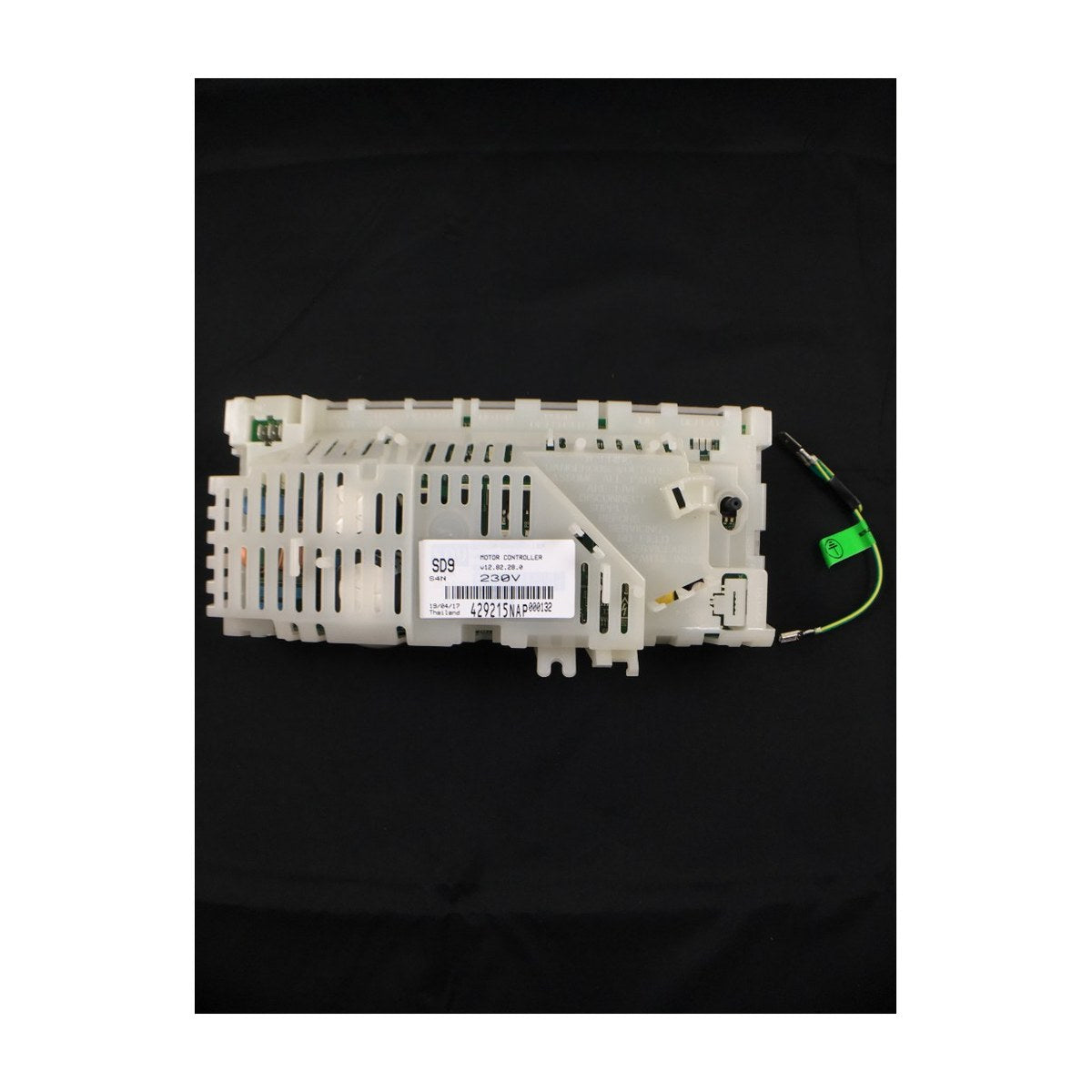

429215NAP Genuine Motor Controller Module SD9 S4N 230V V82 for Fisher & Paykel Washing Machines, Australia and NZ Version

Fisher & Paykel's genuine 429215NAP is a motor controller module for F&P washing machines, listed as SD9 S4N, 230V, V82, for Australian and New Zealand machines. The motor controller is the power board that drives the motor and runs the pump and valves. Controllers come in several variants, so match the full number on your old module before ordering. Our records don't list the washer models.

F&P washer motor controller faults and error codes

Fisher & Paykel washers use an electronic motor controller to switch the stator windings, sense rotor position and manage spin speed. The same board typically powers the water valves and pump. A failing controller can leave the machine dead, stop it mid-cycle, flash fault codes, refuse to spin or agitate, or make it fill and drain at the wrong times. Burnt tracks or components on the board, often after water gets in or a pump jams, are common. A shorted stator or pump can take out a new controller, so test those first.

Part details

• Genuine Fisher & Paykel part 429215NAP
• Motor controller module, SD9 S4N variant
• 230V, Australia and New Zealand version
• Version marking V82 on record
• Match the variant code on your old module before ordering

Before you fit a new motor controller

Unplug the washer and leave it a few minutes before touching the board. Check the stator windings, rotor position sensor and pump for shorts or jams, since any of these can damage the replacement. Note every plug position, transfer the board into its housing carefully and reseal it against water. Run a full cycle afterwards and watch for error codes.

Questions about this part

Can I use a different SD9 controller variant instead?

Only if Fisher & Paykel lists it for your model. Variants such as S4N, C2N or S5N suit different machines and features, so a near match may not work. Send us your model and serial number and we'll confirm the right controller.
