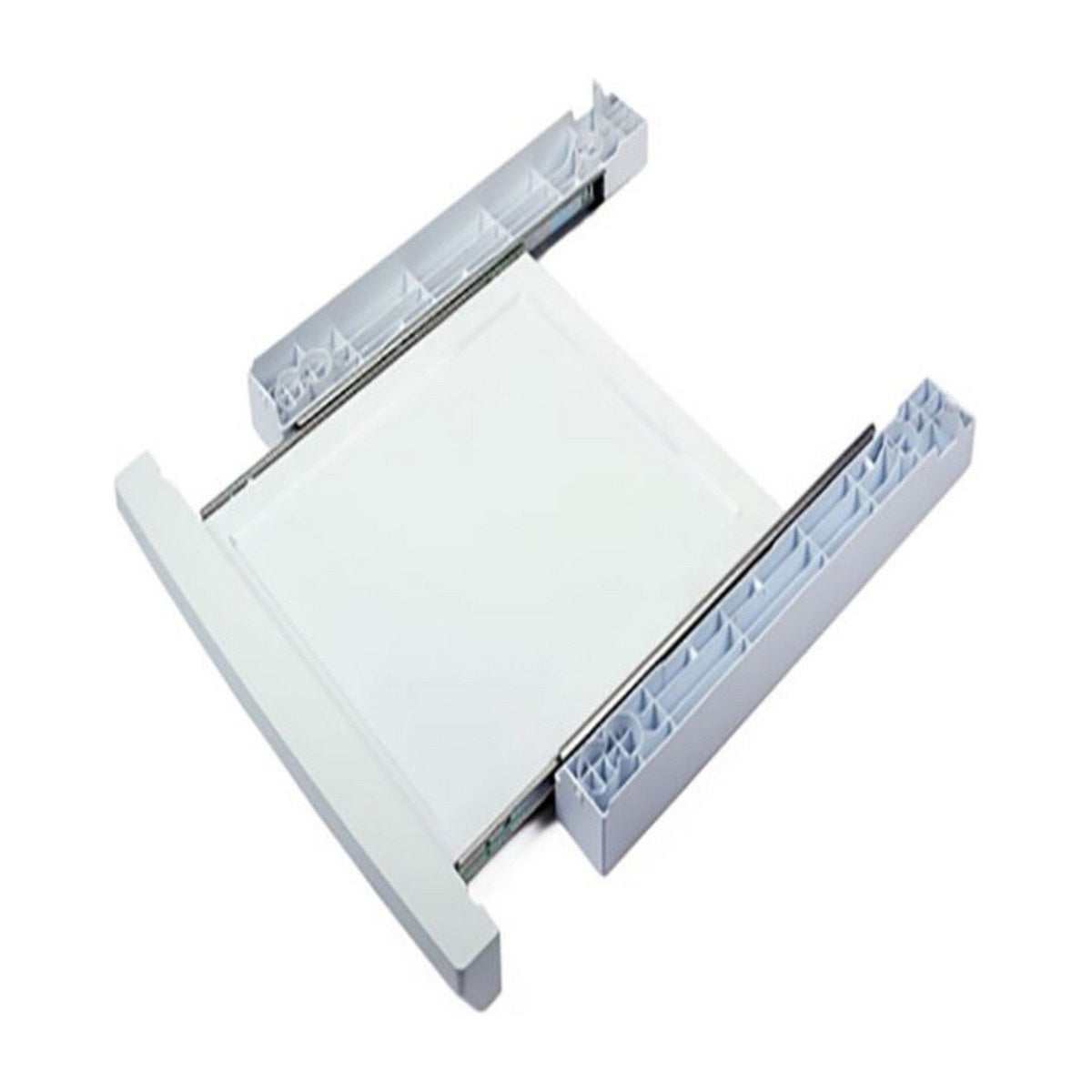

428122 Genuine Stacking Kit with Slide Out Shelf for Fisher & Paykel, Haier Dryers and Washers WH8560F WH8060F WH7560P DE8060P DH8060P HDHP80AW1

Stack a dryer on top of a front load washer with this genuine Fisher & Paykel and Haier stacking kit, part 428122. The kit includes a slide out shelf that sits between the two machines. It replaces the earlier numbers H0180800719 and 427976 and is listed for the WH8560F, the WH8060F, the WH8560P, the WH7560P and the WH8060P, the DE8060P and DH8060P dryers, and the Haier HWF85AN1 and HDHP80AW1.

Stacking your Fisher & Paykel or Haier dryer on the washer

A stacking kit locks the dryer to the top of the washer so it can't creep forward or slide off while the drum tumbles or the washer spins hard. Without one, vibration can walk the dryer toward the edge, which is a real safety risk in a busy laundry. This kit adds a slide out shelf, a handy spot for folding or sorting clothes as you unload. It's also the part to order if a kit was lost when moving house or when one of the machines was replaced.

Part details

• Genuine stacking kit 428122
• Includes a slide out shelf
• Replaces H0180800719 and 427976
• Listed for F&P WH washers and DE8060P and DH8060P dryers
• Also listed for Haier HWF85AN1 and HDHP80AW1

Stacking the machines safely

Unplug both machines and turn off the washer taps. You'll need two people to lift the dryer, as it's heavy and awkward to handle. Fit the kit to the top of the washer, lift the dryer into place and secure it to the kit before letting go. Check both machines are level and stable, and that the shelf slides freely, before running either one.

Questions about this part

Does it suit my washer and dryer pair?

It's listed for the F&P WH8560F and WH8060F, the WH8560P, the WH7560P and the WH8060P washers, the DE8060P and DH8060P dryers, and the Haier HWF85AN1 and HDHP80AW1. Check both machines' model labels against this list before ordering.
