424569P Genuine Suspension Kit 685, Pack of 4 for Fisher & Paykel Washing Machines WA8560G1 WA1068G1 WA8060G1 WA7060G1 WL1068P1 WA8560E1

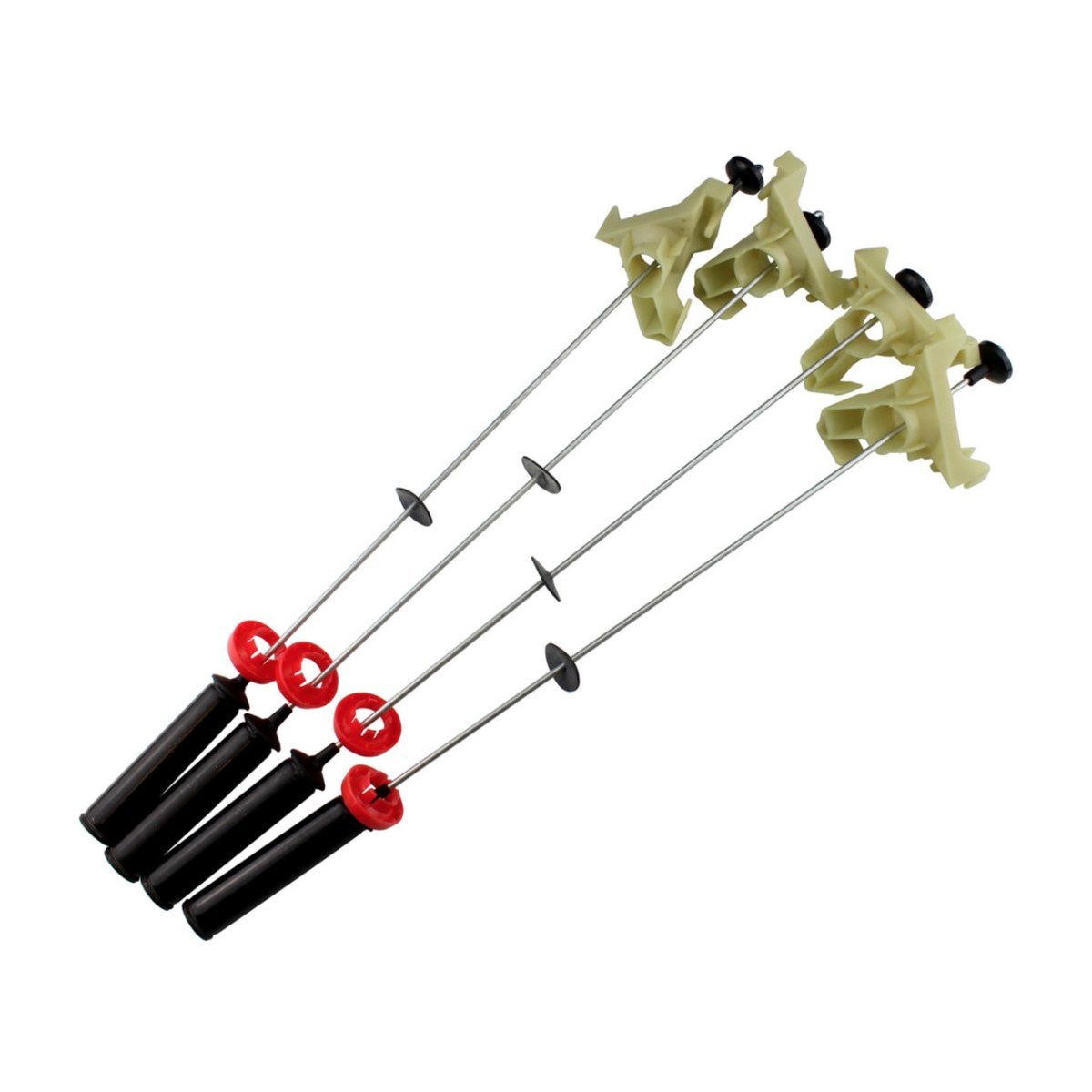

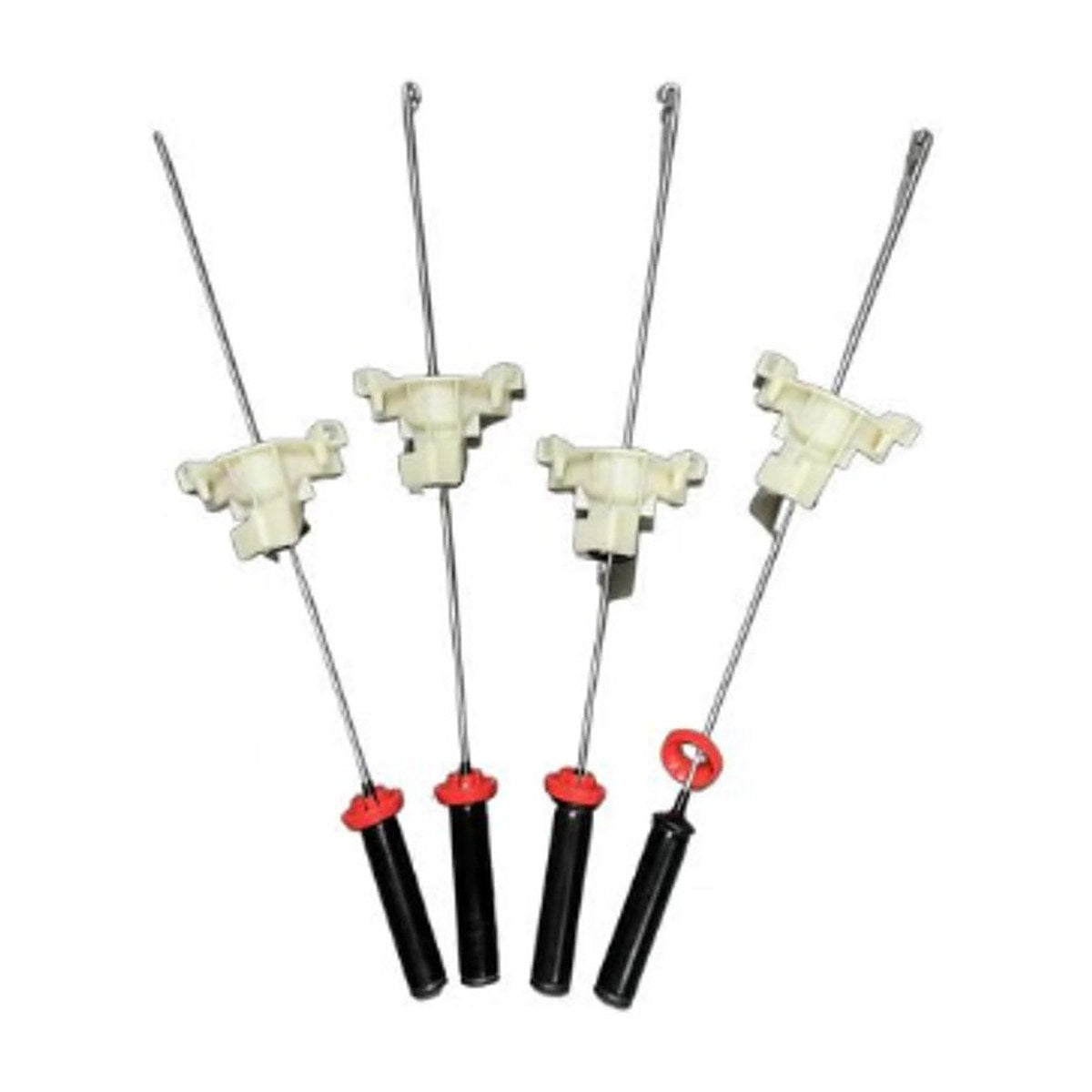

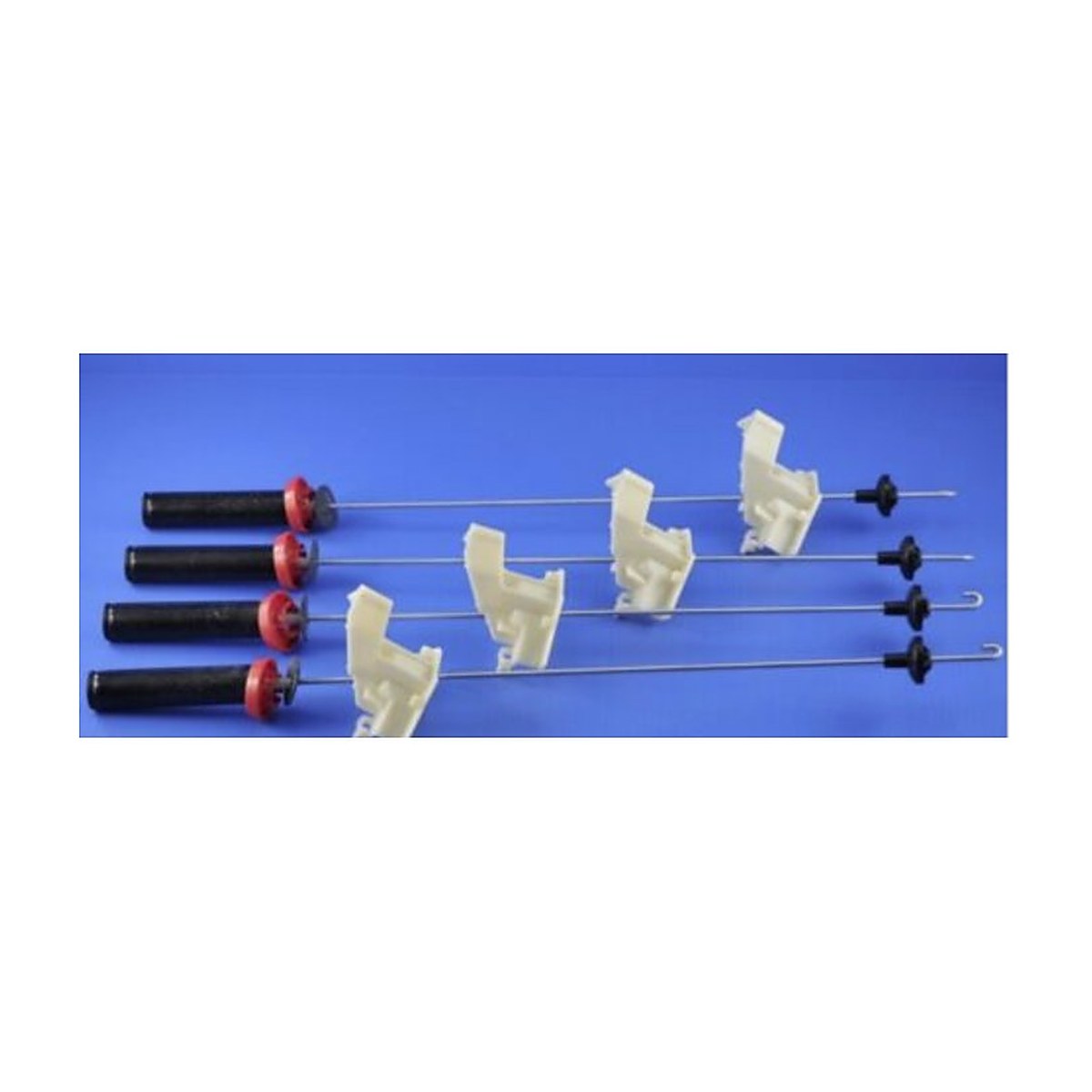

Fisher & Paykel suspension kit 685, part 424569P, is a genuine set of four suspension rods for top load washing machines including the WA8560G1 and WA1068G1, the WA8060G1 and WA7060G1, and the WA7560E1 and WL1068P1. It replaces the earlier number 421841P. The rods hang the outer bowl and absorb its movement, so a worn set is the usual reason a machine starts thumping during spin.

Fisher & Paykel washer banging or walking on spin

Four rods suspend the bowl assembly from the top corners of the cabinet, with dampers that soak up movement as the load spins. As they wear, the bowl swings further than it should. You'll notice loud banging against the cabinet, the machine shuffling across the floor, frequent out of balance stops, or an empty bowl that sits off centre or low on one side. Replacing all four at once keeps the damping even, which is why they come as a kit rather than a single rod.

Part details

• Genuine Fisher & Paykel part 424569P
• Kit 685 with four suspension rods
• Replaces 421841P
• Listed for WL1068P1, WA7060G1 and WA8060G1, plus WA8560G1 and WA1068G1

Fitting the suspension rods

Unplug the machine and turn off both taps. The rods hook into the top corners of the cabinet and into brackets on the bowl, so the top deck needs to come up to reach them. Swap one rod at a time so the bowl stays supported, and make sure each one seats fully in its socket. Finish with an empty spin to check the bowl hangs level and runs quietly.

Questions about this part

Does this kit fit every version of my model?

Not always. WA7560E1 and WA8560E1 were built in several versions, and the ones with product codes 92262-B or 93261-B use a different rod, 430055P. WA1068G1 with product code 93265-B is also different. Check the product code on the compliance label.
